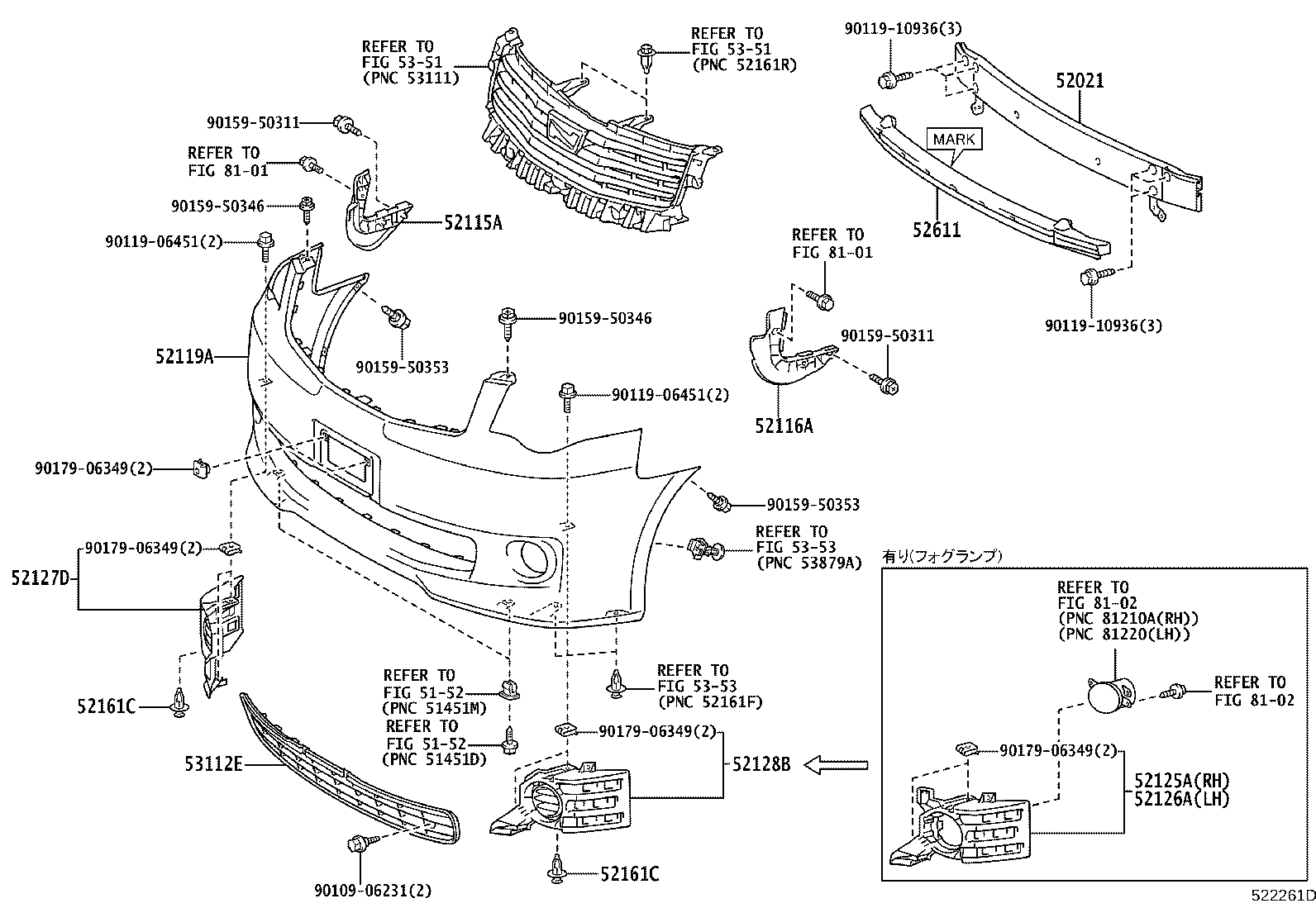

ZRR75G-APXEP (2010)
Toyota Noah/Voxy
(1004- )NOAH..G,X,YY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52021-28250 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52115-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28C90B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28C90A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D00B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D00J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D00C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D00D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28C90C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D00A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D00J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D00B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D70A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D70K0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D70J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S1 |
1 | ||
| 52119-28D70C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D70F0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28F90C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D70D0 |
ZRR7#..NOAH..X..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F80B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90D0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F90A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28F90K0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 81481-28330 |
ZRR7#..V |
1 | ||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28310 |
ZRR7#..G |
1 | ||
| 81481-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..G |
1 | ||
| 81482-28330 |
ZRR7#..V |
1 | ||
| 81482-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52127-28370 |
ZRR7#..S |
1 | ||
| 52127-28390 |
ZRR7#..Z |
1 | ||
| 52127-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128-28170 |
ZRR7#..Z |
1 | ||
| 52128-28150 |
ZRR7#..S |
1 | ||
| 81482-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..(G,S,SI,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..(G,S,SI,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28100 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28100 |
1 | ||
| 52611-28101 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28101 |
1 | ||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28180 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28160 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28190 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-06451 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-50346 | ||||
| 90159-50353 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||
| 8102 | ||||
(1004- )S,SI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52021-28250 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52115-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28D70F0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28C90B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28C90A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D00B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D00J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D00C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D00D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28C90C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D00A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D00J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D00B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D70A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D70K0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D70J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S1 |
1 | ||
| 52119-28D70C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28F90C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D70D0 |
ZRR7#..NOAH..X..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F80B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90D0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F90A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28F90K0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 81481-28330 |
ZRR7#..V |
1 | ||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28310 |
ZRR7#..G |
1 | ||
| 81481-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..G |
1 | ||
| 81482-28330 |
ZRR7#..V |
1 | ||
| 81482-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52127-28370 |
ZRR7#..S |
1 | ||
| 52127-28390 |
ZRR7#..Z |
1 | ||
| 52127-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128-28170 |
ZRR7#..Z |
1 | ||
| 52128-28150 |
ZRR7#..S |
1 | ||
| 81482-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..(G,S,SI,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..(G,S,SI,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28100 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28100 |
1 | ||
| 52611-28101 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28101 |
1 | ||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28180 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28160 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28190 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127-28290 |
ZRR7#..G |
1 | ||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 52127-28360 |
ZRR7#..S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127-28380 |
ZRR7#..Z ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 52128-28290 |
ZRR7#..G |
1 | ||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 52128-28160 |
ZRR7#..Z ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52128-28140 |
ZRR7#..S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-06451 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-50353 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||
| 8102 | ||||
(1004- )Z,ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52021-28250 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52115-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52115-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28130 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28210 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28180 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52116-28200 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28C90B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28C90A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D00B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D00J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D00C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D00D0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28C90C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D00A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28C90J1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D70F0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28D00J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D00B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28C90B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D70A0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D70K0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D70J0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) LT.BLUE M.M.,8S1 |
1 | ||
| 52119-28D70C0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28F90C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28F80B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D70D0 |
ZRR7#..NOAH..X..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F80B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B1 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D70B0 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28F90D0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F90A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28F90K0 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 81481-28330 |
ZRR7#..V |
1 | ||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28310 |
ZRR7#..G |
1 | ||
| 81481-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 81481-28350 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..G |
1 | ||
| 81482-28330 |
ZRR7#..V |
1 | ||
| 81482-28360 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28310 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52127-28370 |
ZRR7#..S |
1 | ||
| 52127-28390 |
ZRR7#..Z |
1 | ||
| 52127-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28260 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52128-28170 |
ZRR7#..Z |
1 | ||
| 52128-28150 |
ZRR7#..S |
1 | ||
| 81482-28320 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28100 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28100 |
1 | ||
| 52611-28101 |
ZRR7#..CBU,IV5 ﾏｰｸ 52611−28101 |
1 | ||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28180 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28160 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28190 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127-28290 |
ZRR7#..G |
1 | ||
| 52127-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 52127-28360 |
ZRR7#..S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127-28380 |
ZRR7#..Z ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 52128-28290 |
ZRR7#..G |
1 | ||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52128-28290 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 52128-28160 |
ZRR7#..Z ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52128-28140 |
ZRR7#..S ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-50346 | ||||
| 90159-50353 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
