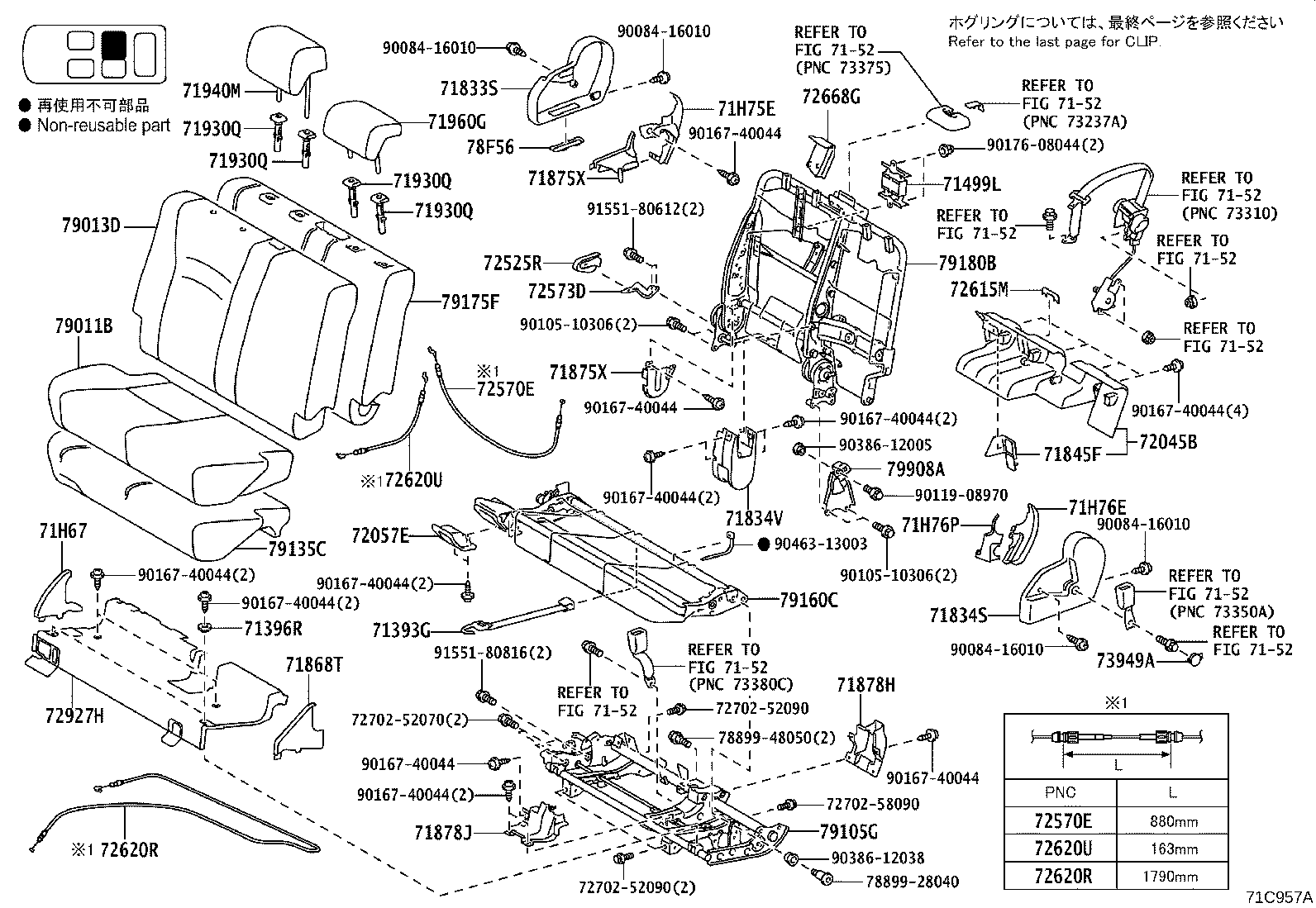

ZRR75G-ANXNP (2010)
Toyota Noah/Voxy
(1004- )05S,08S
ﾘﾔNO.1ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71393G - BAND, NO.1 SEAT CUSHION(FOR RH SEAT) | ||||
| 71393-28070B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71396R - CUSHION, NO.2 SEAT SUPPORT, REAR(FOR RH SEAT) | ||||
| 71396-28030B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY |
4 | ||
| 71499L - DAMPER, NO.1 SEAT BACK SPRING, RH | ||||
| 71499-28050 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 71499-46020 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ) |
1 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-28170E0 |
ZRR70..NOAH..X..CBU;ZRR75..NOAH..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71833-28190B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 71833-28170B0 |
ZRR70..(S,SI,X,Z,ZS)..CBU;ZRR75..(S,SI,V,X,Z,ZS)..CBU DK.GRAY,TRIM1# |
1 | ||
| 71833-28200B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71833-28210B0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71833-28210E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-28090B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 71834-28240B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71834-28250B0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71834-28250E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71834V - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71801-28020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71845F - CAP, REAR SEAT COVER | ||||
| 71845-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71868T - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-28030B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28060 |
ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU NO.1 |
1 | ||
| 71875-28300B0 |
ZRR7#..(05S,08S)..CBU DK.GRAY,TRIM2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28180 |
ZRR7#..(05S,08S)..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28340E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71875-28340B0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28060 |
ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU NO.1 |
1 | ||
| 71875-28300B0 |
ZRR7#..(05S,08S)..CBU DK.GRAY,TRIM2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28180 |
ZRR7#..(05S,08S)..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28340E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71875-28340B0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71878H - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-28060B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71878J - COVER, REAR NO.1 SEAT RECLINING, INNER RH | ||||
| 71879-28070B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28C10E0 |
ZRR7#..G GREGE,TRIM4# |
2 | ||
| 71940-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28C30E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71940-28B10B1 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU DARK GRAY,TRIM1# |
2 | ||
| 71940-28B70E1 |
ZRR7#..G GREGE,TRIM4# |
2 | ||
| 71940-28C30C0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 71940-28D50C0 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
2 | ||
| 71940-28B90B0 |
ZRR7#..V DARK GRAY,TRIM2# |
2 | ||
| 71960G - HEADREST ASSY, REAR NO.1 SEAT, CENTER | ||||
| 71960-28220C0 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
1 | ||
| 71H67 - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-28040B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71H75E - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH S | ||||
| 71875-28290B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71875-28310E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71875-28310B0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71H76E - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH S | ||||
| 71876-28280B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71H76P - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT) | ||||
| 71876-28290B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72045B - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER RH | ||||
| 72045-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72057E - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1 | ||||
| 72057-28010B0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 72057-28010E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 72057-28050B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72525R - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020E2 |
ZRR70..NOAH..X..CBU;ZRR75..NOAH..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72525-47020B1 |
ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72525-28110B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72525-47020B1 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 72525-47020E2 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28080 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28080 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72573D - LEVER, NO.1 SEAT RECLINING CONTROL, RH | ||||
| 72573-28010 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72615M - COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT) | ||||
| 72615-28020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
2 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28110 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28110 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72620U - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-28100 |
ZRR7#..(05S,08S)..(CBU,IV5) |
2 | ||
| 72620U - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-28100 |
ZRR7#..(05S,08S)..(CBU,IV5) |
2 | ||
| 72668G - BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT) | ||||
| 72668-28020 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72927H - COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1 | ||||
| 72927-28140B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 72927-28150B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 73949A - CAP | ||||
| 71848-28040B0 |
ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM2# |
2 | ||
| 71848-28040E0 |
ZRR7#..NOAH..(G,X)..CBU;ZRR70..NOAH..08S..X..IV5 GREGE,TRIM4# |
2 | ||
| 71848-28040B0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71848-28040E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 78F56 - CAP | ||||
| 73317-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
2 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28G10E0 |
ZRR75..G GREGE,TRIM4# |
1 | ||
| 79011-28E90B3 |
ZRR7#..05S DARK GRAY,TRIM1# |
1 | ||
| 79011-28G20B0 |
ZRR75..V DARK GRAY,TRIM1# |
1 | ||
| 79011-28J20C0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 79011-28J20E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 79011-28G90C2 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
1 | ||
| 79011-28J50B0 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79011-28J40E0 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79011-28J20E1 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 79011-28G90C3 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..HTWVM BLACK,TRIM2# |
1 | ||
| 79011-28J20C2 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 79011-28J40E1 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79011-28J50B1 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28G90E0 |
ZRR75..G GREGE,TRIM4# |
1 | ||
| 79013-28F70B1 |
ZRR7#..05S DARK GRAY,TRIM1# |
1 | ||
| 79013-28K40C1 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 79013-28J00B0 |
ZRR75..V DARK GRAY,TRIM1# |
1 | ||
| 79013-28K40E1 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 79013-28J70C1 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
1 | ||
| 79013-28K30B1 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79013-28J70C2 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..HTWVM BLACK,TRIM2# |
1 | ||
| 79013-28K20E1 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79013-28K40E2 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 79013-28K40C2 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28340 |
ZRR7#..05S |
1 | ||
| 79105-28390 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79105-28400 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ) |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28480 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79135-28440 |
ZRR7#..05S |
1 | ||
| 79160C - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-28350 |
ZRR7#..05S |
1 | ||
| 79160-28380 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28410 |
ZRR7#..05S |
1 | ||
| 79175-28490 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79175-28510 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ) |
1 | ||
| 79180B - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28640 |
ZRR7#..05S |
1 | ||
| 79180-28680 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79180-28700 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ) |
1 | ||
| 79908A - PLATE SUB-ASSY, SEAT HINGE, LH | ||||
| 79908-28020 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 72702-52070 | ||||
| 72702-52090 | ||||
| 72702-58090 | ||||
| 78899-28040 | ||||
| 78899-48050 | ||||
| 90084-16010 | ||||
| 90105-10306 | ||||
| 90119-08970 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90386-12005 | ||||
| 90386-12038 | ||||
| 90463-13003 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 7152 | ||||

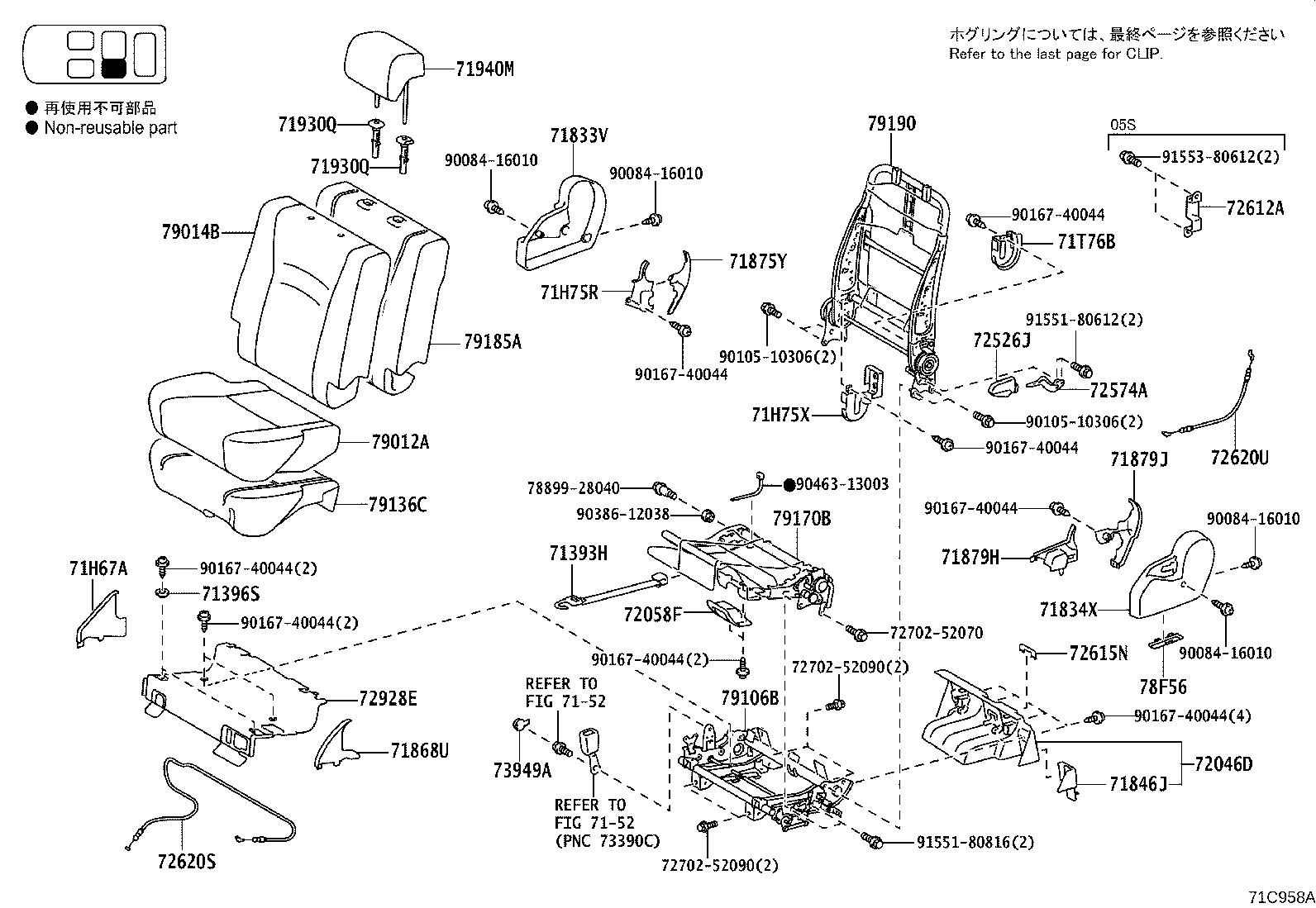

(1004- )05S,08S
ﾘﾔNO.1ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71393H - BAND, NO.1 SEAT CUSHION(FOR LH SEAT) | ||||
| 71393-28070B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71833V - COVER, NO.1 SEAT RECLINING, NO.2 RH | ||||
| 71833-28110B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 71833-28220B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71834X - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-28220B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 71834-28260B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71846J - CAP, REAR SEAT BACK BOARD, NO.2 | ||||
| 71846-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71868U - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT) | ||||
| 71867-28050B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71875Y - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT B | ||||
| 71875-28320B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71875-28060 |
ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU |
1 | ||
| 71879H - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71876-28310B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71879J - COVER, REAR NO.1 SEAT RECLINING, INNER LH | ||||
| 71876-28300B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
ZRR7#..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
ZRR75..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
2 | ||
| 71930-44020B0 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM2# |
3 | ||
| 71931-47010B2 |
ZRR7#..(05S,08S)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM2# |
3 | ||
| 71930-44020E0 |
ZRR75..NOAH..X..CBU ﾛｯｸ付,ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) Oq Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28C10E0 |
ZRR7#..G GREGE,TRIM4# |
2 | ||
| 71940-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28C30E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 71940-28B10B1 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU DARK GRAY,TRIM1# |
2 | ||
| 71940-28B70E1 |
ZRR7#..G GREGE,TRIM4# |
2 | ||
| 71940-28C30C0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),BLACK,TRIM2# |
1 | ||
| 71940-28D50C0 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
2 | ||
| 71940-28B90B0 |
ZRR7#..V DARK GRAY,TRIM2# |
2 | ||
| 71H67A - SHIELD, NO.1 SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT) | ||||
| 71868-28040B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71H75R - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT) | ||||
| 71875-28330B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 71H75X - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT) | ||||
| 71875-58220 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28060 |
ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU |
2 | ||
| 71876-28330B0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71876-28170 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 71876-28330E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 72046D - COVER SUB-ASSY, REAR SEAT TRACK, OUTER LH NO.1 | ||||
| 72046-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72058F - LEVER SUB-ASSY, NO.1 SEAT LOCK CONTROL, LH | ||||
| 72058-28060B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM1# |
1 | ||
| 72526-28110B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 72574A - LEVER, RECLINING CONTROL, LH | ||||
| 72574-28010 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72612A - BRACKET, REAR SEAT LOCK, LH | ||||
| 72612-28040 |
ZRR7#..05S |
1 | ||
| 72620S - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT) | ||||
| 72620-28120 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 72620U - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-28100 |
ZRR7#..(05S,08S)..(CBU,IV5) |
2 | ||
| 72928E - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-28110B0 |
ZRR7#..05S DK.GRAY,TRIM1# |
1 | ||
| 72928-28120B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
1 | ||
| 73949A - CAP | ||||
| 71848-28040B0 |
ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU DK.GRAY,TRIM2# |
2 | ||
| 71848-28040E0 |
ZRR7#..NOAH..(G,X)..CBU;ZRR70..NOAH..08S..X..IV5 GREGE,TRIM4# |
2 | ||
| 71848-28040B0 |
ZRR75..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),DK.GRAY,TRIM2# |
1 | ||
| 71848-28040E0 |
ZRR75..NOAH..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(TECS)&Lｴﾃﾞｨｼｮﾝ(ｳﾞｫｸｼｰ) OR Lｾﾚｸｼｮﾝ(ﾉｱ),GREGE,TRIM4# |
1 | ||
| 78F56 - CAP | ||||
| 73317-28010B0 |
ZRR7#..(05S,08S)..(CBU,IV5) DK.GRAY,TRIM2# |
2 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28800B0 |
ZRR75..V DARK GRAY,TRIM1# |
1 | ||
| 79012-28790E0 |
ZRR75..G GREGE,TRIM4# |
1 | ||
| 79012-28700B3 |
ZRR7#..05S DARK GRAY,TRIM1# |
1 | ||
| 79012-28890C2 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
1 | ||
| 79012-28A40E0 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79012-28A50B0 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79012-28890C3 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..HTWVM BLACK,TRIM2# |
1 | ||
| 79012-28A40E1 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79012-28A50B1 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28C80E0 |
ZRR75..G GREGE,TRIM4# |
1 | ||
| 79014-28C90B0 |
ZRR75..V DARK GRAY,TRIM1# |
1 | ||
| 79014-28B90B1 |
ZRR7#..05S DARK GRAY,TRIM1# |
1 | ||
| 79014-28E00C1 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU BLACK,TRIM2# |
1 | ||
| 79014-28E70B1 |
ZRR7#..V DARK GRAY,TRIM2# |
1 | ||
| 79014-28E50E1 |
ZRR7#..G GREGE,TRIM4# |
1 | ||
| 79014-28E00C2 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..HTWVM BLACK,TRIM2# |
1 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79106-28210 |
ZRR7#..05S |
1 | ||
| 79106-28230 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28180 |
ZRR7#..05S |
1 | ||
| 79136-28200 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79170B - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79170-28130 |
ZRR7#..05S |
1 | ||
| 79170-28150 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-28140 |
ZRR7#..05S |
1 | ||
| 79185-28170 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| 79190 - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28450 |
ZRR7#..05S |
1 | ||
| 79190-28470 |
ZRR7#..(05S,08S)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 72702-52070 | ||||
| 72702-52090 | ||||
| 78899-28040 | ||||
| 90084-16010 | ||||
| 90105-10306 | ||||
| 90167-40044 | ||||
| 90386-12038 | ||||
| 90463-13003 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
