ZRR75G-ANXNP (2010)

Toyota Noah/Voxy

Production Apr 2010 - Jan 2014
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1004- )05S,08S

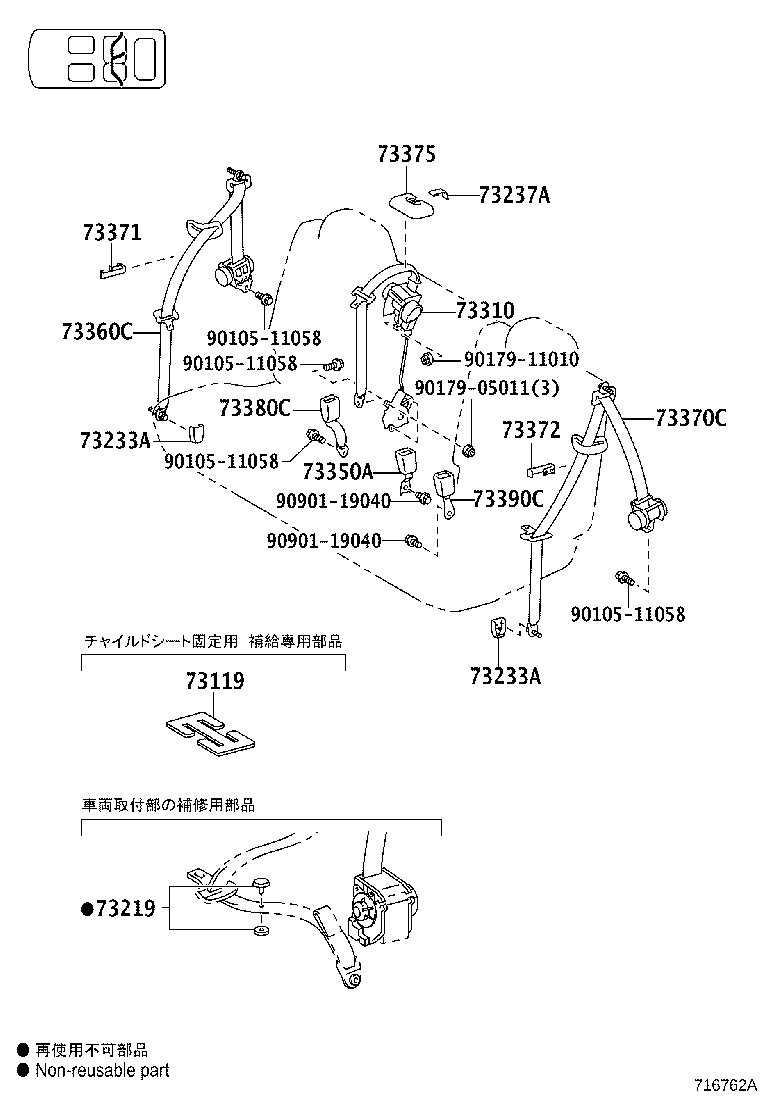

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼｰﾄ

diagram 73119 73219 73233A 73233A 73237A 73310 73350A 73360C 73370C 73371 73372 73375 73380C 73390C 9010511058 9010511058 9010511058 9010511058 9017905011 9017911010 9090119040 9090119040
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZRR7#..CBU,IV5

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ZRR7#..CBU,IV5

ﾌﾞﾗｯｸ

 1
73219-33020

ZRR7#..CBU,IV5

ｸﾞﾚｰ

 1
73219-33030

ZRR7#..CBU,IV5

ﾍﾞｰｼﾞｭ

 1
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-52010E3

ZRR7#..NOAH..(G,X)..CBU

GREGE,TRIM4#

 2
73233-52010B1

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
73233-52010C0

ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM2#

 2
73233-52010E3

ZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU

GREGE,TRIM4#

 2
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-52010E3

ZRR7#..NOAH..(G,X)..CBU

GREGE,TRIM4#

 2
73233-52010B1

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

DK.GRAY,TRIM1#

 2
73233-52010C0

ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM2#

 2
73233-52010E3

ZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU

GREGE,TRIM4#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-28020B0

ZRR7#..(05S,08S)..(CBU,IV5)

DK.GRAY,TRIM2#

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-28240C0

ZRR7#..(05S,08S)..(CBU,IV5)

BLACK,TRIM2#

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-28300C0

ZRR7#..(05S,08S)..(CBU,IV5)

BLACK,TRIM2#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-28430B0

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

BLACK,TRIM1#

 1
73360-28700E0

ZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73360-28700B0

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

BLACK,TRIM2#

 1
73360-28430E0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-28610B0

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM1#

 1
73370-28630B0

ZRR70..(05S,08S)..(CBU,IV5);ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU;ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU

BLACK,TRIM2#

 1
73370-28630E0

ZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU

GREGE,TRIM4#

 1
73370-28610E0

ZRR7#..NOAH..(G,X)..CBU

GREGE,TRIM4#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-16050E3

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73371-16050P6

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

MD.GRAY,TRIM1#

 1
73371-16050E3

ZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73371-1605022

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

BLACK,TRIM2#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-1605022

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

BLACK,TRIM2#

 1
73371-16050P6

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

MD.GRAY,TRIM1#

 1
73371-16050E3

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73371-16050E3

ZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)

GREGE,TRIM4#

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-28020B0

ZRR7#..(05S,08S)..(CBU,IV5)

DK.GRAY,TRIM2#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-28470B0

ZRR7#..05S

DK.GRAY,TRIM1#

 1
73380-28520C0

ZRR7#..(05S,08S)..(CBU,IV5)

BLACK,TRIM2#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-28310C0

ZRR7#..(05S,08S)..(CBU,IV5)

BLACK,TRIM2#

 1
Common parts
90105-11058
90179-05011
90179-11010
90901-19040
