ZRR75G-ANXNP (2010)

Toyota Noah/Voxy

Production Apr 2010 - Jan 2014
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1004- )NOAH

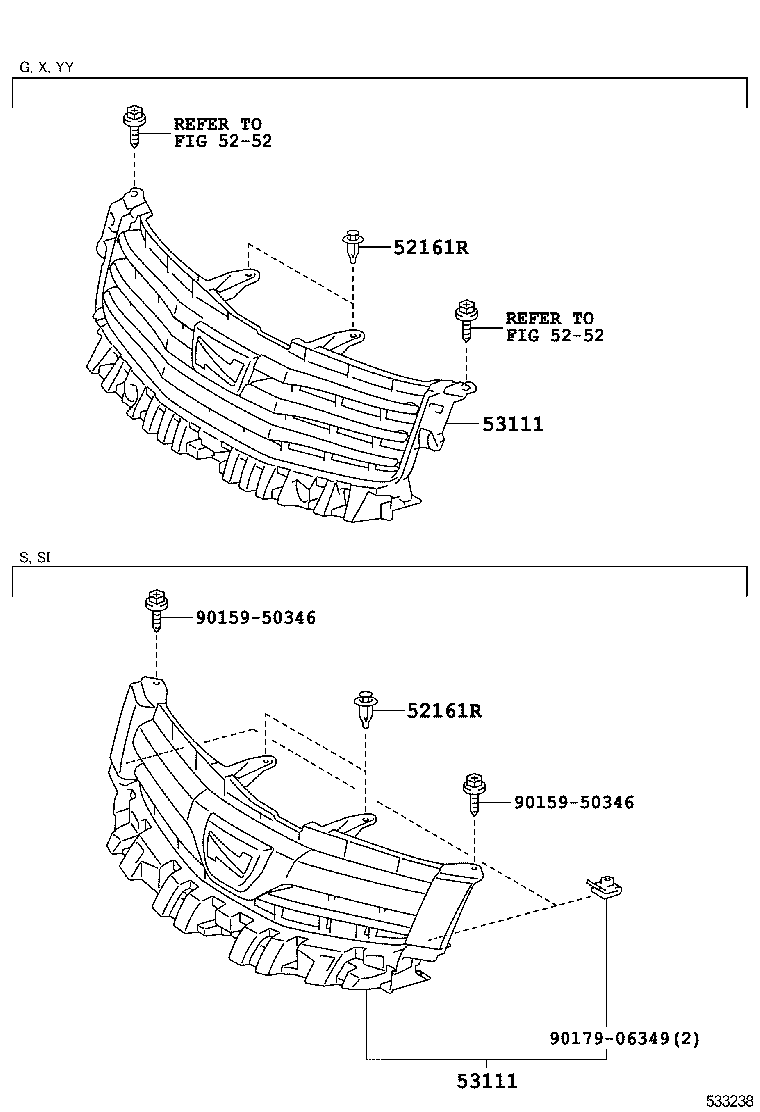

Click highlighted areas on diagram

diagram 52161R 52161R 5252 5252 53111 53111 9015950346 9015950346 9017906349
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
53111 - GRILLE, RADIATOR
53111-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530B0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530A0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28530B1

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28530D0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK. RED M.M.,3Q3

 1
53111-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28530C0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

BLACK,202

 1
53111-28530J0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK.BLUE MC.,8S6

 1
53111-28530J1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

LT.BLUE M.M.,8S7

 1
53111-28570

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
53101-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53101-28530

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

ﾒｯｷ

 1
53101-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53101-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53101-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28640

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
53111 - GRILLE, RADIATOR
53111-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530B0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530A0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28530B1

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28530D0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK. RED M.M.,3Q3

 1
53111-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28530C0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

BLACK,202

 1
53111-28530J0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK.BLUE MC.,8S6

 1
53111-28530J1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

LT.BLUE M.M.,8S7

 1
53111-28570

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
53101-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53101-28530

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

ﾒｯｷ

 1
53101-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53101-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53101-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28640

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
Common parts
90159-50346
90179-06349
Linked diagrams
5252
