ZRR70W-BRXTK (2007)
Toyota Noah/Voxy
(0706-1004)VOXY..TRASX,V,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

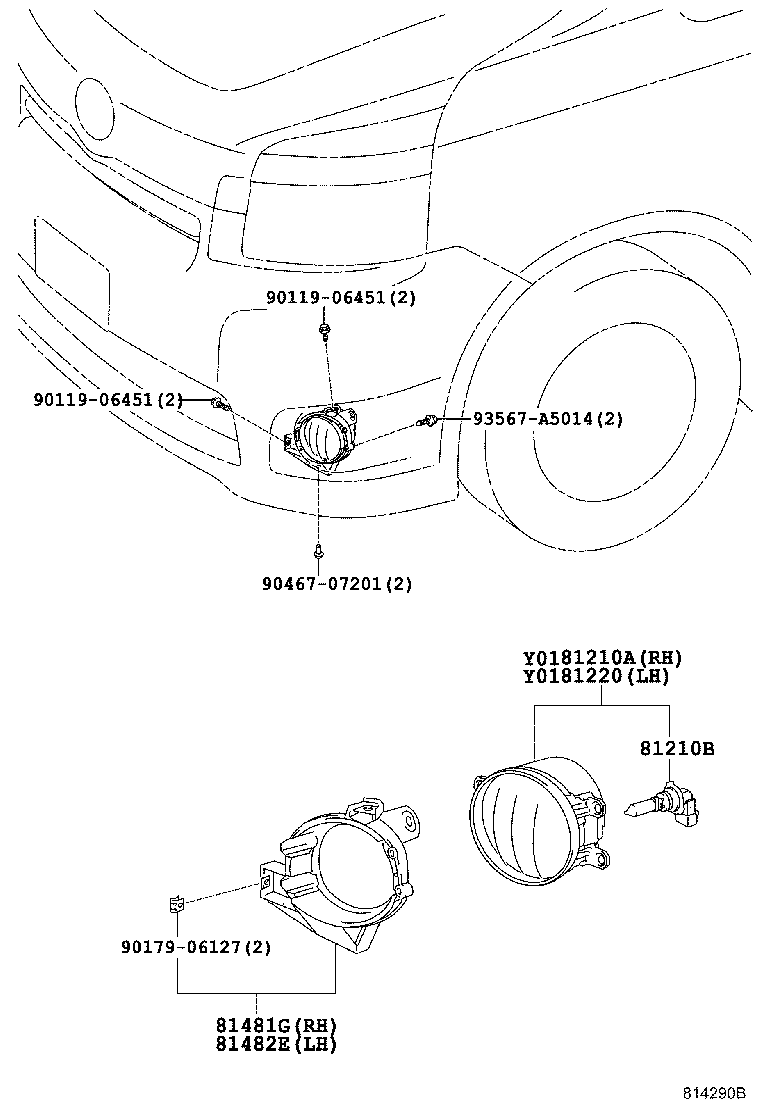

| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),PHILIPS |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),PHILIPS |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81220-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81481-28230 |
ZRR7#..V |
1 | ||
| 81481-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482-28230 |
ZRR7#..V |
1 | ||
| 81482-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81482-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90179-06127 | ||||
| 90467-07201 | ||||
| 93567-A5014 | ||||
(0706-1004)S,SI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),PHILIPS |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),PHILIPS |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81220-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81481-28230 |
ZRR7#..V |
1 | ||
| 81481-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482-28230 |
ZRR7#..V |
1 | ||
| 81482-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81482-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90179-06349 | ||||
| 90467-07201 | ||||
| 93567-A5014 | ||||
(0706-1004)Z,ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81210-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),PHILIPS |
2 | ||
| 90981-13075 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM),PHILIPS |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81218-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81220-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-0D041 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81228-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81481G - BRACKET, FOG LAMP, RH | ||||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81481-28230 |
ZRR7#..V |
1 | ||
| 81481-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81481-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81481-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81482E - BRACKET, FOG LAMP, LH | ||||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81482-28230 |
ZRR7#..V |
1 | ||
| 81482-28220 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81482-28210 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81482-28230 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| Common parts | ||||
| 90119-06451 | ||||
| 90179-06127 | ||||
| 90467-07201 | ||||
