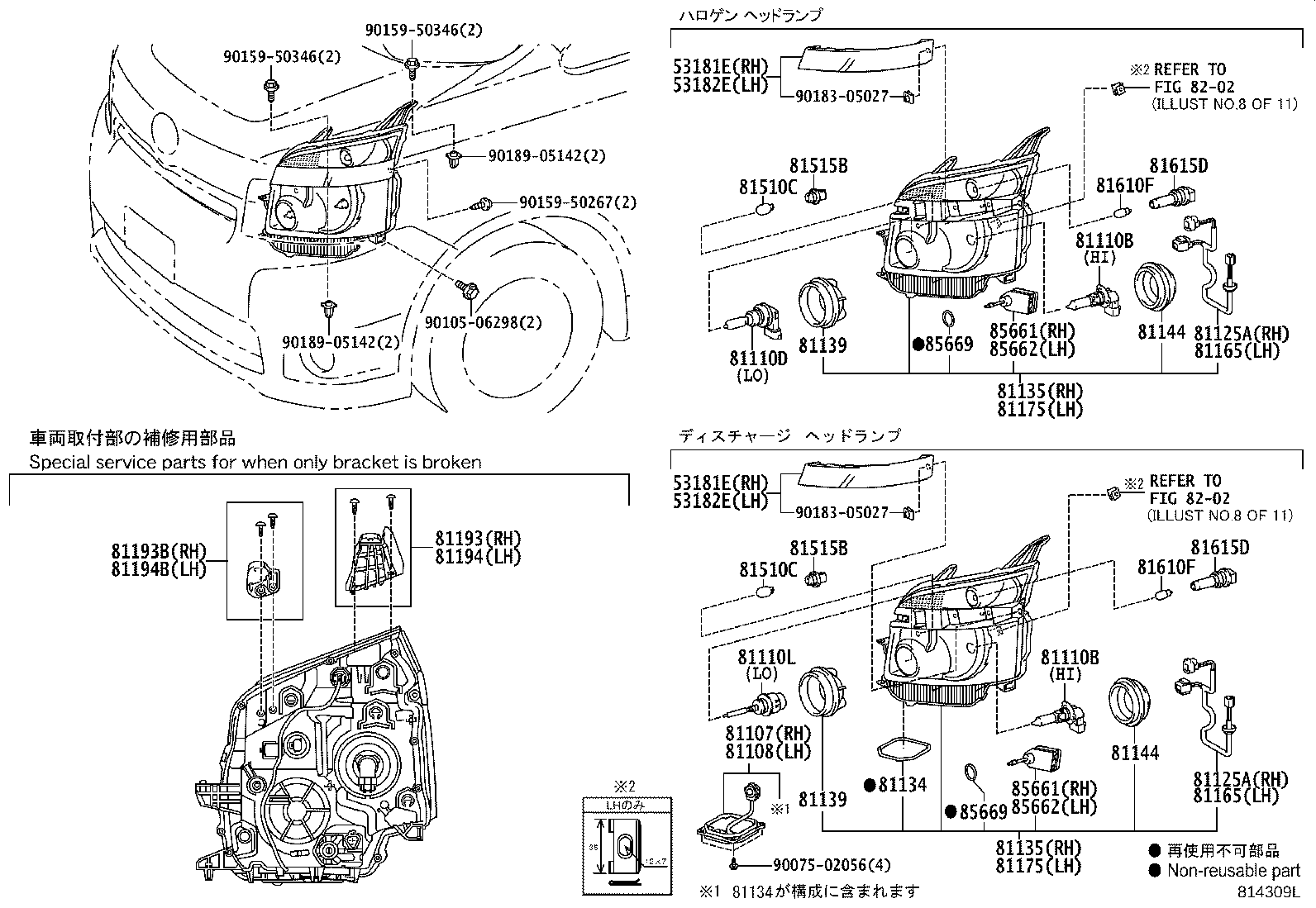

ZRR70W-BRXTK (2007)
Toyota Noah/Voxy
(0706-1004)VOXY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-28050B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53181-28050A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53181-28050D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53181-28050K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53181-28050J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53181-28051D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53181-28050C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53181-28051J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53181-28051C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53181-28050J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53181-28051A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53181-28051J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53181-28051B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53181-28051K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-28050B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53181-28050A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53181-28050D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53181-28050K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53181-28050J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53181-28051D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53181-28050C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53181-28051J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53181-28051C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53181-28050J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53181-28051A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53181-28051J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53181-28051B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53181-28051K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-28050A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53182-28050D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53182-28050C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53182-28050K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53182-28051B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53182-28050J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53182-28050J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53182-28051C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53182-28051D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53182-28051J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53182-28051A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53182-28050B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53182-28051J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53182-28051K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-28050A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53182-28050D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53182-28050C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53182-28050K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 53182-28051B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53182-28050J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53182-28050J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53182-28051C0 |
ZRR7#..VOXY..(CBU,IV5) BLACK,202 |
1 | ||
| 53182-28051D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 53182-28051J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 53182-28051A0 |
ZRR7#..VOXY..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 53182-28050B0 |
ZRR7#..VOXY..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 53182-28051J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 53182-28051K1 |
ZRR7#..VOXY..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-21150 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 81107-21150 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-21150 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81107-21150 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ZRR7#..CBU,IV5 12V 65W |
2 | ||
| 90981-13046 |
ZRR7#..CBU,IV5 12V65W(SAE),60W(ECE) |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ZRR7#..CBU,IV5 12V 65W |
2 | ||
| 90981-13046 |
ZRR7#..CBU,IV5 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) 42V 35W |
2 | ||
| 90981-20023 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) 45V 35W |
2 | ||
| 90981-20024 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU 42V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90981-20023 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU 45V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-28B80 |
ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81125-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81125-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-28B50 |
ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU |
1 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-28B80 |
ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81125-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81125-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-28B50 |
ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90075-68007 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-28B60 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81145-28B80 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81145-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-28B90 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81130-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81145-28B61 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81145-28B81 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-28B91 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81145-28B81 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81130-28B71 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-28B60 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81145-28B80 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81145-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-28B90 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81130-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81145-28B61 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81145-28B81 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81145-28B91 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81145-28B81 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81130-28B71 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-3A150 |
ZRR7#..CBU,IV5 |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-3A150 |
ZRR7#..CBU,IV5 |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ZRR7#..CBU,IV5 |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ZRR7#..CBU,IV5 |
2 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81165-28B50 |
ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU |
1 | ||
| 81125-28B80 |
ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81125-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81165-28B50 |
ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU |
1 | ||
| 81125-28B80 |
ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-28B61 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81185-28B80 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81185-28B90 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81185-28B81 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81185-28B60 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81185-28B81 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81185-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81185-28B91 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81170-28B71 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-28B61 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81185-28B80 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81185-28B90 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81185-28B81 |
ZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| 81185-28B60 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 81185-28B81 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-28B70 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81185-28B80 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81185-28B91 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 81170-28B71 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28100 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28110 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28100 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28110 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZRR7#..CBU,IV5 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZRR7#..CBU,IV5 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRR7#..CBU,IV5 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRR7#..CBU,IV5 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZRR7#..CBU,IV5 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZRR7#..CBU,IV5 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ZRR7#..CBU,IV5 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ZRR7#..CBU,IV5 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU |
1 | ||
| 85661-12020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 85661-12020 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU |
1 | ||
| 85661-12020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 85661-12020 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 85661-12010 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU |
1 | ||
| 85661-12020 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 85661-12010 |
ZRR7#..(05S,08S)..(TRASX,X,YY)..CBU |
1 | ||
| 85661-12020 |
ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZRR7#..CBU,IV5 |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZRR7#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90159-50267 | ||||
| 90159-50346 | ||||
| 90183-05027 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
