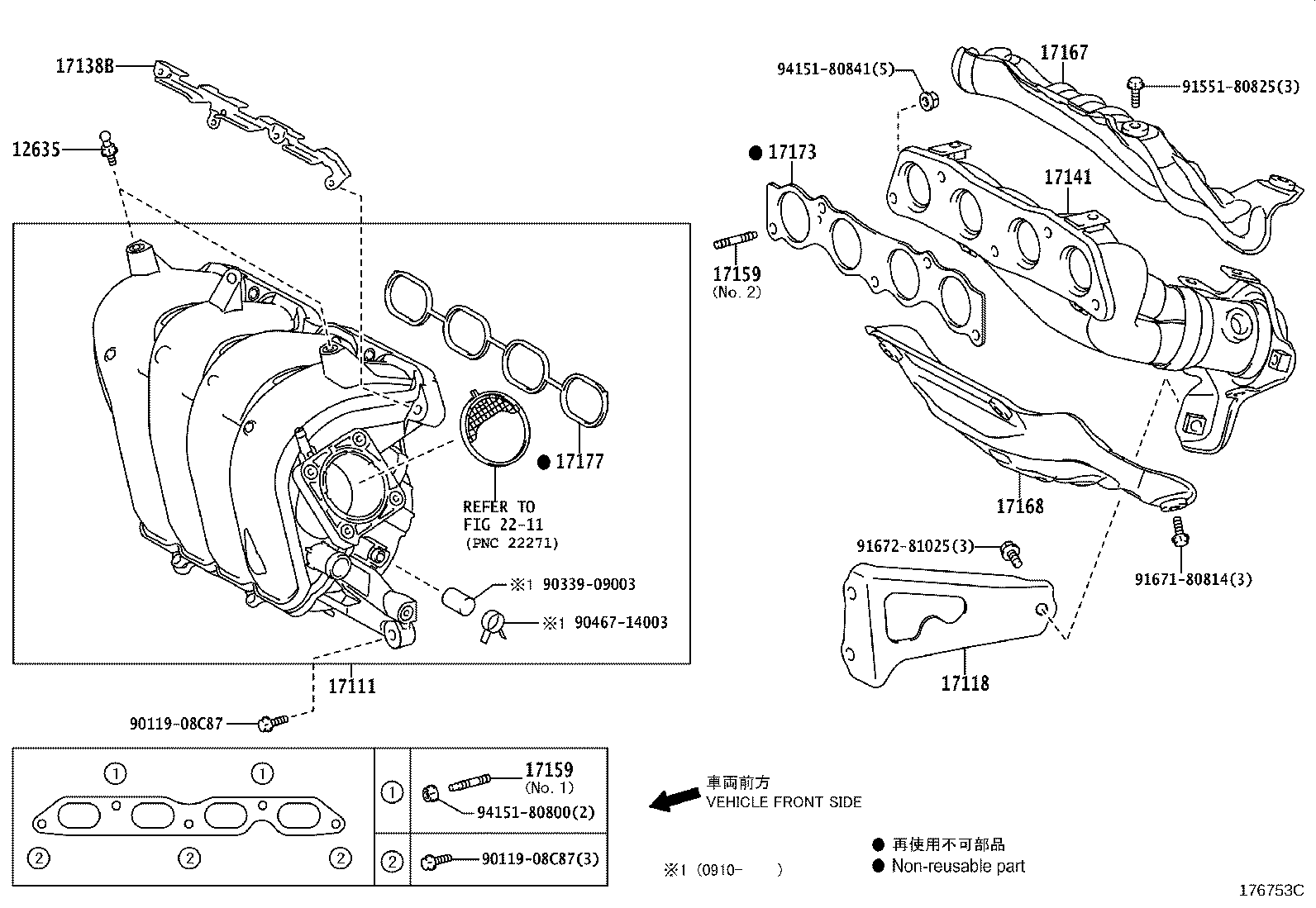

Toyota Noah/voxy ZRR70 MANIFOLD - JDM Part Detective

Part #	Description	Period	Qty
12635 - JOINT, ENGINE COVER
90109-06385	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	2
17111 - MANIFOLD, INTAKE
17120-37030	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 10/2009	1
17120-37031	3ZRFE..ZRR7#..CBU,IV5	10/2009 - 04/2010	1
17118 - STAY, MANIFOLD
17118-37050	3ZRFAE,3ZRFE..ZRR70..CBU,IV5	06/2007 - 04/2010	1
17138B - STAY, INTAKE MANIFOLD
17138-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
17141 - MANIFOLD, EXHAUST
17141-37080	3ZRFAE,3ZRFE..ZRR70..CBU,IV5	06/2007 - 04/2010	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1	06/2007 - 04/2010	2
90126-08052	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2	06/2007 - 04/2010	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1	06/2007 - 04/2010	2
90126-08052	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2	06/2007 - 04/2010	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37050	3ZRFAE,3ZRFE..ZRR70..CBU,IV5	06/2007 - 04/2010	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37070	3ZRFAE,3ZRFE..ZRR70..CBU,IV5	06/2007 - 04/2010	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
Common parts
90119-08C87
90339-09003
90467-14003
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
Linked diagrams
2211

ZRR70W-BRXTK (2007)
