ZRR70W-BRXTK (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010

Engine 3ZRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0706-1004)3ZRFE

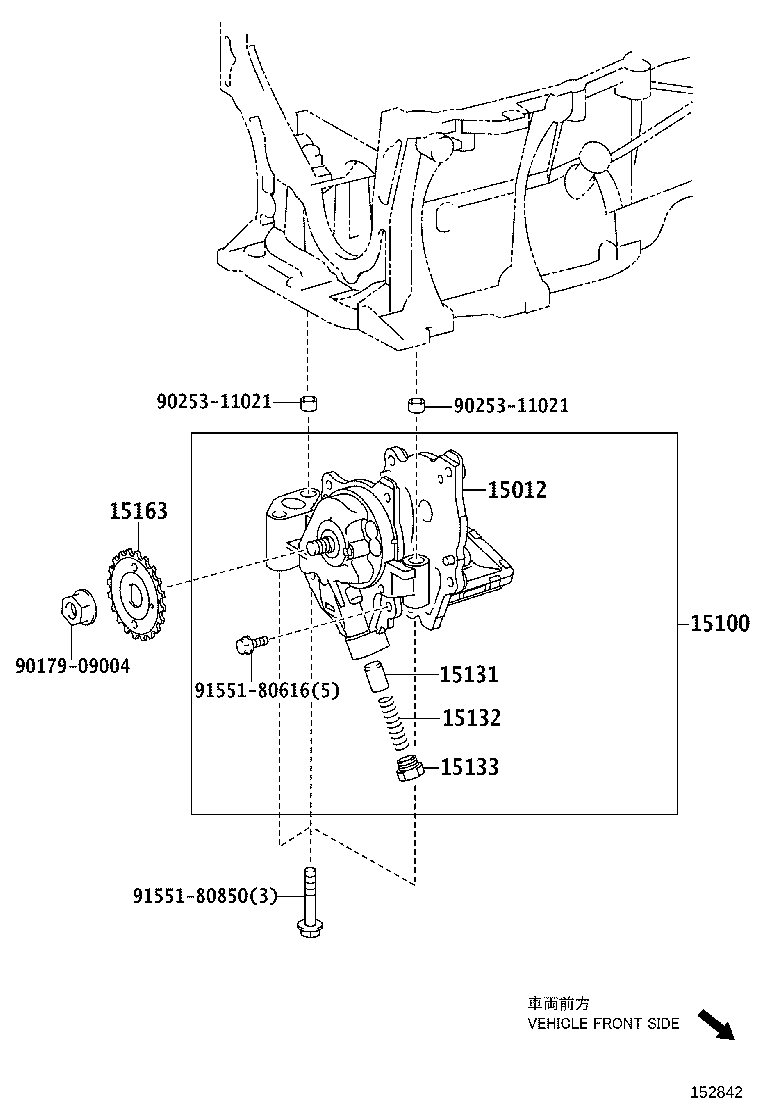

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-37010	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
15100 - PUMP ASSY, OIL
15100-37030	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
15131 - VALVE, OIL PUMP RELIEF
15131-0A040	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46060	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
Common parts
90179-09004
90253-11021
91551-80616
91551-80850
