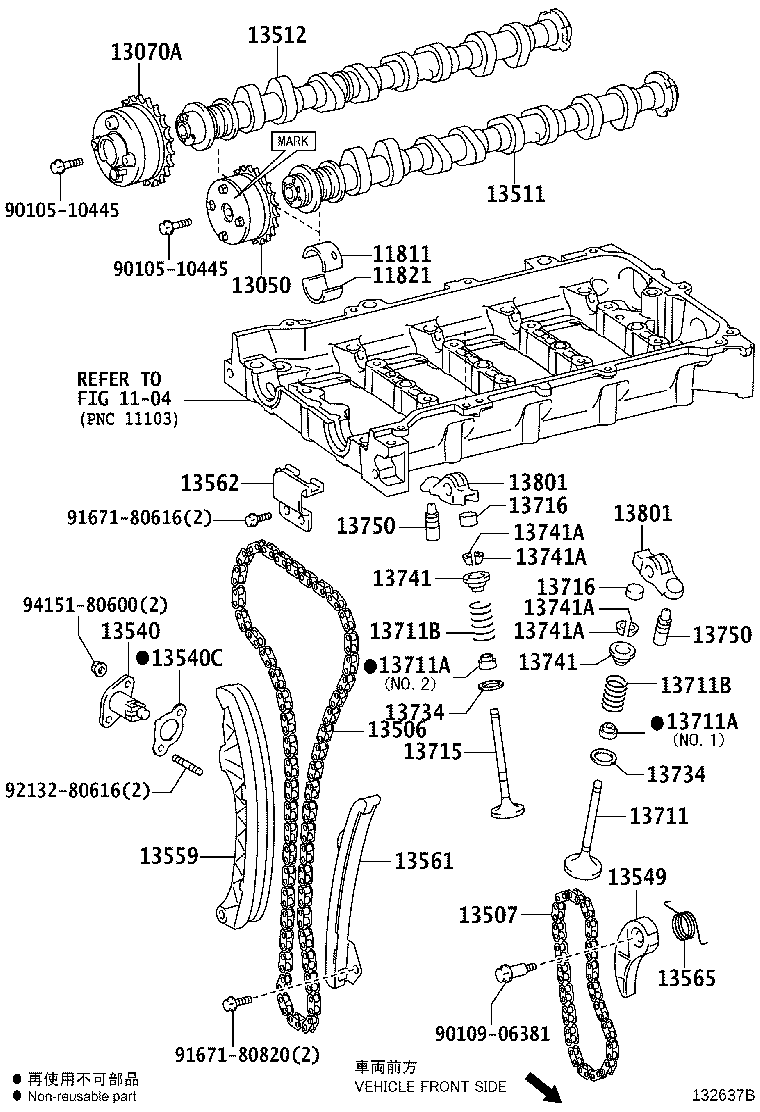

Toyota Noah/voxy ZRR70 CAMSHAFT & VALVE

Part #	Description	Period	Qty
11811 - BEARING, CAMSHAFT, NO.1
11811-37010	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	2
11821 - BEARING, CAMSHAFT, NO.2
11821-37010	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	2
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-0T021	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ﾏｰｸ 13050−0T021	06/2007 - 03/2009	1
13050-0T010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ﾏｰｸ 13050−0T010	12/2007 - 07/2009	1
13050-37012	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 品番刻印無し	06/2007 - 04/2010	1
13050-0T022	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ﾏｰｸ 13050−0T022	03/2009 - 04/2010	1
13050-0T011	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 ﾏｰｸ 13050−0T011	07/2009 - 04/2010	1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13506 - CHAIN SUB-ASSY
13506-37020	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13507 - CHAIN SUB-ASSY, NO.2
13507-28010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13511 - CAMSHAFT
13501-37011	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13512 - CAMSHAFT, NO.2
13502-37010	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-37030	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13549 - PLATE, CHAIN TENSIONER
13549-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13559 - SLIPPER, CHAIN TENSIONER
13559-37020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-37020	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-37010	3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13565 - SPRING, CHAIN DAMPER
13565-37010	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	1
13711 - VALVE, INTAKE
13711-37020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2	06/2007 - 04/2010	8
90913-02101	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1	06/2007 - 04/2010	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.2	06/2007 - 04/2010	8
90913-02101	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 NO.1	06/2007 - 04/2010	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31024	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31024	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13715 - VALVE, EXHAUST
13715-37030	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	8
13716 - CAP, VALVE STEM
13716-75020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13716 - CAP, VALVE STEM
13716-75020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13734 - SEAT, VALVE SPRING
13734-62020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13734 - SEAT, VALVE SPRING
13734-62020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13741 - RETAINER, VALVE SPRING
13741-20021	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13741 - RETAINER, VALVE SPRING
13741-20021	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	32
13750 - ADJUSTER ASSY, VALVE LASH
13750-75020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13750 - ADJUSTER ASSY, VALVE LASH
13750-75020	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-23011	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-23011	3ZRFAE,3ZRFE..ZRR7#..CBU,IV5	06/2007 - 04/2010	16
Common parts
90105-10445
90109-06381
91671-80616
91671-80820
92132-80616
94151-80600
Linked diagrams
1104

ZRR70W-BRXTK (2007)

(0706-1004)3ZRFE
