ZRR70W-BRXSP (2007)
Toyota Noah/Voxy
ILLUST NO. 1 OF 3(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51730 - STEP ASSY, REAR FLOOR, RH | ||||
| 51730-28130 |
ZRR7#..CBU,IV5 |
1 | ||
| 51740 - STEP ASSY, REAR FLOOR, LH | ||||
| 51740-28140 |
ZRR7#..CBU |
1 | ||
| 51740-28150 |
ZRR7#..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車 |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 57047-28111 |
ZRR7#..CBU,IV5 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-28110 |
ZRR7#..CBU |
1 | ||
| 57048-28121 |
ZRR7#..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車 |
1 | ||
| 57048-28120 |
ZRR70..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 57048-28111 |
ZRR7#..CBU |
1 | ||
| 57048-28121 |
ZRR70..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 57048-28120 |
ZRR7#..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車 |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57041-28120 |
ZRR70..G,V |
1 | ||
| 57041-28110 |
ZRR75..CBU,IV5;ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 57041-28120 |
ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57042-28090 |
ZRR70..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 57042-28040 |
ZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU |
1 | ||
| 57042-28060 |
ZRR70..G,V;ZRR7#..07S..CBU |
1 | ||
| 57042-28070 |
ZRR7#..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車 |
1 | ||
| 57042-28060 |
ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-28100 |
ZRR70..CBU |
1 | ||
| 57603-28101 |
ZRR70..CBU |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| C3042-28020 |
ZRR7#..08S..(SI,X,ZS)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & 手動車いす用収納装置 |
1 | ||
| C3042-28040 |
ZRR7#..08S..(SI,X,ZS)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & 手動車いす用収納装置 |
1 | ||
| 57604-28071 |
ZRR7#..CBU |
1 | ||
| 57604-28070 |
ZRR7#..CBU |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-28470 |
ZRR75..IV5;ZRR70..CBU,IV5 |
1 | ||
| 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57655-44020 |
ZRR7#..CBU,IV5 |
1 | ||
| 57623D - PLATE, REAR FLOOR SIDE MEMBER, RR RH | ||||
| 57623-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1 | ||||
| 57793-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1 | ||||
| 57794-28040 |
ZRR7#..CBU |
1 | ||
| 57706-28020 |
ZRR7#..08S..X..CBU ｻｲﾄﾞｽﾃｯﾌﾟ車 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1 | ||||
| 58706-44010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-10821 | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||

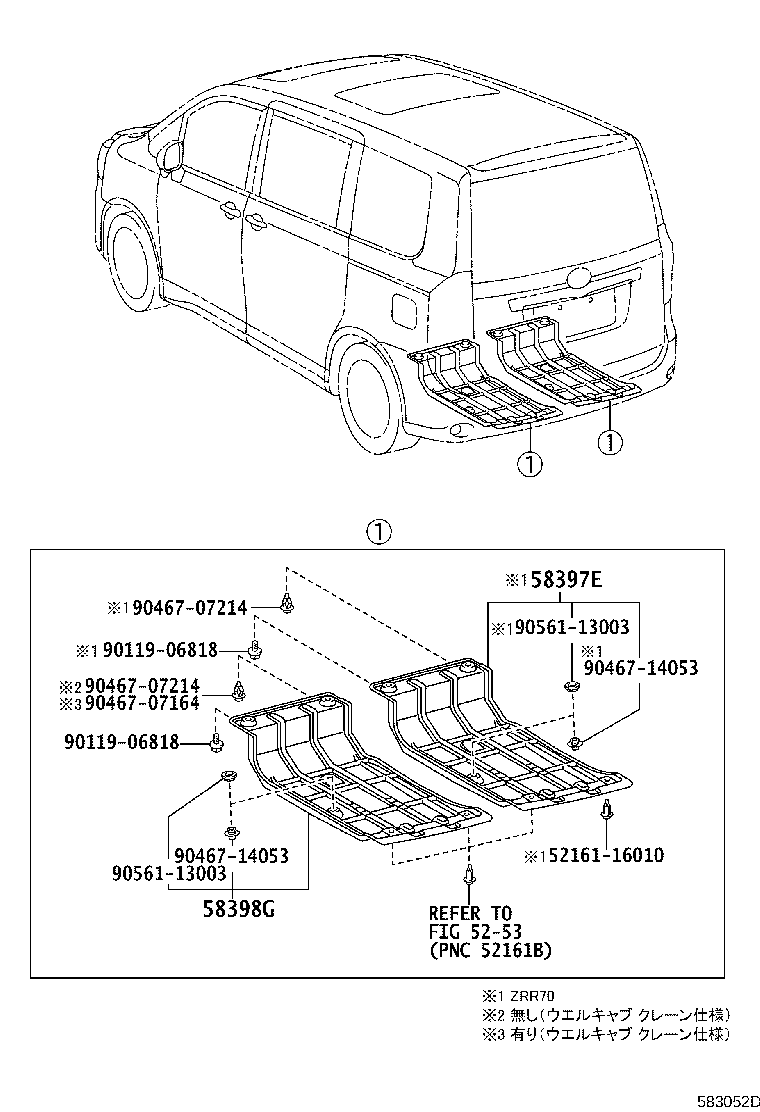

ILLUST NO. 3 OF 3(0706-1004)S,SI,Z,ZS..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58397E - COVER, BODY LOWER BACK, RH | ||||
| 58398-28090 |
ZRR70..(S,SI,Z,ZS)..CBU |
1 | ||
| 58398G - COVER, BODY LOWER BACK, LH | ||||
| 58399-28020 |
ZRR7#..(S,SI,Z,ZS)..CBU |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90119-06818 | ||||
| 90467-07164 | ||||
| 90467-07214 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5253 | ||||

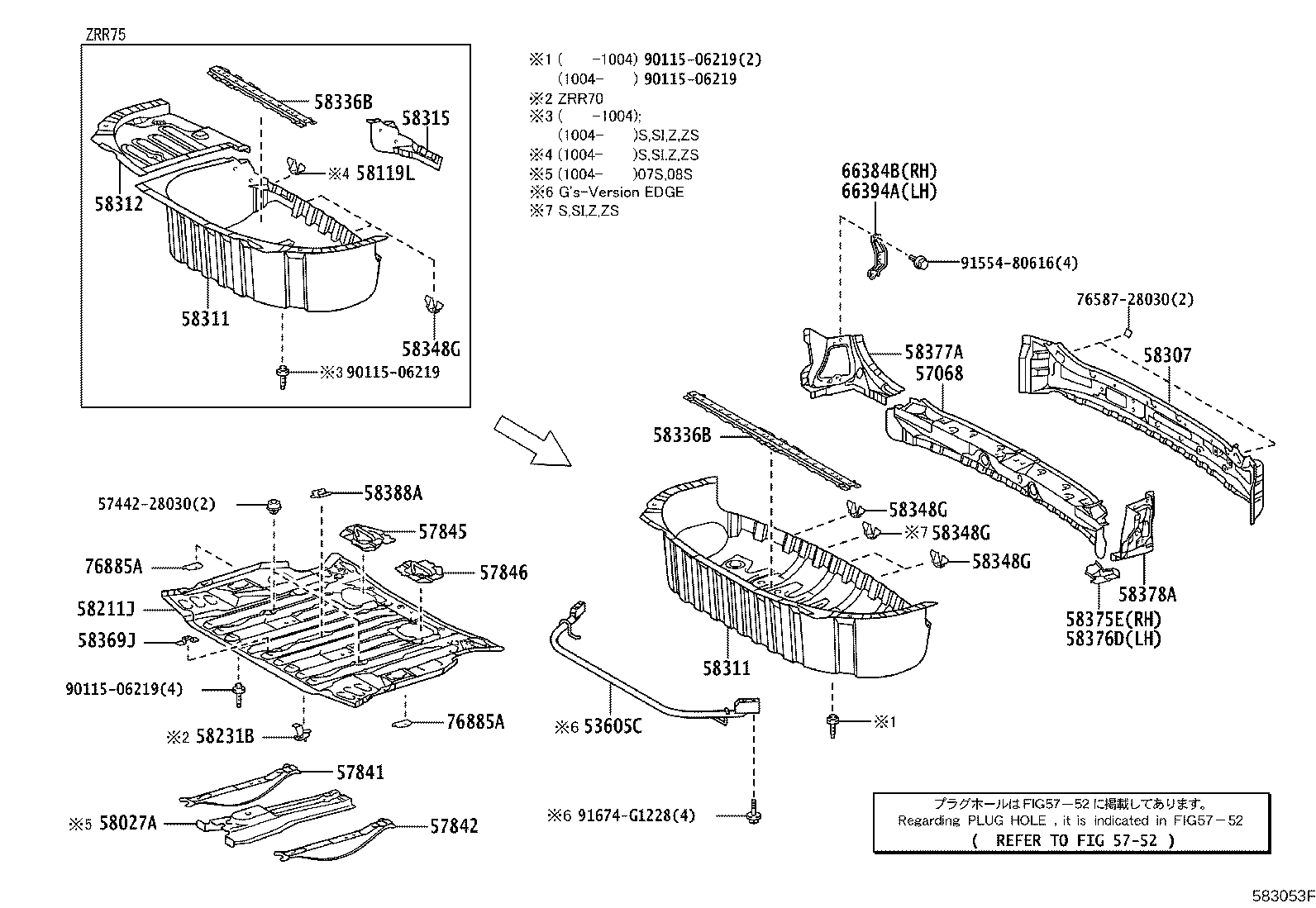

ILLUST NO. 2 OF 3(0706- )CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-28270 |
ZRR75..IV5;ZRR70..CBU,IV5 |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH | ||||
| 58201-28370 |
ZRR7#..(07S,08S)..(CBU,IV5) |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 58202-28010 |
ZRR7#..(07S,08S)..(CBU,IV5) |
1 | ||
| 58211J - PAN, CENTER FLOOR | ||||
| 58211-28250 |
ZRR7#..(07S,08S)..CBU |
1 | ||
| 58231B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58231-28020 |
ZRR75..IV5;ZRR70..CBU,IV5 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-2J430 |
ZRR70..CBU |
1 | ||
| 58311-28A00 |
ZRR70..08S..(SI,X,ZS)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & 手動車いす用収納装置 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-2J430 |
ZRR70..CBU |
1 | ||
| 58311-28A00 |
ZRR70..08S..(SI,X,ZS)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ & 手動車いす用収納装置 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-44030 |
ZRR75..IV5;ZRR70..CBU,IV5 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-44030 |
ZRR75..IV5;ZRR70..CBU,IV5 |
1 | ||
| 58348G - PLATE, REAR FLOOR SIDE, RH | ||||
| 58348-28010 |
ZRR70..(S,SI,Z,ZS)..CBU |
4 | ||
| 58348-28010 |
ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU |
3 | ||
| 58348G - PLATE, REAR FLOOR SIDE, RH | ||||
| 58348-28010 |
ZRR70..(S,SI,Z,ZS)..CBU |
4 | ||
| 58348-28010 |
ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU |
3 | ||
| 58348G - PLATE, REAR FLOOR SIDE, RH | ||||
| 58348-28010 |
ZRR70..(S,SI,Z,ZS)..CBU |
4 | ||
| 58348-28010 |
ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU |
3 | ||
| 58348G - PLATE, REAR FLOOR SIDE, RH | ||||
| 58348-28010 |
ZRR70..(S,SI,Z,ZS)..CBU |
4 | ||
| 58348-28010 |
ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU |
3 | ||
| 58369J - BRACKET, REAR FLOOR BRACE | ||||
| 61693-21010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58375E - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58035-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58376D - REINFORCEMENT, BODY LOWER BACK, LH | ||||
| 58036-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58377A - PANEL, BODY LOWER BACK, RH | ||||
| 58377-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 58378A - PANEL, BODY LOWER BACK, LH | ||||
| 58378-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 89966-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 66384B - BRACKET, ROPE HOOK, NO.2 RH | ||||
| 66384-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 66394A - BRACKET, ROPE HOOK, NO.2 LH | ||||
| 66394-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 76885A - RETAINER, REAR SPOILER | ||||
| 76885-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 76885A - RETAINER, REAR SPOILER | ||||
| 76885-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 57442-28030 | ||||
| 76587-28030 | ||||
| 90115-06219 | ||||
| 91554-80616 | ||||
| 91674-G1228 | ||||
| Linked diagrams | ||||
| 5752 | ||||
