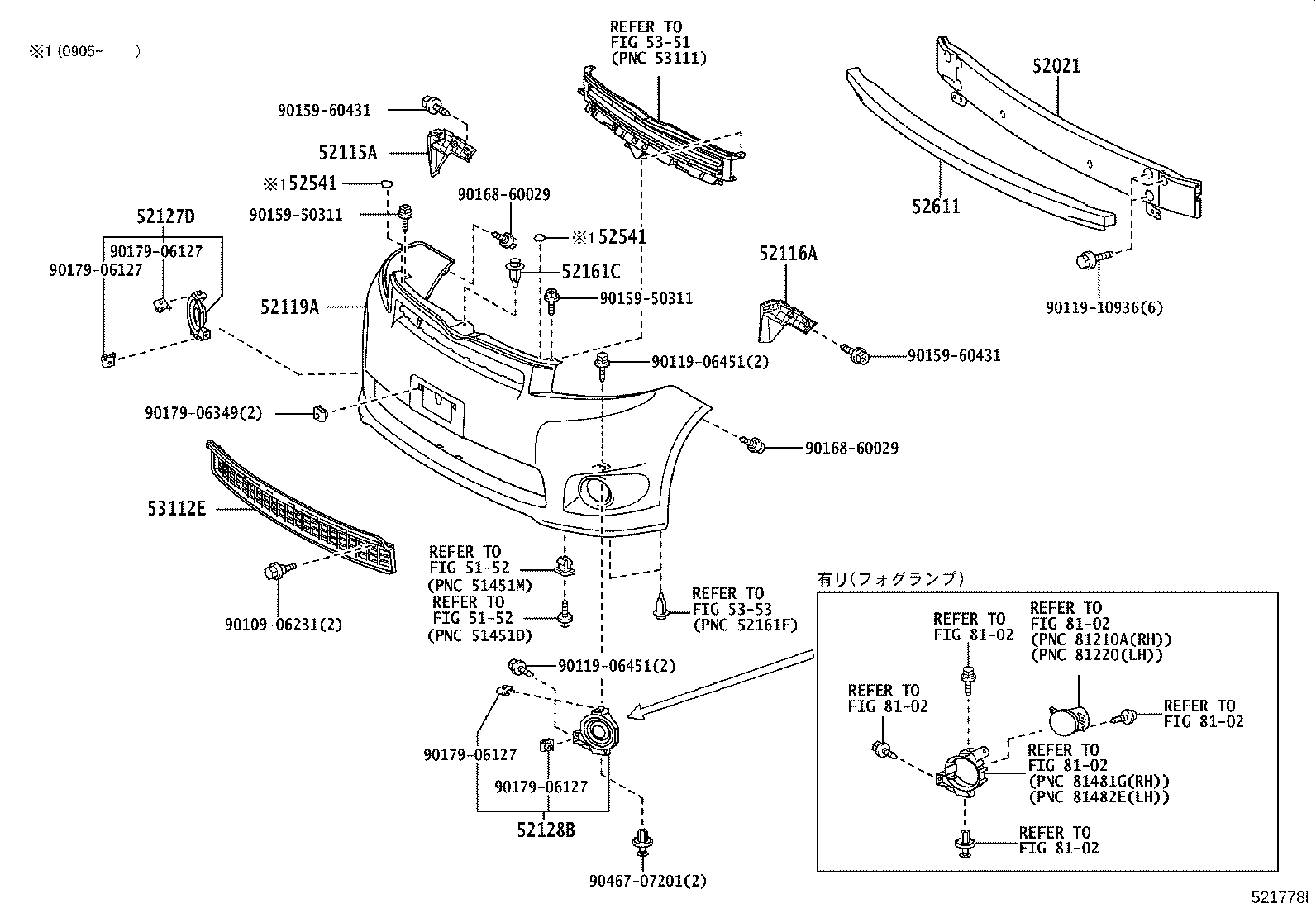

ZRR70W-BPXSP (2007)
Toyota Noah/Voxy
(0706-1004)VOXY..TRASX,V,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28D10C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D10A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D10D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D20A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D20K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D10J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D20C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D20J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D20D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D10J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D40C0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D20J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D40B0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D60K1 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40A0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40B1 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D60A0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D60B0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D60C0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28D20B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28270 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28270 |
ZRR7#..VOXY..(TRASX,X)..(CBU,IV5) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-28030 |
ZRR7#..VOXY..(CBU,IV5) |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-28030 |
ZRR7#..VOXY..(CBU,IV5) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28060 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-06451 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90168-60029 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8102 | ||||
(0706-1004)Z,ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28D10C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D10A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D10D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D20A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D20K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D10J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D20C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D20J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D20D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D10J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D40C0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D20J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D40B0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D60K1 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40A0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40B1 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D60A0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D60B0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D60C0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28D20B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR7#..VOXY..(CBU,IV5) |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-28030 |
ZRR7#..VOXY..(CBU,IV5) |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-28030 |
ZRR7#..VOXY..(CBU,IV5) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28060 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90168-60029 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8102 | ||||
(0706-1004)S,SI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52115-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52115-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28150 |
ZRR7#..(S,SI)..(CBU,IV5) |
1 | ||
| 52116-28140 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) |
1 | ||
| 52116-28160 |
ZRR7#..(Z,ZS)..(CBU,IV5) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28D10C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D10A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D10D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D20A0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D20K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D10J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D20C0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D20J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D20D0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28D10J0 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) DK.BLUE MC.,8S6 |
1 | ||
| 52119-28D40C0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30A0 |
ZRR7#..(S,SI)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D50B0 |
ZRR7#..(Z,ZS)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D30B0 |
ZRR7#..(S,SI)..(CBU,IV5) SILVER ME.,1F7 |
1 | ||
| 52119-28D20J1 |
ZRR7#..VOXY..(V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28D40B0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D50K1 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D10K1 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D30B1 |
ZRR7#..(S,SI)..(CBU,IV5) GRAY ME.,1G3 |
1 | ||
| 52119-28D60K1 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28D50C0 |
ZRR7#..(Z,ZS)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D50A0 |
ZRR7#..(Z,ZS)..(CBU,IV5) WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40A0 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D40B1 |
ZRR75..08S..(S,SI)..CBU;ZRR70..(S,SI)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),GRAY ME.,1G3 |
1 | ||
| 52119-28D60A0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070 |
1 | ||
| 52119-28D30C0 |
ZRR7#..(S,SI)..(CBU,IV5) BLACK,202 |
1 | ||
| 52119-28D60B0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52119-28D60C0 |
ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202 |
1 | ||
| 52119-28D30K0 |
ZRR7#..S S“G Edition” *(A),LT.PURPLE M.M.,9AE |
1 | ||
| 52119-28D20B0 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7 |
1 | ||
| 52133 - REINFORCEMENT, FRONT BUMPER | ||||
| 52134-28140 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28070 |
ZRR7#..(S,SI)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28080 |
ZRR7#..(Z,ZS)..(CBU,IV5) 塗装不要 |
1 | ||
| 53112-28060 |
ZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5) 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06231 | ||||
| 90119-06451 | ||||
| 90119-10936 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90168-60029 | ||||
| 90179-06349 | ||||
| 91553-A0610 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
