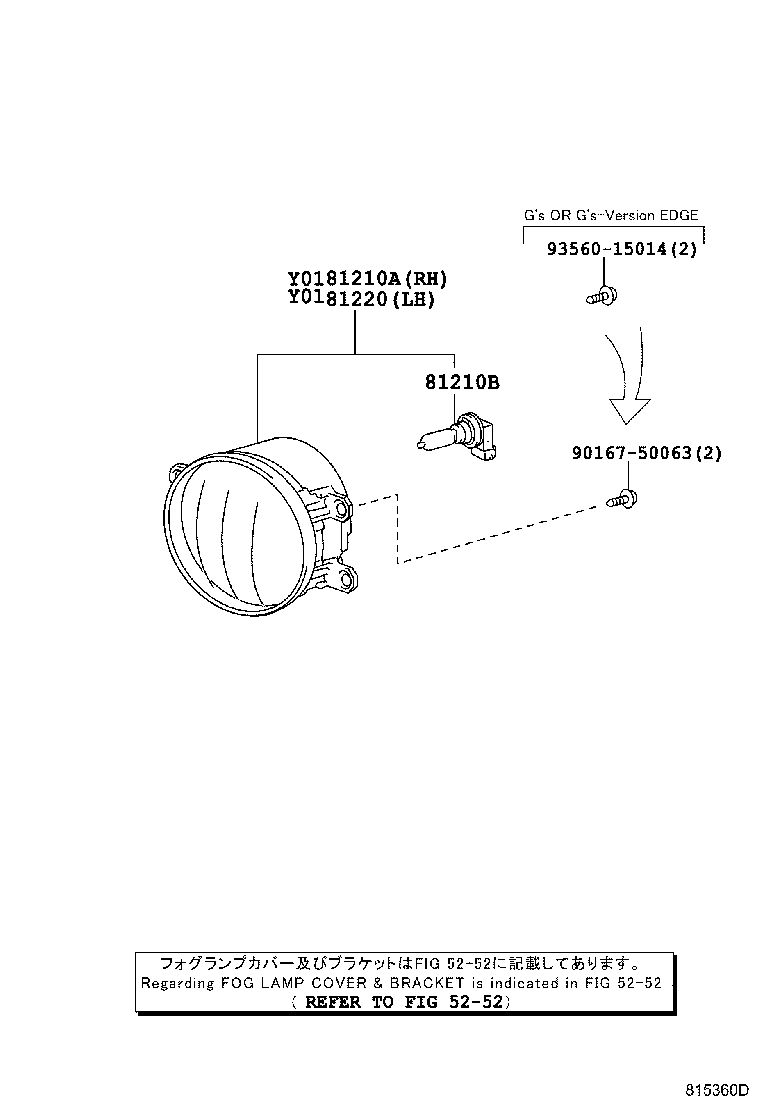

ZRR70W-ARXTP (2010)
Toyota Noah/Voxy
(1004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81210-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81210-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81210-0W050 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-0W050 |
ZRR70..(S,SI,Z,ZS)..CBU G’s |
1 | ||
| 81210-0W050 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 81210-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM) |
2 | ||
| 90981-13047 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13075 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
2 | ||
| 90981-13047 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
2 | ||
| 90981-13081 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
2 | ||
| 90981-13081 |
ZRR7#..(S,SI,V)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,OSRAM |
2 | ||
| 90981-13047 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻCﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
2 | ||
| 90981-13075 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS |
2 | ||
| 90981-13075 |
ZRR70..(S,SI,Z,ZS)..CBU 12V 55W,ﾊﾛｹﾞﾝ,G’s,PHILIPS |
2 | ||
| 90981-13081 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),OSRAM |
2 | ||
| 90981-13075 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),PHILIPS |
2 | ||
| 90981-13081 |
ZRR70..(S,SI,Z,ZS)..CBU 12V 55W,ﾊﾛｹﾞﾝ,G’s,OSRAM |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-0D041 |
ZRR7#..(S,SI,V)..(CBU,IV5) |
1 | ||
| 81220-42050 |
ZRR7#..(G,Z,ZS)..(CBU,IV5) |
1 | ||
| 81220-0W040 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 81220-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 81220-0W040 |
ZRR70..(S,SI,Z,ZS)..CBU G’s |
1 | ||
| 81220-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 81220-42050 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-0W040 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 5252 | ||||
