ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

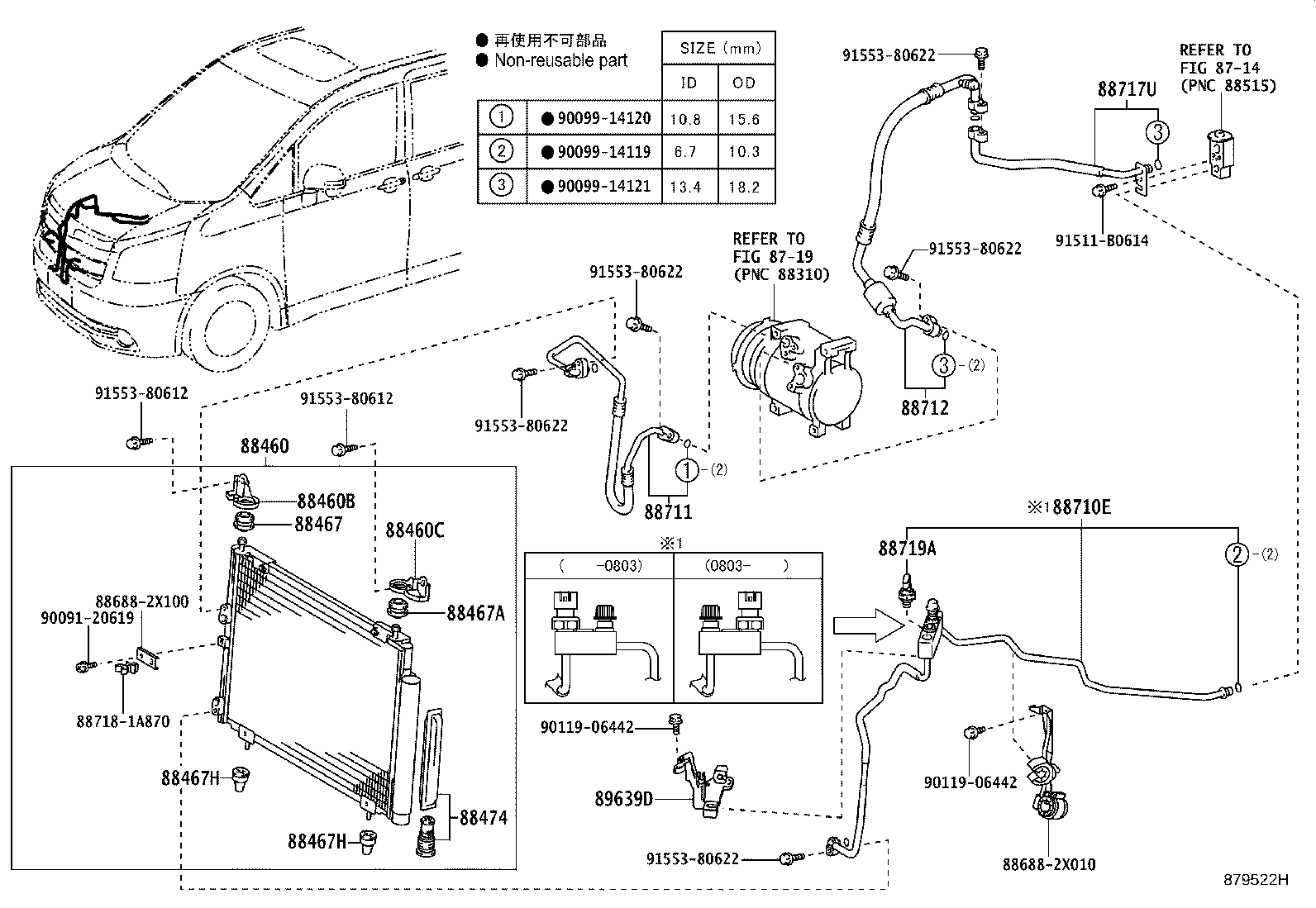

ILLUST NO. 1 OF 2(0706- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 88460 88460B 88460C 88467 88467A 88467H 88467H 88474 886882X010 886882X100 88710E 88711 88712 88717U 887181A870 88719A 89639D 9009120619 9009914119 9009914120 9009914121 9011906442 9011906442 91511B0614 9155380612 9155380612 9155380622 9155380622 9155380622 9155380622 9155380622
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28630

ZRR7#..CBU,IV5

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-2J800

ZRR7#..CBU,IV5

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-2J810

ZRR7#..CBU,IV5

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-33030

ZRR7#..CBU,IV5

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-33030

ZRR7#..CBU,IV5

 1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

ZRR7#..CBU,IV5

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

ZRR7#..CBU,IV5

 2
88474 - DRYER, COOLER
88474-17010

ZRR7#..CBU,IV5

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2X280

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88710-2X281

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J330

ZRR7#..CBU,IV5

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2J010

ZRR7#..CBU,IV5

 1
88717U - TUBE, SUCTION, NO.1
88717-2X120

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRR7#..CBU,IV5

 1
89639D - CLAMP, AIRCONDITIONER TUBE
89639-28190

ZRR7#..CBU,IV5

 1
Common parts
88688-2X010
88688-2X100
88718-1A870
90091-20619
90099-14119
90099-14120
90099-14121
90119-06442
91511-B0614
91553-80612
91553-80622
Linked diagrams
8714
8719

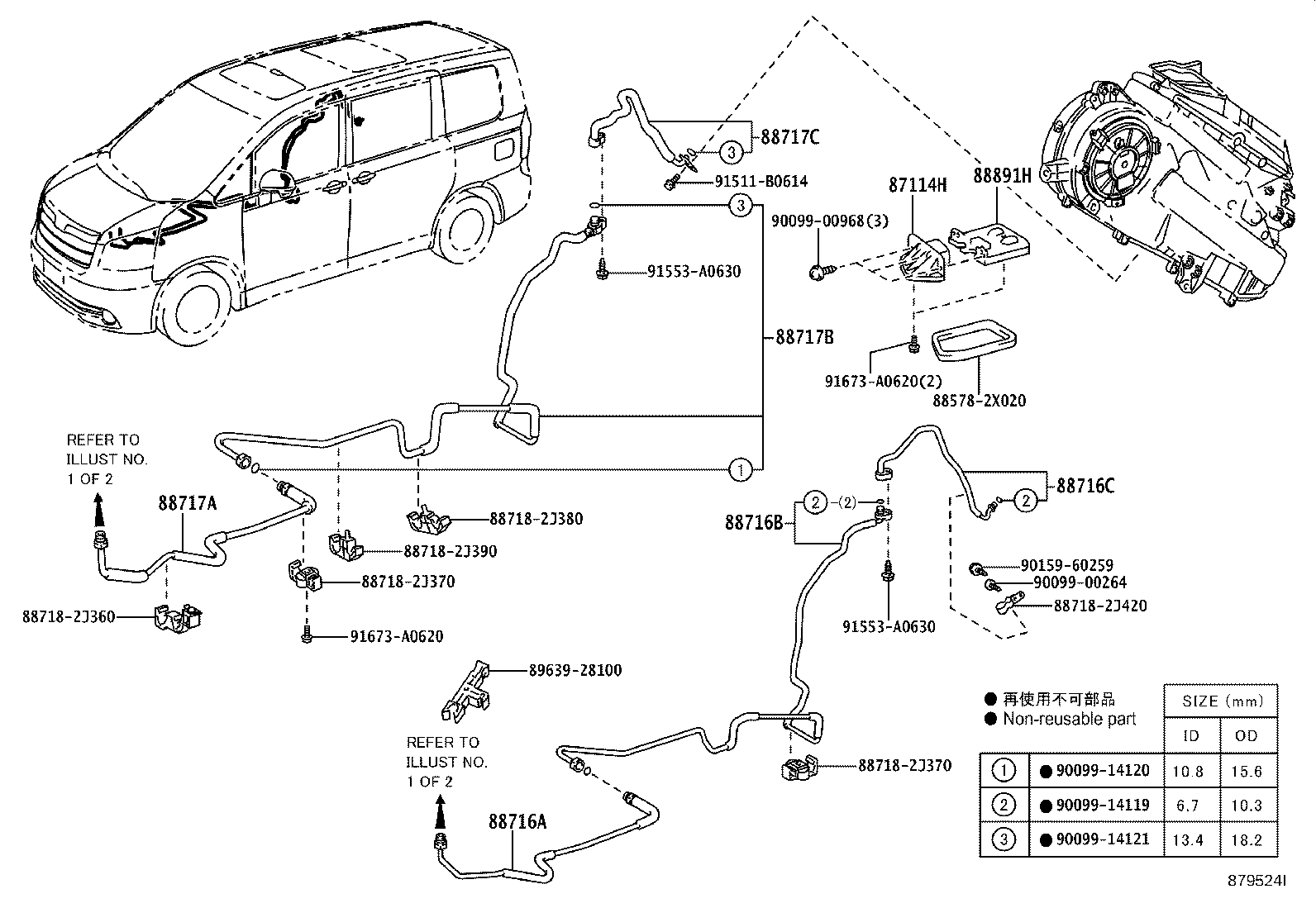

ILLUST NO. 2 OF 2(0706- )

Click highlighted areas on diagram

ﾘﾔ

diagram 87114H 885782X020 88716A 88716B 88716C 88717A 88717B 88717C 887182J360 887182J370 887182J370 887182J380 887182J390 887182J420 88891H 8963928100 9009900264 9009900968 9009914119 9009914120 9009914121 9015960259 91511B0614 91553A0630 91553A0630 91673A0620 91673A0620
Part # Description Qty Price
87114H - COVER, HEATER
87114-28120

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X650

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X670

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X620

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2X150

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2X170

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2X140

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88891H - COVER, COOLER, NO.1
87114-28130

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
Common parts
88578-2X020
88718-2J360
88718-2J370
88718-2J380
88718-2J390
88718-2J420
89639-28100
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60259
91511-B0614
91553-A0630
91673-A0620

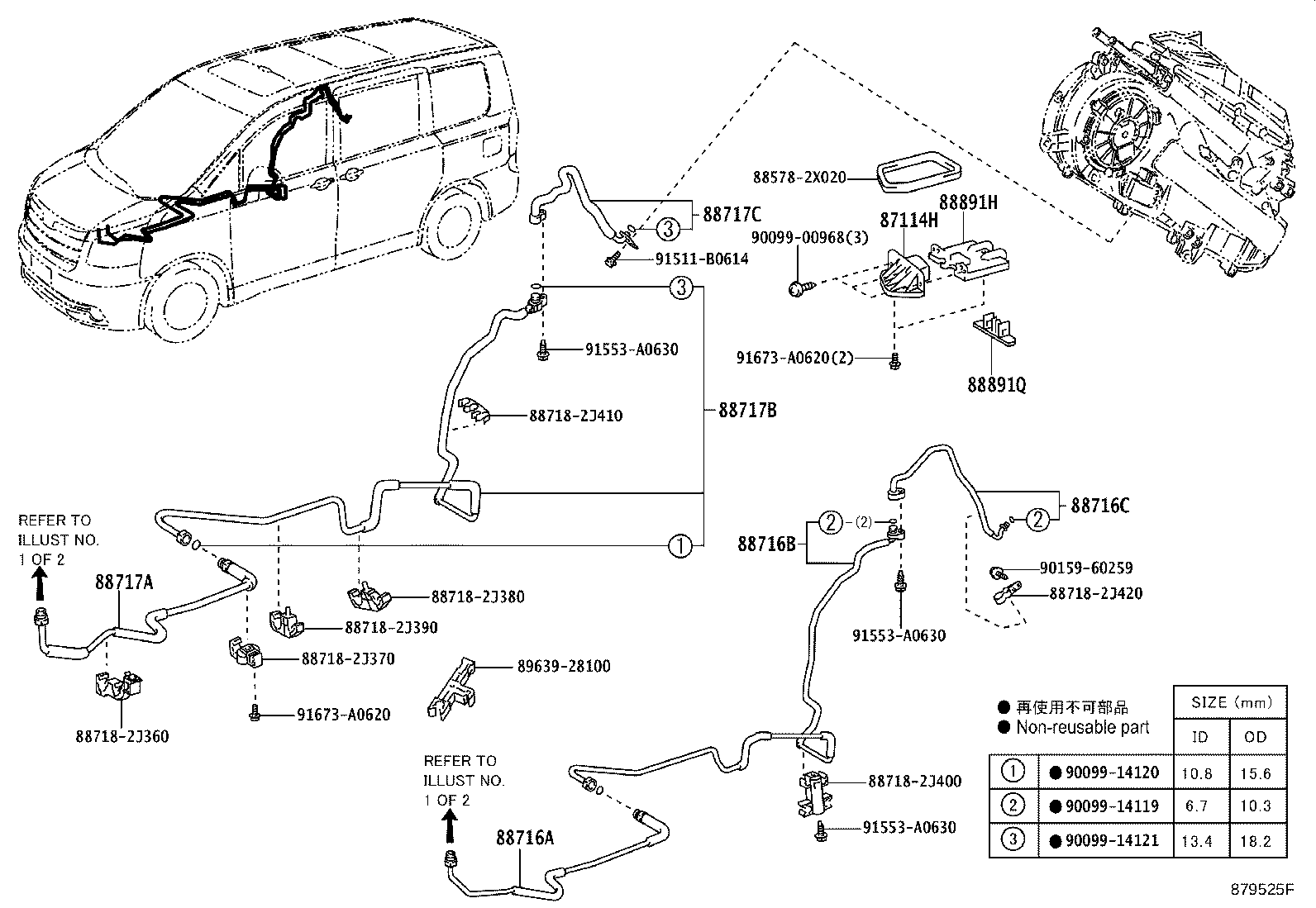

ILLUST NO. 2 OF 2(0706- )

Click highlighted areas on diagram

ﾘﾔ,ｱﾘ(ﾋｰﾀ)

diagram 87114H 885782X020 88716A 88716B 88716C 88717A 88717B 88717C 887182J360 887182J370 887182J380 887182J390 887182J400 887182J410 887182J420 88891H 88891Q 8963928100 9009900968 9009914119 9009914120 9009914121 9015960259 91511B0614 91553A0630 91553A0630 91553A0630 91673A0620 91673A0620
Part # Description Qty Price
87114H - COVER, HEATER
87114-28120

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X650

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X670

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X620

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2X150

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2X170

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2X140

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88891H - COVER, COOLER, NO.1
87114-28130

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
88891Q - COVER, COOLER, NO.2
87114-28140

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
Common parts
88578-2X020
88718-2J360
88718-2J370
88718-2J380
88718-2J390
88718-2J400
88718-2J410
88718-2J420
89639-28100
90099-00968
90099-14119
90099-14120
90099-14121
90159-60259
91511-B0614
91553-A0630
91673-A0620

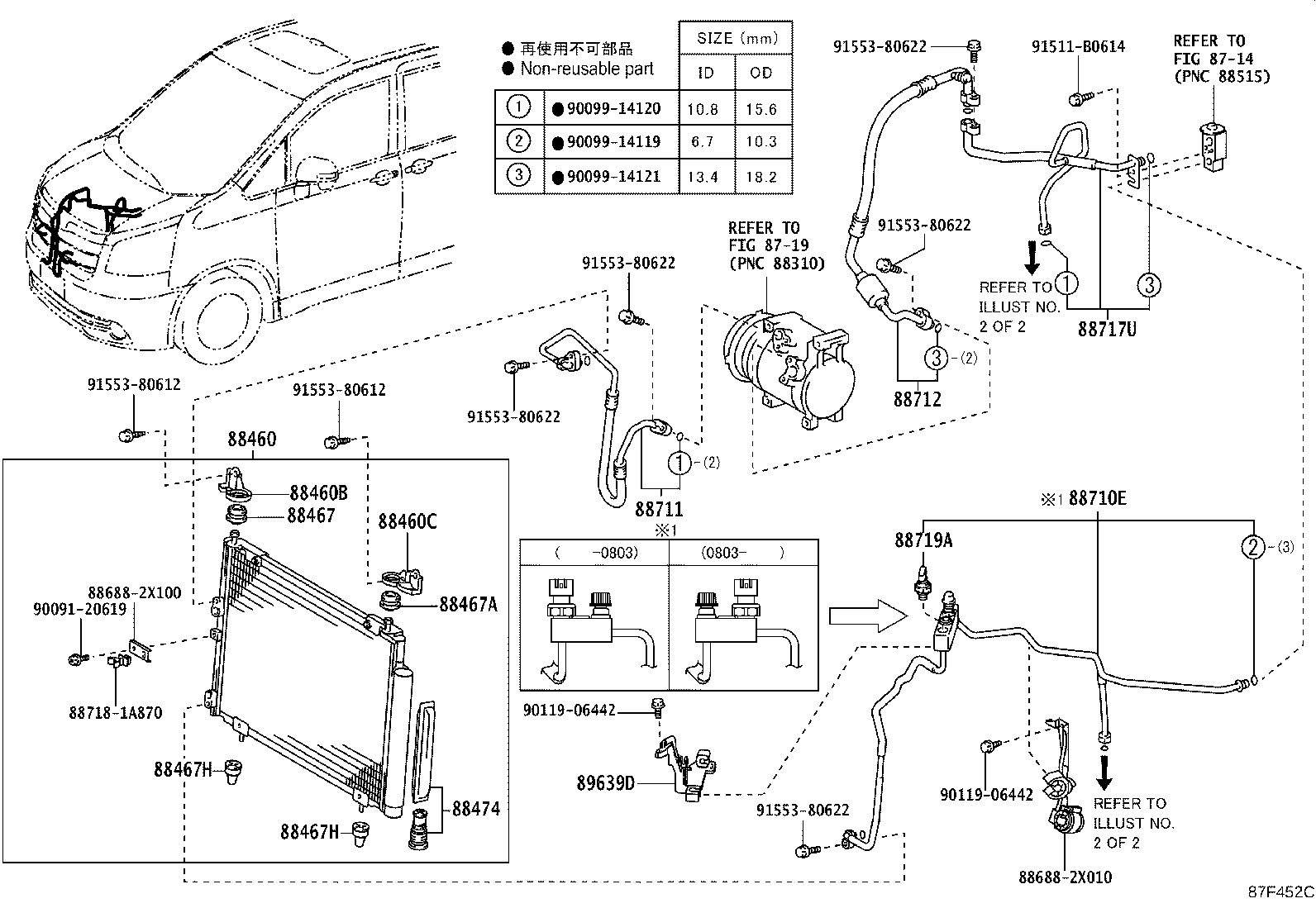

ILLUST NO. 1 OF 2(0706- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ﾘﾔｸｰﾗ)

diagram 8714 8719 88460 88460B 88460C 88467 88467A 88467H 88467H 88474 886882X010 886882X100 88710E 88711 88712 88717U 887181A870 88719A 89639D 9009120619 9009914119 9009914120 9009914121 9011906442 9011906442 91511B0614 9155380612 9155380612 9155380622 9155380622 9155380622 9155380622 9155380622
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-28630

ZRR7#..CBU,IV5

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-2J800

ZRR7#..CBU,IV5

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-2J810

ZRR7#..CBU,IV5

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-33030

ZRR7#..CBU,IV5

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-33030

ZRR7#..CBU,IV5

 1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

ZRR7#..CBU,IV5

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

ZRR7#..CBU,IV5

 2
88474 - DRYER, COOLER
88474-17010

ZRR7#..CBU,IV5

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2X280

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88710-2X281

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2J330

ZRR7#..CBU,IV5

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2J010

ZRR7#..CBU,IV5

 1
88717U - TUBE, SUCTION, NO.1
88717-2X120

ZRR7#..(07S,08S)..(CBU,IV5)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRR7#..CBU,IV5

 1
89639D - CLAMP, AIRCONDITIONER TUBE
89639-28190

ZRR7#..CBU,IV5

 1
Common parts
88688-2X010
88688-2X100
88718-1A870
90091-20619
90099-14119
90099-14120
90099-14121
90119-06442
91511-B0614
91553-80612
91553-80622
Linked diagrams
8714
8719
