ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

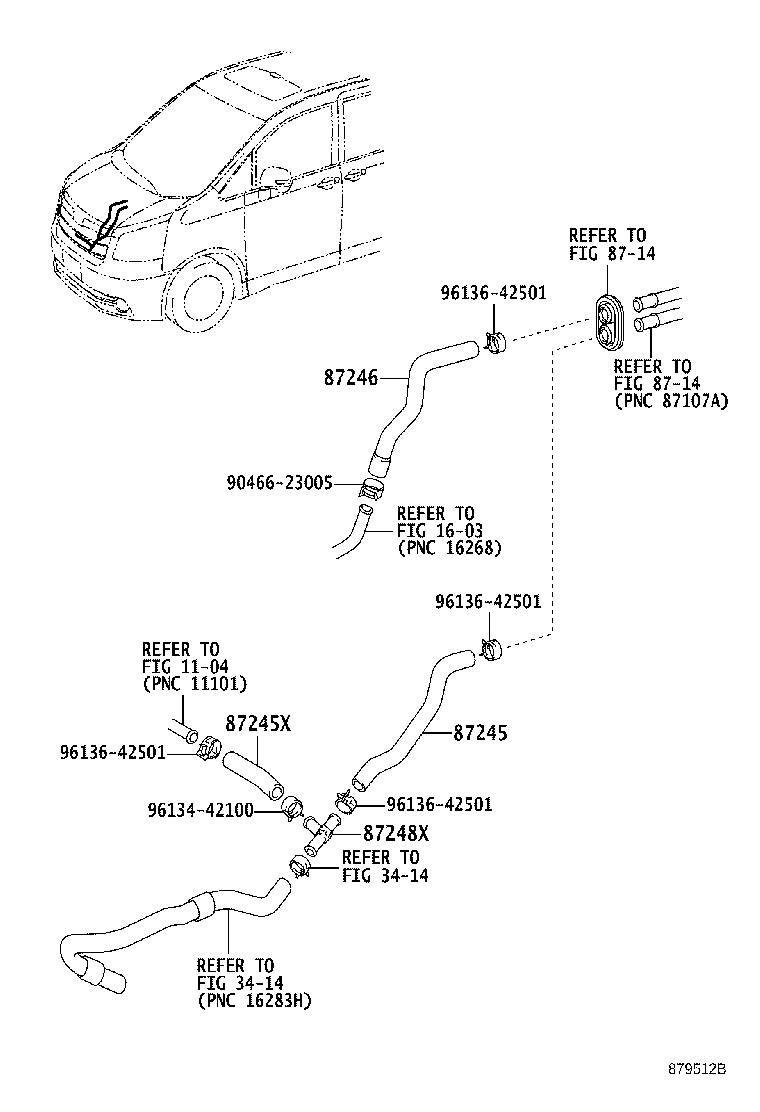

ILLUST NO. 1 OF 2(0706- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1104 1603 3414 3414 8714 8714 87245 87245X 87246 87248X 9046623005 9613442100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-28B70

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87245X - HOSE, HEATER WATER
87245-28D00

ZRR7#..CBU,IV5

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-28B80

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248X - PIPE, HEATER WATER
87248-20380

ZRR7#..CBU,IV5

 1
Common parts
90466-23005
96134-42100
96136-42501
Linked diagrams
1104
1603
3414
8714

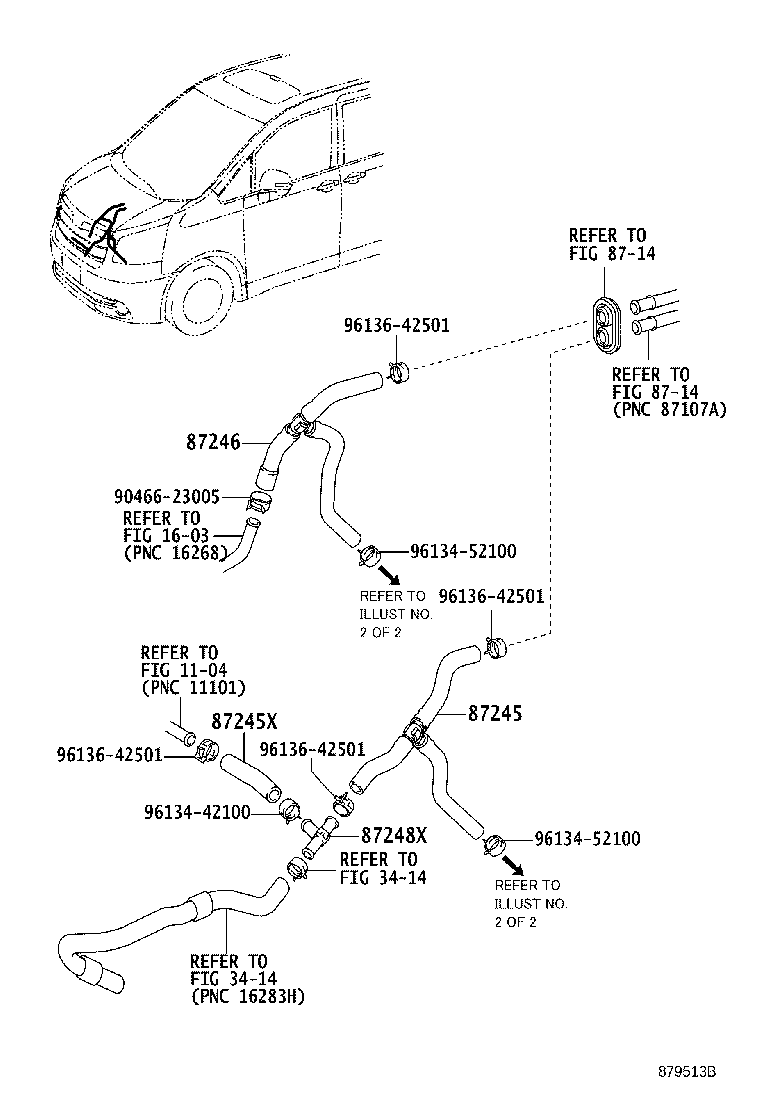

ILLUST NO. 1 OF 2(0706- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ﾘﾔﾋｰﾀ)

diagram 1104 1603 3414 3414 8714 8714 87245 87245X 87246 87248X 9046623005 9613442100 9613452100 9613452100 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-28B70

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87245X - HOSE, HEATER WATER
87245-28D00

ZRR7#..CBU,IV5

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-28B80

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248X - PIPE, HEATER WATER
87248-20380

ZRR7#..CBU,IV5

 1
Common parts
90466-23005
96134-42100
96134-52100
96136-42501
Linked diagrams
1104
1603
3414
8714

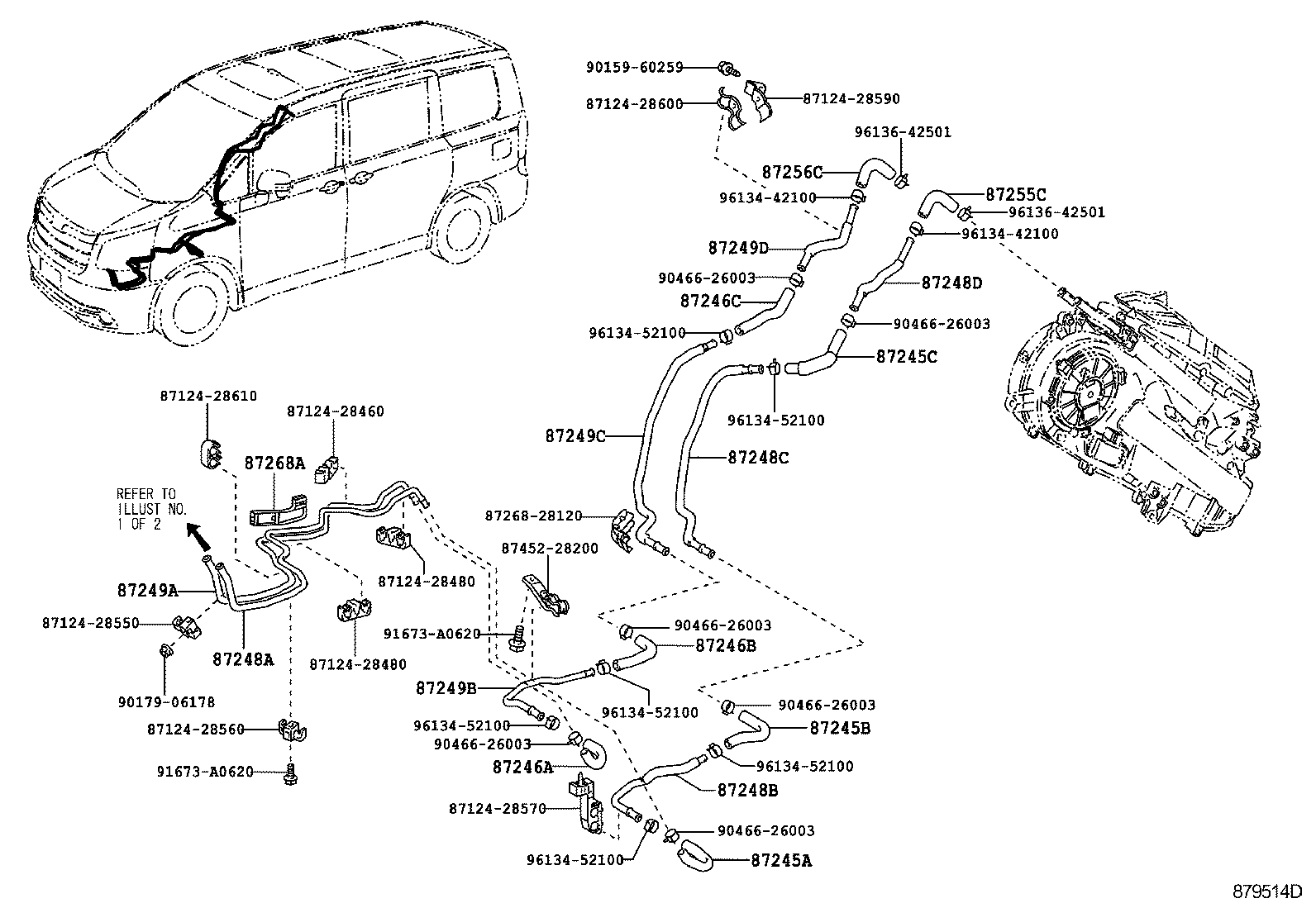

ILLUST NO. 2 OF 2(0706- )

Click highlighted areas on diagram

ﾘﾔ

diagram 8712428460 8712428480 8712428480 8712428550 8712428560 8712428570 8712428590 8712428600 8712428610 87245A 87245B 87245C 87246A 87246B 87246C 87248A 87248B 87248C 87248D 87249A 87249B 87249C 87249D 87255C 87256C 8726828120 87268A 8745228200 9015960259 9017906178 9046626003 9046626003 9046626003 9046626003 9046626003 9046626003 91673A0620 91673A0620 9613442100 9613442100 9613452100 9613452100 9613452100 9613452100 9613452100 9613452100 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-28D10

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87245B - HOSE, HEATER WATER, INLET B
87245-28D30

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-28D50

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-28D20

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-28D41

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87245-28D40

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-28D60

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248A - PIPE, HEATER WATER INLET, A
87248-28560

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248B - PIPE, HEATER WATER INLET, B
87248-28580

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248-28581

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248C - PIPE, HEATER WATER INLET, C
87248-28600

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248D - PIPE, HEATER WATER INLET, D
87248-28620

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-28570

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-28590

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87248-28591

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-28610

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-28630

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-28D70

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-28D70

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
87268A - PROTECTOR, REAR HEATER PIPE
87268-28110

ZRR7#..IV5;ZRR7#..G,V;ZRR7#..07S..CBU

 1
Common parts
87124-28460
87124-28480
87124-28550
87124-28560
87124-28570
87124-28590
87124-28600
87124-28610
87268-28120
87452-28200
90159-60259
90179-06178
90466-26003
91673-A0620
96134-42100
96134-52100
96136-42501
