ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

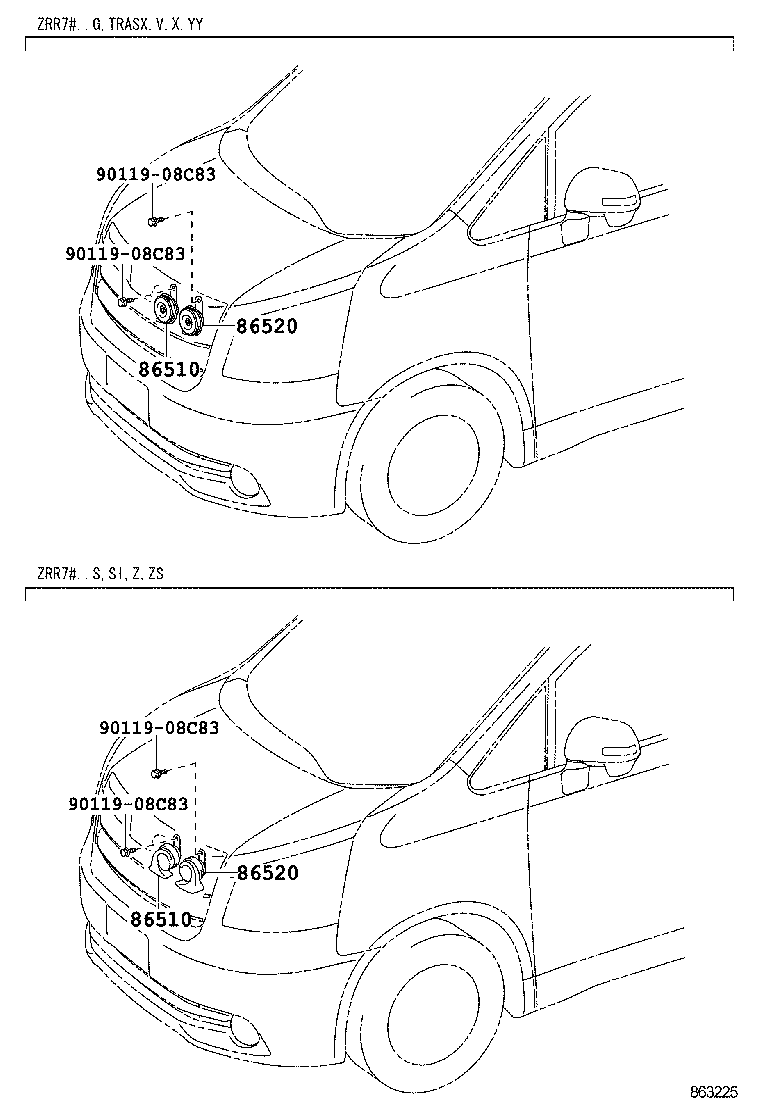

Click highlighted areas on diagram

diagram 86510 86510 86520 86520 9011908C83 9011908C83 9011908C83 9011908C83
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-28130

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
86510-30700

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
86510 - HORN ASSY, HIGH PITCHED
86510-28130

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
86510-30700

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
86520 - HORN ASSY, LOW PITCHED
86520-30610

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
86520-28180

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
86520 - HORN ASSY, LOW PITCHED
86520-30610

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
86520-28180

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
Common parts
90119-08C83
