ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

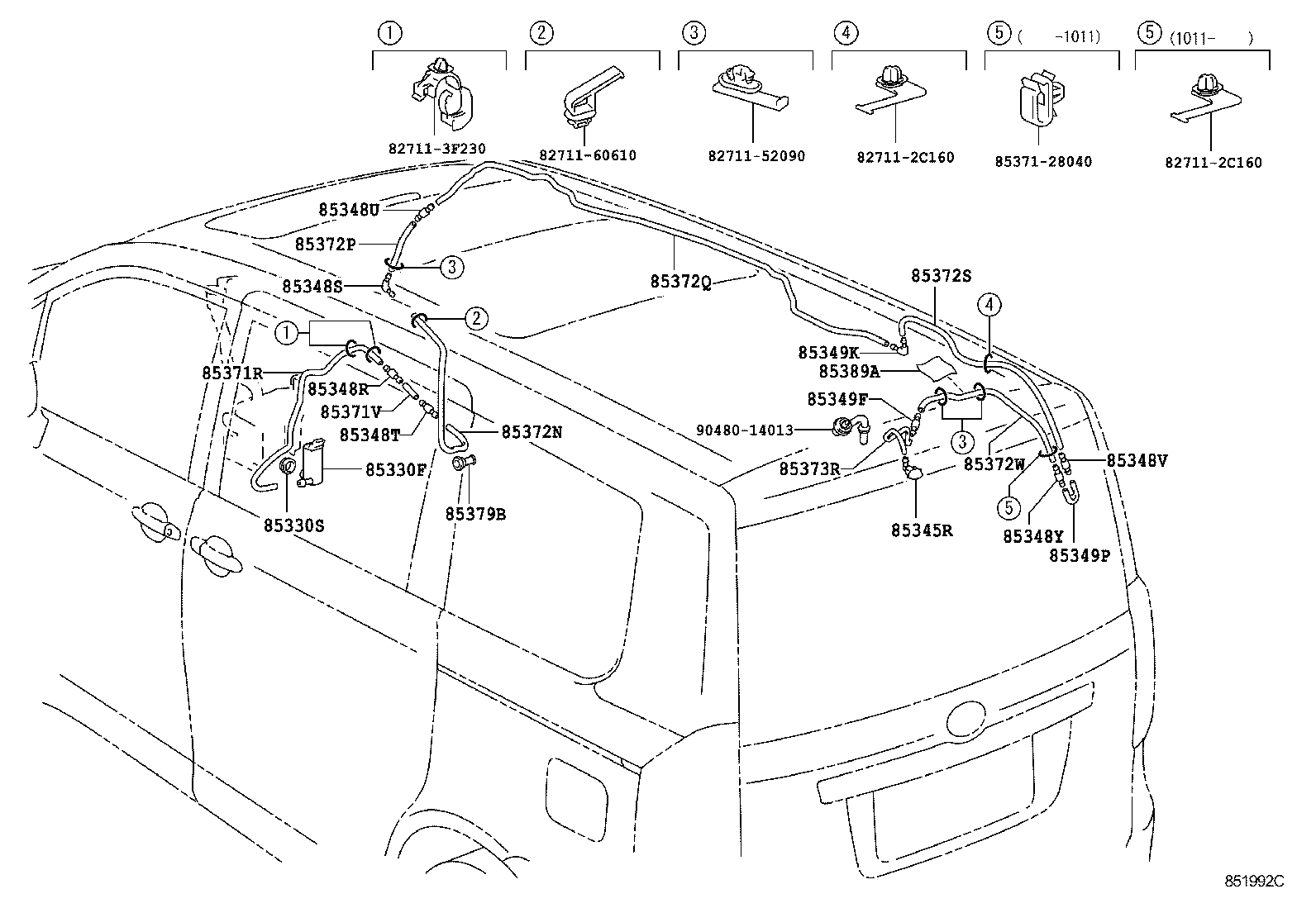

Click highlighted areas on diagram

diagram 827112C160 827112C160 827113F230 8271152090 8271160610 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349K 8537128040 85371R 85371V 85372N 85372P 85372Q 85372S 85373R 85379B 85389A 9048014013
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60140

ZRR7#..CBU,IV5

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

ZRR7#..CBU,IV5

 1
85345R - NOZZLE, REAR WASHER
85391-28160

ZRR7#..CBU,IV5

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR7#..CBU,IV5

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ZRR7#..CBU,IV5

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZRR7#..CBU,IV5

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZRR7#..CBU,IV5

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ZRR7#..CBU,IV5

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ZRR7#..CBU,IV5

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR7#..CBU,IV5

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-33040

ZRR7#..CBU,IV5

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

ZRR7#..CBU,IV5

*H,L=1000,寒冷地仕様

 1
90446-06013

ZRR7#..CBU,IV5

*H,L=1000

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-33299

ZRR7#..CBU,IV5

*H,L=30,寒冷地仕様

 1
90099-33299

ZRR7#..CBU,IV5

*H,L=30

 1
90099-33080

ZRR7#..CBU,IV5

*H,L=30

 1
90099-33299

ZRR7#..CBU,IV5

*H,L=30

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

ZRR7#..CBU,IV5

*H,L=590

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ZRR7#..CBU,IV5

*H,L=140

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-59167

ZRR7#..CBU,IV5

長さ=3500

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

ZRR7#..CBU,IV5

*H,L=520

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZRR7#..CBU,IV5

*H,L=290

 1
85379B - GROMMET, WASHER, A
85379-16180

ZRR7#..CBU,IV5

 1
85389A - PACKING, WINDSHIELD WASHER HOSE, NO.2
85389-28810

ZRR7#..CBU,IV5

 1
Common parts
82711-2C160
82711-3F230
82711-52090
82711-60610
85371-28040
90480-14013

(0706- )ZRR75..S,Z..HTWC ; (0706- )ZRR75..08S..SI,ZS ; (0706- )ZRR70..G,S,

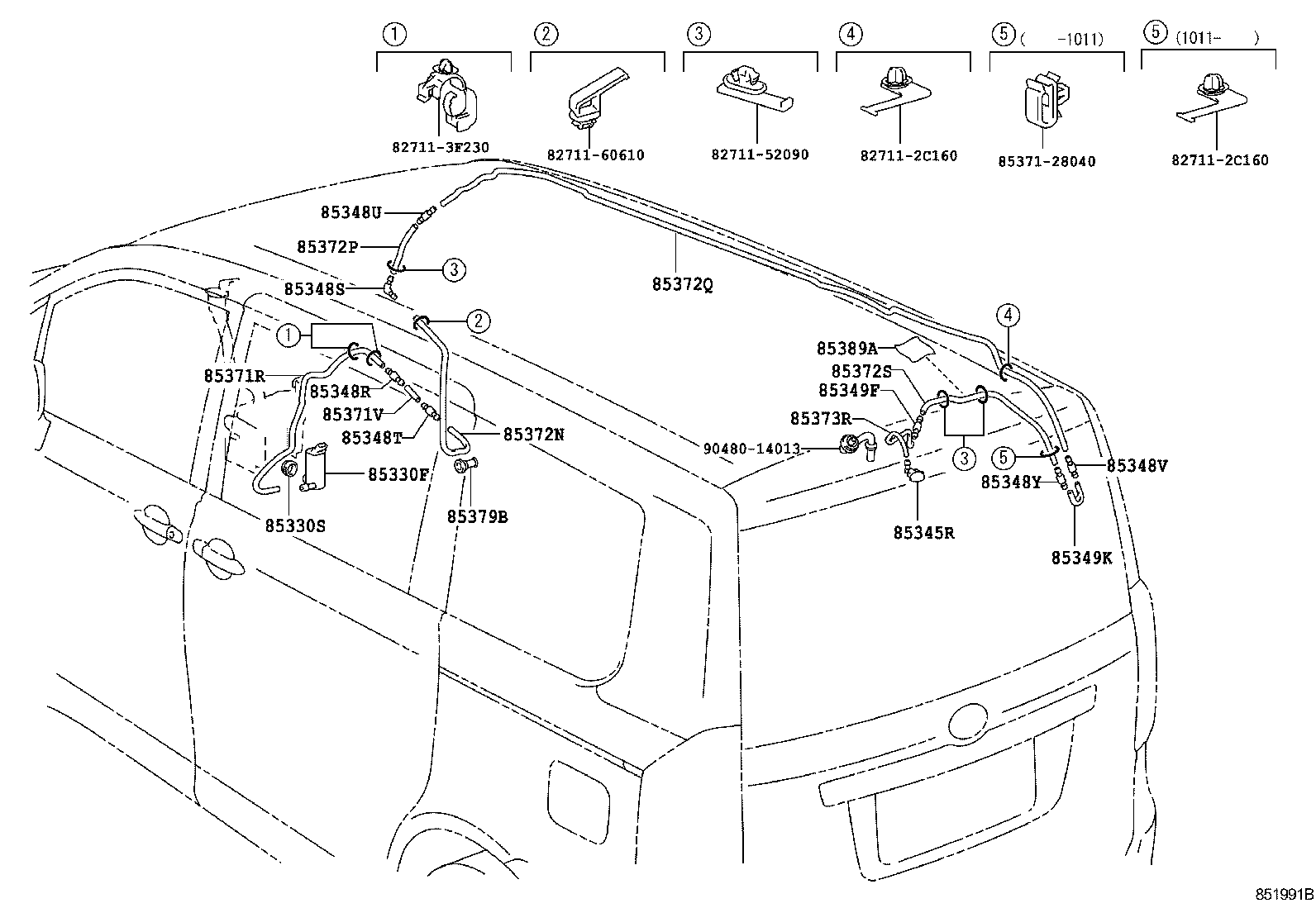

Click highlighted areas on diagram

ｱﾘ(ﾂｲﾝﾑｰﾝﾙｰﾌ)

diagram 827112C160 827112C160 827113F230 8271152090 8271160610 85330F 85330S 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349K 85349P 8537128040 85371R 85371V 85372N 85372P 85372Q 85372S 85372W 85373R 85379B 85389A 9048014013
Part # Description Qty Price
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60140

ZRR7#..CBU,IV5

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

ZRR7#..CBU,IV5

 1
85345R - NOZZLE, REAR WASHER
85391-28160

ZRR7#..CBU,IV5

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR7#..CBU,IV5

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ZRR7#..CBU,IV5

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZRR7#..CBU,IV5

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZRR7#..CBU,IV5

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ZRR7#..CBU,IV5

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ZRR7#..CBU,IV5

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR7#..CBU,IV5

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-33040

ZRR7#..CBU,IV5

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

ZRR7#..CBU,IV5

*H,L=1000,寒冷地仕様

 1
90446-06013

ZRR7#..CBU,IV5

*H,L=1000

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-33299

ZRR7#..CBU,IV5

*H,L=30,寒冷地仕様

 1
90099-33299

ZRR7#..CBU,IV5

*H,L=30

 1
90099-33080

ZRR7#..CBU,IV5

*H,L=30

 1
90099-33299

ZRR7#..CBU,IV5

*H,L=30

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

ZRR7#..CBU,IV5

*H,L=590

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ZRR7#..CBU,IV5

*H,L=140

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-59167

ZRR7#..CBU,IV5

長さ=3500

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

ZRR7#..CBU,IV5

*H,L=520

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZRR7#..CBU,IV5

*H,L=290

 1
85379B - GROMMET, WASHER, A
85379-16180

ZRR7#..CBU,IV5

 1
85389A - PACKING, WINDSHIELD WASHER HOSE, NO.2
85389-28810

ZRR7#..CBU,IV5

 1
Common parts
82711-2C160
82711-3F230
82711-52090
82711-60610
85371-28040
90480-14013
