ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
Production
Jun 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706- )

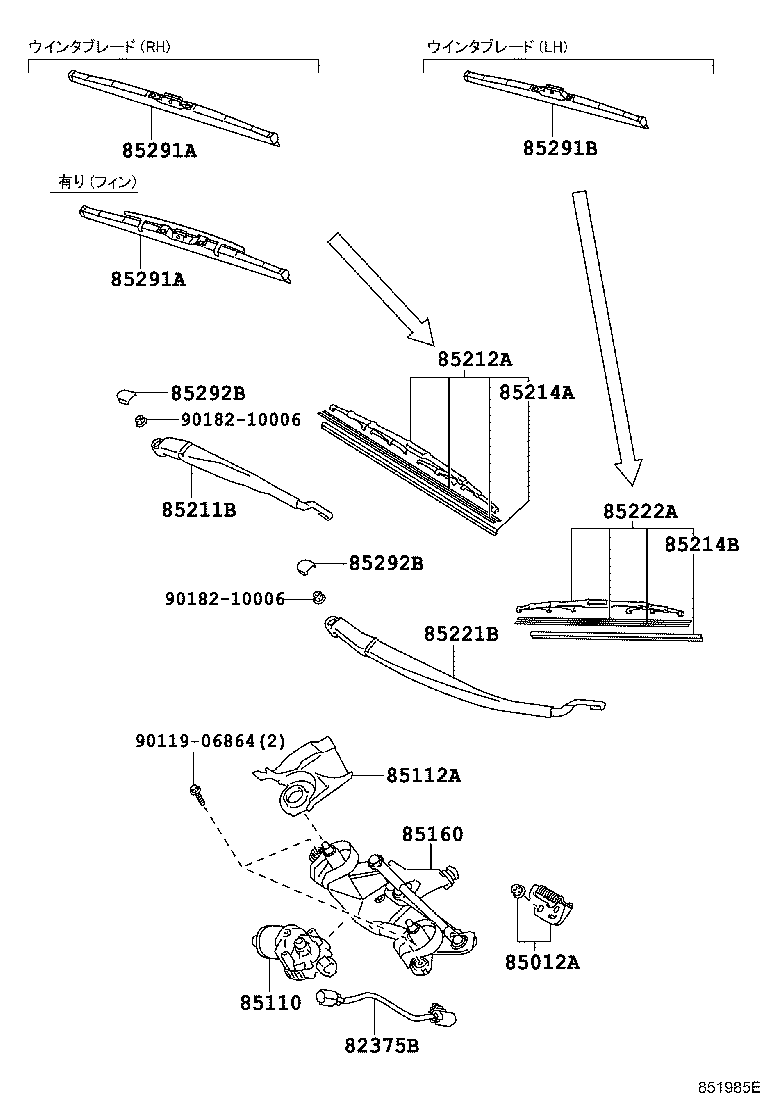

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82375B - WIRE, WIPER MOTOR | ||||
| 82375-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-58030 |
ZRR7#..CBU,IV5 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-28300 |
ZRR7#..CBU,IV5 |
1 | ||
| 85110-28301 |
ZRR7#..CBU,IV5 |
1 | ||
| 85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1 | ||||
| 85112-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-28200 |
ZRR7#..CBU,IV5 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-12480 |
ZRR7#..CBU,IV5 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-68020 |
ZRR7#..CBU,IV5 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-28160 |
ZRR7#..CBU,IV5 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-44090 |
ZRR7#..CBU,IV5 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-12090 |
ZRR7#..CBU,IV5 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-44090 |
ZRR7#..CBU,IV5 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-12090 |
ZRR7#..CBU,IV5 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-44080 |
ZRR7#..CBU,IV5 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZRR7#..CBU,IV5 |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZRR7#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90182-10006 | ||||
