ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010

Engine 3ZRFAE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0706- )ZRR70

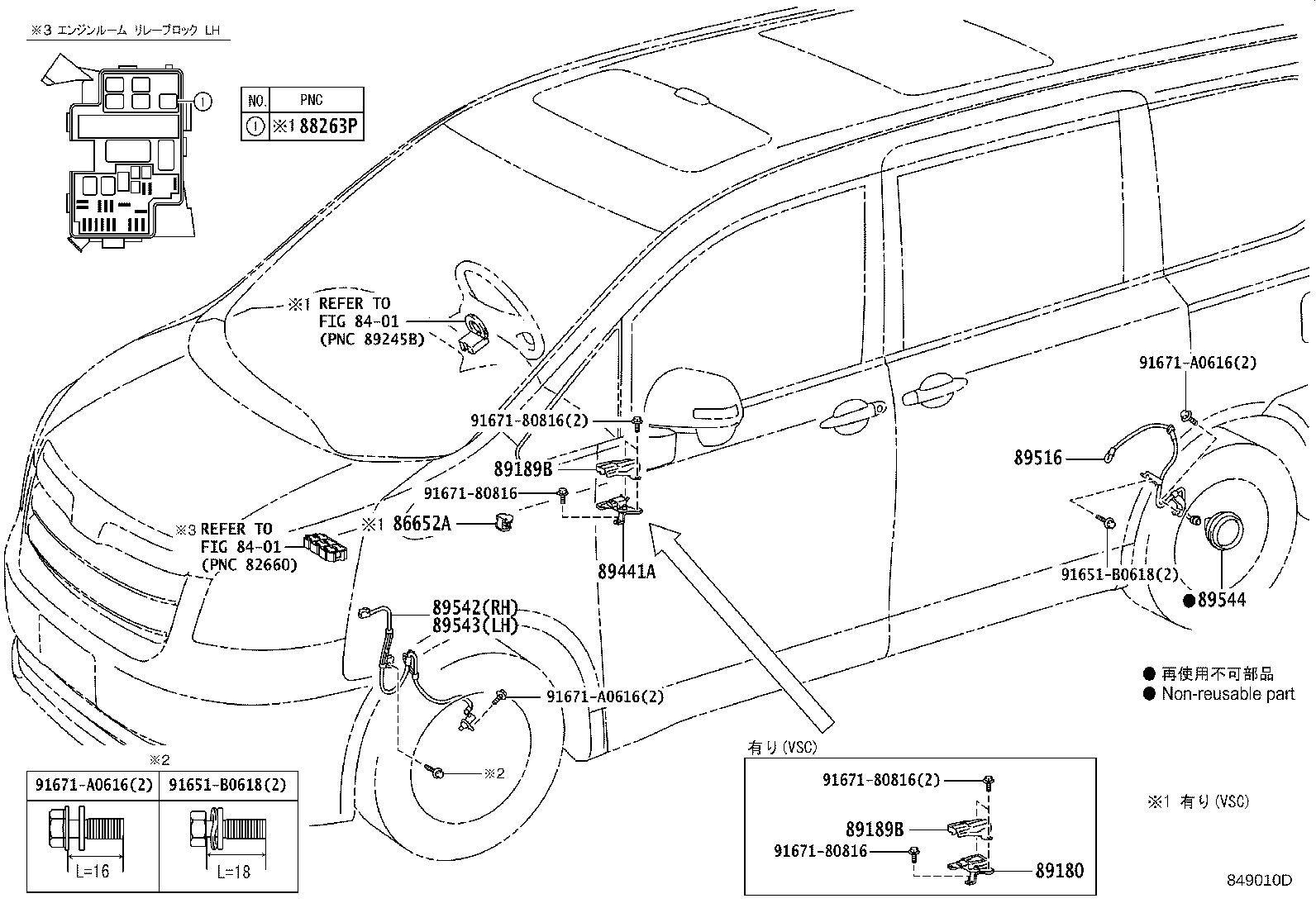

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86652A - BUZZER ASSY, SKID CONTROL
86652-50010	ZRR7#..CBU,IV5 VSC−有り	06/2007 - 04/2010	1
88263P - RELAY, STOP LAMP CONTROL
90987-04004	ZRR7#..CBU,IV5 VSC−有り	06/2007 - 04/2010	1
89180 - SENSOR ASSY, YAWRATE
89180-28060	ZRR7#..CBU,IV5 VSC−有り	03/2010 - 04/2010	1
89180-28030	ZRR7#..CBU,IV5 VSC−有り	06/2007 - 02/2010	1
89189B - BRACKET, YAWRATE SENSOR
89189-28020	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
89189B - BRACKET, YAWRATE SENSOR
89189-28020	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
89441A - SENSOR, DECELERATION
89440-28090	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
89516 - WIRE, SKID CONTROL SENSOR
89516-28080	ZRR70..CBU,IV5 左側	06/2007 - 04/2010	1
89516-28070	ZRR70..CBU,IV5 右側	06/2007 - 04/2010	1
89542 - SENSOR, SPEED, FRONT RH
89542-28110	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
89543 - SENSOR, SPEED, FRONT LH
89543-28110	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
89544 - SENSOR, SKID CONTROL
89544-52040	ZRR70..CBU,IV5	06/2007 - 04/2010	2
Common parts
91651-B0618
91671-80816
91671-A0616
Linked diagrams
8401
