ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

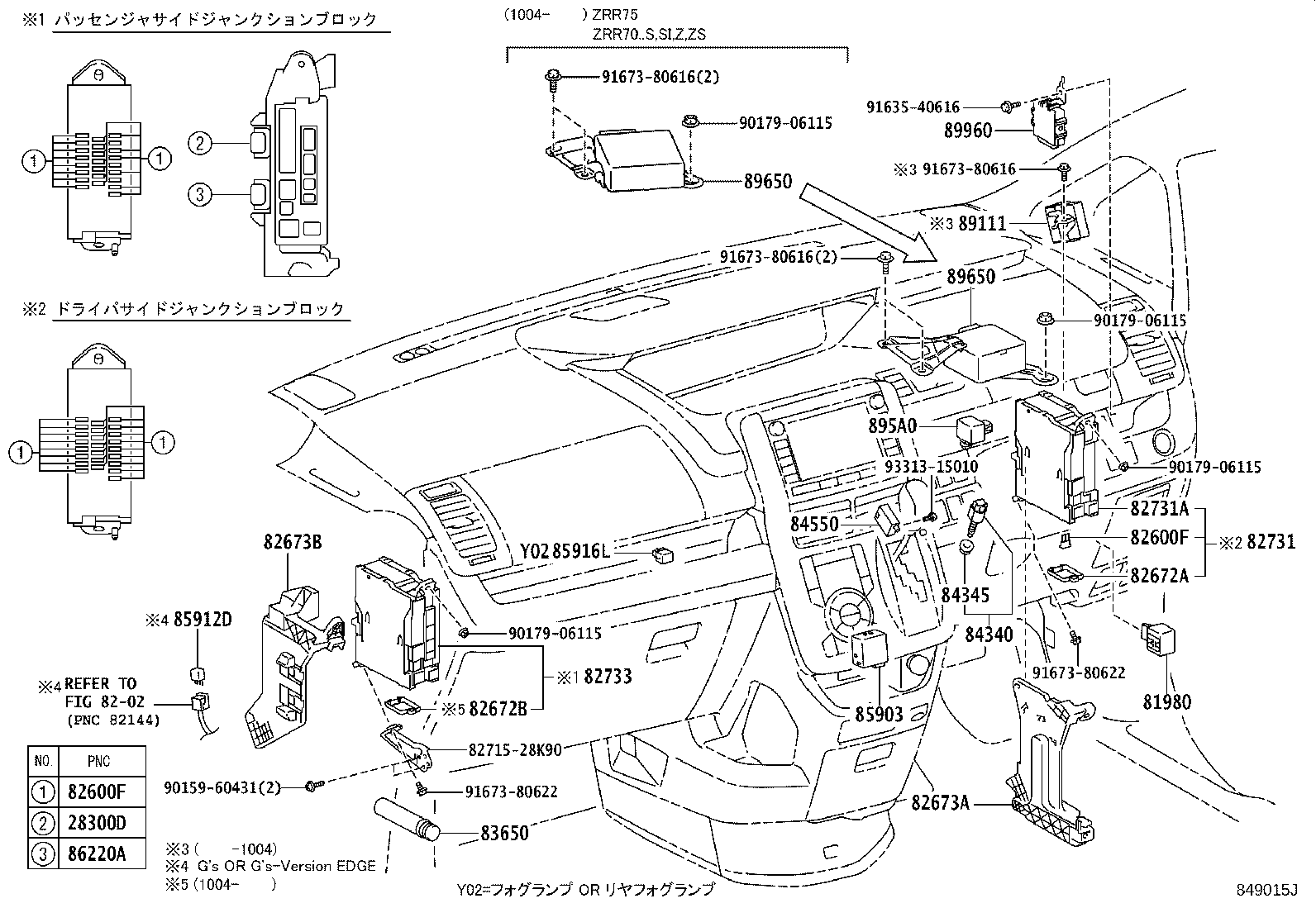

ILLUST NO. 4 OF 8(0706- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
3ZRFAE,3ZRFE..ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ZRR7#..CBU,IV5 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28130 |
ZRR7#..CBU,IV5 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-28380 |
ZRR7#..CBU,IV5 |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82733-28190 |
ZRR7#..CBU,IV5 |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-28350 |
ZRR7#..S,Z;ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU |
1 | ||
| 82730-28360 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82730-28360 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ZRR7#..CBU,IV5 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
ZRR7#..CBU,IV5 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZRR7#..CBU,IV5 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ZRR7#..CBU,IV5 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 85903-52010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
ZRR7#..CBU,IV5 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-28060 |
ZRR70..CBU,IV5 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 89111-28060 |
ZRR70..CBU,IV5 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 895A0-46020 |
ZRR7#..CBU,IV5 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28060 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) JTEKT/DENSO |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,VSC−有り |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,VSC−有り&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&魔hPA) |
1 | ||
| 89650-28070 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28060 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) JTEKT/DENSO |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,VSC−有り |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 89650-28080 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO,VSC−有り&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&魔hPA) |
1 | ||
| 89650-28070 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-28090 |
ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU |
1 | ||
| 89960-28110 |
ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU |
1 | ||
| Common parts | ||||
| 82715-28K90 | ||||
| 90159-60431 | ||||
| 90179-06115 | ||||
| 91635-40616 | ||||
| 91673-80616 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

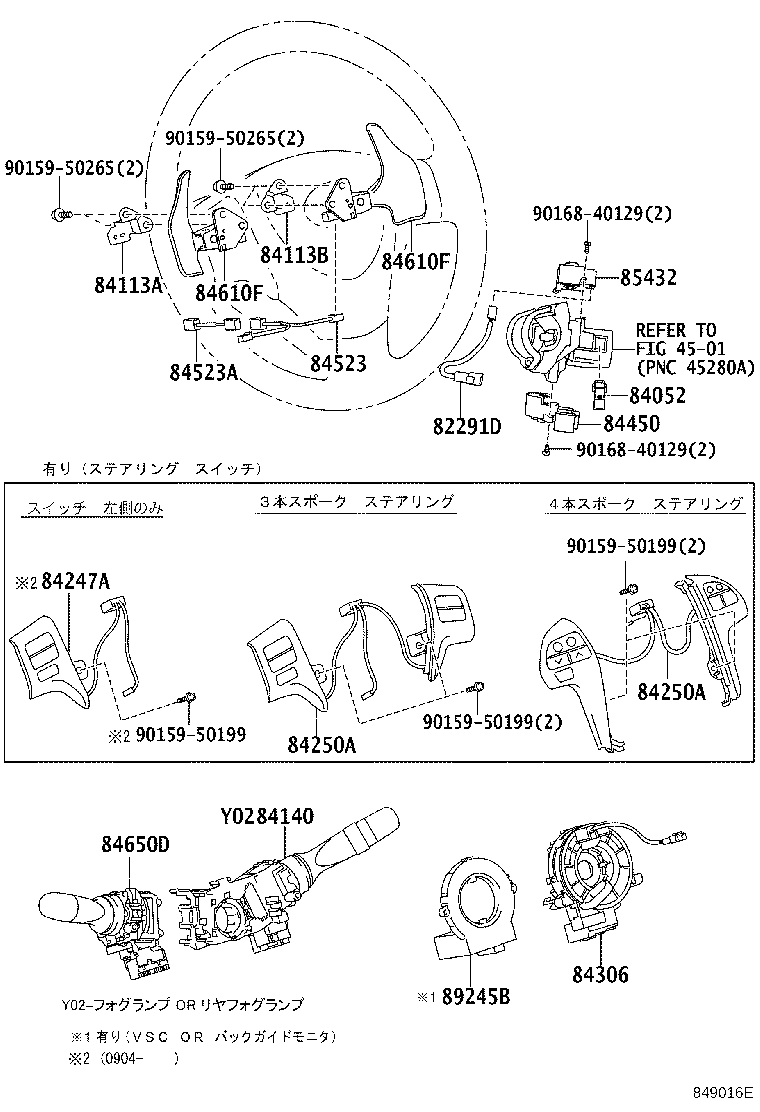

ILLUST NO. 6 OF 8(0706-1004)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82291D - WIRE, TO SOLENOID | ||||
| 82291-42010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 82291-42010 |
ZRR7#..(S,X,Z)..(CBU,IV5) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 84052-71010 |
ZRR7#..(S,X,Z)..(CBU,IV5) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-52010 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 84113B - BRACKET, SWITCH, NO.2 | ||||
| 84113-52020 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42040 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 84140-42030 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 84140-42040 |
ZRR7#..NOAH..(X,YY)..(CBU,IV5) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42070 |
ZRR7#..G,V |
1 | ||
| 84140-42080 |
ZRR7#..G,V ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28190 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84250-28160 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84250-28160 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28190 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84250-28160 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84250-28160 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84306-52090 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 84306-12100 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84306-52090 |
ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 84306-52090 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ZRR7#..(S,X,Z)..(CBU,IV5) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84450-12200 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-52020 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 84523A - WIRE, SWITCH NO.2 | ||||
| 84523-12010 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 84523-12010 |
ZRR7#..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRR7#..HTWVM..(CBU,IV5) 左側 |
1 | ||
| 84610-52040 |
ZRR7#..HTWVM..(CBU,IV5) 右側 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-52030 |
ZRR7#..HTWVM..(CBU,IV5) 左側 |
1 | ||
| 84610-52040 |
ZRR7#..HTWVM..(CBU,IV5) 右側 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-48100 |
ZRR7#..CBU,IV5 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-71010 |
ZRR7#..(S,X,Z)..(CBU,IV5) ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 85432-71010 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 89245-12020 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 89245-12020 |
ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5) 有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 89245-12020 |
ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

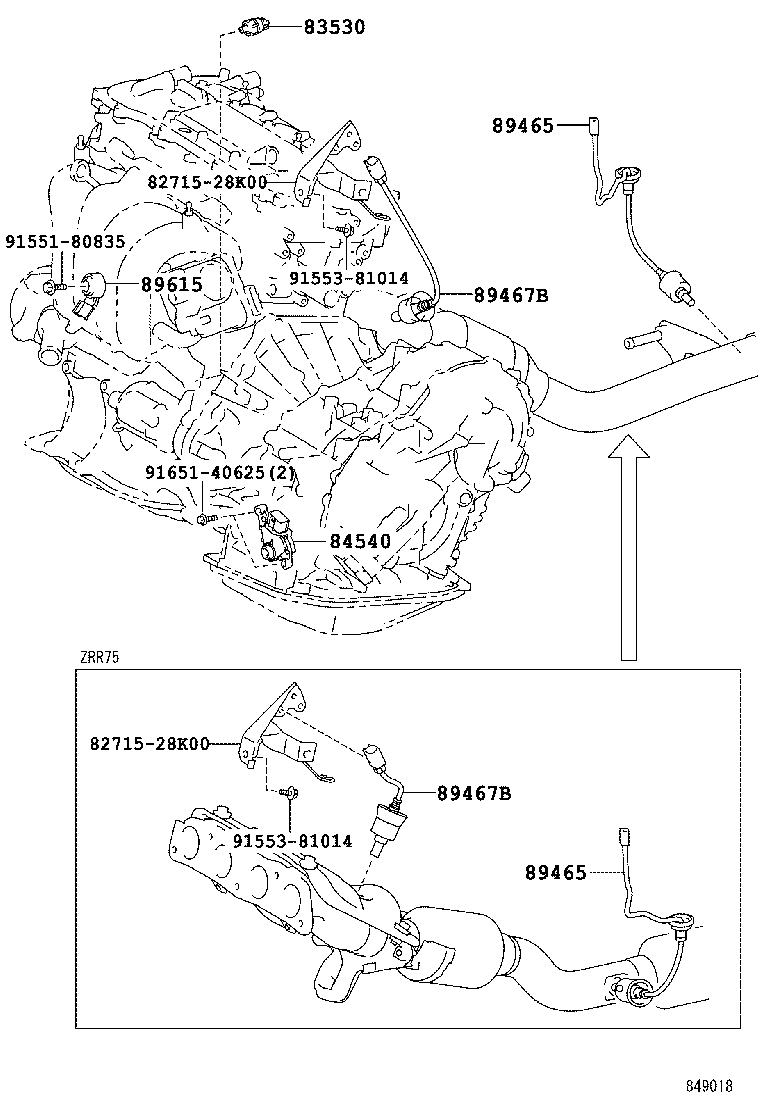

ILLUST NO. 1 OF 8(0706- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZRR7#..CBU,IV5 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRR7#..CBU,IV5 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28450 |
ZRR70..CBU,IV5 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28450 |
ZRR70..CBU,IV5 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZRR70..CBU,IV5 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZRR70..CBU,IV5 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 82715-28K00 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||

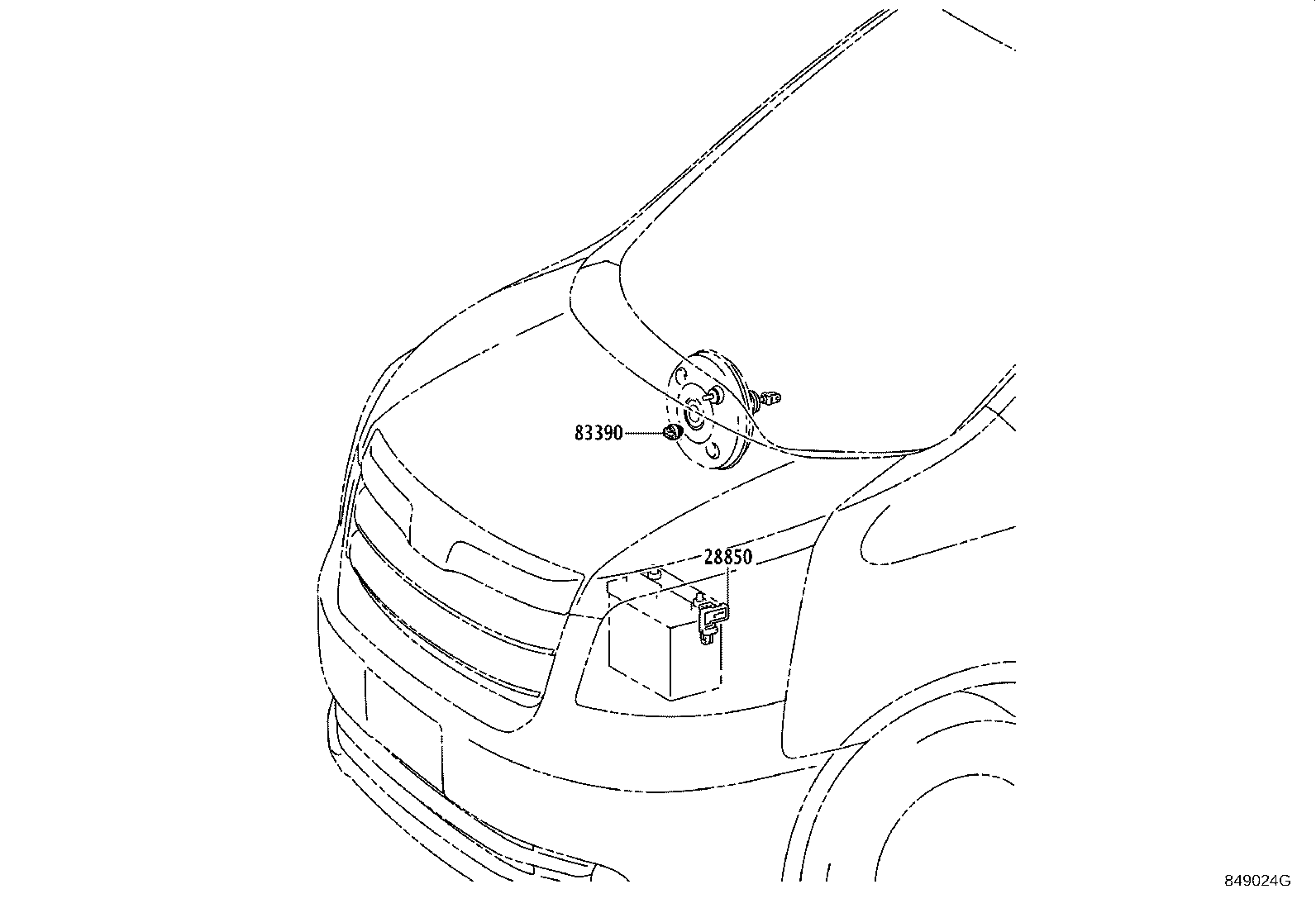

ILLUST NO. 2 OF 8(0706- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||

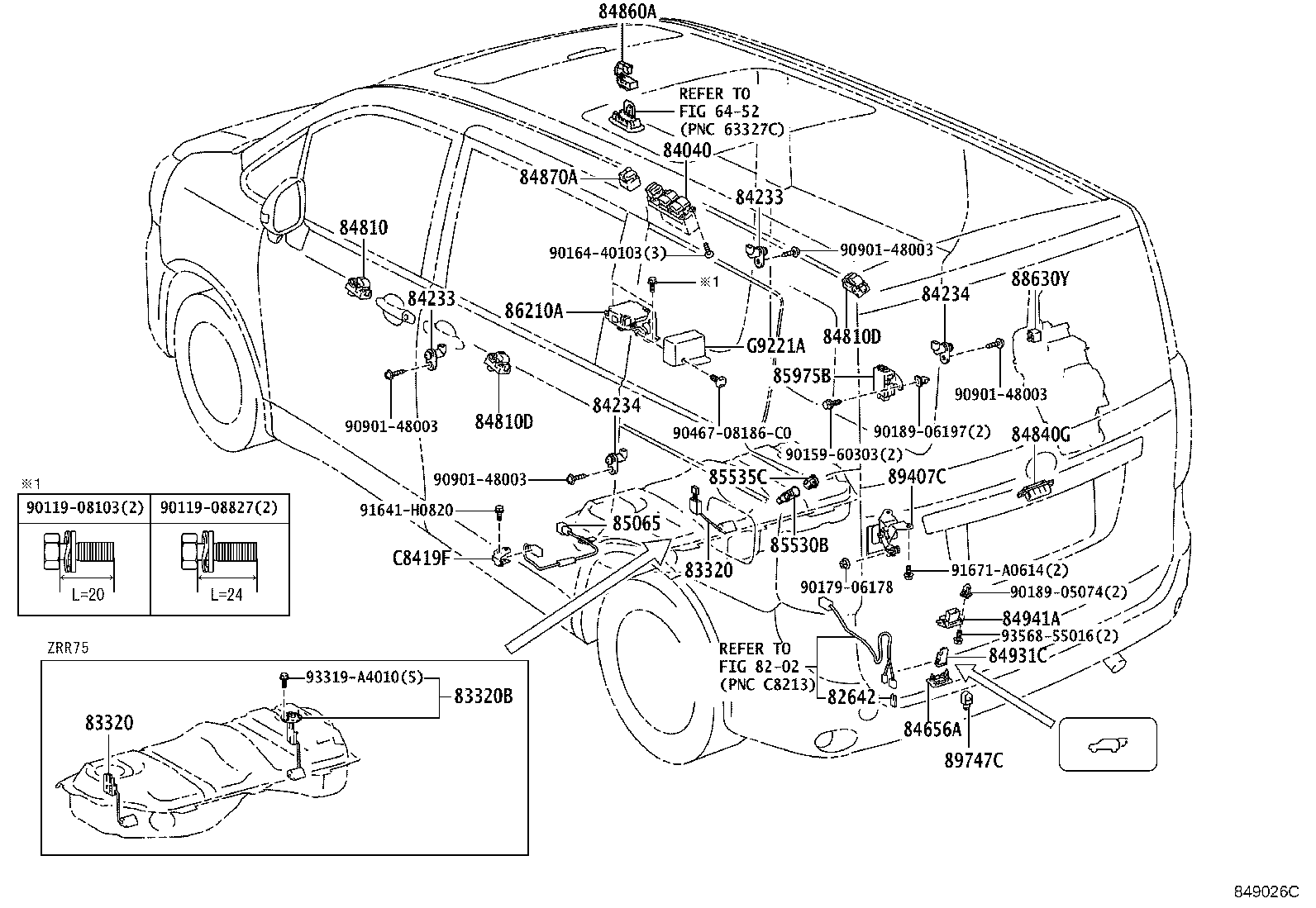

ILLUST NO. 8 OF 8(0706- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28530 |
ZRR70..CBU,IV5 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28530 |
ZRR70..CBU,IV5 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33080 |
ZRR7#..CBU,IV5 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-28110B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,MD.GRAY,TRIM1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
ZRR7#..CBU,IV5 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZRR7#..CBU,IV5 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
ZRR7#..CBU,IV5 |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ZRR70..IV5;ZRR70..(S,TRASX,X,YY,Z)..CBU;ZRR75..(S,TRASX,X,YY,Z)..(CBU,IV5) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-58010 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 84941A - BASE, SWITCH | ||||
| 84941-58010 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-58020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 85975-28130 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89407-44010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING | ||||
| 89747-58010 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90119-08827 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06178 | ||||
| 90189-05074 | ||||
| 90189-06197 | ||||
| 90467-08186C0 | ||||
| 90901-48003 | ||||
| 91641-H0820 | ||||
| 91671-A0614 | ||||
| 93319-A4010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 8202 | ||||

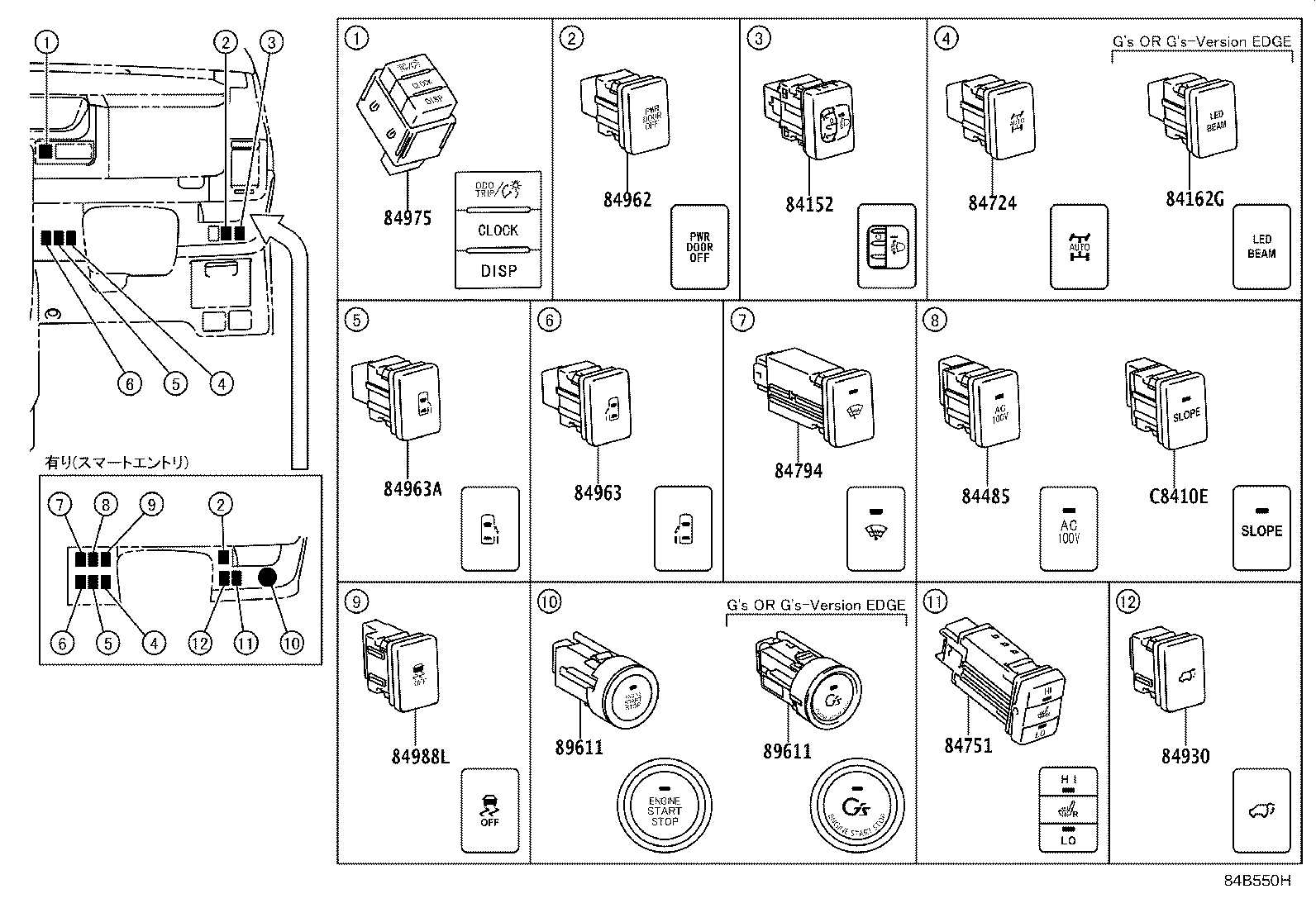

ILLUST NO. 5 OF 8(0706- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
ZRR7#..CBU,IV5 寒冷地仕様 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-48050 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84963A - SWITCH, POWER SLIDE DOOR CONTROL, NO.2 | ||||
| 84963-28070 |
ZRR7#..G,V |
1 | ||
| 84963-28070 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-28101E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 84975-28101B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 84975-28101E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM4# |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48070 |
ZRR7#..CBU,IV5 VSC−有り |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 89611-52010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 89611-52012 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 89611-52010 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| 89611-52012 |
ZRR7#..(G,SI,V,ZS)..(CBU,IV5) |
1 | ||
| C8410E - SWITCH ASSY, POWER LIFT CONTROL, NO.1 | ||||
| C8410-28010 |
ZRR7#..IV5 |
1 | ||

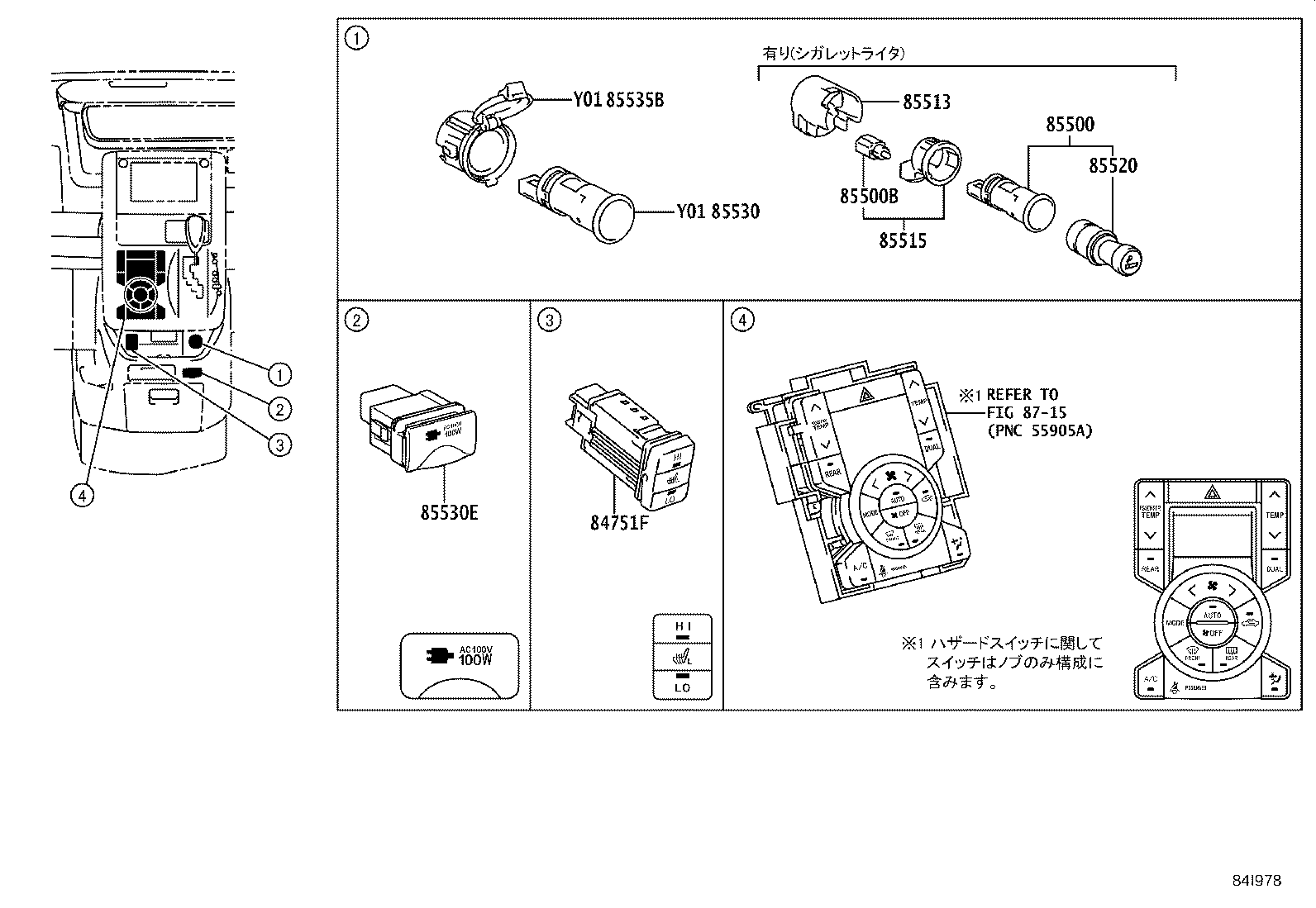

ILLUST NO. 5 OF 8(0706- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR7#..CBU,IV5 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
ZRR7#..CBU,IV5 14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28020 |
ZRR7#..CBU,IV5 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-26010 |
ZRR7#..CBU,IV5 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR7#..CBU,IV5 ｼｶﾞﾚｯﾄﾗｲﾀｰ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR7#..CBU,IV5 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-44030E0 |
ZRR7#..S S“G Edition” *(A)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,GREGE,TRIM4# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 85535-28050B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 85535-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 85535-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM4# |
1 | ||
| 85535-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 85535-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8715 | ||||

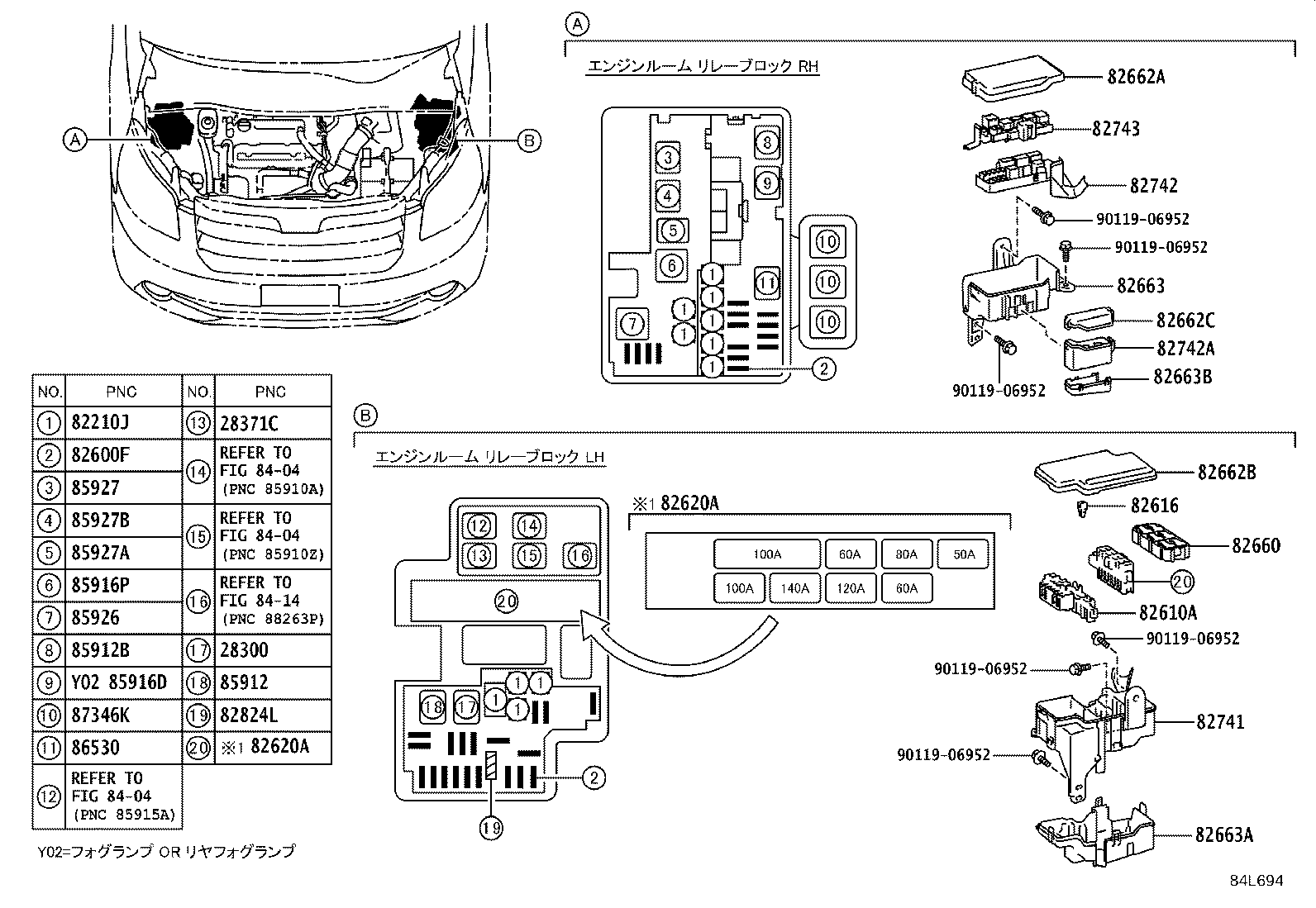

ILLUST NO. 3 OF 8(0706- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
3ZRFAE,3ZRFE..ZRR7#..CBU,IV5 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
ZRR7#..CBU,IV5 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08203 |
ZRR7#..CBU,IV5 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08295 |
ZRR7#..CBU,IV5 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
ZRR7#..CBU,IV5 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
ZRR7#..CBU,IV5 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09019 |
ZRR7#..CBU,IV5 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR7#..CBU,IV5 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
ZRR7#..CBU,IV5 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09024 |
ZRR7#..CBU,IV5 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
ZRR7#..CBU,IV5 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09021 |
ZRR7#..CBU,IV5 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRR7#..CBU,IV5 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28310 |
ZRR7#..CBU,IV5 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28310 |
ZRR7#..CBU,IV5 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-28250 |
ZRR7#..CBU,IV5 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28220 |
ZRR7#..CBU,IV5 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82662-28140 |
ZRR7#..CBU,IV5 寒冷地仕様&VSC−有り |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82662-28140 |
ZRR7#..CBU,IV5 寒冷地仕様 |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82662-28140 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-28120 |
ZRR7#..CBU,IV5 寒冷地仕様 |
1 | ||
| 82663-28120 |
ZRR7#..CBU,IV5 寒冷地仕様&VSC−有り |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82663-28120 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82742-28020 |
ZRR7#..CBU,IV5 寒冷地仕様 |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82742-28020 |
ZRR7#..CBU,IV5 寒冷地仕様&VSC−有り |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDDDVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z 寒冷地仕様&有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ& ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&VSC−有り&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 82742-28020 |
ZRR7#..S,Z;ZRR70..07S..HTWC..CBU 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席& 助手席 & ﾊﾞｯｸﾄﾞｱ)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ZRR7#..CBU,IV5 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
ZRR7#..CBU,IV5 |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90987-02027 |
ZRR7#..CBU,IV5 寒冷地仕様 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZRR7#..CBU,IV5 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ZRR7#..CBU,IV5 |
1 | ||
| 90987-02025 |
ZRR7#..CBU,IV5 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02024 |
ZRR7#..CBU,IV5 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZRR7#..CBU,IV5 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02024 |
ZRR7#..CBU,IV5 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZRR7#..CBU,IV5 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ZRR7#..CBU,IV5 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
