ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

Click highlighted areas on diagram

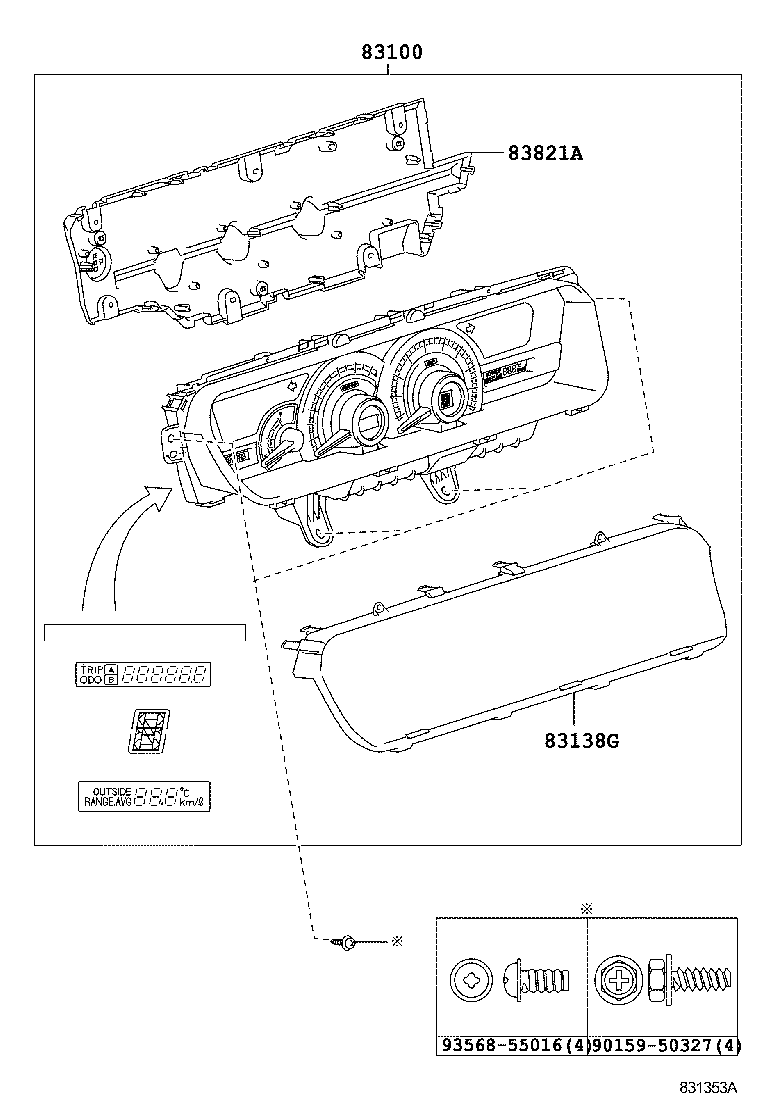

diagram 83100 83138G 83821A 9015950327 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-28F00

ZRR7#..S,Z

YAZAKI

 1
83800-28E80

ZRR7#..G,V

YAZAKI

 1
83800-28E70

ZRR7#..HTWVM..(CBU,IV5)

YAZAKI

 1
83138G - GLASS, COMBINATION METER
83852-28E80

ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)

 1
83821A - COVER, COMBINATION METER, NO.1
83821-28E80

ZRR7#..CBU,IV5

 1
Common parts
90159-50327
93568-55016
