ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

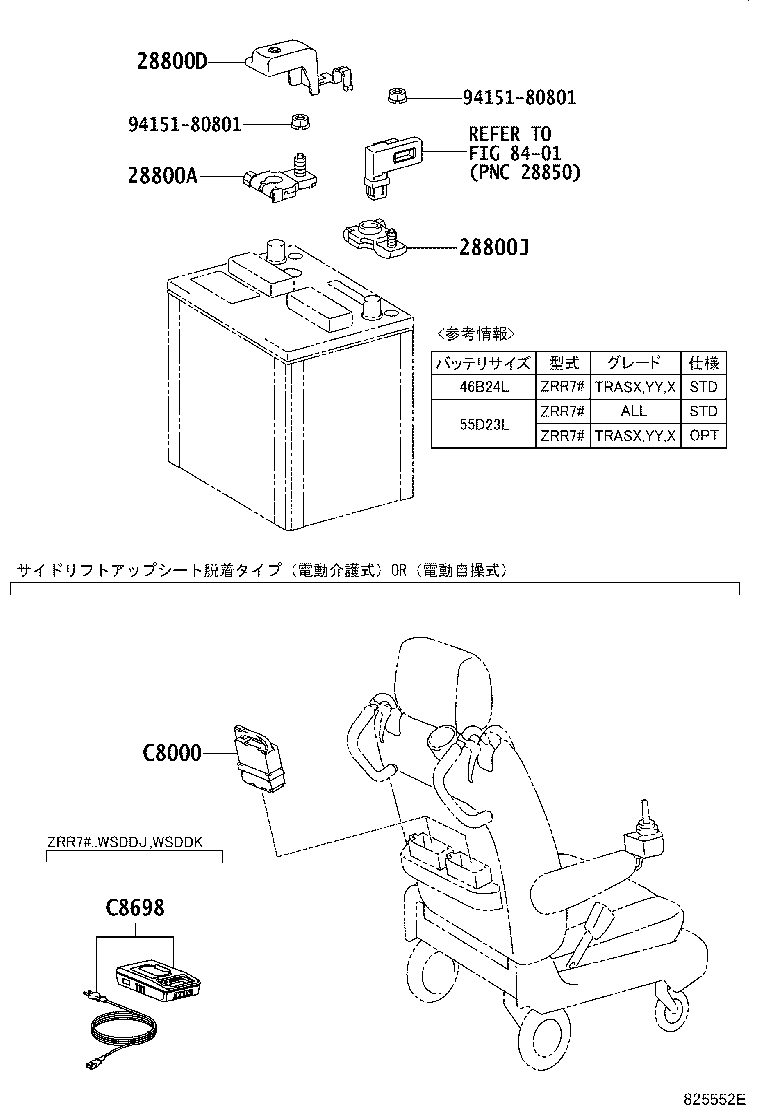

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 8401 9415180801 9415180801 C8000 C8698
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

3ZRFE..ZRR7#..IV5;3ZRFE..ZRR7#..G,S,V,Z;3ZRFAE..ZRR7#..CBU,IV5;3ZRFE..ZRR7#..07S..CBU

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

3ZRFAE,3ZRFE..ZRR7#..CBU,IV5

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

3ZRFE..ZRR7#..IV5;3ZRFE..ZRR7#..G,S,V,Z;3ZRFAE..ZRR7#..CBU,IV5;3ZRFE..ZRR7#..07S..CBU

 1
Common parts
94151-80801
Linked diagrams
8401
