ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
Production
Jun 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706-1004)NOAH

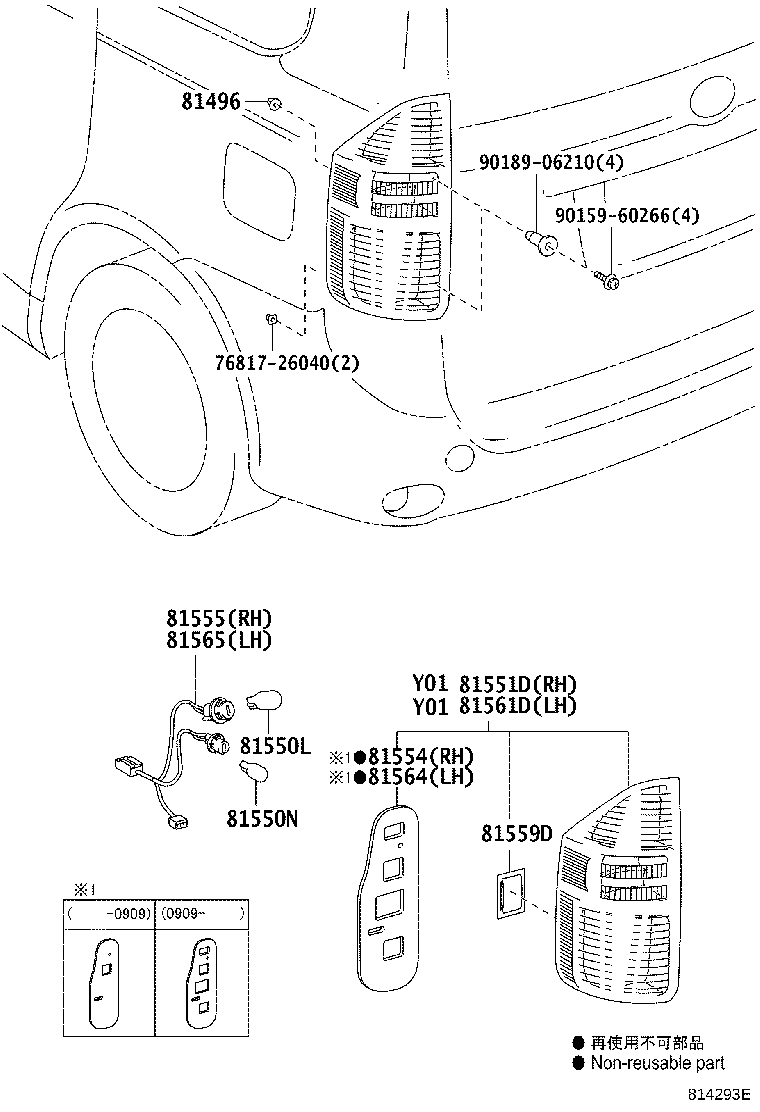

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ZRR7#..CBU,IV5 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
ZRR7#..CBU,IV5 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZRR7#..CBU,IV5 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-28430 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81551-28431 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-28430 |
ZRR7#..CBU,IV5 |
1 | ||
| 81554-28431 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-28430 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81559D - DESICCANT, REAR COMBINATION LAMP | ||||
| 81559-28450 |
ZRR7#..CBU,IV5 |
2 | ||
| 81559-28430 |
ZRR7#..NOAH..(CBU,IV5) |
2 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-28430 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81561-28431 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-28430 |
ZRR7#..CBU,IV5 |
1 | ||
| 81564-28431 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-28430 |
ZRR7#..NOAH..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90159-60266 | ||||
| 90189-06210 | ||||
