ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

Click highlighted areas on diagram

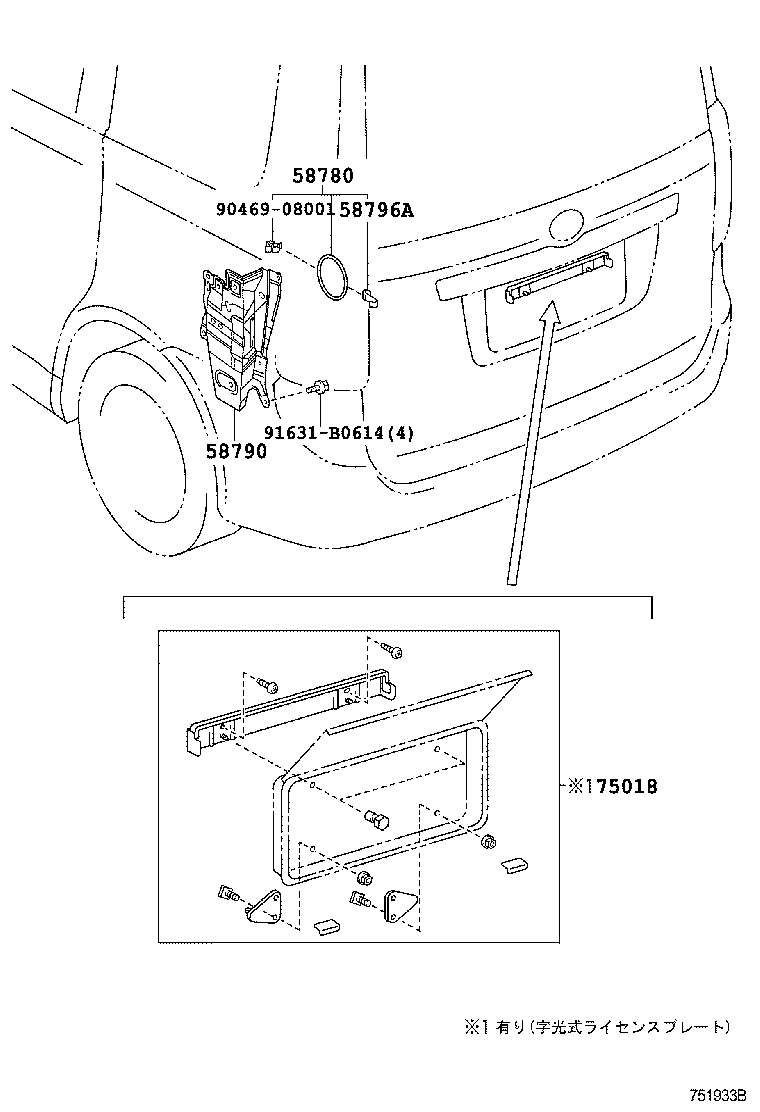

diagram 58780 58790 58796A 75018 9046908001 91631B0614
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-95J01

ZRR7#..CBU,IV5

 1
58790 - CARRIER ASSY, JACK
58790-28060

ZRR7#..CBU,IV5

 1
58796A - HOOK, JACK CLAMP
58788-95J01

ZRR7#..CBU,IV5

 1
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-44010

ZRR7#..CBU,IV5

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応

 1
Common parts
90469-08001
91631-B0614
