ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

Click highlighted areas on diagram

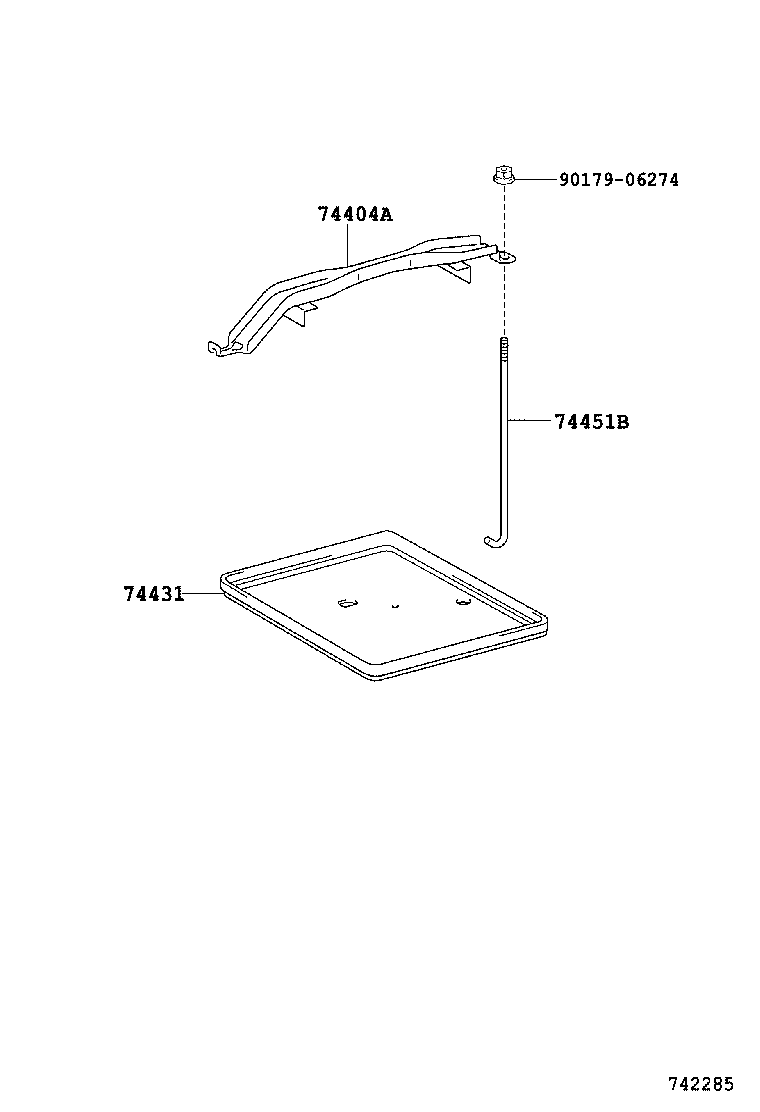

diagram 74404A 74431 74451B 9017906274
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-28220

ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)

 1
74431 - TRAY, BATTERY
74431-28040

ZRR7#..CBU,IV5

 1
74451B - BOLT, BATTERY CLAMP
74451-10060

ZRR7#..CBU,IV5

 1
Common parts
90179-06274
