ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

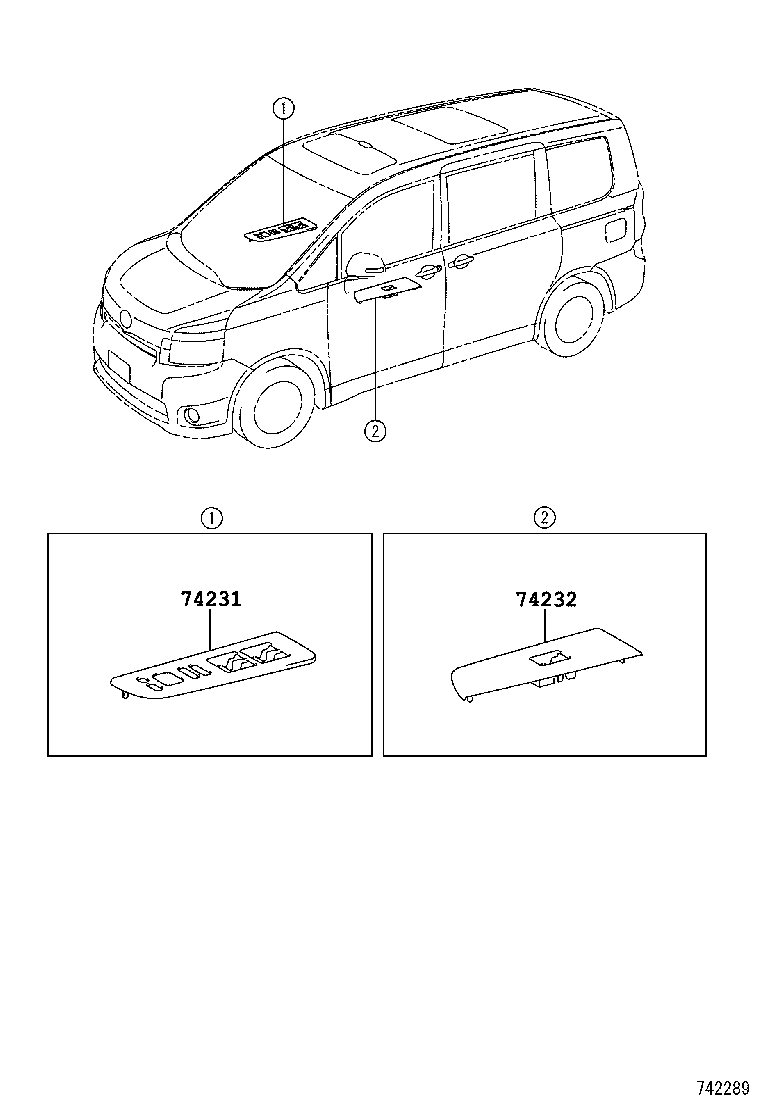

ILLUST NO. 1 OF 2(0706- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-28A10B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 74231-28A20 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) ｼﾙﾊﾞｰ |
1 | ||
| 74231-28A10E1 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-28590 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) ｼﾙﾊﾞｰ |
1 | ||
| 74232-28580E1 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 74232-28580B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||

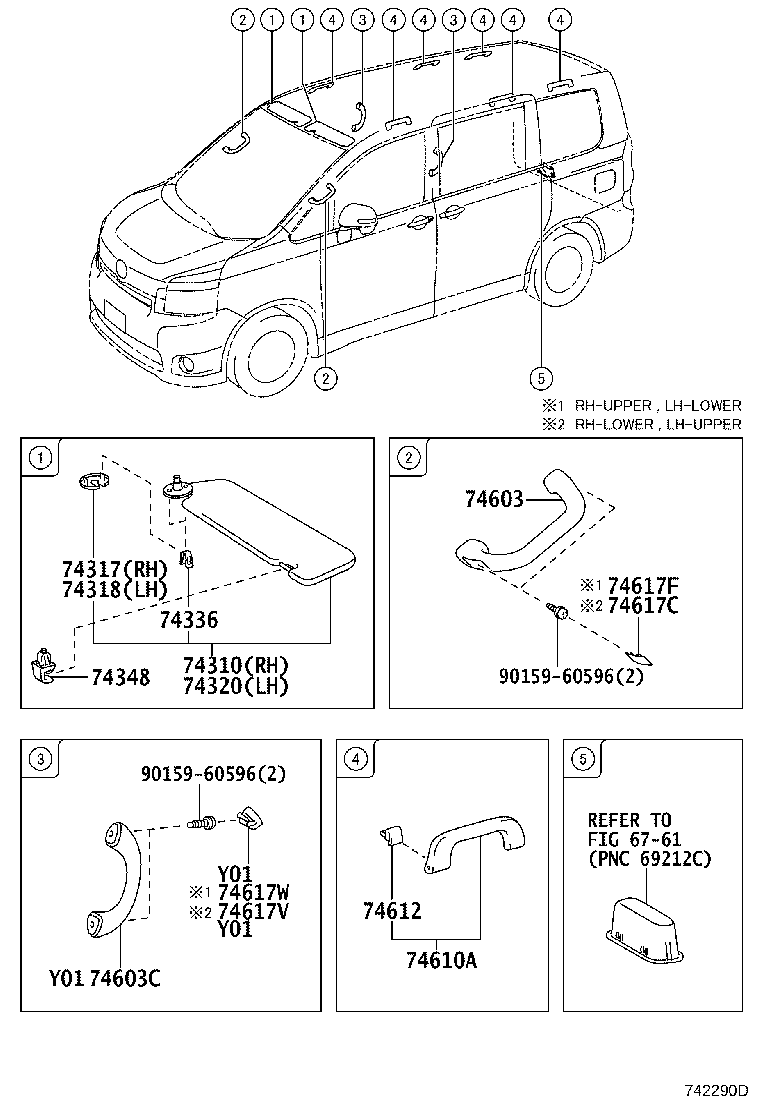

ILLUST NO. 2 OF 2(0706- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-28B30B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74310-28B31B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74310-28B32B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74310-28B30E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010B1 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74317-52010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 74317-52010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020B1 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74318-52020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 74318-52020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-28760B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74320-28761B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74320-28760E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 74320-28762B0 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
ZRR7#..CBU,IV5 |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74348-33040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-36020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74610-36020B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
2 | ||
| 74610-36020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74603-44020E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74603-44020B6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
2 | ||
| 74603-44020E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020B1 |
ZRR7#..V LT.GRAY,TRIM1# |
6 | ||
| 74610-52020E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
5 | ||
| 74610-52020B1 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
5 | ||
| 74610-52020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
5 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030B1 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
10 | ||
| 74612-52030E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
10 | ||
| 74612-52030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 74612-52030B1 |
ZRR7#..V LT.GRAY,TRIM1# |
12 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74615-60011B6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LIGHT GRAY,TRIM1# |
2 | ||
| 74615-60011E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74615-60011E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74616-60011B6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LIGHT GRAY,TRIM1# |
2 | ||
| 74616-60011E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74616-60011E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74617V - PLUG, ASSIST GRIP | ||||
| 74617-44010E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 74617-44010E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74617-44010B5 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
2 | ||
| 74617W - PLUG, ASSIST GRIP | ||||
| 74617-44020B5 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
2 | ||
| 74617-44020E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 74617-44020E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-60596 | ||||
