ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706-1004)08S

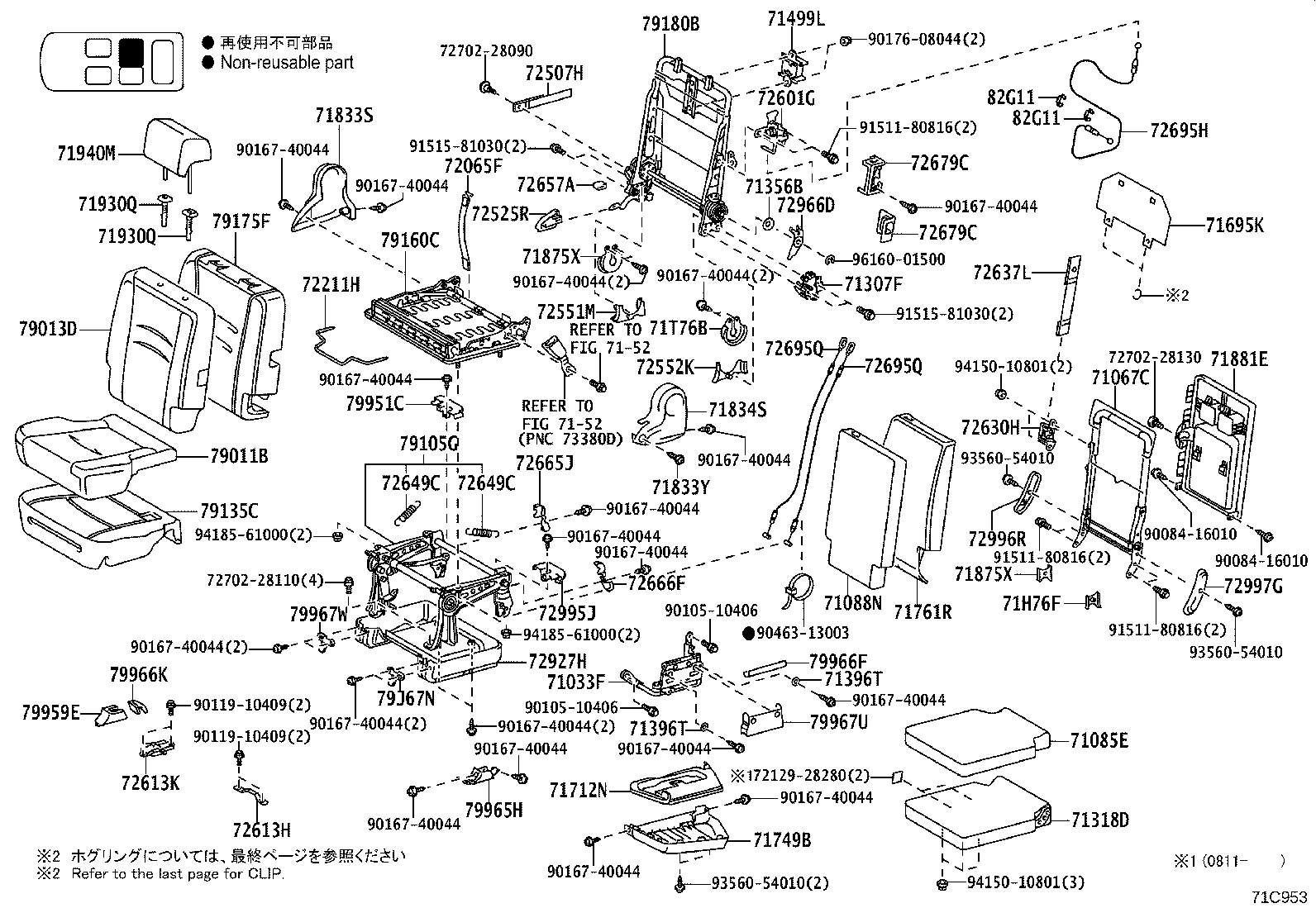

ﾘﾔNO.1ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71067C - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71067-28090 |
ZRR70..G,V |
1 | ||
| 71085E - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-28150B2 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 71085-28130E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 71085-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71088N - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-28130E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71088-28150B0 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 71088-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71318D - PAD, CENTER SEAT CUSHION | ||||
| 71032-28030 |
ZRR70..G,V |
1 | ||
| 71396T - CUSHION, NO.1 SEAT SUPPORT, REAR | ||||
| 71396-28030E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71396T - CUSHION, NO.1 SEAT SUPPORT, REAR | ||||
| 71396-28030E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71499L - DAMPER, NO.1 SEAT BACK SPRING, RH | ||||
| 71499-46020 |
ZRR70..G,V |
1 | ||
| 71712N - COVER, SIDE SEAT CUSHION, REAR | ||||
| 71712-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71749B - COVER, SIDE SEAT LOWER CUSHION, RH | ||||
| 71749-28030E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71749-28030B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71749-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71761R - PAD, REAR SIDE SEAT BACK | ||||
| 71761-28030 |
ZRR70..G,V |
1 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71801-28010B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71833-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71801-28010E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71834-28170B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71834-28170E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28070B1 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71875-28070E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49,NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 71876-28270E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28340B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28070B1 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71875-28070E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49,NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 71876-28270E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28340B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71881E - BOARD, REAR NO.1 SEAT BACK, CENTER | ||||
| 79156-28030B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79156-28030E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79156-28040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28C10E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940-28C21B1 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S | ||||
| 71876-28260B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71876-28260E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71875-28280E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28070B1 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71876-28330B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71876-28070E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 72065F - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-28130E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 72507-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72507-28130B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 72525R - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72551M - COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT) | ||||
| 72551-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72552K - COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT) | ||||
| 72552-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72601G - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-28030 |
ZRR70..G,V |
1 | ||
| 72613H - STRIKER, REAR SEAT LOCK | ||||
| 72613-28130 |
ZRR7#..IV5;ZRR7#..07S..CBU |
1 | ||
| 72613K - STRIKER, REAR SEAT LOCK, NO.2 | ||||
| 72613-28170 |
ZRR7#..IV5;ZRR7#..07S..CBU |
1 | ||
| 72630H - LOCK ASSY, NO.1 SEAT BACK | ||||
| 72630-28110 |
ZRR70..G,V |
1 | ||
| 72637L - HANDLE, REAR SEAT LOCK | ||||
| 72637-28120C1 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72637-28130C0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72637-28120E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72679C - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-28080B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72679-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72679-28080E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 72679C - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-28080B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72679-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72679-28080E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 72695Q - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-28100 |
ZRR70..G,V |
1 | ||
| 72695Q - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-28100 |
ZRR70..G,V |
1 | ||
| 72927H - COVER, REAR NO.1 SEAT CUSHION UNDER, RH NO.1 | ||||
| 72927-28110E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72996R - COVER, REAR NO.1 SEAT BACK, RH | ||||
| 72996-28100B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72996-28100E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 72996-28190E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72997G - COVER, REAR NO.1 SEAT BACK, LH NO.1 | ||||
| 72997-28020B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 72997-28020E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 72997-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28F10E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79011-28F30B2 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79011-28G10E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28G10B1 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79013-28F90E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79013-28G11B2 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79013-28G90E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28350 |
ZRR70..G,V |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28450 |
ZRR70..G,V |
1 | ||
| 79160C - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-28360 |
ZRR70..G,V |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28420 |
ZRR70..G,V |
1 | ||
| 79180B - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28650 |
ZRR70..G,V |
1 | ||
| 79959E - COVER, NO.1 SEAT LEG, RH | ||||
| 79959-28180B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79959-28180E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79959-28210E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79965H - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT) | ||||
| 79965-28180E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79965-28200B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79965-28200E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79966F - COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT) | ||||
| 79966-28140E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79966K - COVER, REAR SEAT LEG, RH(FOR RH SEAT) | ||||
| 79966-28150E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79967U - COVER, REAR NO.1 SEAT LEG SIDE, NO.2 | ||||
| 79965-28160B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79965-28160E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79965-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4 | ||||
| 79967-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 79J67N - COVER, REAR SEAT LEG SIDE, NO.7 | ||||
| 79967-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| Common parts | ||||
| 72702-28090 | ||||
| 72702-28110 | ||||
| 72702-28130 | ||||
| 90084-16010 | ||||
| 90105-10406 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90463-13003 | ||||
| 91511-80816 | ||||
| 91515-81030 | ||||
| 93560-54010 | ||||
| 94150-10801 | ||||
| 94185-61000 | ||||
| 96160-01500 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(0706-1004)08S

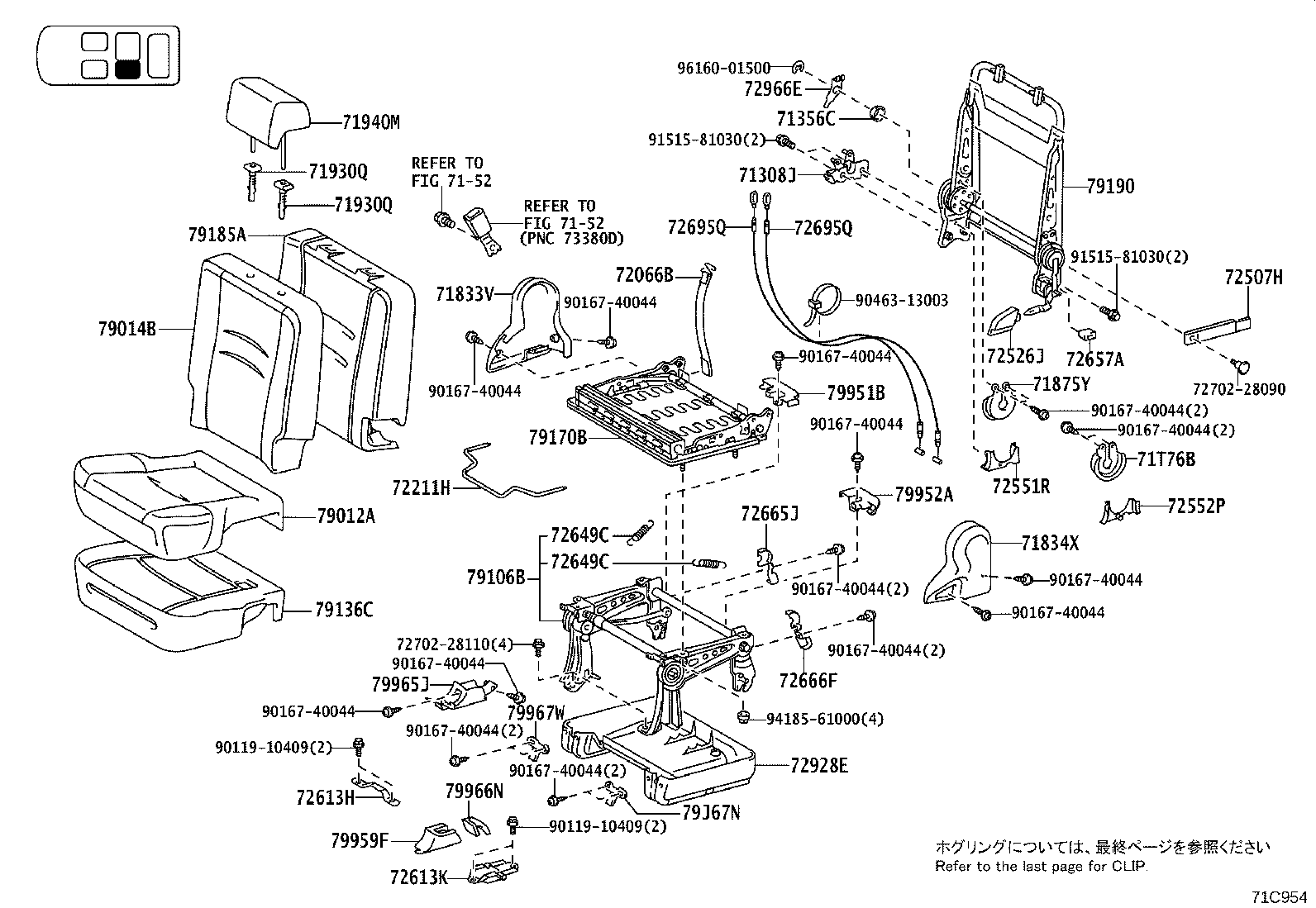

ﾘﾔNO.1ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71833V - COVER, NO.1 SEAT RECLINING, NO.2 RH | ||||
| 71833-28180E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71833-28160B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71833-28160E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71834X - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71802-28020B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 71834-28210E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71802-28020E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28C10E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940-28C21B1 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28070B1 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71876-28330B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 71876-28070E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-28130E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 72507-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72507-28130B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72552P - COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT) | ||||
| 72552-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72613H - STRIKER, REAR SEAT LOCK | ||||
| 72613-28130 |
ZRR7#..IV5;ZRR7#..07S..CBU |
1 | ||
| 72613K - STRIKER, REAR SEAT LOCK, NO.2 | ||||
| 72613-28170 |
ZRR7#..IV5;ZRR7#..07S..CBU |
1 | ||
| 72695Q - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-28100 |
ZRR70..G,V |
1 | ||
| 72695Q - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-28100 |
ZRR70..G,V |
1 | ||
| 72928E - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28720E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79012-28790E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79012-28740B2 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28C30B1 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79014-28C10E1 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79014-28C80E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79014-28C31B2 |
ZRR70..V DARK GRAY,TRIM1# |
1 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79106-28220 |
ZRR70..G,V |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28190 |
ZRR70..G,V |
1 | ||
| 79170B - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79170-28140 |
ZRR70..G,V |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-28150 |
ZRR70..G,V |
1 | ||
| 79190 - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28460 |
ZRR70..G,V |
1 | ||
| 79951B - COVER, NO.1 SEAT CUSHION, NO.1 | ||||
| 79952-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 79952A - COVER, NO.1 SEAT CUSHION, NO.2 | ||||
| 79952-28040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 79959F - COVER, NO.1 SEAT LEG, LH | ||||
| 79959-28190B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79959-28190E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79959-28220E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79965J - COVER, NO.1 SEAT LEG SIDE, NO.2(FOR LH SEAT) | ||||
| 79965-28210B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 79965-28210E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 79965-28220E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79966N - COVER, REAR SEAT LEG, LH(FOR LH SEAT) | ||||
| 79966-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79967W - COVER, REAR NO.1 SEAT LEG SIDE, NO.4 | ||||
| 79967-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 79J67N - COVER, REAR SEAT LEG SIDE, NO.7 | ||||
| 79967-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| Common parts | ||||
| 72702-28090 | ||||
| 72702-28110 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 91515-81030 | ||||
| 94185-61000 | ||||
| 96160-01500 | ||||
| Linked diagrams | ||||
| 7152 | ||||

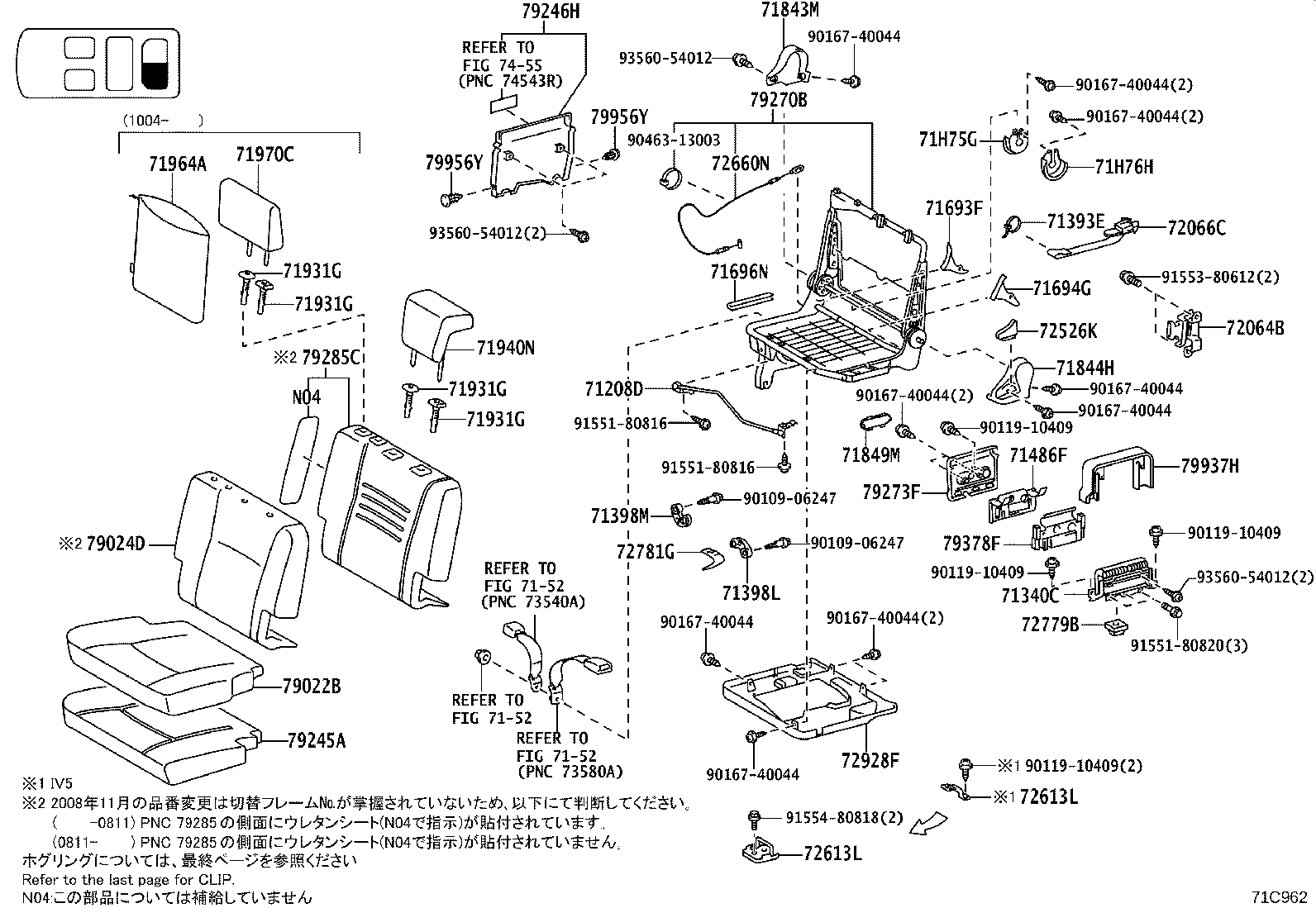

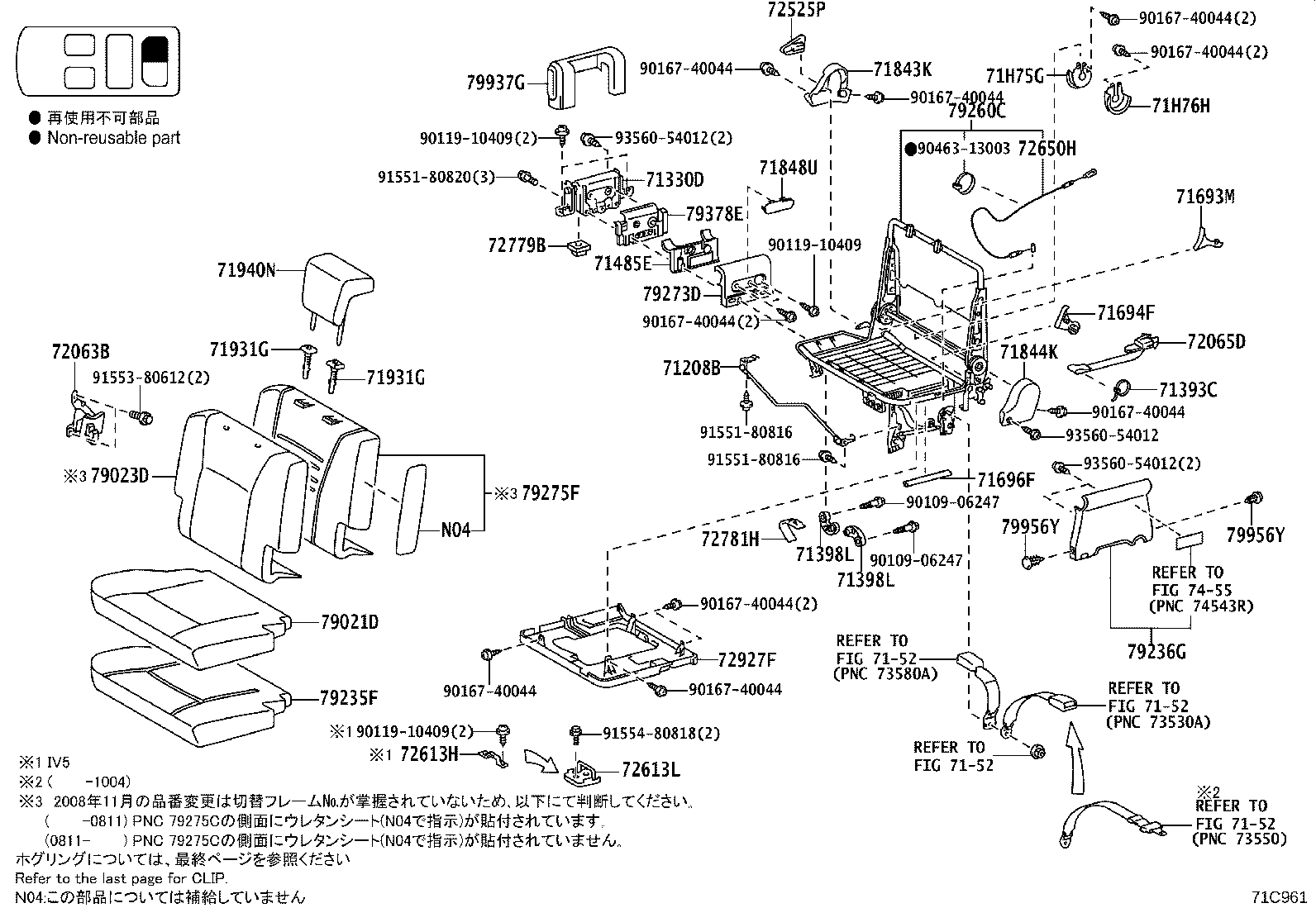

(0706- )07S,08S
ﾘﾔNO.2ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71485E - COVER, REAR SEAT HINGE | ||||
| 71485-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71693M - COVER, REAR SEAT CUSHION HINGE, OUTER RH | ||||
| 71693-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71694F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.4 | ||||
| 71694-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71843K - COVER, REAR NO.2 SEAT RECLINING, NO.2 RH | ||||
| 71843-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71844K - COVER, REAR NO.2 SEAT RECLINING, NO.2 LH | ||||
| 71844-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71848U - CAP, NO.2 SEAT ADJUSTER COVER, RH | ||||
| 71848-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71940-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28B81B1 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28B40E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72063B - HOOK SUB-ASSY, REAR SEAT, RH | ||||
| 72063-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72063-28010B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 72063-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72065D - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH | ||||
| 72065-28160E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72613H - STRIKER, REAR SEAT LOCK | ||||
| 72613-28130 |
ZRR7#..IV5;ZRR7#..07S..CBU |
1 | ||
| 72613L - STRIKER, REAR SEAT LOCK, REAR OUTER | ||||
| 72613-26060 |
ZRR7#..IV5 |
4 | ||
| 72927F - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-28D30B2 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79021-28D31B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79021-28D10E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-28C20E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79023-28C41B2 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79023-28C40B2 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79023-28C42B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79023-28C22E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79236G - COVER, NO.2 SEAT LEG, RH | ||||
| 79236-28130E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79273D - COVER, NO.2 SEAT HINGE, REAR RH | ||||
| 79273-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79378E - COVER, NO.3 SEAT CUSHION HINGE, RH | ||||
| 79378-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79937G - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-28140E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
4 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
4 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91553-80612 | ||||
| 91554-80818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(0706- )07S,08S
ﾘﾔNO.2ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71486F - COVER, REAR SEAT HINGE, LH | ||||
| 71486-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71693F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1 | ||||
| 71693-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71694G - COVER, REAR SEAT CUSHION HINGE, INNER LH | ||||
| 71694-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71843M - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71844H - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-28110E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71849M - CAP, NO.2 SEAT ADJUSTER COVER, LH | ||||
| 71848-28030B1 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,MD.GRAY,TRIM1# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71940-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28B81B1 |
ZRR7#..V DARK GRAY,TRIM1# |
2 | ||
| 71940-28B40E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72064B - HOOK SUB-ASSY, REAR SEAT, LH | ||||
| 72064-28010B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 72064-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72064-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72064-28020B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 72066C - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-28210E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72613L - STRIKER, REAR SEAT LOCK, REAR OUTER | ||||
| 72613-26060 |
ZRR7#..IV5 |
4 | ||
| 72613L - STRIKER, REAR SEAT LOCK, REAR OUTER | ||||
| 72613-26060 |
ZRR7#..IV5 |
4 | ||
| 72928F - COVER, REAR NO.2 SEAT CUSHION UNDER, LH | ||||
| 72928-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-28760B2 |
ZRR7#..V DK.GRAY,TRIM1# |
1 | ||
| 79022-28761B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79022-28740E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-28730E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79024-28732E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79024-28750B2 |
ZRR7#..V DK.GEAY,TRIM1# |
1 | ||
| 79024-28751B2 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79024-28752B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 79246H - COVER, NO.2 SEAT LEG, LH | ||||
| 79246-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79273F - COVER, NO.2 SEAT HINGE, NO.2 | ||||
| 79273-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79378F - COVER, NO.2 SEAT CUSHION HINGE, LH | ||||
| 79378-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79937H - COVER, REAR SEAT LEG, NO.2 | ||||
| 79937-28150E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
4 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
4 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90463-13003 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91553-80612 | ||||
| 91554-80818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(0706- )

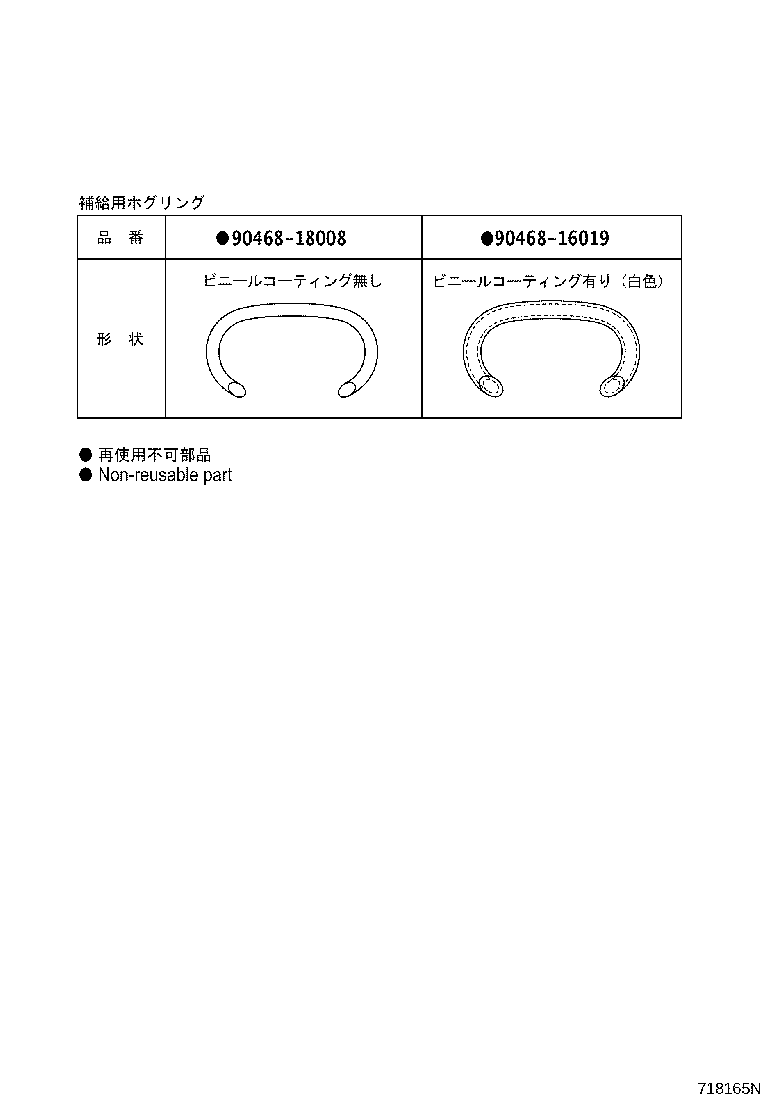

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
