ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )
ｳﾝﾃﾝｾｷ

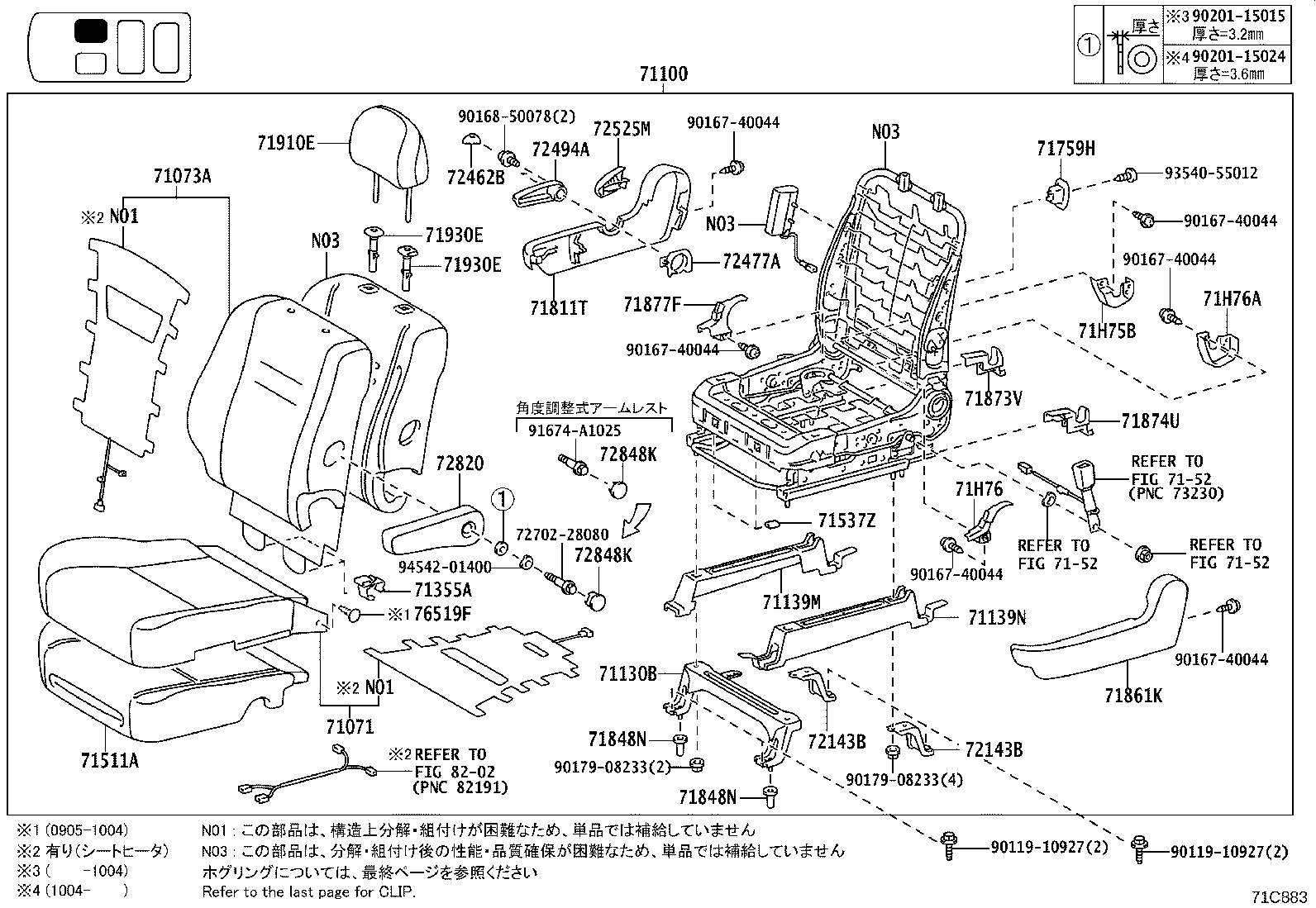

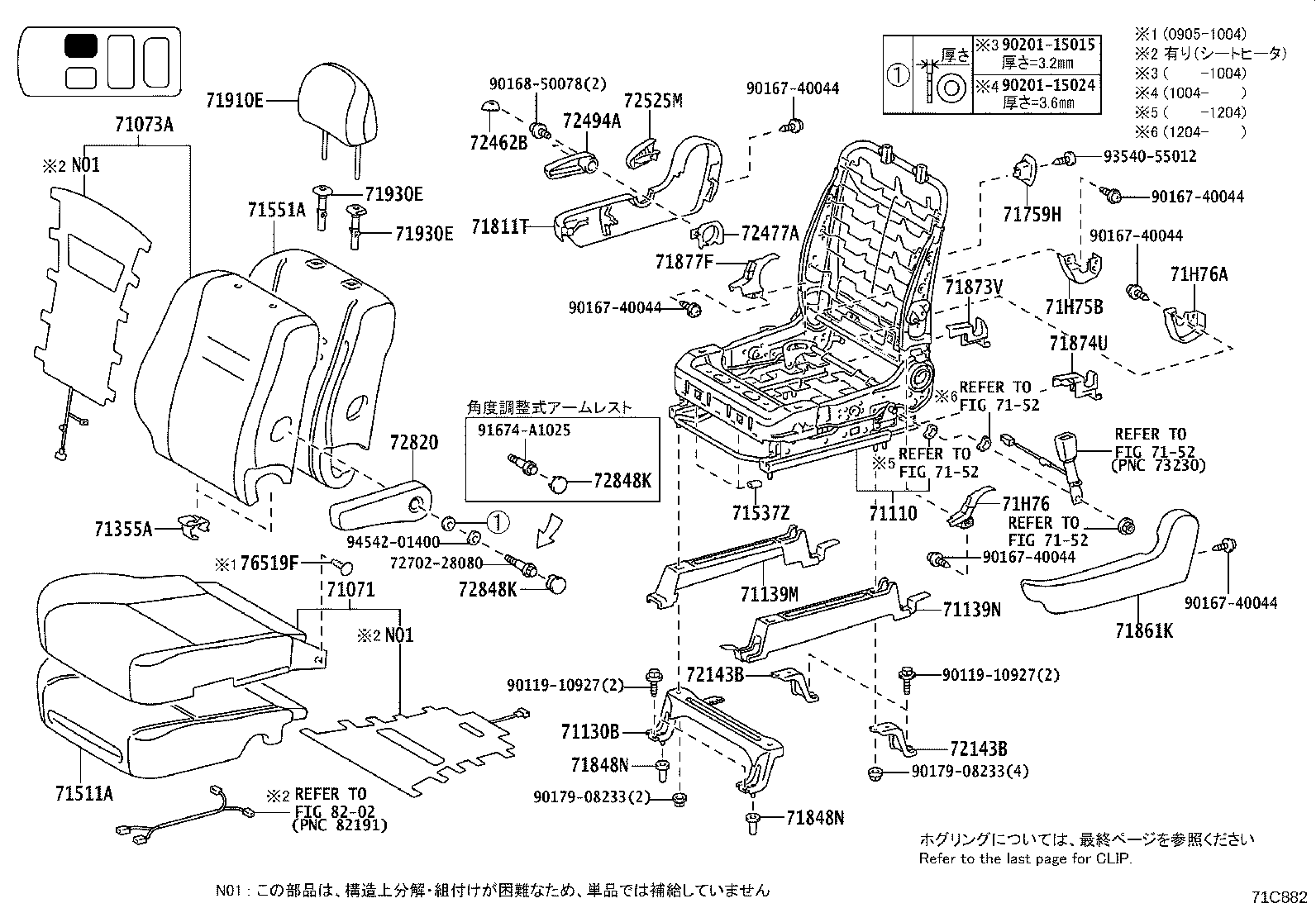

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28C50B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71071-28D30B2 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71071-28D10E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71071-28C70B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C60E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71071-28C40E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71071-28C51B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C71B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C80B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71071-28C81B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71071-28D31B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28D50B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D70B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D50B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28E30B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71073-28D50E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71073-28D90E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71073-28E40B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073-28E10B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D71B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28E00E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71073-28D50E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71073-28E41B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073-28E31B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71073-28E11B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-28250 |
ZRR7#..CBU,IV5 |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28190E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71139-28190B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71139-28190E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28170B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71149-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71149-28170E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28340 |
ZRR7#..CBU,IV5 |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRR7#..CBU,IV5 |
4 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-28660 |
ZRR7#..CBU,IV5 |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71759-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71759-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28340B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71811-28340E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71811-28340E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71861-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71861-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58040E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71875-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28B40E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71910-28B51C1 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B60E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71910-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71910-28B40B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71910-28B50C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58060 |
ZRR7#..CBU,IV5 |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71876-58040B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
2 | ||
| 71876-58060 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E2 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72462-60010E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72462-60010B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ZRR7#..CBU,IV5 BLACK |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-60020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72494-60020B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72494-60020E2 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72525-58030E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72525-58030E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-28B90E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72890-28C00C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 72890-28C10E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72890-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 72890-28B90B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(G,V,Z,ZS)..(CBU,IV5) |
4 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-08233 | ||||
| 90201-15015 | ||||
| 93540-55012 | ||||
| 94542-01400 | ||||

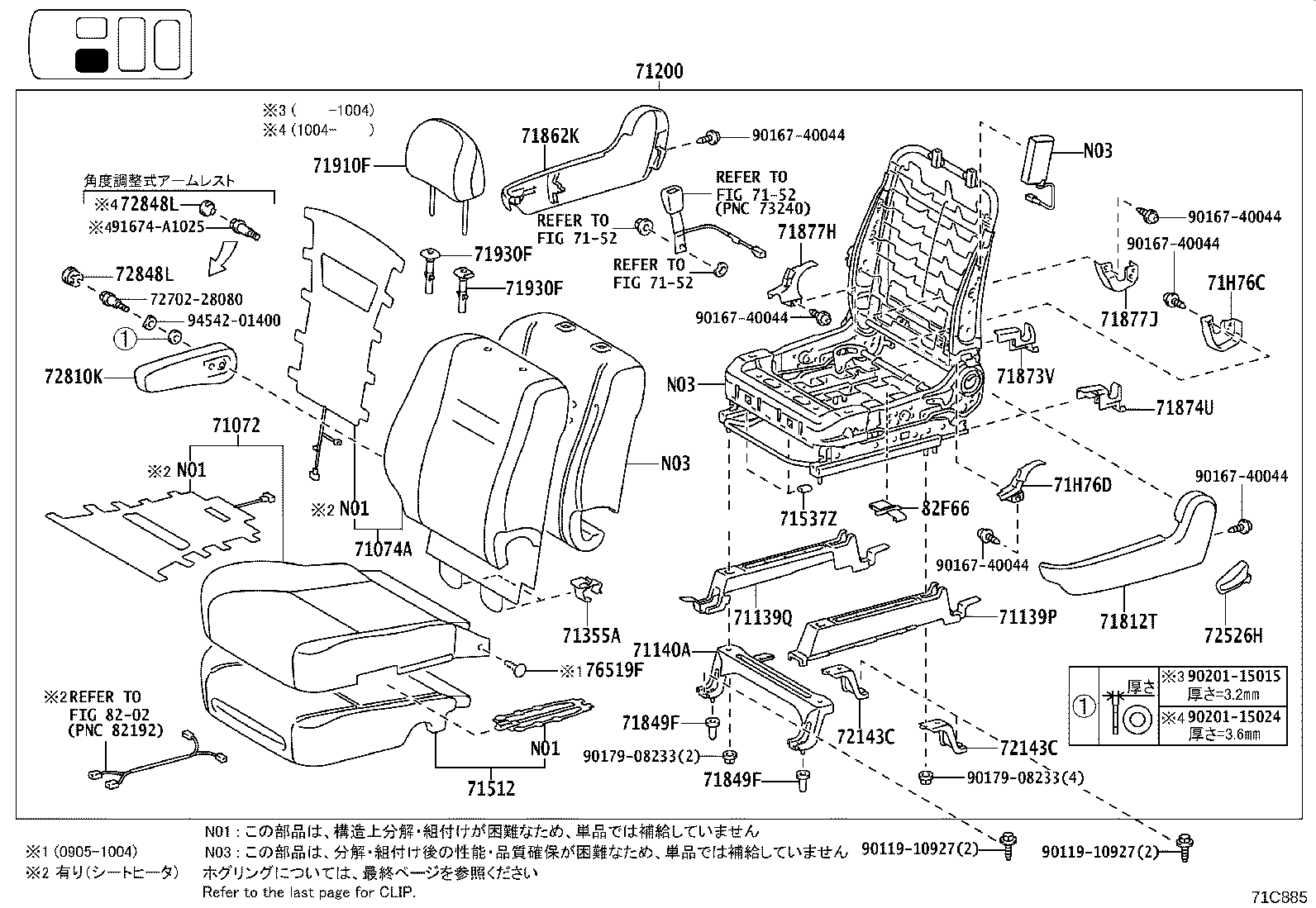

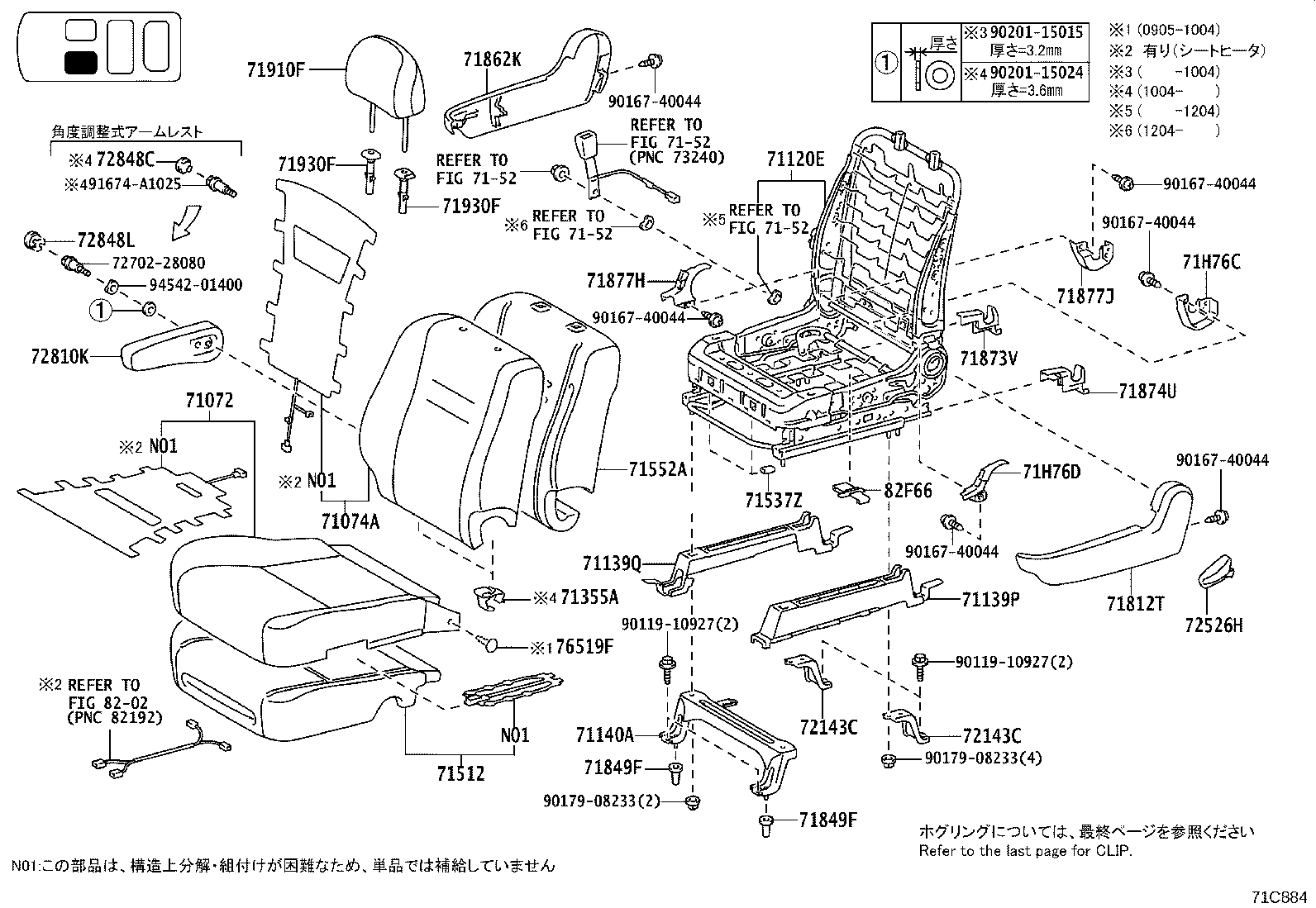

| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(0706- )
ｳﾝﾃﾝｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28C50B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71071-28D30B2 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71071-28D10E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71071-28C70B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C60E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71071-28C40E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71071-28C51B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C71B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C40B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71071-28C80B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71071-28C81B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71071-28D31B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28D50B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D70B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D50B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28E30B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71073-28D50E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71073-28D90E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71073-28E40B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073-28E10B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28D71B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71073-28E00E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71073-28D50E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71073-28E41B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71073-28E31B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71073-28E11B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-28K50E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71100-28K70B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71100-28K71B0 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28190E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71139-28190B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71139-28190E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28170B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71149-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71149-28170E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28340 |
ZRR7#..CBU,IV5 |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRR7#..CBU,IV5 |
4 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71759-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71759-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28340B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71811-28340E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71811-28340E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71861-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71861-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58040E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71875-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28B40E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71910-28B51C1 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B60E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71910-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71910-28B40B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71910-28B50C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71931-47010E4 |
ZRR7#..S ﾛｯｸ無,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930-47010E3 |
ZRR7#..S ﾛｯｸ付,S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58060 |
ZRR7#..CBU,IV5 |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71876-58040B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
2 | ||
| 71876-58060 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E2 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72462-60010E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72462-60010B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ZRR7#..CBU,IV5 BLACK |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-60020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72494-60020B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72494-60020E2 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72525-58030E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72525-58030E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72890-28B90E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72890-28C00C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 72890-28C10E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72890-28C20B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 72890-28B90B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(G,V,Z,ZS)..(CBU,IV5) |
4 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-08233 | ||||
| 90201-15015 | ||||
| 93540-55012 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(0706- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-28C20E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71072-28C30B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28D10B2 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71072-28C40E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71072-28C50B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71072-28C90E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71072-28C60B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71072-28C51B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C31B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C61B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71072-28D11B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-28D70B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28D91B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E50B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E60B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D90B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28E31B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E30B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E20E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71074-28D92B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E61B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074-28D71E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28D71B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E51B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E10E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71074-28E32B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E52B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E62B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71149-28180E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71149-28180E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71149-28180B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71139-28200E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71139-28200B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71130-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRR7#..CBU,IV5 |
4 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-28370 |
ZRR7#..CBU,IV5 |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28340B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71812-28340E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71812-28340E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71862-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71862-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71875-58040E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71875-58060 |
ZRR7#..CBU,IV5 |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-28B40B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71910-28B50C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B60E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71910-28B51C1 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B40E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71910-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 71876-58060 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72526-58040E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72526-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-28B80B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72880-28B80E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72880-28B90C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 72880-28C00E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72880-28C10B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(G,V,Z,ZS)..(CBU,IV5) |
4 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-58030 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90179-08233 | ||||
| 90201-15015 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(0706- )
ｼﾞｮｼｭｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-28C20E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71072-28C30B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28D10B2 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71072-28C40E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71072-28C50B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71072-28C90E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71072-28C60B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71072-28C51B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C20B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C31B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71072-28C61B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71072-28D11B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-28D70B4 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28D91B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E50B3 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E60B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D90B3 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28D70E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28E31B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E30B3 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E20E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71074-28D92B4 |
ZRR7#..(S,SI)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E61B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71074-28D71E3 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71074-28D71B5 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E51B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E10E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71074-28E32B4 |
ZRR7#..(Z,ZS)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71074-28E52B4 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71074-28E62B4 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DARK GRAY,TRIM1# |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71149-28180E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71149-28180E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71149-28180B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71139-28200E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71139-28200B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71130-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 71200 - SEAT ASSY, FRONT LH | ||||
| 71200-28K60B3 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-28K61B0 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-28K62B0 |
ZRR7#..V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),DK.GRAY,TRIM1# |
1 | ||
| 71200-28K40E2 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRR7#..CBU,IV5 |
4 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28340B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71812-28340E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71812-28340E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 71848-33010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71862-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71862-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71875-58040E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71875-58060 |
ZRR7#..CBU,IV5 |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-28B40B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DARK GRAY,TRIM1# |
1 | ||
| 71910-28B50C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B60E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 71910-28B51C1 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 71910-28B40E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71910-28B80B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ無,DK.GRAY,TRIM1# |
1 | ||
| 71931-47010E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71930-47010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) ﾛｯｸ付,DK.GRAY,TRIM1# |
1 | ||
| 71930-47010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ﾛｯｸ付,GREGE,TRIM4# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58060 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 71876-58060 |
ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-58040B0 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040B0 |
ZRR7#..(S,SI,V,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71876-58040E1 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(S,SI)..(CBU,IV5) |
2 | ||
| 72143-28120 |
ZRR7#..(G,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) |
2 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72526-58040E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72526-58040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72880-28B80B1 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 72880-28B80E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 72880-28B90C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 72880-28C00E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 72880-28C10B0 |
ZRR7#..V DARK GRAY,TRIM1# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 71877-26020B9 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(S,SI,V)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 71877-26020B9 |
ZRR7#..(Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
2 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 76519-42010 |
ZRR7#..(S,SI)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
4 | ||
| 76519-42010 |
ZRR7#..(G,V,Z,ZS)..(CBU,IV5) |
4 | ||
| 82F66 - HOLDER, CONNECTOR | ||||
| 82666-58030 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 90119-10927 | ||||
| 90167-40044 | ||||
| 90179-08233 | ||||
| 90201-15015 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(0706- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
