ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )

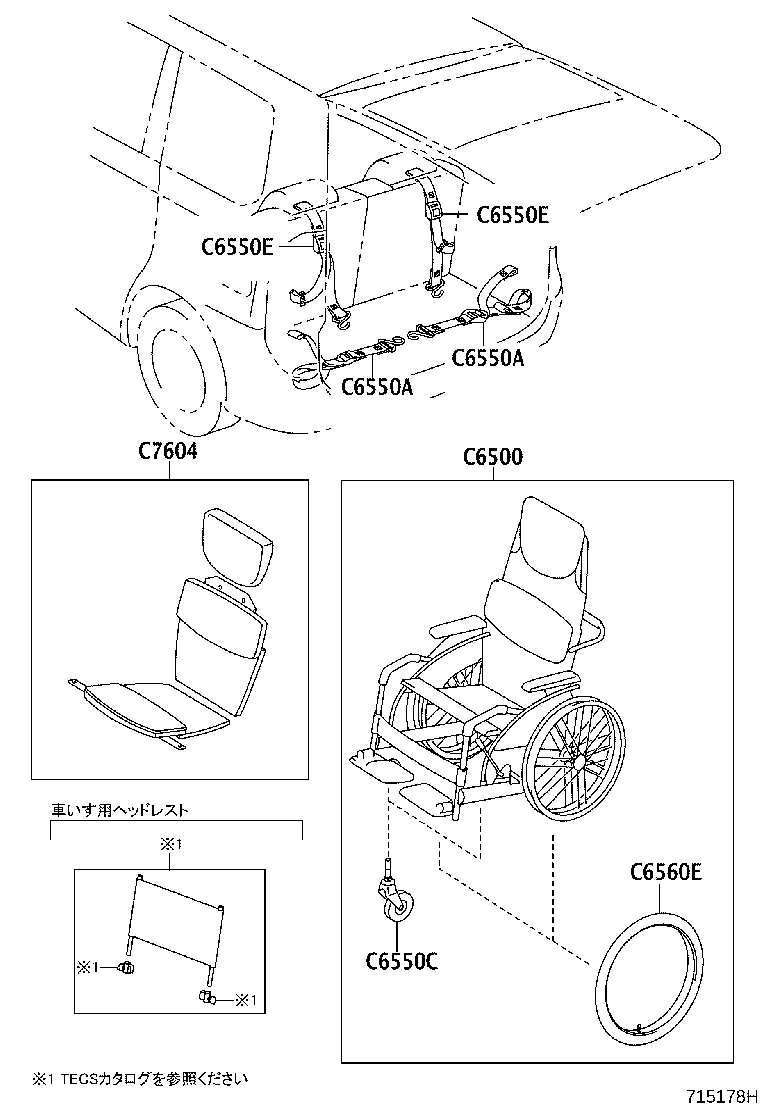

Click highlighted areas on diagram

ｸﾙﾏｲｽ

diagram C6500 C6550A C6550A C6550C C6550E C6550E C6560E C7604
Part # Description Qty Price
C6500 - WHEEL CHAIR ASSY
C6500-22340

ZRR7#..(SI,X,ZS)..(CBU,IV5)

車いす−有り

 1
C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6550-26010

ZRR7#..(SI,X,ZS)..(CBU,IV5)

車いす−有り

 2
C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR
C6560-28040

ZRR7#..(SI,X,ZS)..(CBU,IV5)

車いす−有り

 2
C7604 - CUSHION SET, SEAT FLAT
C7604-22010

ZRR7#..(SI,X,ZS)..(CBU,IV5)

車いす−有り

 1
