ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )

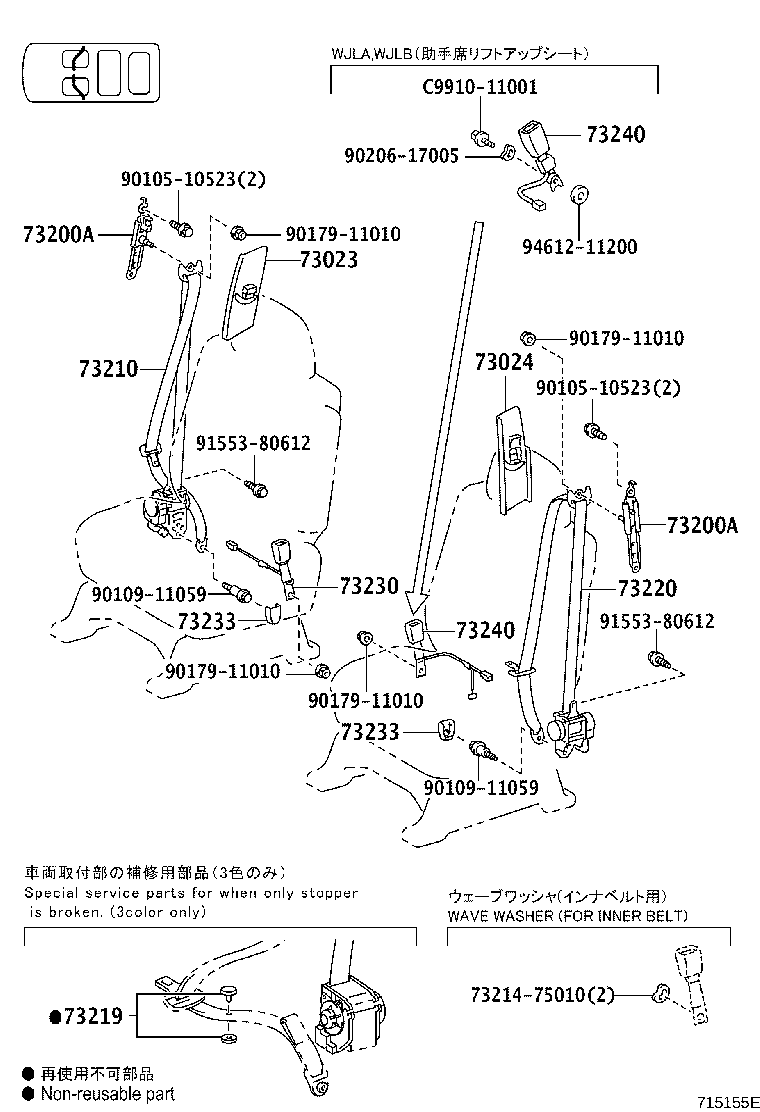

ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-30010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73023-30010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 73023-30010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-30010B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 73024-30010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73024-30010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR7#..CBU,IV5 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28350E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73210-28350E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73210-28350B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-28020 |
ZRR7#..CBU,IV5 ｸﾞﾚｰｼﾞｭ |
1 | ||
| 73219-28010 |
ZRR7#..CBU,IV5 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28750E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73220-28750B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73220-28800E0 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 73220-28750E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28530E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73230-28530E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73230-28530B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 73233-52010C0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
2 | ||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010B1 |
ZRR7#..S,SI,TRASX,V,X,YY,Z,ZS DK.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-52010E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 73233-52010C0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
2 | ||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010B1 |
ZRR7#..S,SI,TRASX,V,X,YY,Z,ZS DK.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-28520B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 73230-28520E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73230-28520E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-28520B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 73230-28520E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73230-28520E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90179-11010 | ||||
| 90206-17005 | ||||
| 91553-80612 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
(0706-1004)08S

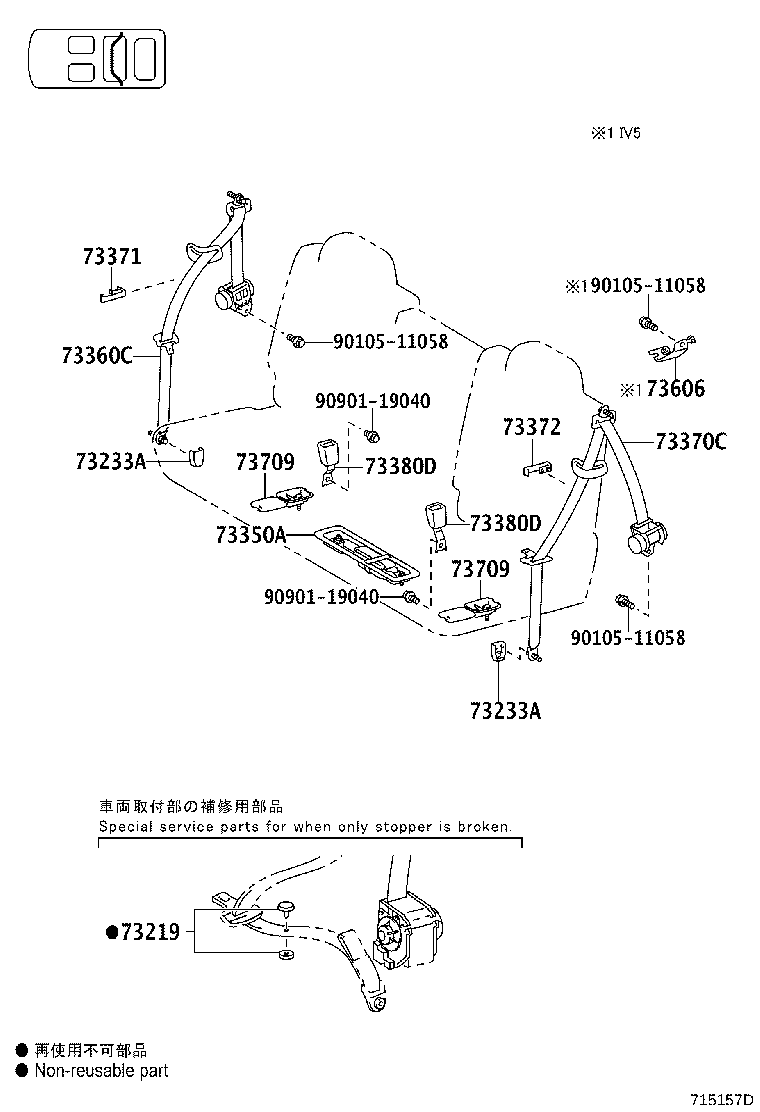

ﾘﾔ NO.1 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-28020 |
ZRR7#..CBU,IV5 ｸﾞﾚｰｼﾞｭ |
1 | ||
| 73219-28010 |
ZRR7#..CBU,IV5 ﾌﾞﾗｯｸ |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010B1 |
ZRR7#..IV5 DK.GRAY,TRIM1# |
1 | ||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010C0 |
ZRR7#..IV5 BLACK,TRIM1# |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010B1 |
ZRR7#..IV5 DK.GRAY,TRIM1# |
1 | ||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010C0 |
ZRR7#..IV5 BLACK,TRIM1# |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28280B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 73350-28280E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 73350-28290E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28430B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73360-28430E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73360-28430E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28610E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28450E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73380-28460B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73380-28460E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28450E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73380-28460B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73380-28460E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 73606 - PLATE SUB-ASSY, REAR SEAT BELT INNER ANCHOR, LH | ||||
| 73369-28030 |
ZRR7#..IV5 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-28020E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73709-28020E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90901-19040 | ||||
(0706- )07S,08S

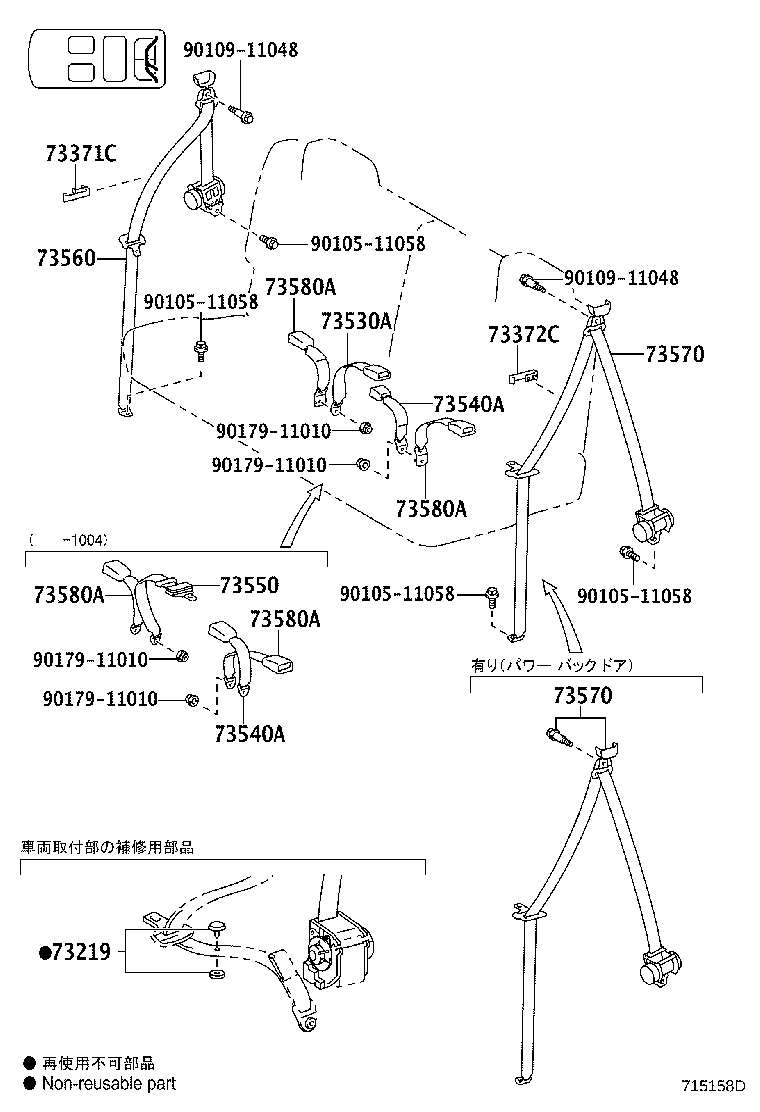

ﾘﾔ NO.2 ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-28020 |
ZRR7#..CBU,IV5 ｸﾞﾚｰｼﾞｭ |
1 | ||
| 73219-28010 |
ZRR7#..CBU,IV5 ﾌﾞﾗｯｸ |
1 | ||
| 73371C - HANGER, REAR NO.2 SEAT SHOULDER BELT, RH | ||||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050P6 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73372C - HANGER, REAR NO.2 SEAT SHOULDER BELT, LH | ||||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050P6 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER | ||||
| 73550-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28410E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73560-28410B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73560-28410E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28440B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73570-28440E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73570-28440E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73570-28450B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,BLACK,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28440B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73570-28440E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73570-28440E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73570-28450B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,BLACK,TRIM1# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11048 | ||||
| 90179-11010 | ||||
(0706-1004)08S

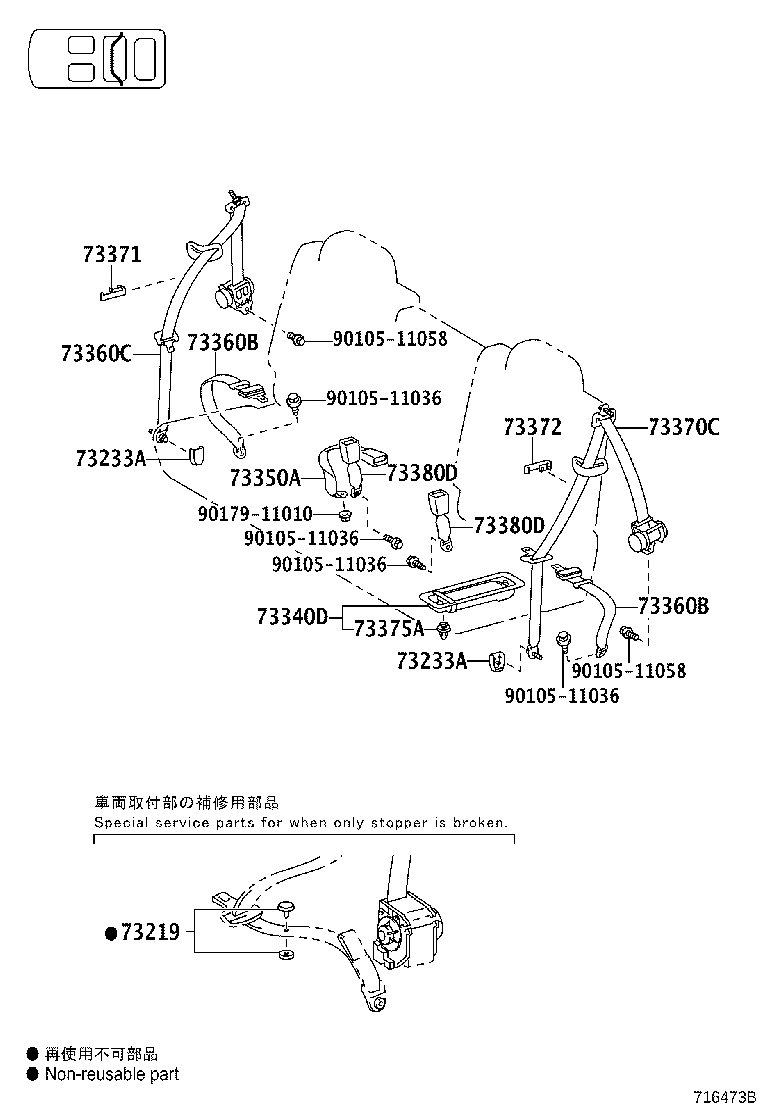

ﾘﾔ NO.1 ｱﾘ(ｶｲﾃﾝ & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-28020 |
ZRR7#..CBU,IV5 ｸﾞﾚｰｼﾞｭ |
1 | ||
| 73219-28010 |
ZRR7#..CBU,IV5 ﾌﾞﾗｯｸ |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010B1 |
ZRR7#..IV5 DK.GRAY,TRIM1# |
1 | ||
| 73233-52010C0 |
ZRR7#..IV5 BLACK,TRIM1# |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-52010B1 |
ZRR7#..IV5 DK.GRAY,TRIM1# |
1 | ||
| 73233-52010E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73233-52010C0 |
ZRR7#..IV5 BLACK,TRIM1# |
1 | ||
| 73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH | ||||
| 73340-28200B0 |
ZRR70..V BLACK,TRIM1# |
1 | ||
| 73340-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28280B0 |
ZRR70..V DK.GRAY,TRIM1# |
1 | ||
| 73350-28280E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 73350-28290E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-28420B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73360-28420E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-28420B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73360-28420E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28430B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 73360-28430E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73360-28430E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28610E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-16050P6 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 73371-16050E3 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 73371-16050E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 73375A - CLIP, REAR SEAT BELT COVER | ||||
| 90467-09206 |
ZRR70..G,V |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28450E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73380-28460B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73380-28460E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28450E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 73380-28460B0 |
ZRR70..V DK.GRAY,TRIM1# |
2 | ||
| 73380-28460E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
