ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

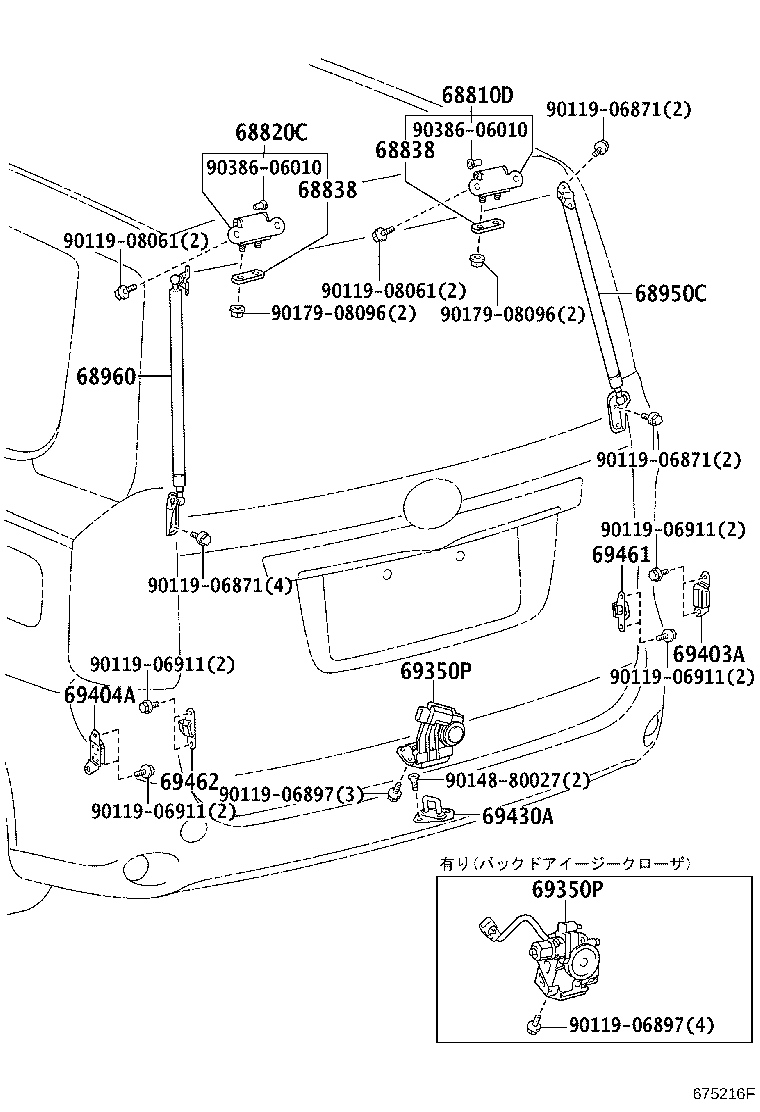

ILLUST NO. 1 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-21050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-21050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
ZRR7#..CBU,IV5 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-44020 |
ZRR7#..CBU,IV5 |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-28391 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 68950-28390 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-28390 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 68960-28391 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28150 |
ZRR7#..CBU,IV5 |
1 | ||
| 69350-28160 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-28150 |
ZRR7#..CBU,IV5 |
1 | ||
| 69350-28160 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 67293-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 67294-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 67281-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67282-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-06871 | ||||
| 90119-06897 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90148-80027 | ||||
| 90179-08096 | ||||
| 90386-06010 | ||||

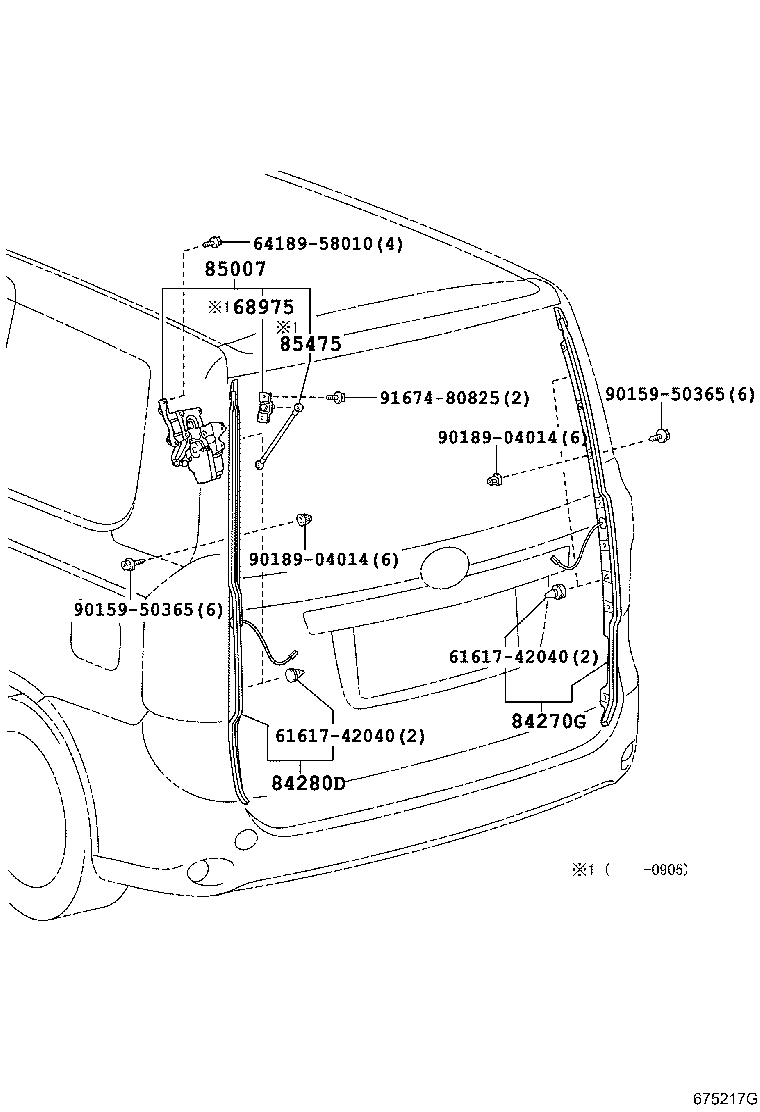

ILLUST NO. 2 OF 2(0706- )
ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68975 - PLATE, BACK DOOR STAY | ||||
| 68975-28050 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-28050 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-28050 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 85007 - MOTOR UNIT, BACK DOOR | ||||
| 85007-28030 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 85007-29016 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 85007-29016 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 85475 - ROD, POWER BACK DOOR | ||||
| 85475-28030 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| Common parts | ||||
| 61617-42040 | ||||
| 64189-58010 | ||||
| 90159-50365 | ||||
| 90189-04014 | ||||
| 91674-80825 | ||||
