ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

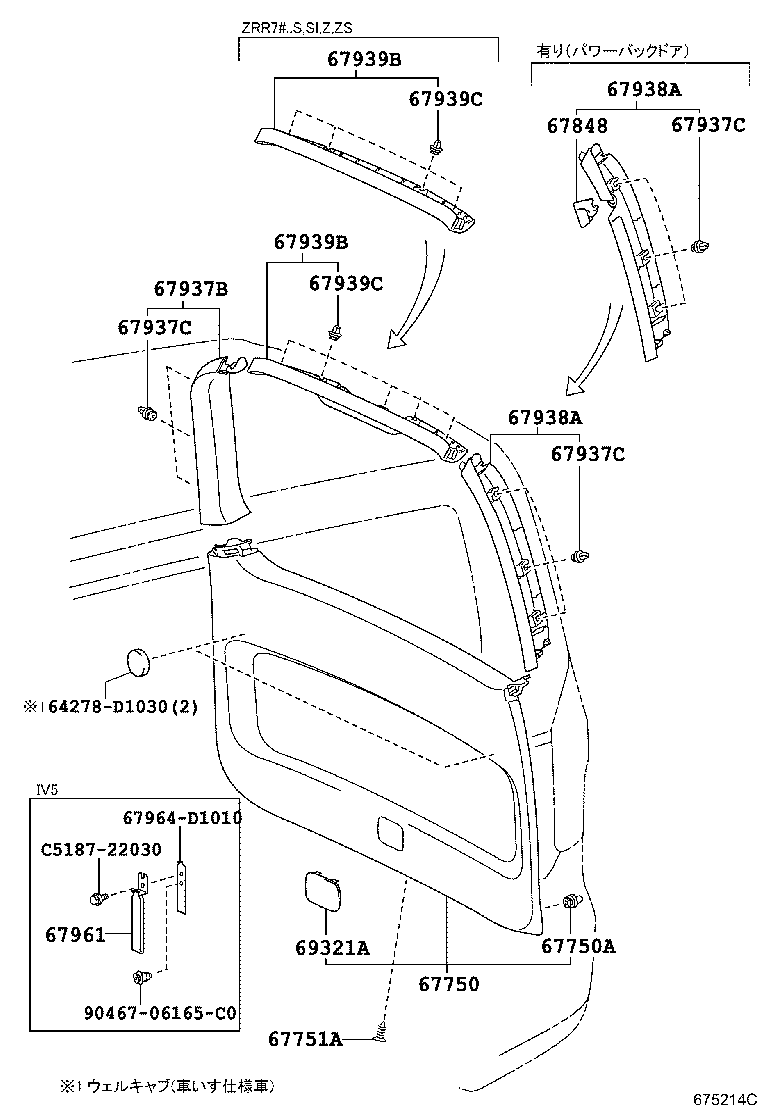

ILLUST NO. 2 OF 2(0706- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-28130B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,MD.GRAY,TRIM1# |
1 | ||
| 67750-28140B0 |
ZRR7#..IV5 MD.GRAY,TRIM1# |
1 | ||
| 67750-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
17 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-06020P2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 90467-06020E7 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 90467-06020E7 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-28060B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67937-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67937-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
6 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67938-28030B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 67938-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67938-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67938-28030B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 67938-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67938-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-28020B0 |
ZRR7#..(TRASX,V,X,YY)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67939-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67939-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67939-28030B0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-28020B0 |
ZRR7#..(TRASX,V,X,YY)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67939-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67939-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67939-28030B0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 90467-10161 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
5 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 90467-10161 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
5 | ||
| 67961 - STRAP, BACK DOOR PULL | ||||
| 67908-D1010B0 |
ZRR7#..IV5 BLUISH GRAY |
1 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 69321-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 69321-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 64278-D1030 | ||||
| 67964-D1010 | ||||
| 90467-06165C0 | ||||
| C5187-22030 | ||||

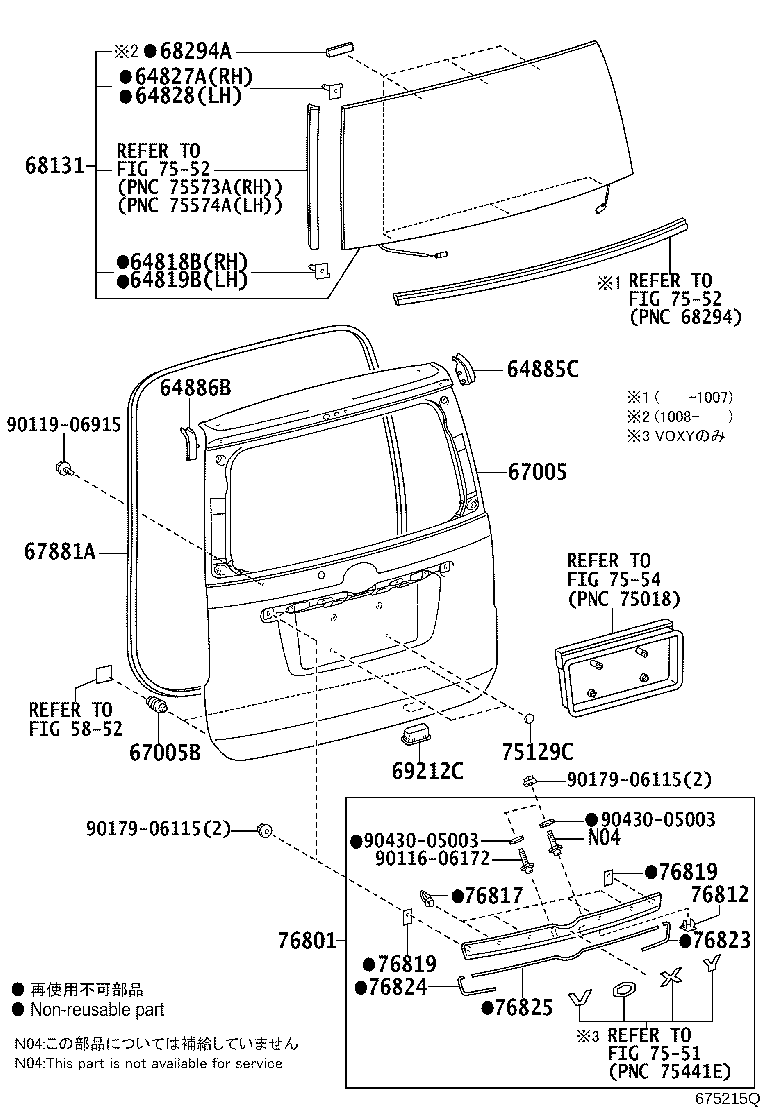

ILLUST NO. 1 OF 2(0706- )
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 64885C - CHANNEL, BACK DOOR GLASS, RH | ||||
| 64885-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 64886B - CHANNEL, BACK DOOR GLASS, LH | ||||
| 64886-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-28B80 |
ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 67005-28B70 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) 有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-28B50 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 67005-28B60 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67005-28B90 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ |
1 | ||
| 67005-28B80 |
ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005-28B70 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 67005-28B70 |
ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 67005-28C00 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 67005-28C00 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ&有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA) |
1 | ||
| 67005-28B80 |
ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM) |
1 | ||
| 67005-28C00 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ&有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀｰ) |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10042 |
ZRR7#..CBU,IV5 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-28150 |
ZRR7#..IV5 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-28670 |
ZRR7#..CBU,IV5 *TT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様 |
1 | ||
| 68105-28660 |
ZRR7#..CBU,IV5 *TT,厚さ=3.1,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 69212C - HANDLE, BACK DOOR INSIDE | ||||
| 69212-12190C0 |
ZRR7#..NOAH..X..(CBU,IV5) BLACK,TRIM1#,4# |
1 | ||
| 74811-28020C0 |
ZRR7#..NOAH..X..(CBU,IV5) BLACK,TRIM1#,4# |
1 | ||
| 69212-12190C0 |
ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 74811-28020C0 |
ZRR7#..S S“G Edition” *(A),BLACK,TRIM49 |
1 | ||
| 74811-28020C0 |
ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-26010 |
ZRR7#..CBU,IV5 |
2 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-28360 |
ZRR7#..NOAH..(G,X,YY)..(CBU,IV5) ﾒｯｷ,*CR |
1 | ||
| 76801-28380 |
ZRR7#..(S,SI)..(CBU,IV5) ﾒｯｷ,*CR |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-12070 |
ZRR7#..CBU,IV5 |
4 | ||
| 76819 - SEAL, BACK DOOR OUTSIDE GARNISH | ||||
| 76819-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 76819 - SEAL, BACK DOOR OUTSIDE GARNISH | ||||
| 76819-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH | ||||
| 76821-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH | ||||
| 76822-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90116-06172 | ||||
| 90119-06915 | ||||
| 90179-06115 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 5852 | ||||
| 7551 | ||||
| 7552 | ||||
| 7554 | ||||
