ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

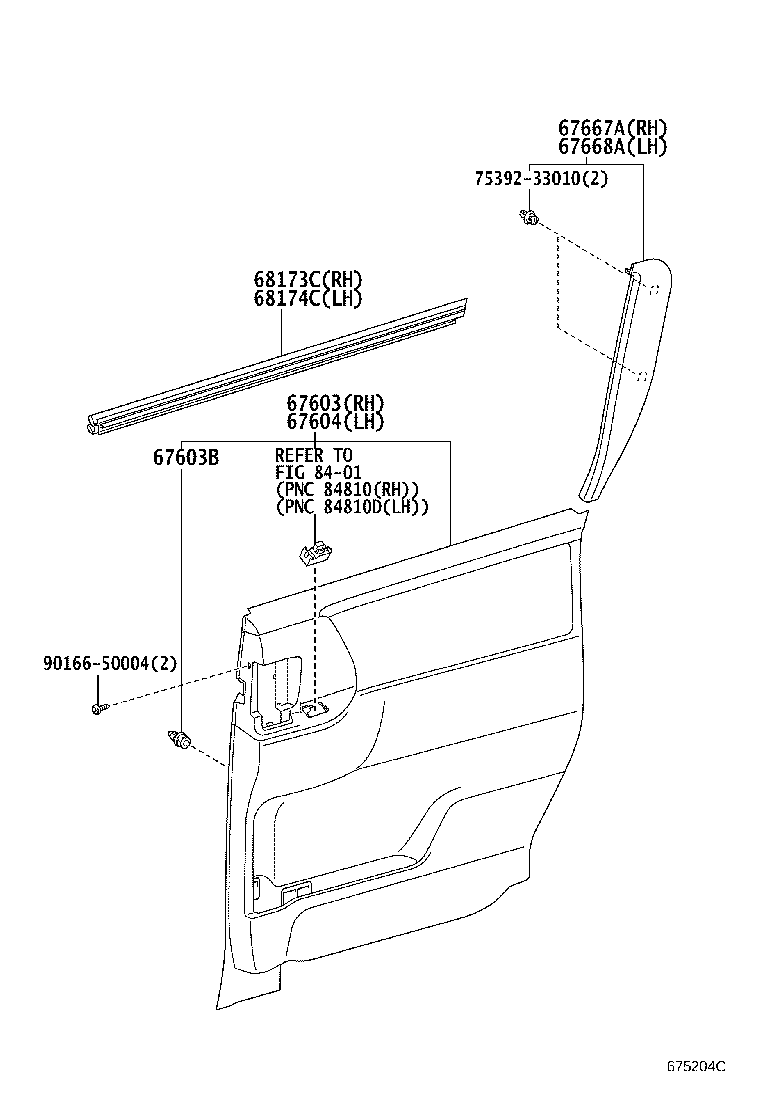

ILLUST NO. 2 OF 2(0706- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28410E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67680-28390C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67680-28410B0 |
ZRR7#..V MD.GRAY,TRIM1# |
1 | ||
| 67680-28380E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67680-28380B2 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZRR7#..CBU,IV5 |
22 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28700B2 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67690-28700E2 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67690-28730E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67690-28730B0 |
ZRR7#..V MD.GRAY,TRIM1# |
1 | ||
| 67690-28710C0 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68173C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER RH | ||||
| 68173-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 68174C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER LH | ||||
| 68174-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 75392-33010 | ||||
| 90166-50004 | ||||
| Linked diagrams | ||||
| 8401 | ||||

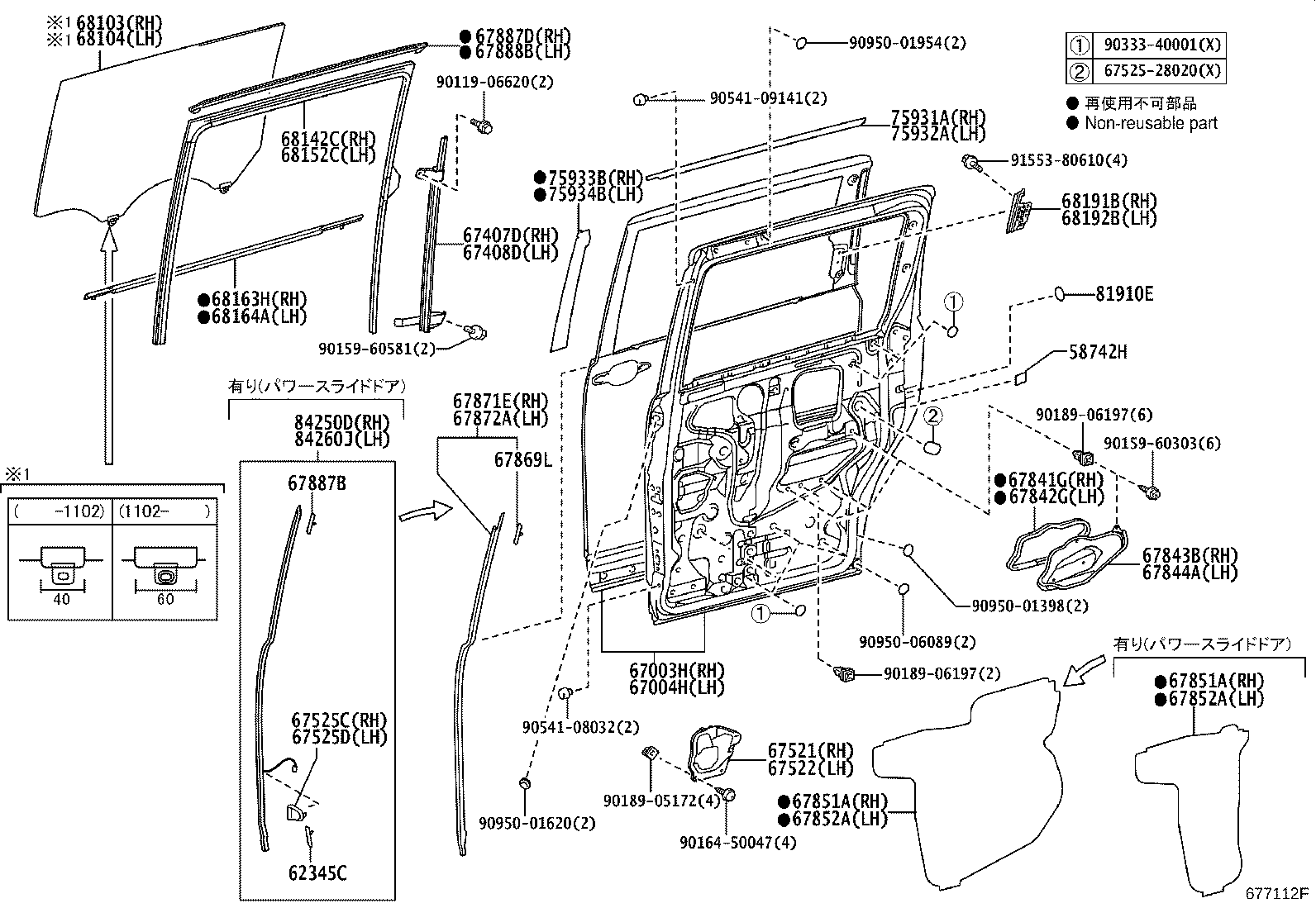

ILLUST NO. 1 OF 2(0706-1002)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742H - PROTECTOR, SLIDE DOOR, LH | ||||
| 58743-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58743-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 62345C - CLIP(FOR WEATHERSTRIP, SLIDE DOOR) | ||||
| 67869-28030 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),右側 |
1 | ||
| 67869-28030 |
ZRR7#..G,V 右側 |
1 | ||
| 67869-28040 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869-28040 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),左側 |
1 | ||
| 67869-28040 |
ZRR7#..G,V 左側 |
1 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28520 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67003-28530 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67003-28530 |
ZRR7#..G,V |
1 | ||
| 67003-28510 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 67003-28540 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67003-28570 |
ZRR7#..G,V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28520 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67004-28540 |
ZRR7#..G,V;ZRR7#..07S..HTWC..CBU SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 67004-28510 |
ZRR7#..G,V;ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 67841G - COVER, SLIDE DOOR SERVICE HOLE, RH | ||||
| 67846-28010 |
ZRR7#..G,V |
1 | ||
| 67846-28010 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67842G - COVER, SLIDE DOOR SERVICE HOLE, LH | ||||
| 67846-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-28020 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67843-28020 |
ZRR7#..G,V |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-28020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28120 |
ZRR7#..G,V |
1 | ||
| 67851-28120 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67851-28110 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28120 |
ZRR7#..G,V |
1 | ||
| 67851-28120 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67851-28110 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28140 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28140 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67865-28040 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67865-28041 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67869-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869-28010 |
ZRR7#..G,V |
2 | ||
| 67869-28010 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
2 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 67887-28102 |
ZRR7#..CBU,IV5 |
1 | ||
| 67887-28101 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888-28111 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888-28112 |
ZRR7#..CBU,IV5 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28210 |
ZRR7#..CBU,IV5 *TEM,T=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28230 |
ZRR7#..CBU,IV5 *TEM,T=3.5､ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 81910E - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
ZRR7#..CBU,IV5 |
2 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-28170 |
ZRR7#..G,V |
1 | ||
| 84250-28171 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84250-28171 |
ZRR7#..G,V |
1 | ||
| 84250-28270 |
ZRR7#..G,V |
1 | ||
| 84250-28270 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84250-28170 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-28070 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84260-28080 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84260-28071 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 67525-28020 | ||||
| 90119-06620 | ||||
| 90159-60303 | ||||
| 90159-60581 | ||||
| 90164-50047 | ||||
| 90189-05172 | ||||
| 90189-06197 | ||||
| 90333-40001 | ||||
| 90541-08032 | ||||
| 90541-09141 | ||||
| 90950-01398 | ||||
| 90950-01620 | ||||
| 90950-01954 | ||||
| 90950-06089 | ||||
| 91553-80610 | ||||

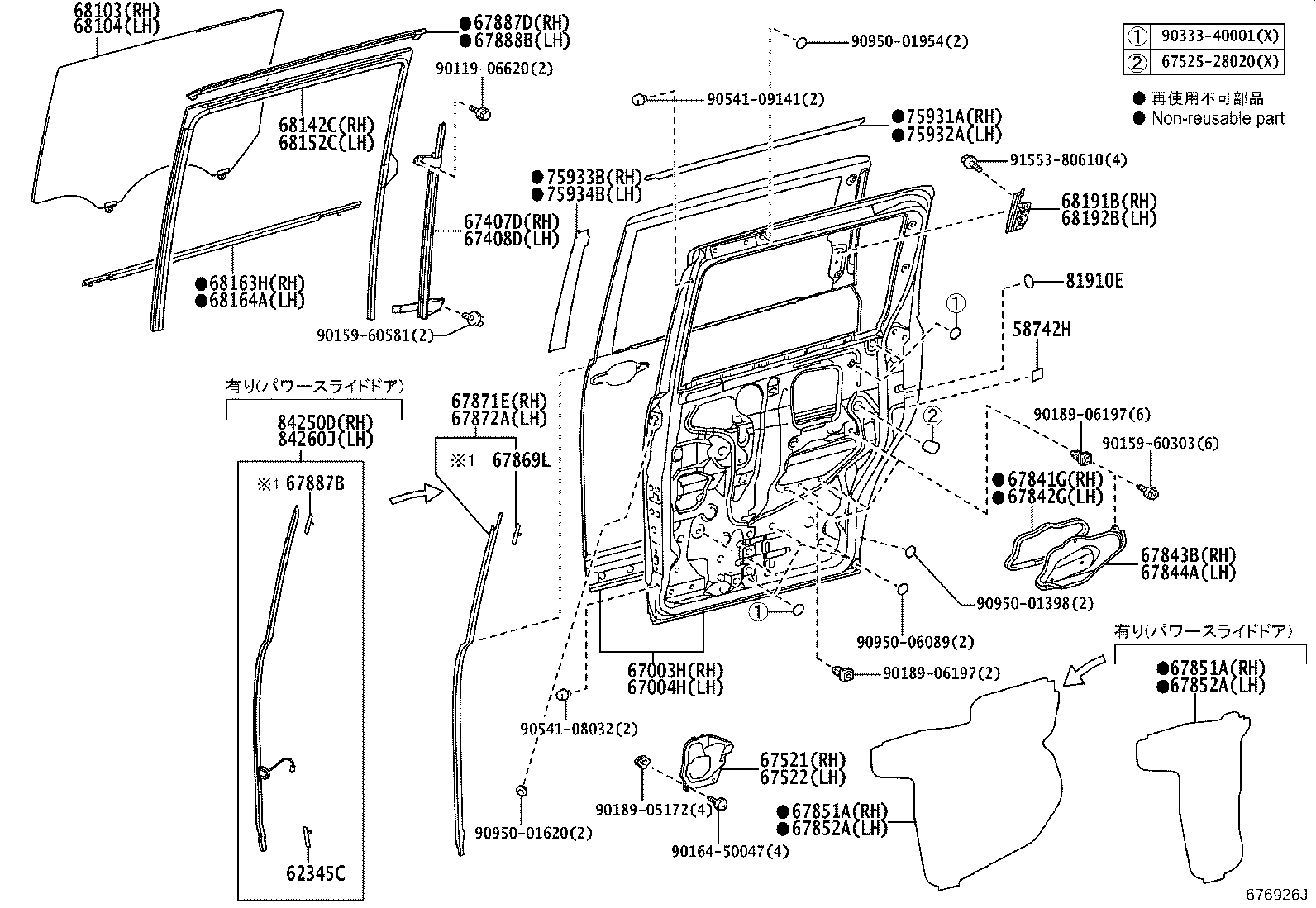

ILLUST NO. 1 OF 2(1002- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742H - PROTECTOR, SLIDE DOOR, LH | ||||
| 58743-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 58743-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 62345C - CLIP(FOR WEATHERSTRIP, SLIDE DOOR) | ||||
| 67869-28030 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),右側 |
1 | ||
| 67869-28030 |
ZRR7#..G,V 右側 |
1 | ||
| 67869-28040 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869-28040 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),左側 |
1 | ||
| 67869-28040 |
ZRR7#..G,V 左側 |
1 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28520 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67003-28530 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67003-28530 |
ZRR7#..G,V |
1 | ||
| 67003-28510 |
ZRR7#..(TRASX,X,YY)..(CBU,IV5) |
1 | ||
| 67003-28540 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67003-28570 |
ZRR7#..G,V SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28520 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67004-28540 |
ZRR7#..G,V;ZRR7#..07S..HTWC..CBU SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| 67004-28510 |
ZRR7#..G,V;ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 67525C - COVER, SLIDE DOOR PANEL, LOWER RH | ||||
| 67525-28030 |
ZRR7#..G,V |
1 | ||
| 67525-28030 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67525D - COVER, SLIDE DOOR PANEL, LOWER LH | ||||
| 67526-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67841G - COVER, SLIDE DOOR SERVICE HOLE, RH | ||||
| 67846-28010 |
ZRR7#..G,V |
1 | ||
| 67846-28010 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67842G - COVER, SLIDE DOOR SERVICE HOLE, LH | ||||
| 67846-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-28020 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67843-28020 |
ZRR7#..G,V |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-28020 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28120 |
ZRR7#..G,V |
1 | ||
| 67851-28120 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67851-28110 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28120 |
ZRR7#..G,V |
1 | ||
| 67851-28120 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 67851-28110 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28140 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28140 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67865-28040 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67865-28041 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67869-28010 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 67869-28010 |
ZRR7#..G,V |
2 | ||
| 67869-28010 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
2 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 67887-28102 |
ZRR7#..CBU,IV5 |
1 | ||
| 67887-28101 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888-28111 |
ZRR7#..CBU,IV5 |
1 | ||
| 67888-28112 |
ZRR7#..CBU,IV5 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28210 |
ZRR7#..CBU,IV5 *TEM,T=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28230 |
ZRR7#..CBU,IV5 *TEM,T=3.5､ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 81910E - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
ZRR7#..CBU,IV5 |
2 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-28170 |
ZRR7#..G,V |
1 | ||
| 84250-28171 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84250-28171 |
ZRR7#..G,V |
1 | ||
| 84250-28270 |
ZRR7#..G,V |
1 | ||
| 84250-28270 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84250-28170 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-28070 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84260-28080 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| 84260-28071 |
ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 67525-28020 | ||||
| 90119-06620 | ||||
| 90159-60303 | ||||
| 90159-60581 | ||||
| 90164-50047 | ||||
| 90189-05172 | ||||
| 90189-06197 | ||||
| 90333-40001 | ||||
| 90541-08032 | ||||
| 90541-09141 | ||||
| 90950-01398 | ||||
| 90950-01620 | ||||
| 90950-01954 | ||||
| 90950-06089 | ||||
| 91553-80610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
