ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

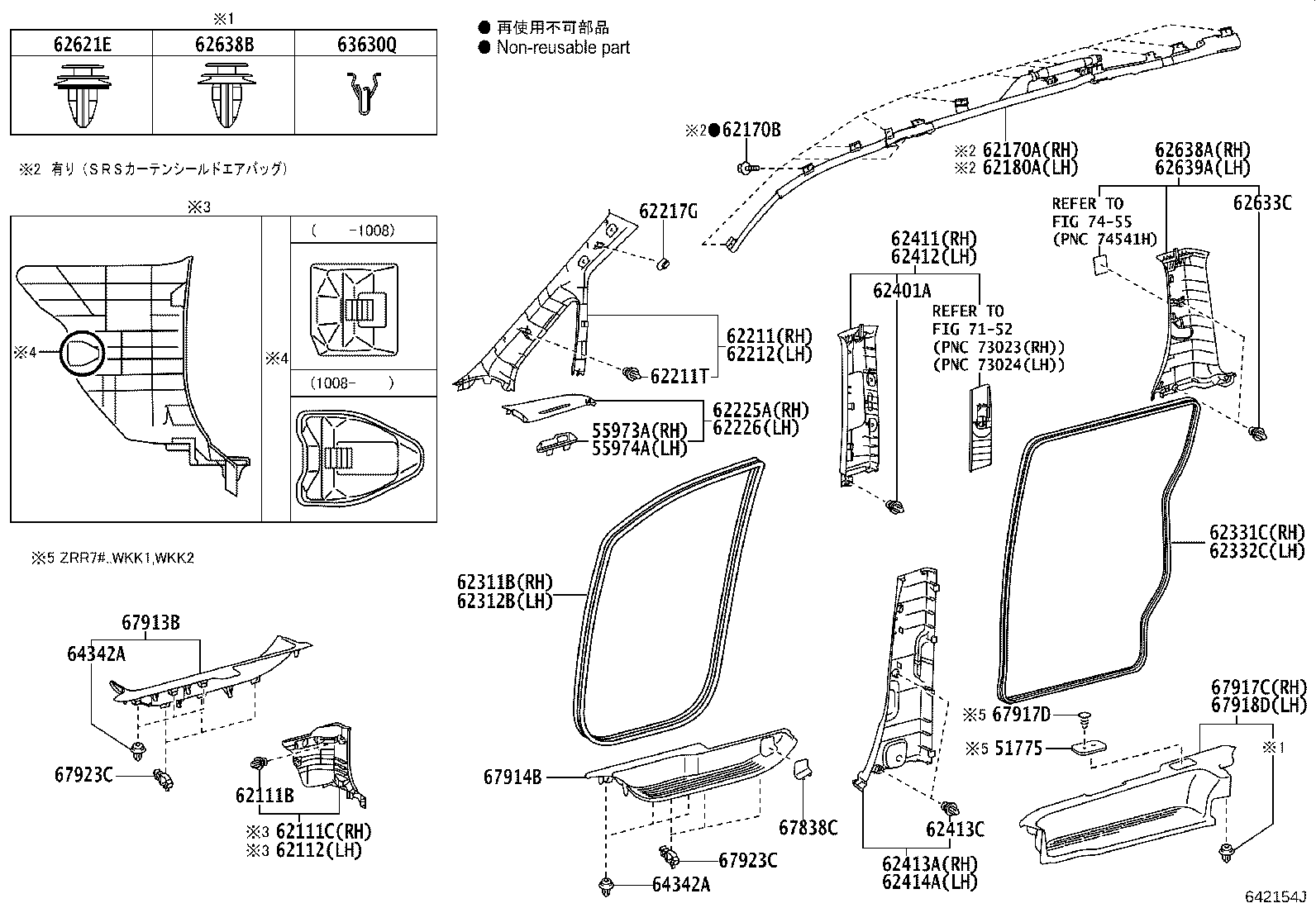

ILLUST NO. 1 OF 3(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-28180B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62111-28180E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62111-28180E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-28200E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62112-28200E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62112-28200B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62210-28080E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62210-28080B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62210-28090E0 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10167 |
ZRR7#..CBU,IV5 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-28080E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62220-28080B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62220-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62220-28090E0 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-35010 |
ZRR7#..CBU,IV5 |
2 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-28040B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62225-28040E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62225-28040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-28040B1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62226-28040E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62226-28040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28110E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62311-28110E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62311-28110B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28110B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62312-28110E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62312-28110E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 67871-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67871-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67871-28071E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67871-28072E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67871-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67871-28071B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67871-28072B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 67872-28120B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67872-28122E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67872-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67872-28121B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67872-28120E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67872-28122B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67872-28121E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-28090E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62410-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62410-28090B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-28090B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62420-28090E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62420-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-28090B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62413-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62413-28090E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-28120B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 62414-28120E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62414-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62621E - CLIP | ||||
| 90467-09206 |
ZRR7#..CBU,IV5 |
6 | ||
| 62633C - CLIP (FOR QUARTER TRIM GARNISH) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
4 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-28230B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62638-28231B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62638-28240E0 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 62638-28230E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62638-28230E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62638-28231E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
18 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-28260E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62639-28261E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62639-28260B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62639-28260E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62639-28270E0 |
ZRR7#..S S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49 |
1 | ||
| 62639-28261B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 63630Q - CLIP | ||||
| 90468-05125 |
ZRR70..G,V |
4 | ||
| 64342A - CLIP | ||||
| 90467-09206 |
ZRR7#..CBU,IV5 |
6 | ||
| 64342A - CLIP | ||||
| 90467-09206 |
ZRR7#..CBU,IV5 |
6 | ||
| 67838C - COVER, FRONT DOOR SERVICE HOLE, NO.4 LH | ||||
| 67925-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67925-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67925-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67913-28060E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67913-28060B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67914-28060B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67914-28060E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-28120B0 |
ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67917-28120E0 |
ZRR70..NOAH..X..(CBU,IV5);ZRR75..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 67917-28130B0 |
ZRR70..V MD.GRAY,TRIM1# |
1 | ||
| 67917-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67917-28130E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28110E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 67918-28110B0 |
ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 67918-28120E0 |
ZRR7#..S S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49 |
1 | ||
| 67918-28120B0 |
ZRR70..V;ZRR7#..07S..CBU MD.GRAY,TRIM1# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28040 |
ZRR7#..CBU,IV5 |
6 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28040 |
ZRR7#..CBU,IV5 |
6 | ||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

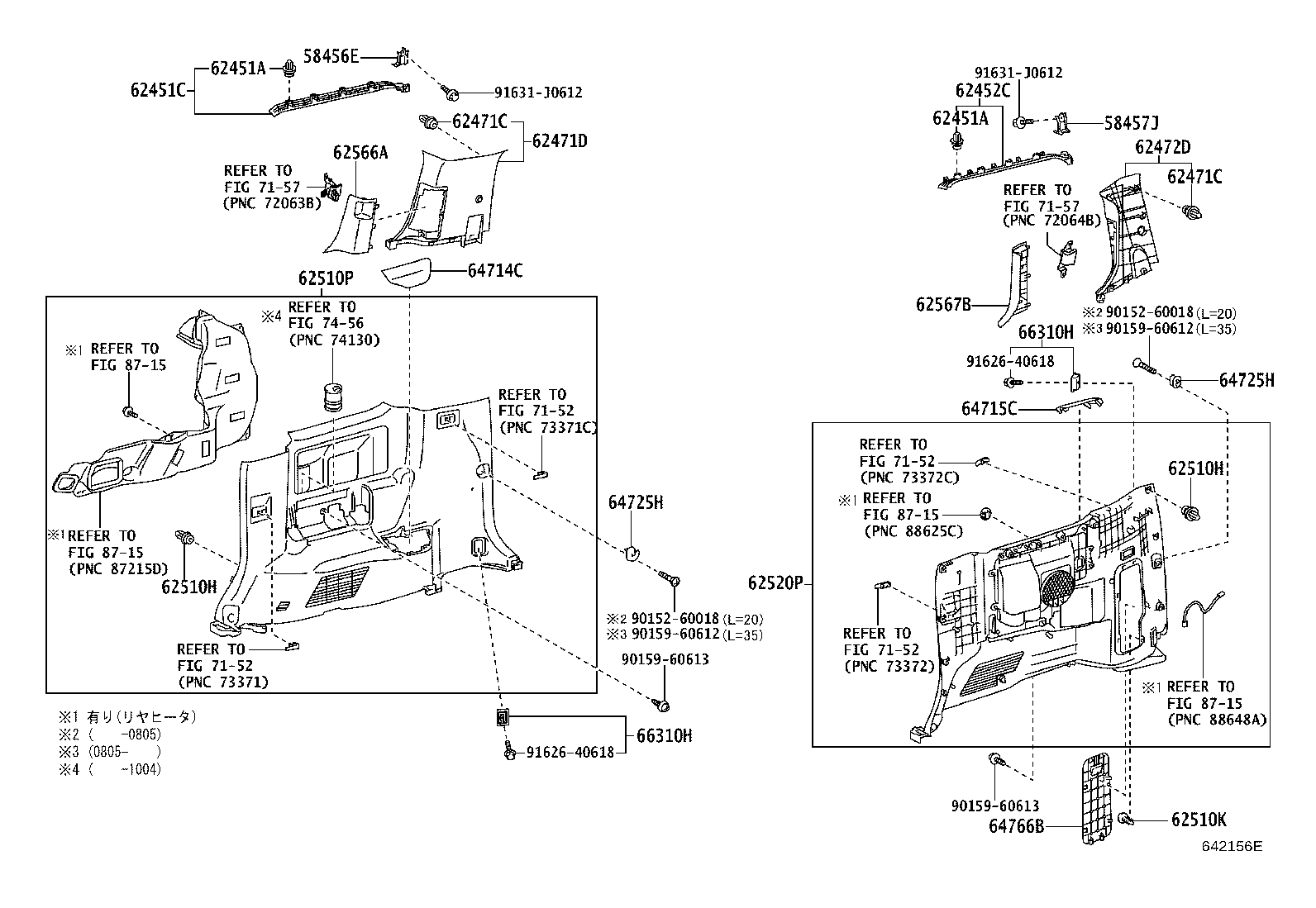

ILLUST NO. 2 OF 3(0706- )07S,08S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58456E - BRACKET, REAR GARNISH, NO.1 RH | ||||
| 58456-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 58457J - BRACKET, REAR GARNISH, NO.1 LH | ||||
| 58457-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10188 |
ZRR7#..CBU,IV5 |
10 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10188 |
ZRR7#..CBU,IV5 |
10 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62451-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62451-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-28030E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62452-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62452-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62471C - CLIP(FOR REAR PILLAR COVER) | ||||
| 90467-10167 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,ﾌﾞ求[ |
3 | ||
| 90467-10161 |
ZRR7#..CBU,IV5 ﾅﾁｭﾗﾙ |
6 | ||
| 90467-10167 |
ZRR7#..CBU,IV5 ﾌﾞﾙｰ |
2 | ||
| 90467-10161 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,ﾅ`ｭﾗﾙ |
5 | ||
| 62471C - CLIP(FOR REAR PILLAR COVER) | ||||
| 90467-10167 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,ﾌﾞ求[ |
3 | ||
| 90467-10161 |
ZRR7#..CBU,IV5 ﾅﾁｭﾗﾙ |
6 | ||
| 90467-10167 |
ZRR7#..CBU,IV5 ﾌﾞﾙｰ |
2 | ||
| 90467-10161 |
ZRR70..G,V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,ﾅ`ｭﾗﾙ |
5 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-28170E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62471-28170B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62471-28170E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-28230B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62472-28230E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62472-28240B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 62472-28230E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
22 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-10161 |
ZRR7#..CBU,IV5 |
22 | ||
| 62510K - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-05164C0 |
ZRR7#..CBU,IV5 BLACK |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-28280B1 |
ZRR7#..V;ZRR7#..07S..CBU MD.GRAY,TRIM1# |
1 | ||
| 62510-28320B1 |
ZRR7#..IV5 MD.GRAY,TRIM1# |
1 | ||
| 62510-28290E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62510-28280E1 |
ZRR7#..S 寒冷地仕様&S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-28440B2 |
ZRR7#..IV5 MD.GRAY,TRIM1# |
1 | ||
| 62520-28420B2 |
ZRR7#..V;ZRR7#..07S..CBU MD.GRAY,TRIM1# |
1 | ||
| 62520-28400E2 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62520-28420E2 |
ZRR7#..S 寒冷地仕様&S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-28020B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62566-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62566-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 62567-28020B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) LT.GRAY,TRIM1# |
1 | ||
| 62567-28030B0 |
ZRR70..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側) & ﾊﾟﾜｰﾊﾞｯｸﾄﾞｱ,LT.GRAY,TRIM1# |
1 | ||
| 62567-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-28050B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 64714-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 64714-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 64715-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 64715-28050B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 64725H - HOOK, QUARTER TRIM, | ||||
| 64725-58010B1 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 64725-58010E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 64725-28010B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 64725-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 64725-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 64725H - HOOK, QUARTER TRIM, | ||||
| 64725-58010B1 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 64725-58010E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 64725-28010B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 64725-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 64725-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 64766B - COVER, QUARTER TRIM JACK | ||||
| 64766-28060E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 64766-28060B0 |
ZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 64766-28060E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 66310-28070E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 66310-28070B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070E1 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 66310-28070E1 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 66310-28070B3 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90152-60018 | ||||
| 90159-60612 | ||||
| 90159-60613 | ||||
| 91626-40618 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7157 | ||||
| 7456 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
