ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

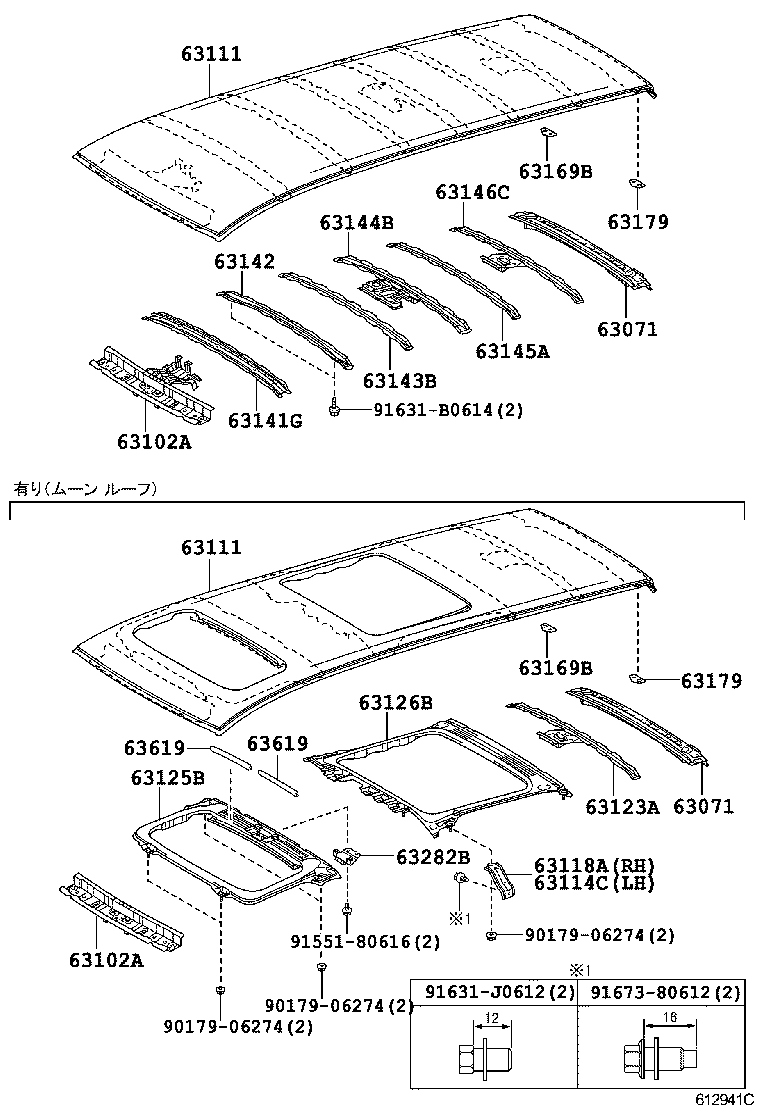

ILLUST NO. 1 OF 3(0706- )

Click highlighted areas on diagram

diagram 63071 63071 63102A 63102A 63111 63111 63114C 63118A 63123A 63125B 63126B 63141G 63142 63143B 63144B 63145A 63146C 63169B 63169B 63179 63179 63282B 63619 63619 9017906274 9017906274 9017906274 9155180616 91631B0614 91631J0612 9167380612
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28060

ZRR7#..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
63071-28050

ZRR7#..CBU,IV5

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-28060

ZRR7#..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
63071-28050

ZRR7#..CBU,IV5

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-28070

ZRR7#..CBU,IV5

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-28070

ZRR7#..CBU,IV5

 1
63111 - PANEL, ROOF
63111-28280

ZRR7#..CBU,IV5

 1
63111 - PANEL, ROOF
63111-28280

ZRR7#..CBU,IV5

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-28150

ZRR7#..CBU,IV5

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-28100

ZRR7#..CBU,IV5

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-28100

ZRR7#..CBU,IV5

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63103-28110

ZRR7#..X..(CBU,IV5)

 1
63103-28100

ZRR7#..(G,S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5)

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63127-28020

ZRR7#..CBU,IV5

 1
63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63104-28080

ZRR7#..CBU,IV5

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

ZRR7#..CBU,IV5

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

ZRR7#..CBU,IV5

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

ZRR7#..CBU,IV5

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

ZRR7#..CBU,IV5

 1
Common parts
90179-06274
91551-80616
91631-B0614
91631-J0612
91673-80612

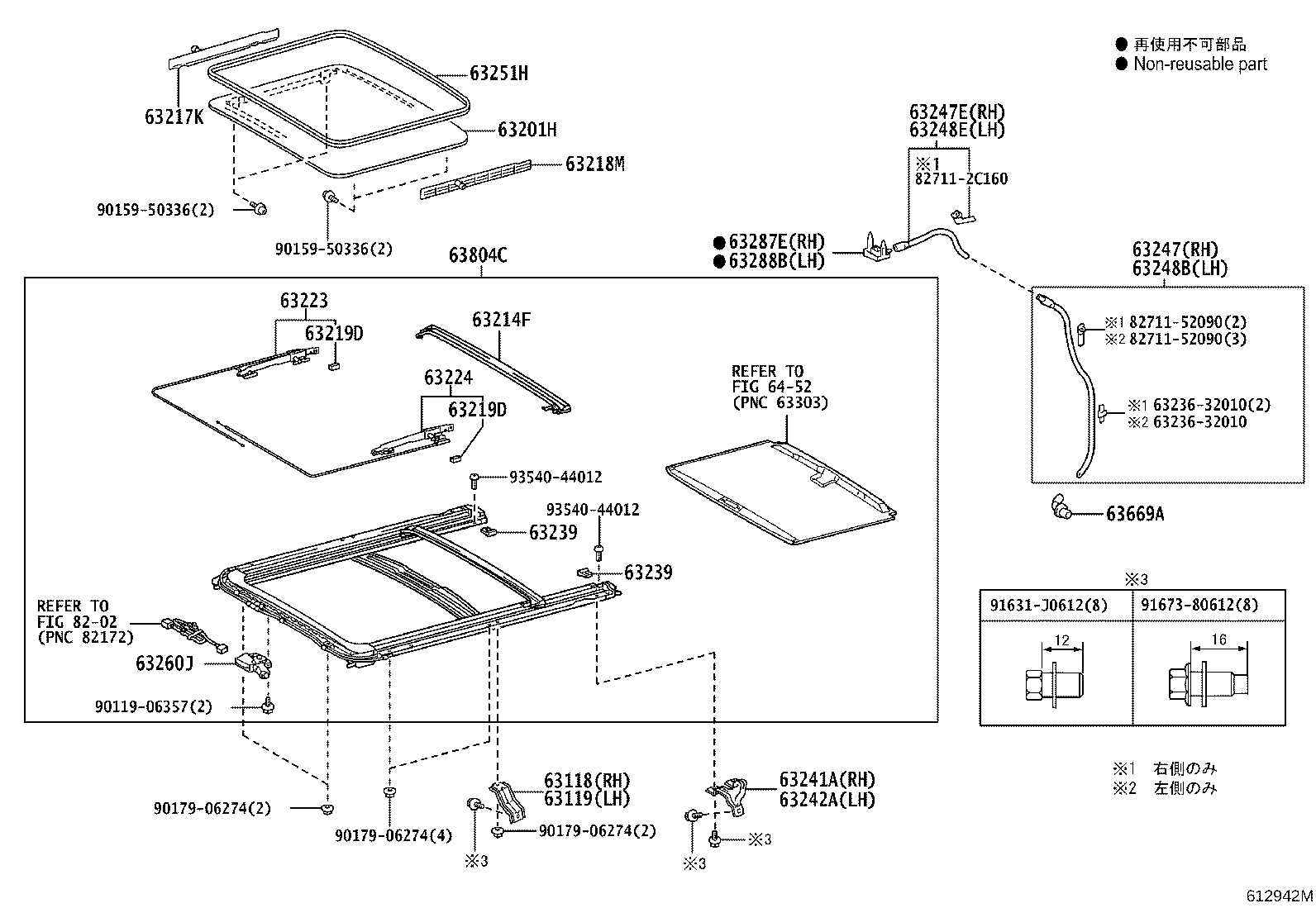

ILLUST NO. 3 OF 3(0706- )

Click highlighted areas on diagram

ｱﾘ(ﾂｲﾝﾑｰﾝﾙｰﾌ)

diagram 63118 63119 63201H 63214F 63217K 63218M 63219D 63219D 63223 63224 6323632010 6323632010 63239 63239 63241A 63242A 63247 63247E 63248B 63248E 63251H 63260J 63287E 63288B 63669A 63804C 6452 8202 827112C160 8271152090 8271152090 9011906357 9015950336 9015950336 9017906274 9017906274 9017906274 91631J0612 9167380612 9354044012 9354044012
Part # Description Qty Price
Common parts
63236-32010
82711-2C160
82711-52090
90119-06357
90159-50336
90179-06274
91631-J0612
91673-80612
93540-44012
Linked diagrams
6452
8202

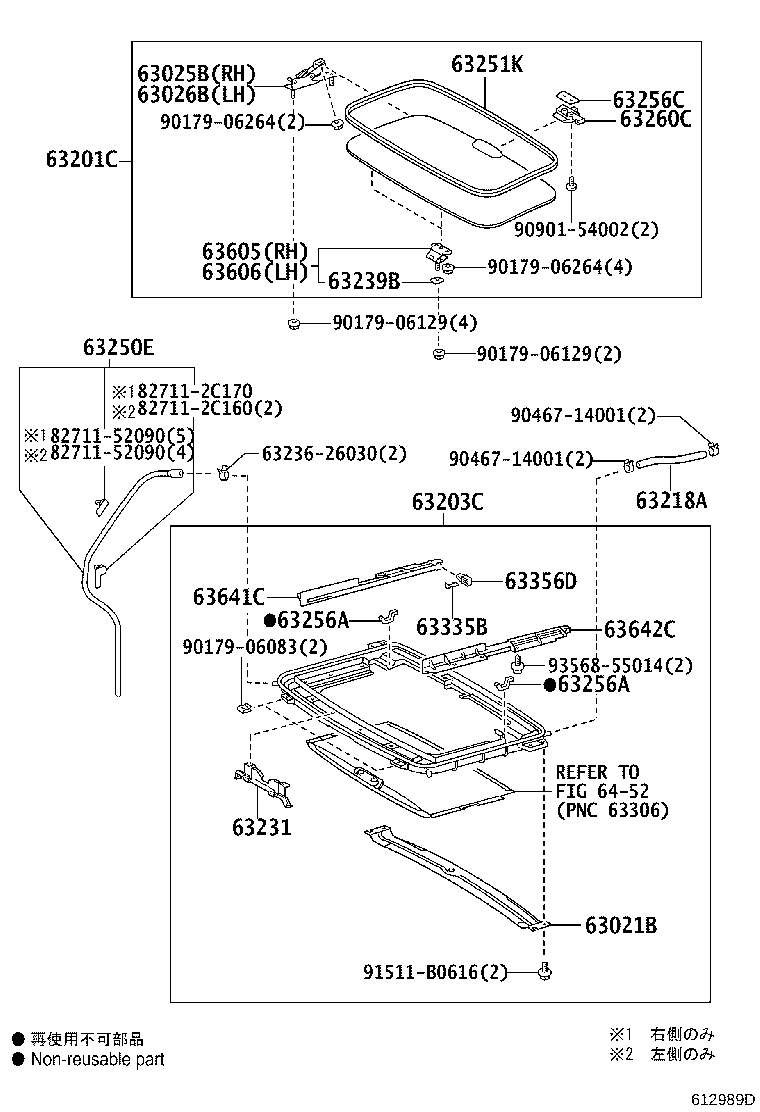

ILLUST NO. 2 OF 3(0706- )

Click highlighted areas on diagram

ｱﾘ(ﾂｲﾝﾑｰﾝﾙｰﾌ)

diagram 63021B 63025B 63026B 63201C 63203C 63218A 63231 6323626030 63239B 63250E 63251K 63256A 63256A 63256C 63260C 63335B 63356D 63605 63606 63641C 63642C 6452 827112C160 827112C170 8271152090 8271152090 9017906083 9017906129 9017906129 9017906264 9017906264 9046714001 9046714001 9090154002 91511B0616 9356855014
Part # Description Qty Price
Common parts
63236-26030
82711-2C160
82711-2C170
82711-52090
90179-06083
90179-06129
90179-06264
90467-14001
90901-54002
91511-B0616
93568-55014
Linked diagrams
6452
