ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1004)ZRR75..IV5 ; (0706-1004)ZRR75..08S..CBU ; (0706-1004)ZRR70..08S

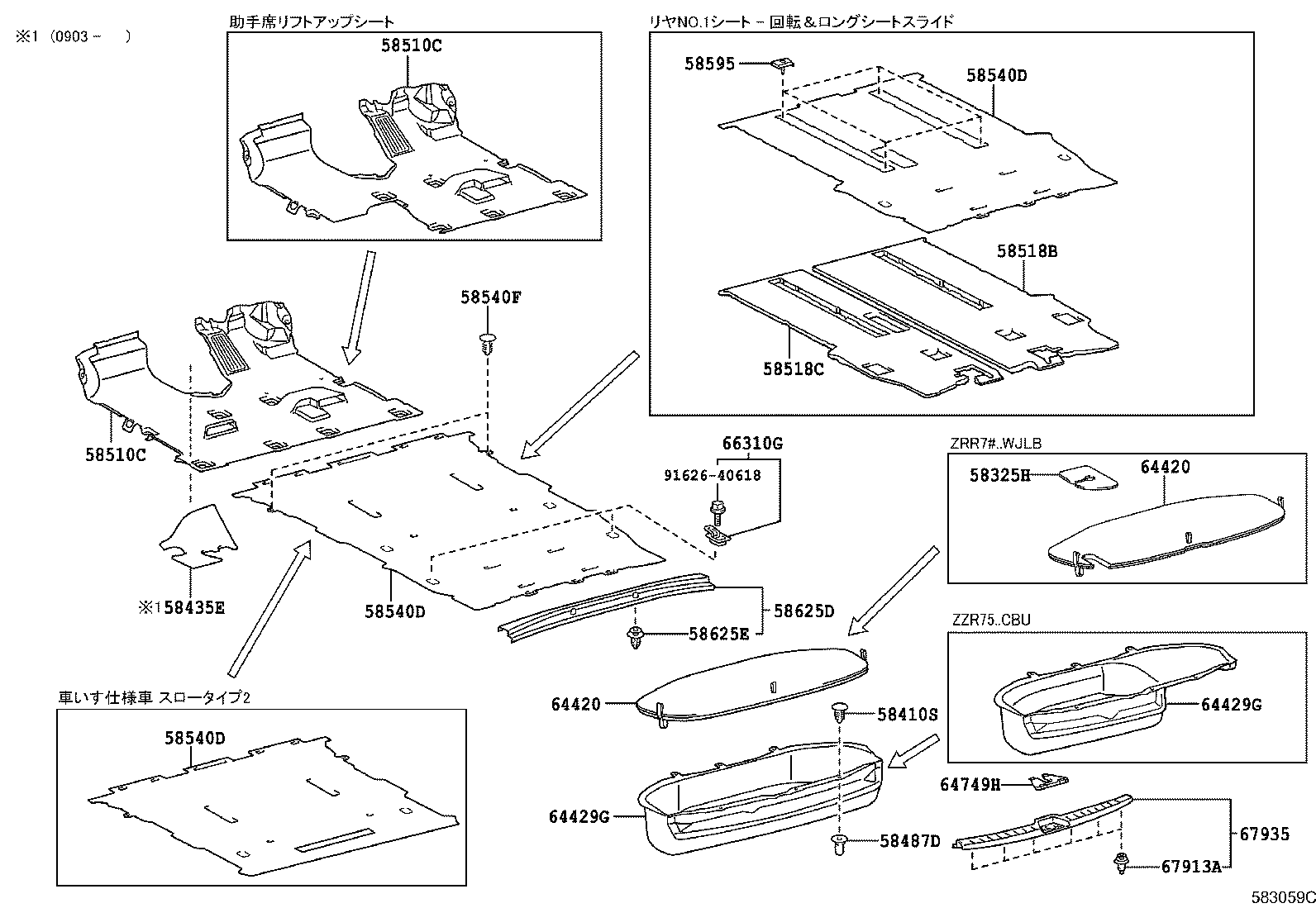

Click highlighted areas on diagram

diagram 58325H 58410S 58435E 58487D 58510C 58510C 58518B 58518C 58540D 58540D 58540D 58540F 58595 58625D 58625E 64420 64420 64429G 64429G 64749H 66310G 67913A 67935 9162640618
Part # Description Qty Price
58435E - SILENCER, FRONT FLOOR, CENTER
58435-28080

ZRR7#..CBU,IV5

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-28E80B2

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

GRAY,TRIM1#

 1
58510-28E80E1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 1
58510-28E80E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-28E80B2

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

GRAY,TRIM1#

 1
58510-28E80E1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 1
58510-28E80E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
58518B - MAT, REAR FLOOR, NO.2
58518-28A60

ZRR70..G,V

 1
58518C - MAT, REAR FLOOR, NO.2
58518-28A50

ZRR70..G,V

SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ)

 1
58518-28A40

ZRR70..G,V

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-28C00B3

ZRR70..V

GRAY,TRIM1#

 1
58540-28B80E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
58540-28C00E2

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
58540-28B90E2

ZRR7#..S

S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-28C00B3

ZRR70..V

GRAY,TRIM1#

 1
58540-28B80E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
58540-28C00E2

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
58540-28B90E2

ZRR7#..S

S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-28C00B3

ZRR70..V

GRAY,TRIM1#

 1
58540-28B80E2

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
58540-28C00E2

ZRR7#..S

S“G Edition” *(A)&ﾘﾔ NO.1 ｼｰﾄ−回転 & ﾛﾝｸﾞｼｰﾄｽﾗｲﾄﾞ,GREGE,TRIM49

 1
58540-28B90E2

ZRR7#..S

S“G Edition” *(A)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ｻｲﾄﾞ & ｶｰﾃﾝｼｰﾙﾄﾞ),GREGE,TRIM49

 1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 4
58595-28080B1

ZRR70..V

DK.GRAY,TRIM1#

 4
58625D - PLATE, REAR FLOOR MAT, NO.1
58625-28060E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
64420 - LID, LUGGAGE ROOM BOX
64420-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
64420 - LID, LUGGAGE ROOM BOX
64420-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
64749H - COVER, BACK DOOR STRIKER
64749-28020E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
66310G - HOOK ASSY, ROPE
66310-28060B0

ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)

DK.GRAY,TRIM1#

 2
66310-28060E1

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 2
66310-28060E1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

GREGE,TRIM4#

 2
67935 - PLATE, BACK DOOR SCUFF
67935-28080E0

ZRR7#..S

S“G Edition” *(A),GREGE,TRIM49

 1
Common parts
91626-40618
