ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )ZRR70

Click highlighted areas on diagram

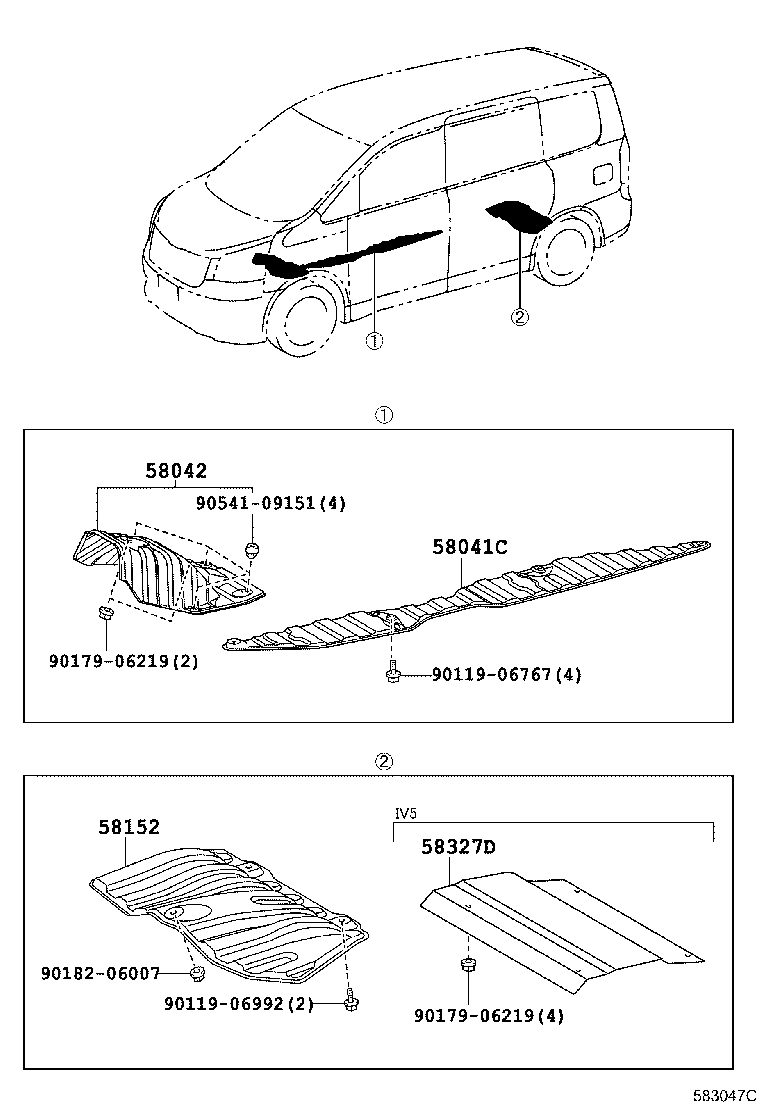

diagram 58041C 58042 58152 58327D 9011906767 9011906992 9017906219 9017906219 9018206007 9054109151
Part # Description Qty Price
58041C - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-28040

ZRR70..CBU,IV5

 1
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-28030

ZRR7#..CBU,IV5

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-28030

ZRR70..IV5

 1
Common parts
90119-06767
90119-06992
90179-06219
90182-06007
90541-09151
