ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

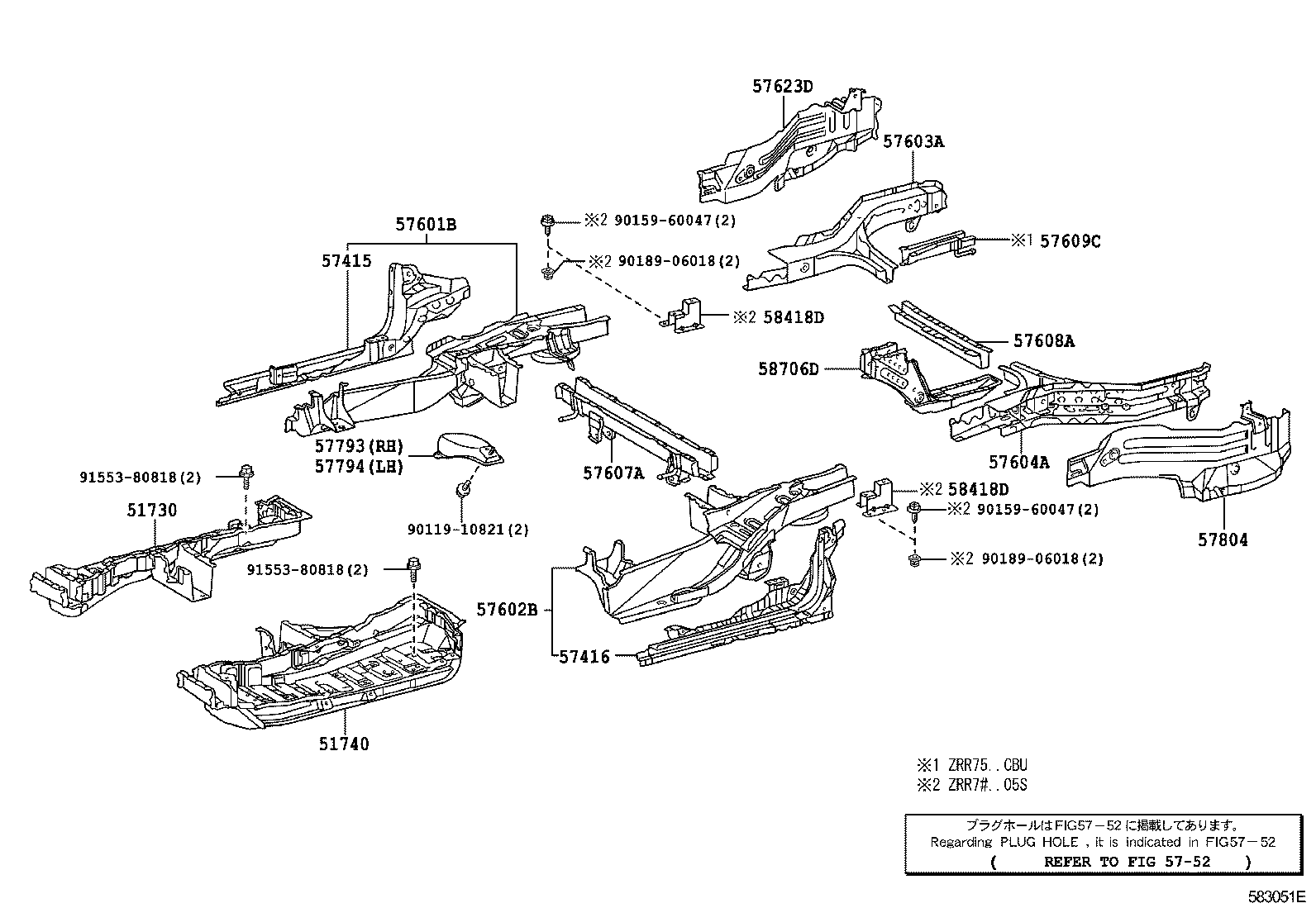

ILLUST NO. 1 OF 3(0706- )

Click highlighted areas on diagram

diagram 51730 51740 57415 57416 5752 57601B 57602B 57603A 57604A 57607A 57608A 57609C 57623D 57793 57794 57804 58418D 58418D 58706D 9011910821 9015960047 9015960047 9018906018 9018906018 9155380818 9155380818
Part # Description Qty Price
51730 - STEP ASSY, REAR FLOOR, RH
51730-28130

ZRR7#..CBU,IV5

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-28150

ZRR7#..IV5

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-28110

ZRR7#..CBU,IV5

 1
57047-28111

ZRR7#..CBU,IV5

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-28120

ZRR7#..IV5

 1
57048-28121

ZRR7#..IV5

 1
57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57041-28120

ZRR70..G,V

 1
57041-28110

ZRR75..CBU,IV5;ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)

 1
57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57042-28070

ZRR7#..IV5

 1
57042-28060

ZRR70..G,V;ZRR7#..07S..CBU

 1
57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
C3041-28010

ZRR7#..IV5

 1
C3041-28011

ZRR7#..IV5

 1
57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
C3042-28010

ZRR7#..IV5

 1
C3042-28030

ZRR7#..IV5

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-28470

ZRR75..IV5;ZRR70..CBU,IV5

 1
57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57655-44020

ZRR7#..CBU,IV5

 1
57623D - PLATE, REAR FLOOR SIDE MEMBER, RR RH
57623-28030

ZRR7#..CBU,IV5

 1
57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1
57793-28040

ZRR7#..CBU,IV5

 1
57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57706-28020

ZRR7#..IV5

 1
57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
57804-28040

ZRR7#..CBU,IV5

 1
58706D - BRACKET SUB-ASSY, JACK CARRIER, NO.1
58706-44010

ZRR7#..CBU,IV5

 1
Common parts
90119-10821
90159-60047
90189-06018
91553-80818
Linked diagrams
5752

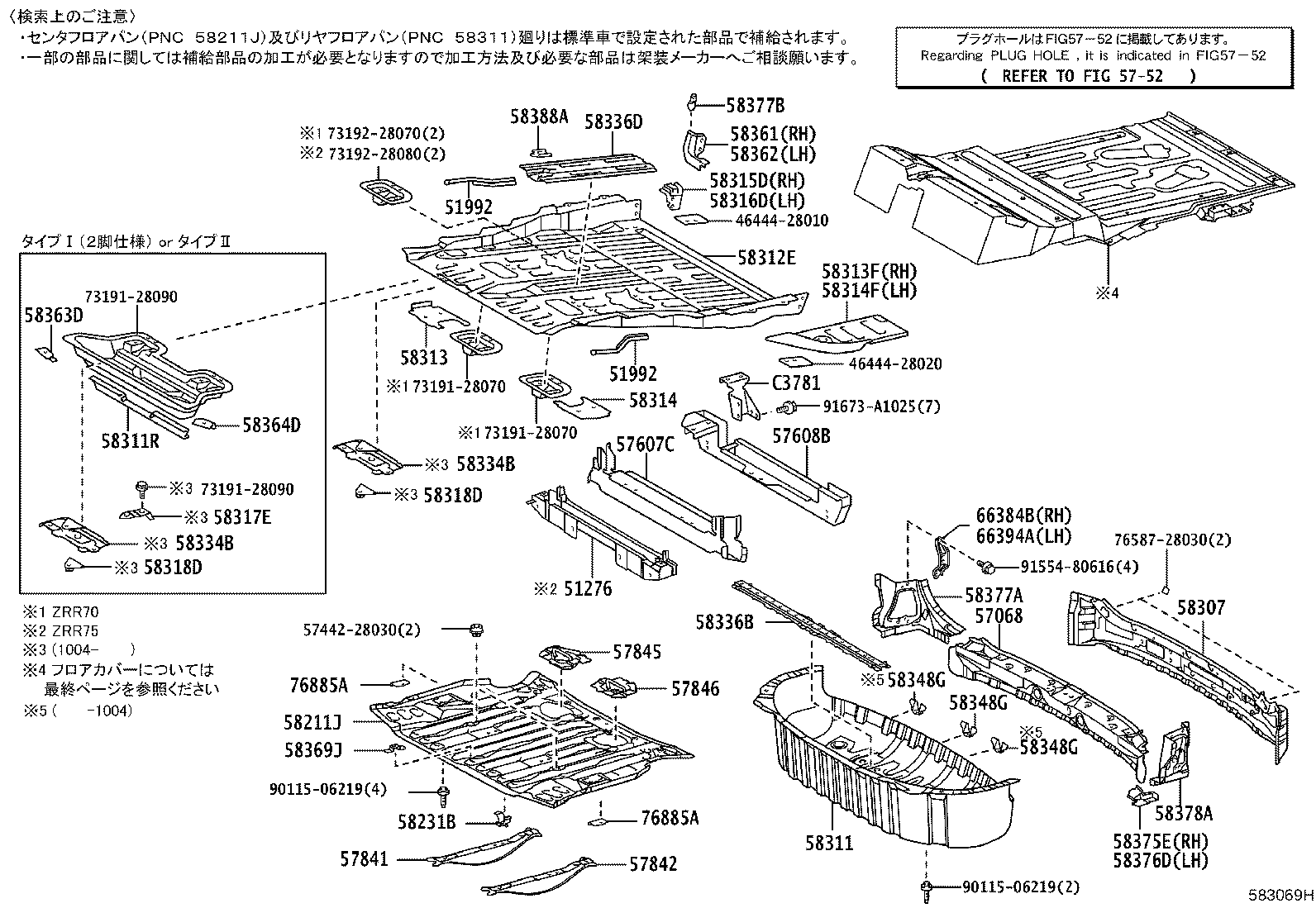

ILLUST NO. 2 OF 3(0706- )IV5

Click highlighted areas on diagram

ﾘﾔｽﾛｰﾌﾟｼｬ

diagram 4644428010 4644428020 51276 51992 51992 57068 5744228030 5752 57607C 57608B 57841 57842 57845 57846 58211J 58231B 58307 58311 58311R 58312E 58313 58313F 58314 58314F 58315D 58316D 58317E 58318D 58318D 58334B 58334B 58336B 58336D 58348G 58348G 58348G 58361 58362 58363D 58364D 58369J 58375E 58376D 58377A 58377B 58378A 58388A 66384B 66394A 7319128070 7319128070 7319128090 7319128090 7319228070 7319228080 7658728030 76885A 76885A 9011506219 9011506219 9155480616 91673A1025 C3781
Part # Description Qty Price
51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2
51992-28070

ZRR70..IV5

右側

 1
51992-28080

ZRR70..IV5

左側

 1
51992 - HANGER, EXHAUST PIPE SUPPORT, NO.2
51992-28070

ZRR70..IV5

右側

 1
51992-28080

ZRR70..IV5

左側

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-28270

ZRR75..IV5;ZRR70..CBU,IV5

 1
57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-28480

ZRR7#..IV5

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-28250

ZRR70..IV5

 1
57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57841-28120

ZRR7#..CBU,IV5

 1
57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57842-28060

ZRR7#..CBU,IV5

 1
57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
58201-28370

ZRR7#..(07S,08S)..(CBU,IV5)

 1
57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH
58202-28010

ZRR7#..(07S,08S)..(CBU,IV5)

 1
58211J - PAN, CENTER FLOOR
C3311-28010

ZRR7#..IV5

 1
58231B - BRACKET, CENTER FLOOR HEAT INSULATOR
58231-28020

ZRR75..IV5;ZRR70..CBU,IV5

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-28120

ZRR7#..CBU,IV5

 1
58311 - PAN, REAR FLOOR
C3111-22490

ZRR7#..IV5

 1
58311R - BRACKET, MOUNTING REAR FLOOR, NO.1
58348-28020

ZRR70..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
58312E - PANEL, REAR FLOOR, REAR
58312-28060

ZRR70..IV5

 1
58312-28060

ZRR70..IV5

 1
58312-28070

ZRR70..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
58312-28070

ZRR70..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-28050

ZRR70..IV5

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-28060

ZRR7#..IV5

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-28030

ZRR70..IV5

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-28040

ZRR7#..IV5

 1
58315D - EXTENSION, REAR FLOOR PAN, RH
58315-28110

ZRR7#..IV5

 1
58316D - EXTENSION, REAR FLOOR PAN, LH
58316-28080

ZRR7#..IV5

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-44030

ZRR75..IV5;ZRR70..CBU,IV5

 1
58336D - REINFORCEMENT, REAR FLOOR PAN, NO.1
58336-28060

ZRR7#..IV5

 1
58348G - PLATE, REAR FLOOR SIDE, RH
58348-28010

ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU

 3
58348G - PLATE, REAR FLOOR SIDE, RH
58348-28010

ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU

 3
58348G - PLATE, REAR FLOOR SIDE, RH
58348-28010

ZRR7#..IV5;ZRR70..(G,TRASX,V,X,YY)..CBU

 3
58361 - REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH
58361-28020

ZRR7#..IV5

 1
58362 - REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH
58362-28040

ZRR7#..IV5

 1
58363D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58363-28030

ZRR70..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
58364D - REINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58364-28040

ZRR70..IV5

ﾘﾔｽﾛｰﾌﾟ ﾀｲﾌﾟ1(2脚装備)

 1
58369J - BRACKET, REAR FLOOR BRACE
61693-21010

ZRR7#..CBU,IV5

 1
58375E - REINFORCEMENT, BODY LOWER BACK PANEL
58035-28010

ZRR7#..CBU,IV5

 1
58376D - REINFORCEMENT, BODY LOWER BACK, LH
58036-28010

ZRR7#..CBU,IV5

 1
58377A - PANEL, BODY LOWER BACK, RH
58377-28020

ZRR7#..CBU,IV5

 1
58377B - RETAINER, LOWER BACK TRIM
58377-28030

ZRR7#..IV5

 2
58378A - PANEL, BODY LOWER BACK, LH
58378-28020

ZRR7#..CBU,IV5

 1
58388A - BRACKET,REAR FLOOR PLATE
89966-28010

ZRR7#..CBU,IV5

 1
66384B - BRACKET, ROPE HOOK, NO.2 RH
66384-28030

ZRR7#..CBU,IV5

 1
66394A - BRACKET, ROPE HOOK, NO.2 LH
66394-28020

ZRR7#..CBU,IV5

 1
76885A - RETAINER, REAR SPOILER
76885-28010

ZRR7#..CBU,IV5

 2
76885A - RETAINER, REAR SPOILER
76885-28010

ZRR7#..CBU,IV5

 2
C3781 - REINFORCE, REAR FRAME, LOWER
C3781-22010

ZRR7#..IV5

 1
Common parts
46444-28010
46444-28020
57442-28030
73191-28070
73191-28090
73192-28070
73192-28080
76587-28030
90115-06219
91554-80616
91673-A1025
Linked diagrams
5752
