ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

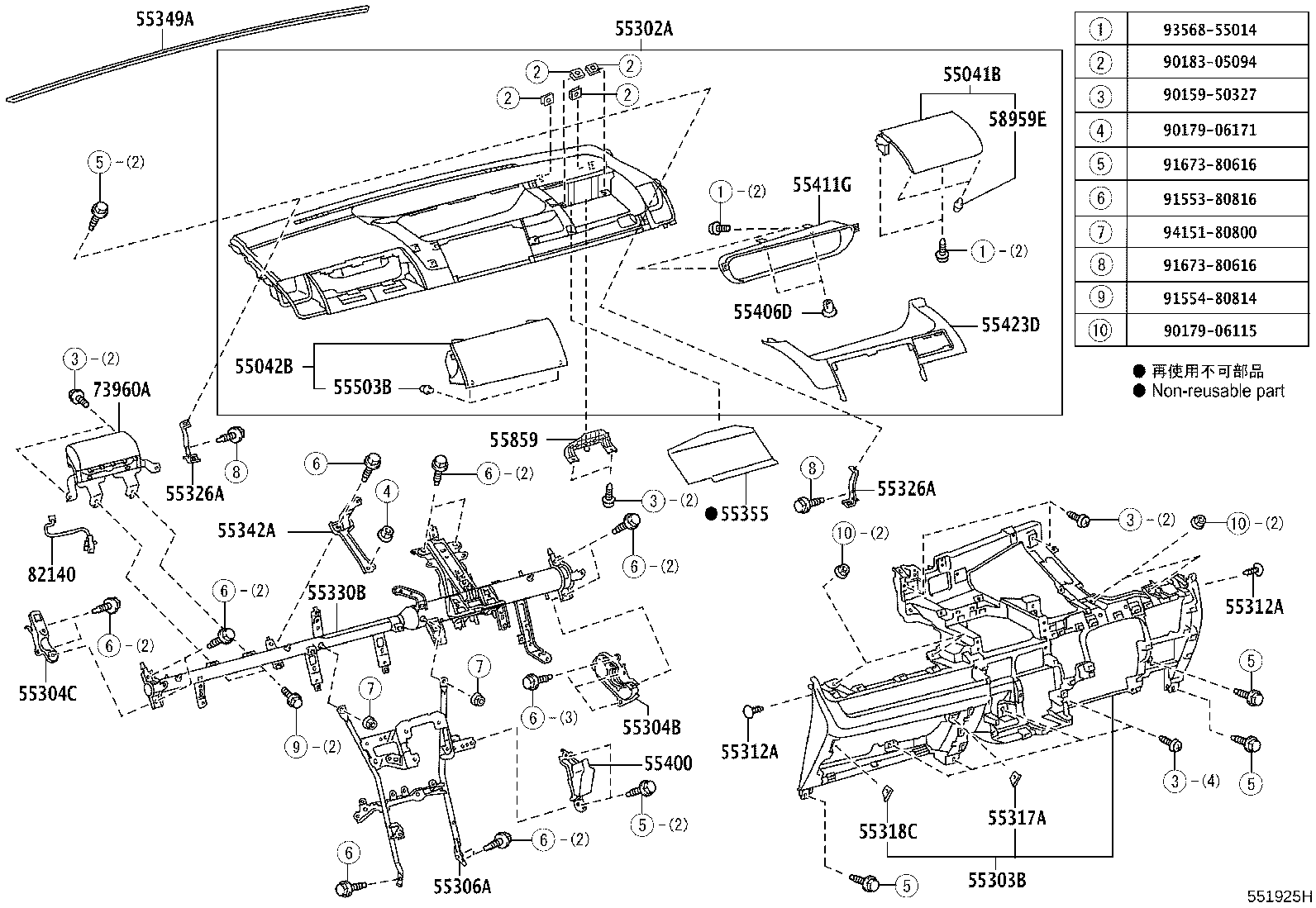

ILLUST NO. 1 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55041-28070E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55041-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-28060E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55042-28060B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55042-28070E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55042-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55042-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-28140E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4# |
1 | ||
| 55302-28120E0 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55302-28130B0 |
ZRR7#..V DK.GRAY,TRIM1# |
1 | ||
| 55302-28180E0 |
ZRR7#..S S“G Edition” *(A)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM49 |
1 | ||
| 55302-28140B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1# |
1 | ||
| 55302-28160E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55302-28120B0 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55302-28170B0 |
ZRR7#..V DK.GRAY,TRIM1# |
1 | ||
| 55302-28160B0 |
ZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55302-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55302-28180B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1# |
1 | ||
| 55302-28180E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55303-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55303-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161C0 |
ZRR7#..CBU,IV5 BLACK |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161C0 |
ZRR7#..CBU,IV5 BLACK |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-28080B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55317-28080E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55317-28080E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55318-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55318-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-28150 |
ZRR7#..CBU,IV5 |
2 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-28150 |
ZRR7#..CBU,IV5 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-28150 |
ZRR7#..CBU,IV5 |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-11091 |
ZRR7#..CBU,IV5 |
2 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 55423D - PLATE, METER HOOD SET | ||||
| 55423-28030E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55423-28030B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55423-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
ZRR7#..CBU,IV5 |
2 | ||
| 55859 - PLATE, FRONT VENTILATOR | ||||
| 55859-28010 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRR7#..CBU,IV5 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82143-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90179-06115 | ||||
| 90179-06171 | ||||
| 90183-05094 | ||||
| 91553-80816 | ||||
| 91554-80814 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

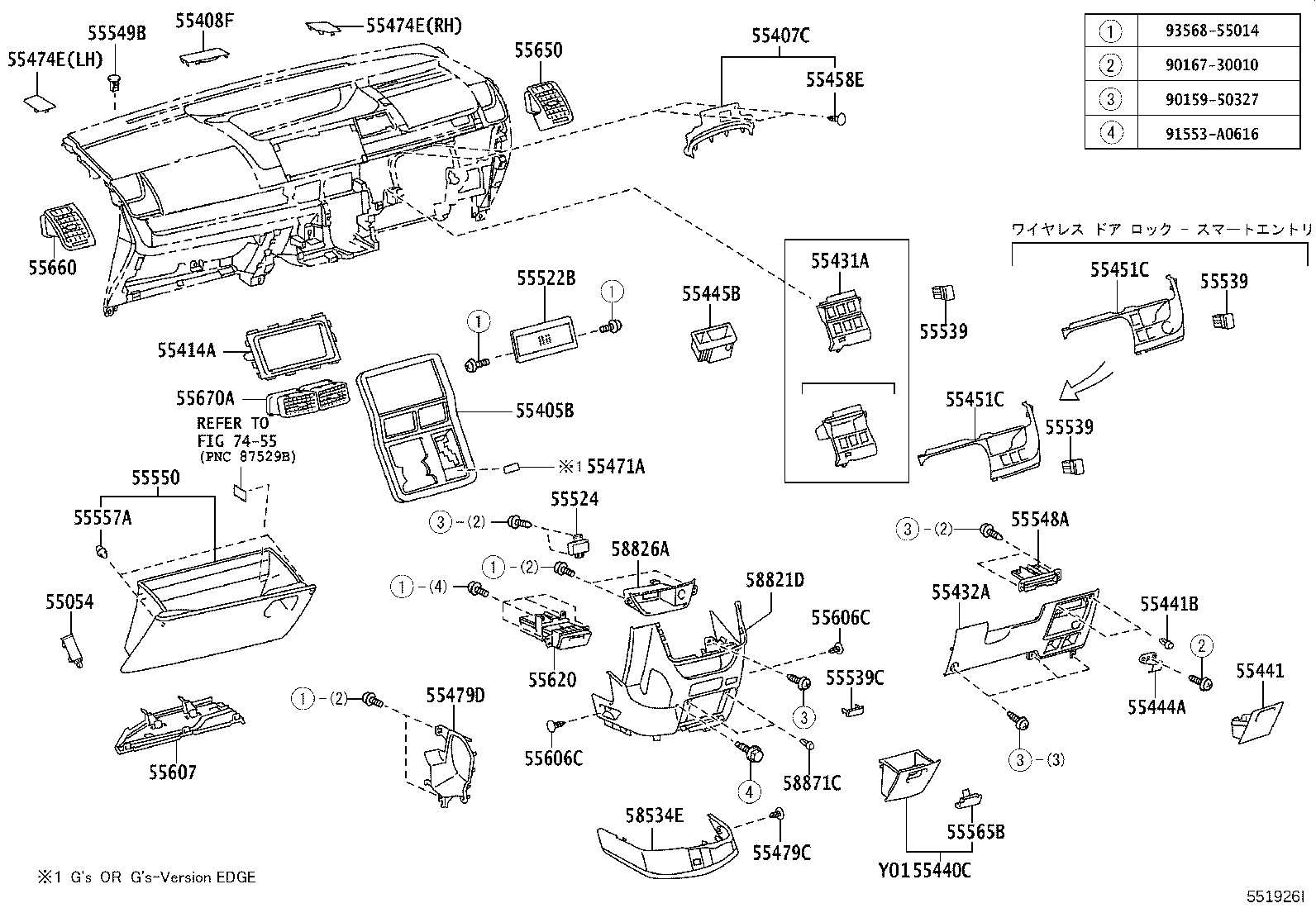

ILLUST NO. 2 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ZRR7#..CBU,IV5 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28740 |
ZRR75..08S..HTWVM..CBU;ZRR70..HTWVM..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 55405-28720 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-28090 |
ZRR7#..CBU,IV5 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-28060B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1# |
1 | ||
| 55408-28060E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4# |
1 | ||
| 55408-28060E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-28100 |
ZRR7#..CBU,IV5 HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 55414-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-28110B0 |
ZRR7#..IV5 MD.GRAY,TRIM1# |
1 | ||
| 55431-28110E0 |
ZRR7#..S S“G Edition” *(A)&HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,GREGE,TRIM49 |
1 | ||
| 55431-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55431-28110E0 |
ZRR7#..S 寒冷地仕様&S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55431-28110E0 |
ZRR7#..S S“G Edition” *(A)&VSC−有り,GREGE,TRIM49 |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-28240E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55432-28240B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55432-28240E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-28070B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55440-28070E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55440-28070E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28150E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55441-28150E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55441-28150B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ZRR7#..CBU,IV5 |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-28100E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55445-28100B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55445-28100E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-28100B0 |
ZRR7#..(SI,V,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55451-28100B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),MD.GRAY,TRIM1# |
1 | ||
| 55451-28090B0 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55451-28090E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55451-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55451C - BOX, INSTRUMENT PANEL, NO.1 | ||||
| 55451-28100B0 |
ZRR7#..(SI,V,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55451-28100B0 |
ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ(運転席 & 助手席& ﾊﾞｯｸﾄﾞｱ),MD.GRAY,TRIM1# |
1 | ||
| 55451-28090B0 |
ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55451-28090E0 |
ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55451-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-08186C0 |
ZRR7#..CBU,IV5 BLACK |
2 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4#,右側 |
1 | ||
| 55474-28030B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1#,右側 |
1 | ||
| 55475-28010B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1#,左側 |
1 | ||
| 55475-28010E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49,左側 |
1 | ||
| 55474-28030E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49,右側 |
1 | ||
| 55475-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4#,左側 |
1 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-28030E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4#,右側 |
1 | ||
| 55474-28030B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1#,右側 |
1 | ||
| 55475-28010B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,DK.GRAY,TRIM1#,左側 |
1 | ||
| 55475-28010E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49,左側 |
1 | ||
| 55474-28030E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49,右側 |
1 | ||
| 55475-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,ASH BROWN,TRIM4#,左側 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-08186B4 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 90467-08186E3 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 90467-08186E3 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 58827-28010E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 58827-28010B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 58827-28010E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZRR7#..CBU,IV5 |
1 | ||
| 55522-52020 |
ZRR7#..CBU,IV5 HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,MD.GRAY,TRIM1# |
1 | ||
| 55524-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55524-28050B0 |
ZRR7#..(SI,V,X,ZS)..(CBU,IV5) 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 55524-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55524-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55524-28050E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55524-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
8 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
8 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) 寒冷地仕様,GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55539-28160B2 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),MD.GRAY,TRIM1# |
1 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ & ｲｰｼﾞｰｸﾛｰｻﾞｰ−有り(両側),GREGE,TRIM4# |
1 | ||
| 55539-28160E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
8 | ||
| 55539-28160E0 |
ZRR7#..NOAH..X..(CBU,IV5) VSC−有り,GREGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-28190B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55539-28190B0 |
ZRR75..07S..HTWC..CBU;ZRR70..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,MD.GRAY,TRIM1# |
1 | ||
| 55539-28190E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰ ﾅﾋﾞｹﾞｰｼｮﾝ,GREGE,TRIM4# |
1 | ||
| 55539-28190E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55539-28190E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030C0 |
ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5) BLACK,TRIM1# |
1 | ||
| 55548-52030C0 |
ZRR7#..NOAH..X..(CBU,IV5) BLACK,TRIM1#,4# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55548-12070B4 |
ZRR7#..NOAH..X..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55548-12070B4 |
ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,SI,TRASX,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55548-12070B4 |
ZRR7#..NOAH..X..(CBU,IV5) DK.GRAY,TRIM1#,4# |
1 | ||
| 55548-12070E4 |
ZRR7#..NOAH..X..(CBU,IV5) ASH BROWN,TRIM49 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-28120B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55550-28120E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55550-28120E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZRR7#..CBU,IV5 |
2 | ||
| 55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-28090B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55565-28090E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55565-28090E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55606C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-08186P1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 90467-08186E4 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 90467-08186E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 55606C - CLIP(FOR INSTRUMENT PANEL UNDER COVER) | ||||
| 90467-08186P1 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
2 | ||
| 90467-08186E4 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
2 | ||
| 90467-08186E4 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28100B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 55620-28100E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 55620-28100E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28270E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55650-28270B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55650-28270E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28290E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 55660-28290E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 55660-28290B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-28160 |
ZRR7#..CBU,IV5 |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-28050B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) DK.GRAY,TRIM1# |
1 | ||
| 58534-28050E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) ASH BROWN,TRIM4# |
1 | ||
| 58534-28050E0 |
ZRR7#..S S“G Edition” *(A),ASH BROWN,TRIM49 |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-28040B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 58821-28040E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 58821-28040E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58825-28020E0 |
ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4# |
1 | ||
| 58825-28020B0 |
ZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5) MD.GRAY,TRIM1# |
1 | ||
| 58825-28020E0 |
ZRR7#..S S“G Edition” *(A),GREGE,TRIM49 |
1 | ||
| 58871C - CUSHION, CONSOLE BOX | ||||
| 58959-60060 |
ZRR7#..CBU,IV5 |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-30010 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
