ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )

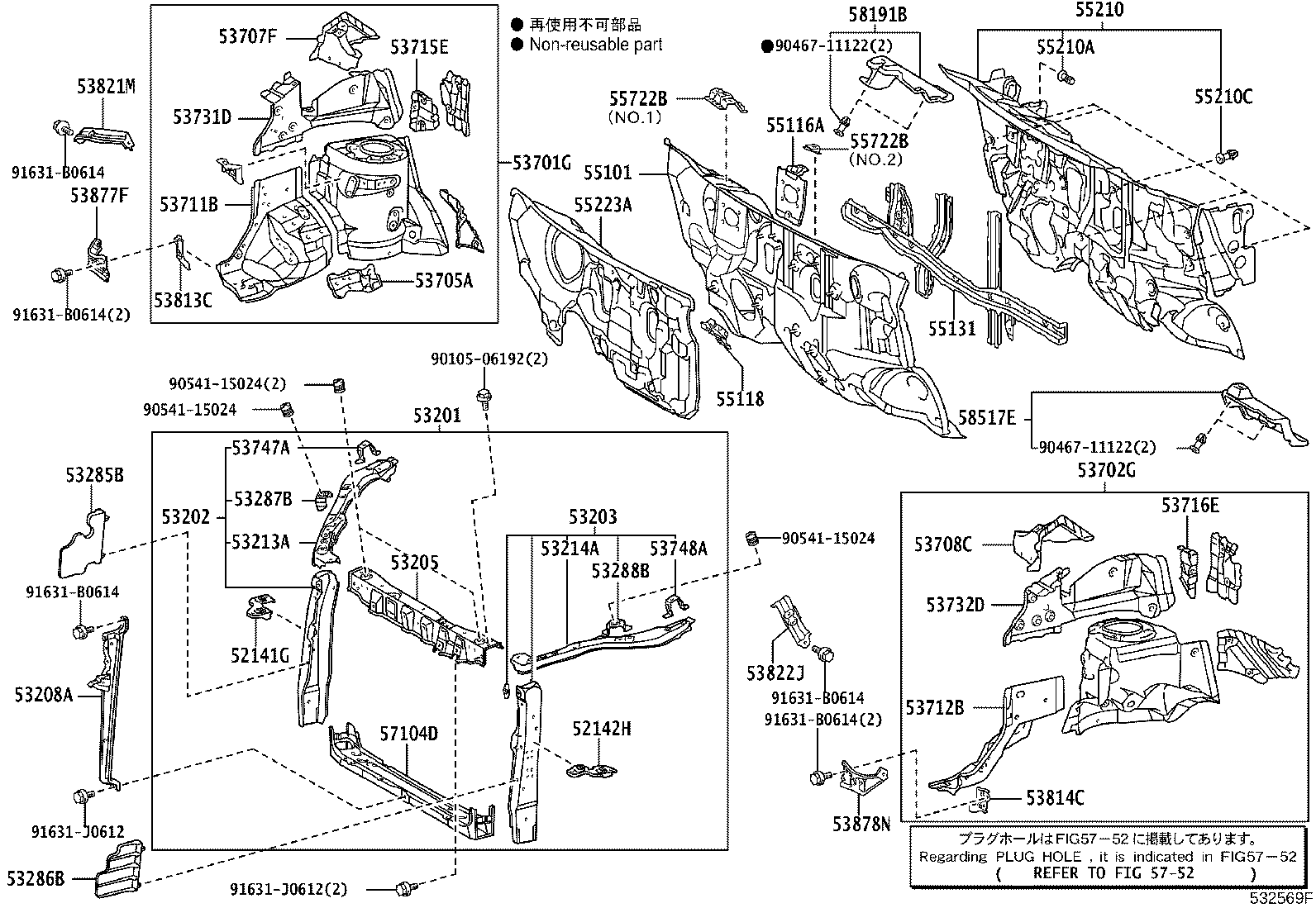

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-28140 |
ZRR7#..CBU,IV5 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53205-28190 |
ZRR7#..CBU,IV5 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 53202-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 53203-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 53205-28180 |
ZRR7#..CBU,IV5 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53285B - SEAL, RADIATOR SIDE AIR, NO.1 | ||||
| 53285-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 53286B - SEAL, RADIATOR SIDE AIR, NO.2 | ||||
| 53286-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53287-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 53701G - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-28860 |
ZRR7#..CBU,IV5 |
1 | ||
| 53702G - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-28760 |
ZRR7#..CBU,IV5 |
1 | ||
| 53705A - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53719-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-28110 |
ZRR7#..CBU,IV5 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-44031 |
ZRR7#..CBU,IV5 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-28031 |
ZRR7#..CBU,IV5 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 53821M - BRACKET, FRONT FENDER, REAR NO.1 RH | ||||
| 53821-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 53822J - BRACKET, FRONT FENDER, REAR NO.1 LH | ||||
| 53822-28070 |
ZRR7#..CBU,IV5 |
1 | ||
| 53877F - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-28050 |
ZRR7#..CBU,IV5 |
1 | ||
| 53878N - BRACKET, FRONT FENDER LINER, LH | ||||
| 53878-28160 |
ZRR7#..CBU,IV5 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55111-28A00 |
ZRR7#..CBU,IV5 |
1 | ||
| 55116A - PLATE, BRAKE PEDAL SUPPORT MOUNTING | ||||
| 55106-28310 |
ZRR7#..CBU,IV5 |
1 | ||
| 55118 - EXTENSION, DASH PANEL, RH | ||||
| 55118-28040 |
ZRR7#..CBU,IV5 |
1 | ||
| 55131 - REINFORCEMENT, DASH PANEL | ||||
| 55103-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-28240 |
ZRR7#..CBU,IV5 |
1 | ||
| 55210A - CLIP | ||||
| 90467-13079 |
ZRR7#..CBU,IV5 |
2 | ||
| 55210C - CLIP | ||||
| 90467-11122 |
ZRR7#..CBU,IV5 |
6 | ||
| 90467-11122 |
ZRR7#..CBU,IV5 |
5 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-28100 |
ZRR7#..CBU,IV5 |
1 | ||
| 55722B - BRACE, COWL TOP TO COWL, INNER NO.2 | ||||
| 55722-28050 |
ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 55721-28020 |
ZRR7#..CBU,IV5 NO.1 |
1 | ||
| 55722B - BRACE, COWL TOP TO COWL, INNER NO.2 | ||||
| 55722-28050 |
ZRR7#..CBU,IV5 NO.2 |
1 | ||
| 55721-28020 |
ZRR7#..CBU,IV5 NO.1 |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-28120 |
ZRR7#..CBU,IV5 |
1 | ||
| 58191B - FOOTREST, FRONT FLOOR | ||||
| 58191-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 58517E - PAD, HEEL | ||||
| 58517-28060 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90105-06192 | ||||
| 90467-11122 | ||||
| 90541-15024 | ||||
| 91631-B0614 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||
