Toyota Noah/voxy ZRR70 HOOD & FRONT FENDER

ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010

Engine 3ZRFAE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

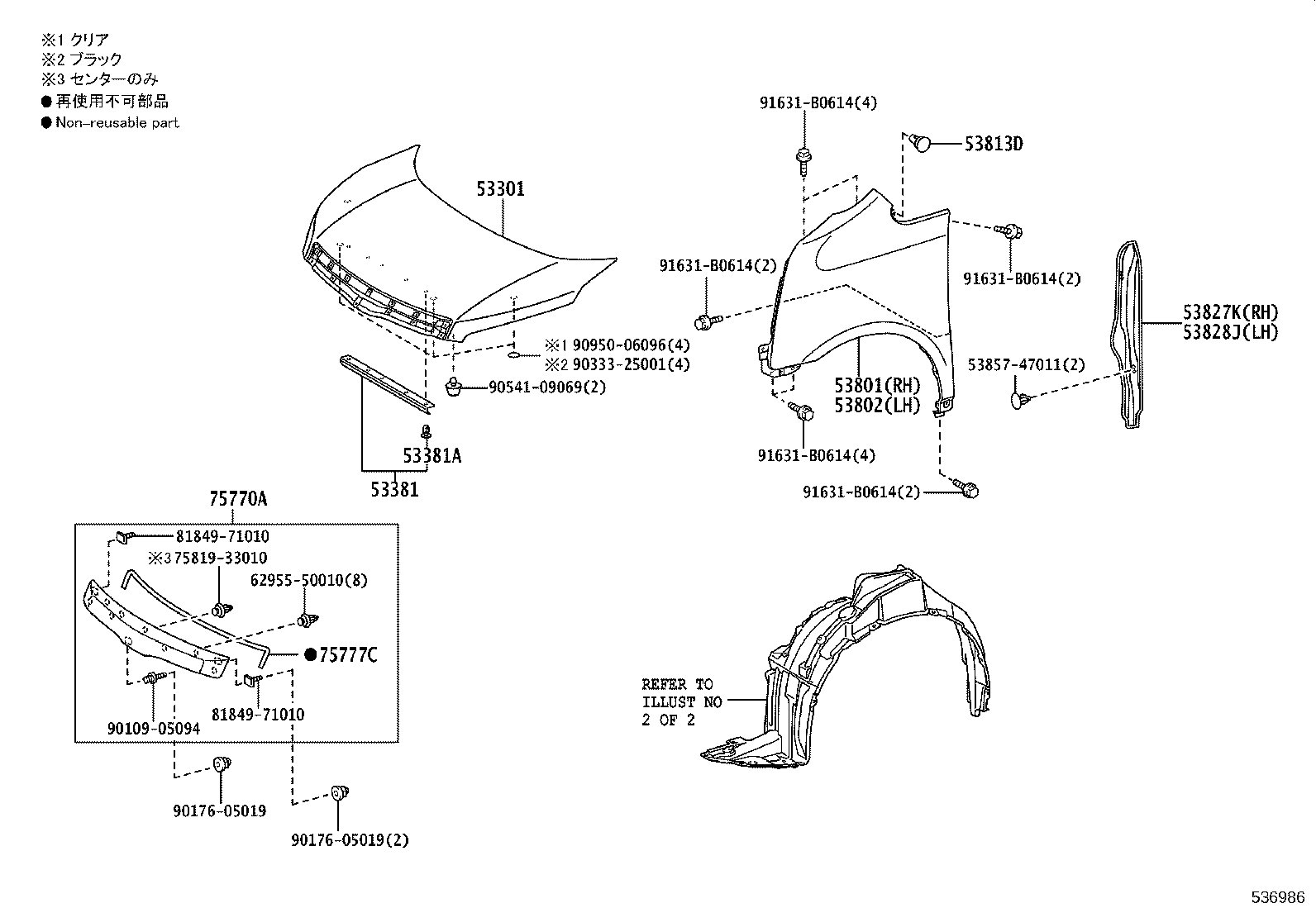

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-28120	ZRR7#..NOAH..(CBU,IV5)	06/2007 - 04/2010	1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-28100	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	ZRR7#..CBU,IV5	06/2007 - 04/2010	5
53801 - FENDER SUB-ASSY, FRONT RH
53801-28100	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	06/2007 - 04/2010	1
53801-28110	ZRR7#..(S,SI)..(CBU,IV5)	06/2007 - 04/2010	1
53801-28130	ZRR7#..(Z,ZS)..(CBU,IV5)	06/2007 - 04/2010	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-28170	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	06/2007 - 04/2010	1
53802-28180	ZRR7#..(S,SI)..(CBU,IV5)	06/2007 - 04/2010	1
53802-28200	ZRR7#..(Z,ZS)..(CBU,IV5)	06/2007 - 04/2010	1
53813D - EXTENSION, FRONT FENDER
53813-52020	ZRR7#..CBU,IV5	06/2007 - 11/2007	2
53813-28090	ZRR7#..CBU,IV5	11/2007 - 04/2010	2
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-28110	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-28130	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
75770A - MOULDING ASSY, HOOD, FRONT
75770-28060	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	06/2007 - 04/2010	1
75770-28070	ZRR7#..(S,SI)..(CBU,IV5)	06/2007 - 04/2010	1
75777C - PAD, HOOD FRONT MOULDING
75777-28030	ZRR7#..NOAH..(CBU,IV5)	06/2007 - 04/2010	1
Common parts
53857-47011
62955-50010
75819-33010
81849-71010
90109-05094
90176-05019
90333-25001
90541-09069
90950-06096
91631-B0614

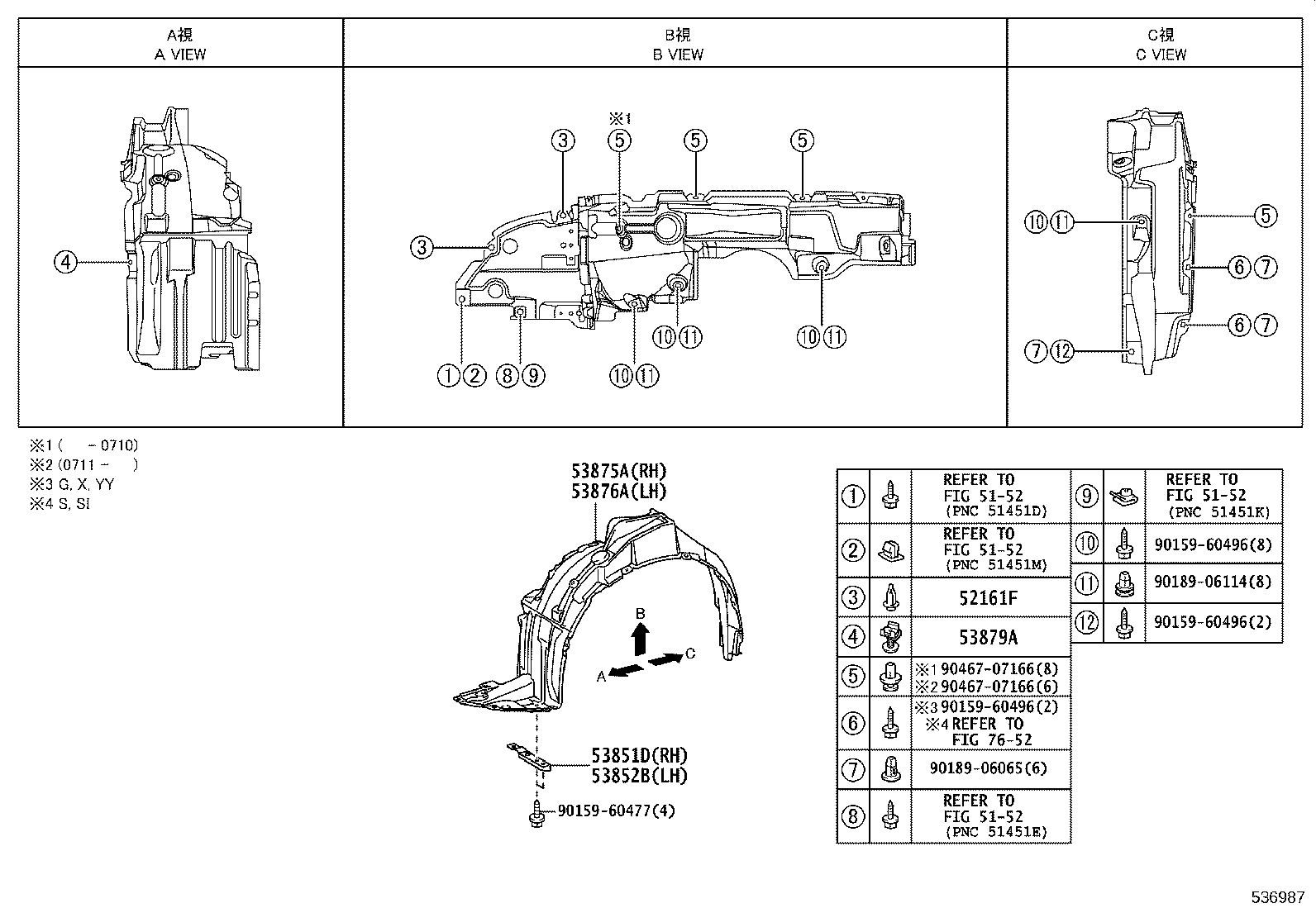

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

Part #	Description	Period	Qty
52161F - PIECE, FRONT BUMPER
52161-16010	ZRR7#..CBU,IV5	06/2007 - 04/2010	4
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-28030	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-28030	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
53875A - LINER, FRONT FENDER, RH
53805-28071	ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)	11/2007 - 04/2010	1
53805-28060	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	06/2007 - 10/2007	1
53805-28070	ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)	06/2007 - 10/2007	1
53805-28061	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	11/2007 - 04/2010	1
53876A - LINER, FRONT FENDER, LH
53806-28071	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	11/2007 - 04/2010	1
53806-28080	ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)	06/2007 - 10/2007	1
53806-28070	ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)	06/2007 - 10/2007	1
53806-28081	ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)	11/2007 - 04/2010	1
53879A - RETAINER, FRONT FENDER LINER
53879-28030	ZRR7#..CBU,IV5	06/2007 - 04/2010	2
Common parts
90159-60477
90159-60496
90189-06065
90189-06114
90467-07166
Linked diagrams
5152
7652
