ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706-1004)NOAH

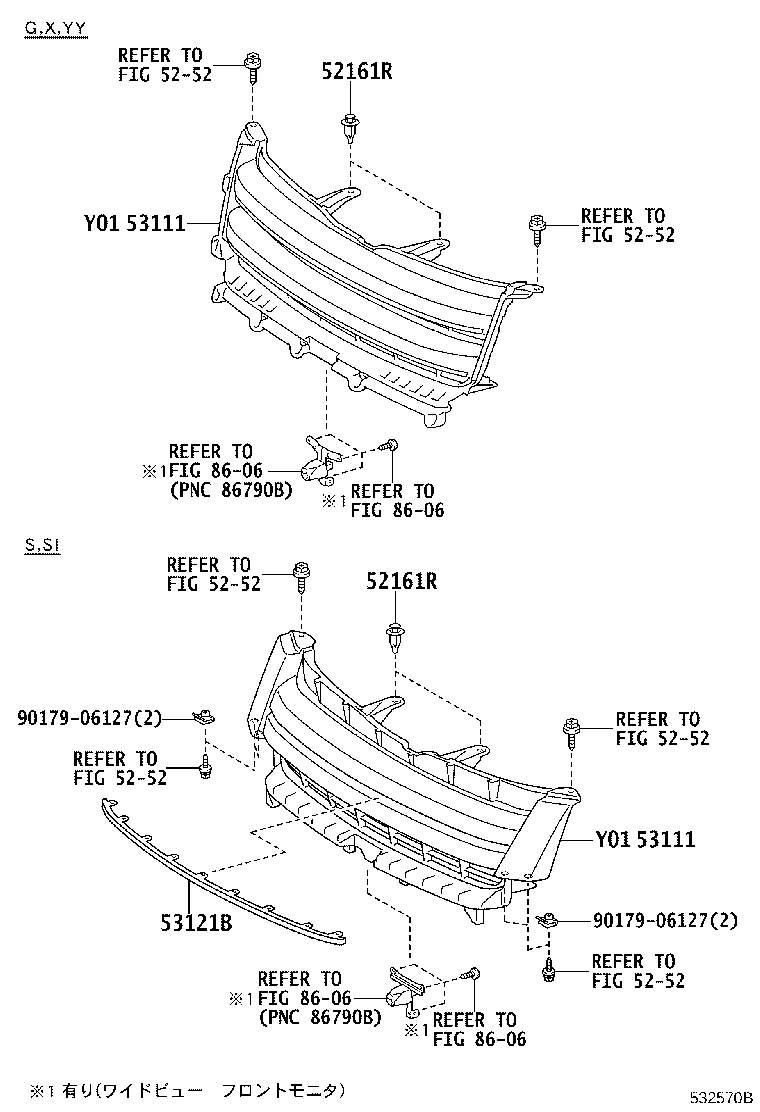

Click highlighted areas on diagram

diagram 52161R 52161R 5252 5252 5252 5252 5252 5252 53111 53111 53121B 8606 8606 8606 8606 9017906127 9017906127
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR7#..NOAH..(CBU,IV5)

 2
53111 - GRILLE, RADIATOR
53111-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530B0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530A0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28530B1

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28530D0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK. RED M.M.,3Q3

 1
53111-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28530C0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

BLACK,202

 1
53111-28530J0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK.BLUE MC.,8S6

 1
53111-28530J1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

LT.BLUE M.M.,8S7

 1
53111-28551B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28570

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
53111-28551C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28551A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28551B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550K0

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
53111 - GRILLE, RADIATOR
53111-28550A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28550B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530B0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28530A0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28530B1

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28530D0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK. RED M.M.,3Q3

 1
53111-28550C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28530C0

ZRR7#..NOAH..(G,X,YY)..(CBU,IV5)

BLACK,202

 1
53111-28530J0

ZRR7#..NOAH..(G,X)..(CBU,IV5)

DK.BLUE MC.,8S6

 1
53111-28530J1

ZRR7#..NOAH..(G,X)..(CBU,IV5)

LT.BLUE M.M.,8S7

 1
53111-28551B0

ZRR7#..(S,SI)..(CBU,IV5)

SILVER ME.,1F7

 1
53111-28570

ZRR7#..(Z,ZS)..(CBU,IV5)

塗装不要

 1
53111-28551C0

ZRR7#..(S,SI)..(CBU,IV5)

BLACK,202

 1
53111-28551A0

ZRR7#..(S,SI)..(CBU,IV5)

WHITE PEARL CS.,070

 1
53111-28551B1

ZRR7#..(S,SI)..(CBU,IV5)

GRAY ME.,1G3

 1
53111-28550K0

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-28150B0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),SILVER ME.,1F7

 1
53121-28150C0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),BLACK,202

 1
53121-28150B0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM),SILVER ME.,1F7

 1
53121-28150K0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),DK.VIOLET M.M.,9AF

 1
53121-28150B0

ZRR7#..(Z,ZS)..(CBU,IV5)

SILVER ME.,1F7

 2
53121-28150K0

ZRR7#..(Z,ZS)..(CBU,IV5)

DK.VIOLET M.M.,9AF

 2
53121-28150A0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM),WHITE PEARL CS.,070

 1
53121-28150A0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM&*IPA),WHITE PEARL CS.,070

 1
53121-28150C0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM),BLACK,202

 1
53121-28150C0

ZRR7#..(Z,ZS)..(CBU,IV5)

BLACK,202

 2
53121-28150K0

ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)

有り(*BGM&ｻｲﾄﾞﾓﾆﾀｰ&*WVFM),DK.VIOLET M.M.,9AF

 1
53121-28160

ZRR7#..(S,SI)..(CBU,IV5)

 1
53121-28150A0

ZRR7#..(Z,ZS)..(CBU,IV5)

WHITE PEARL CS.,070

 2
Common parts
90179-06127
Linked diagrams
5252
8606
