ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )S,SI,Z,ZS

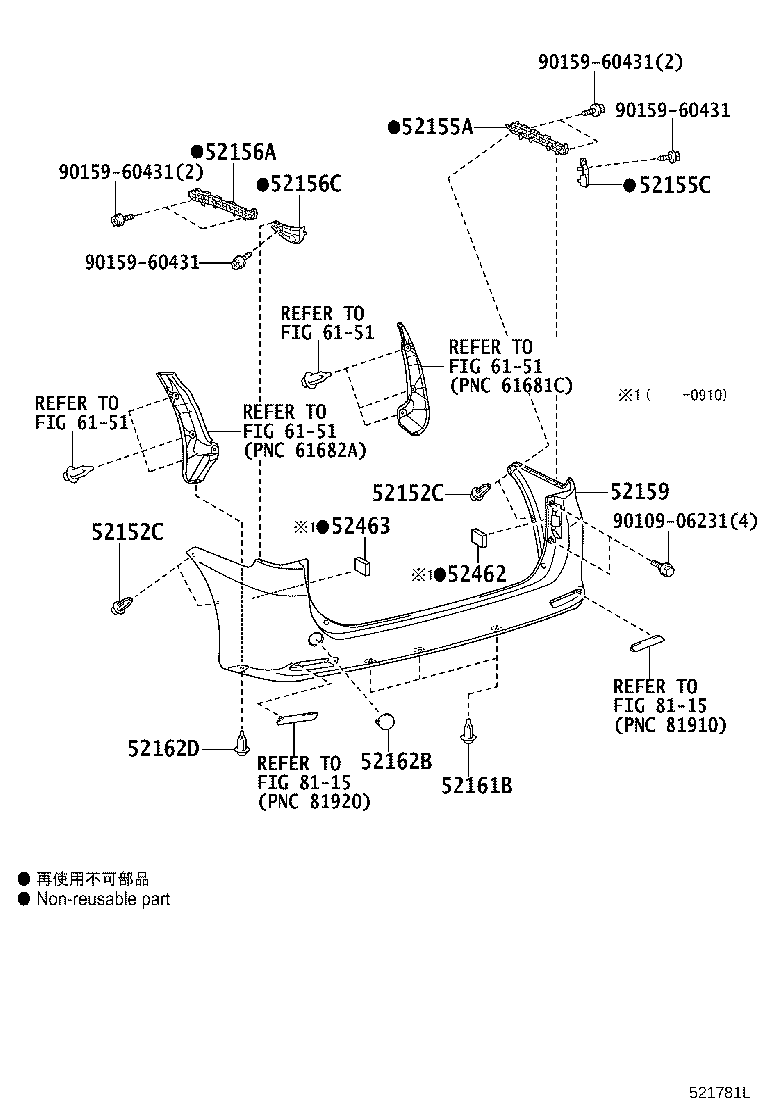

Click highlighted areas on diagram

diagram 52152C 52152C 52155A 52155C 52156A 52156C 52159 52161B 52162B 52162D 52462 52463 6151 6151 6151 6151 8115 8115 9010906231 9015960431 9015960431 9015960431 9015960431
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28100

ZRR7#..CBU,IV5

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-28110

ZRR7#..CBU,IV5

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28070

ZRR7#..CBU,IV5

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-28080

ZRR7#..CBU,IV5

 1
52159 - COVER, REAR BUMPER
52159-28590K0

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
52162B - PLATE, REAR BUMPER, NO.1
52162-28080K1

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
Common parts
90109-06231
90159-60431
Linked diagrams
6151
8115

(0706- )G,TRASX,V,X,YY

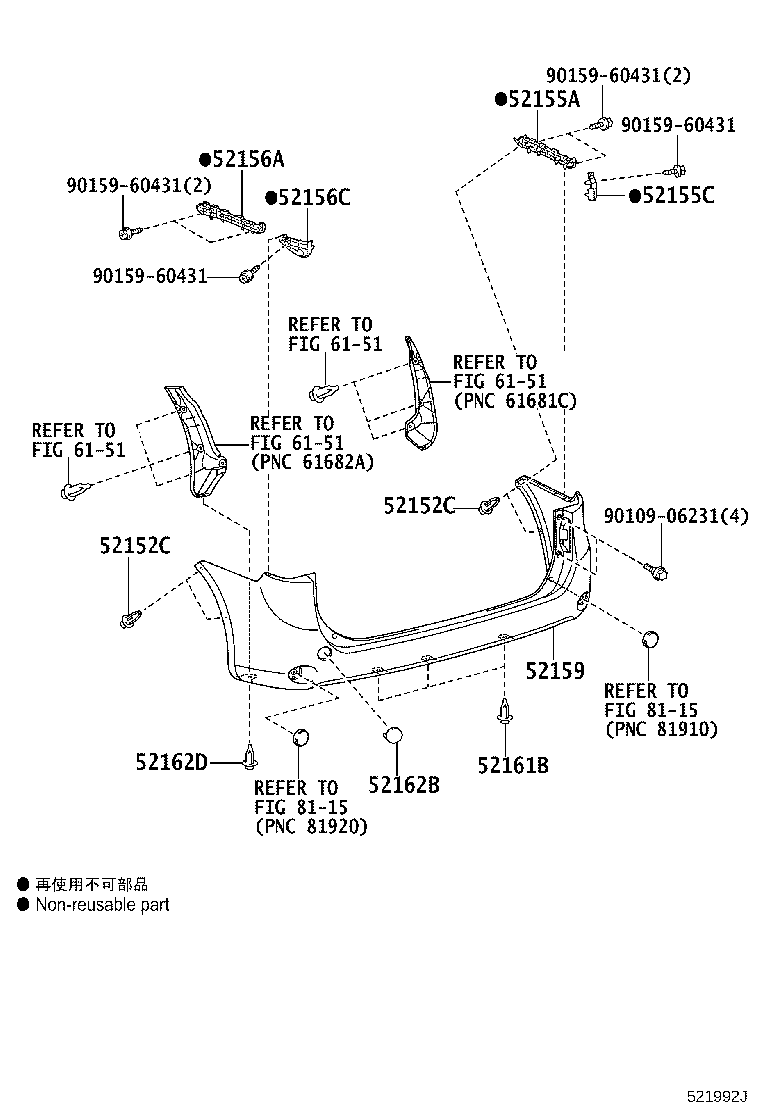

Click highlighted areas on diagram

diagram 52152C 52152C 52155A 52155C 52156A 52156C 52159 52161B 52162B 52162D 6151 6151 6151 6151 8115 8115 9010906231 9015960431 9015960431 9015960431 9015960431
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28100

ZRR7#..CBU,IV5

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-28110

ZRR7#..CBU,IV5

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28070

ZRR7#..CBU,IV5

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-28080

ZRR7#..CBU,IV5

 1
52159 - COVER, REAR BUMPER
52159-28590K0

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
52162B - PLATE, REAR BUMPER, NO.1
52162-28080K1

ZRR7#..S

S“G Edition” *(A),LT.PURPLE M.M.,9AE

 1
Common parts
90109-06231
90159-60431
Linked diagrams
6151
8115
