ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )IV5

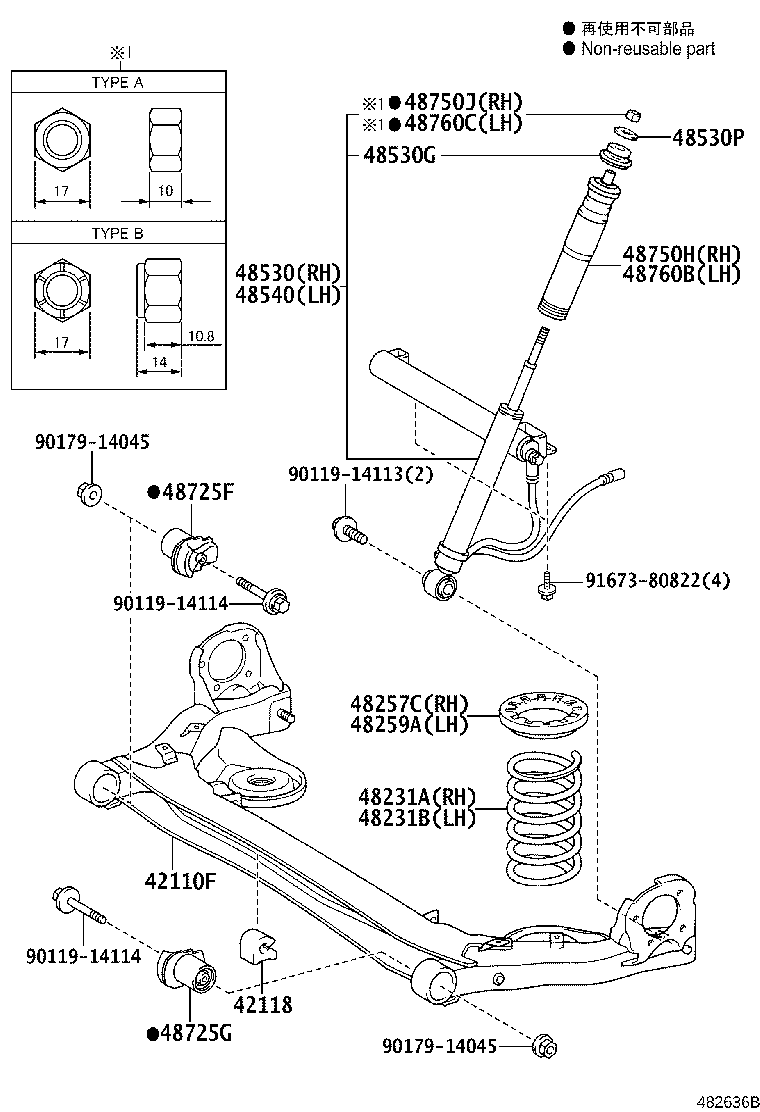

Click highlighted areas on diagram

diagram 42110F 42118 48231A 48231B 48257C 48259A 48530 48530G 48530P 48540 48725F 48725G 48750H 48750J 48760B 48760C 9011914113 9011914114 9011914114 9017914045 9017914045 9167380822
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-28460

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
42101-28411

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
42118 - DAMPER, REAR AXLE BEAM
42118-28020

ZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)

 1
42118-44010

ZRR7#..(S,SI,Z,ZS)..(CBU,IV5)

 1
48231A - SPRING, COIL, REAR RH
48231-28C10

ZRR70..CBU,IV5

 1
48231-28B71

ZRR70..CBU,IV5

 1
48231B - SPRING, COIL, REAR LH
48231-28B71

ZRR70..CBU,IV5

 1
48231-28C10

ZRR70..CBU,IV5

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-28060

ZRR7#..CBU,IV5

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-28060

ZRR7#..CBU,IV5

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80426

ZRR7#..IV5

ﾏｰｸ 48530−28140

 1
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90905-40019

ZRR7#..CBU,IV5

 2
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02192

ZRR7#..CBU,IV5

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-80003

ZRR7#..IV5

ﾏｰｸ 48540−28020

 1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-28091

ZRR7#..CBU,IV5

 1
48725-28090

ZRR7#..CBU,IV5

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-28090

ZRR7#..CBU,IV5

 1
48725-28091

ZRR7#..CBU,IV5

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-44011

ZRR7#..IV5

 1
48750-28010

ZRR7#..IV5

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
94130-61200

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
90177-12002

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
90170-12045

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-28010

ZRR7#..IV5

 1
48750-44011

ZRR7#..IV5

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90177-12002

ZRR7#..CBU,IV5

TYPE B:ｲﾗｽﾄ参照

 1
94130-61200

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
90170-12045

ZRR7#..CBU,IV5

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
90119-14113
90119-14114
90179-14045
91673-80822
