ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )ZRR70..G,TRASX,V,X,YY

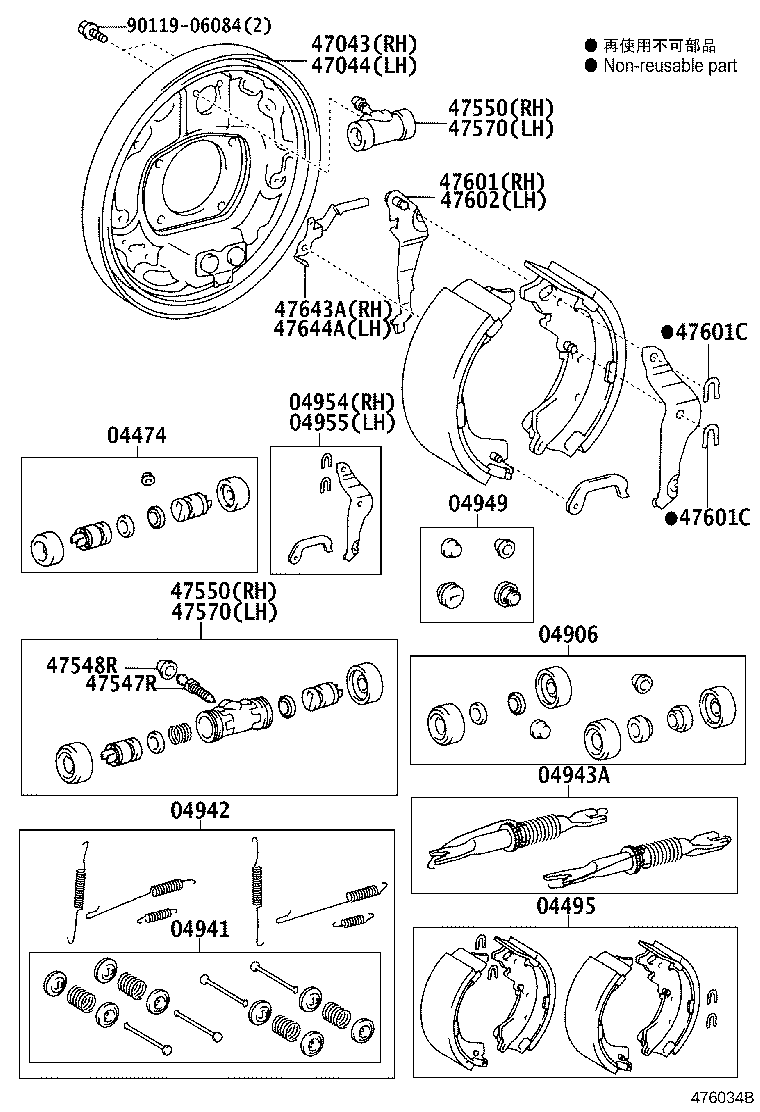

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-12050 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-28151 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) ﾏｰｸ NBK LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-33030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-28020 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04954 - REACTION PLATE KIT, REAR BRAKE, RH | ||||
| 04954-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 04955 - REACTION PLATE KIT, REAR BRAKE, LH | ||||
| 04955-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-28151 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-28151 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-27030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-12120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-28020 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) 厚さ=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) 厚さ=1.2 |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-28020 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-42010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
