ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
Production
Jun 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706-1004)HTWVM ; (1004- )

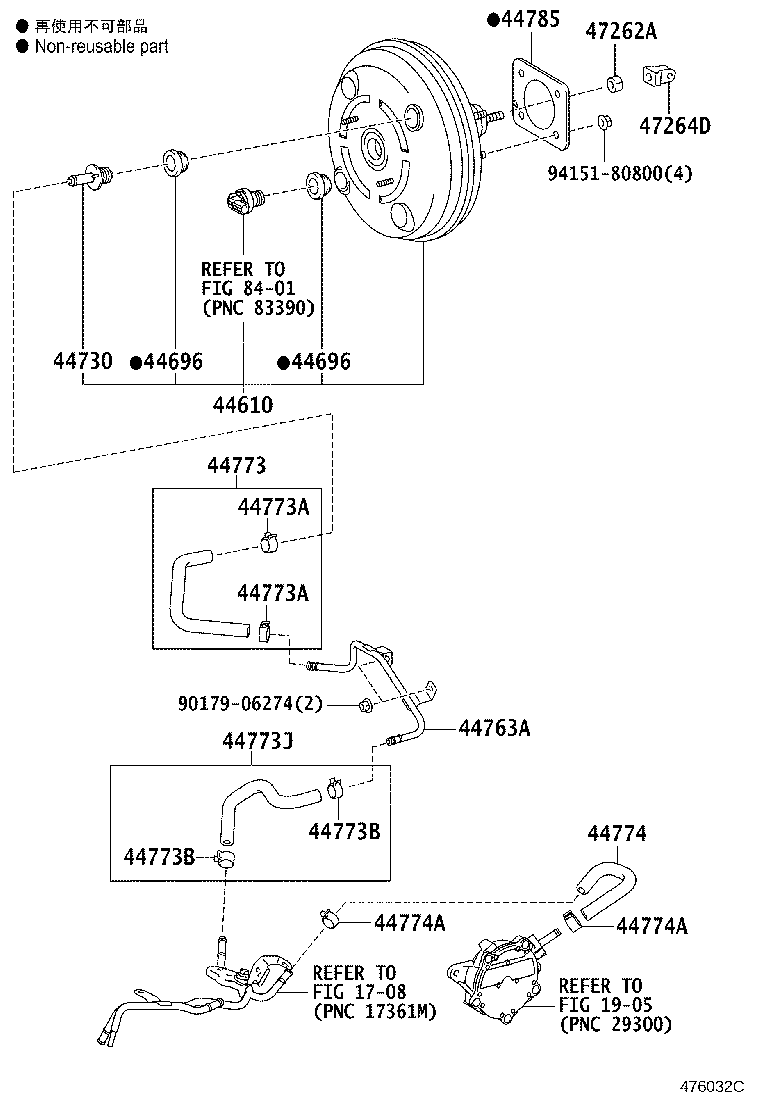

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-28A21 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 44610-28A90 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 44610-28A20 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 44610-28B10 |
ZRR7#..HTWVM..(CBU,IV5) VSC−有り |
1 | ||
| 44610-28A91 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 44610-28B01 |
ZRR70..S,Z;ZRR75..HTWC..(CBU,IV5) |
1 | ||
| 44610-28B00 |
ZRR70..S,Z;ZRR75..HTWC..(CBU,IV5) |
1 | ||
| 44610-28B11 |
ZRR7#..HTWVM..(CBU,IV5) VSC−有り |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZRR7#..HTWVM..(CBU,IV5) |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZRR7#..HTWVM..(CBU,IV5) |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22150 |
ZRR7#..CBU,IV5 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-28150 |
ZRR7#..CBU,IV5 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44770-28130 |
ZRR7#..CBU,IV5 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
ZRR7#..CBU,IV5 |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
ZRR7#..CBU,IV5 |
2 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
ZRR7#..CBU,IV5 |
2 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 96133-41500 |
ZRR7#..CBU,IV5 |
2 | ||
| 44773J - HOSE, VACUUM, NO.3 | ||||
| 44790-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-28320 |
ZRR7#..HTWVM..(CBU,IV5) |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRR7#..HTWVM..(CBU,IV5) |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ZRR7#..HTWVM..(CBU,IV5) |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 94120-41000 |
ZRR7#..CBU,IV5 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 1905 | ||||
| 8401 | ||||
