ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
Production
Jun 2007
-
Apr 2010
Engine
3ZRFAE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0706- )

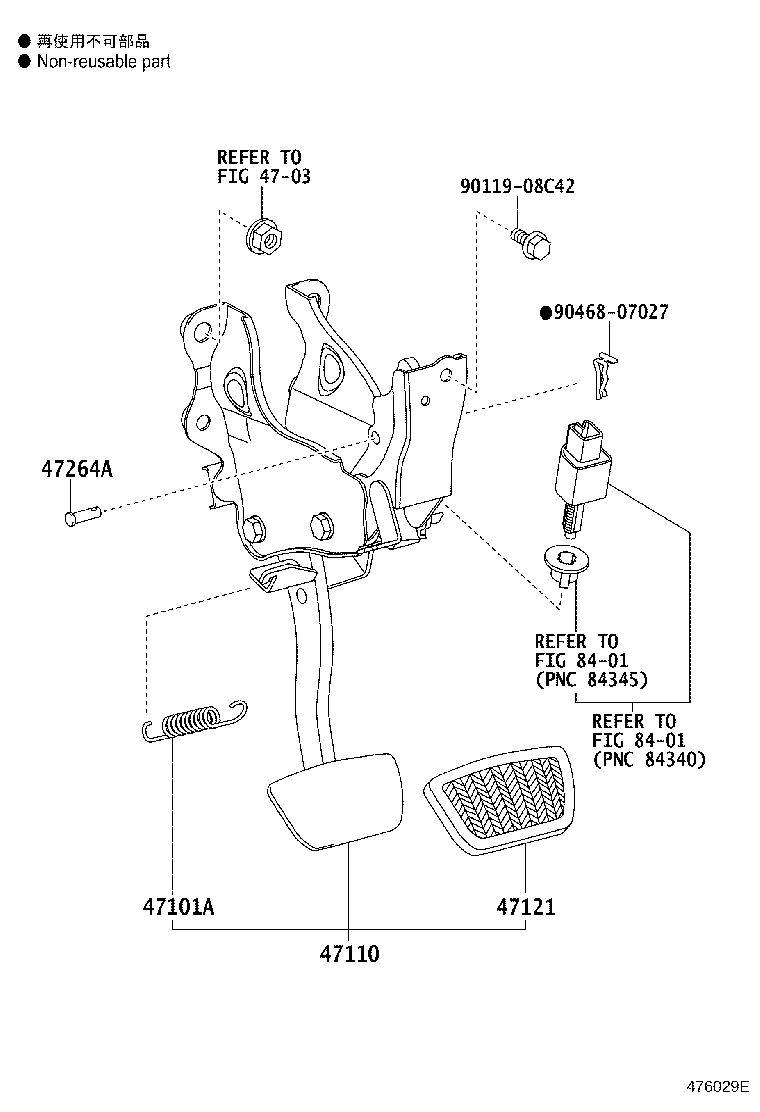

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47146-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-28210 |
ZRR7#..CBU,IV5 |
1 | ||
| 47110-28211 |
ZRR7#..CBU,IV5 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
ZRR7#..CBU,IV5 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08078 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 8401 | ||||
