ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy

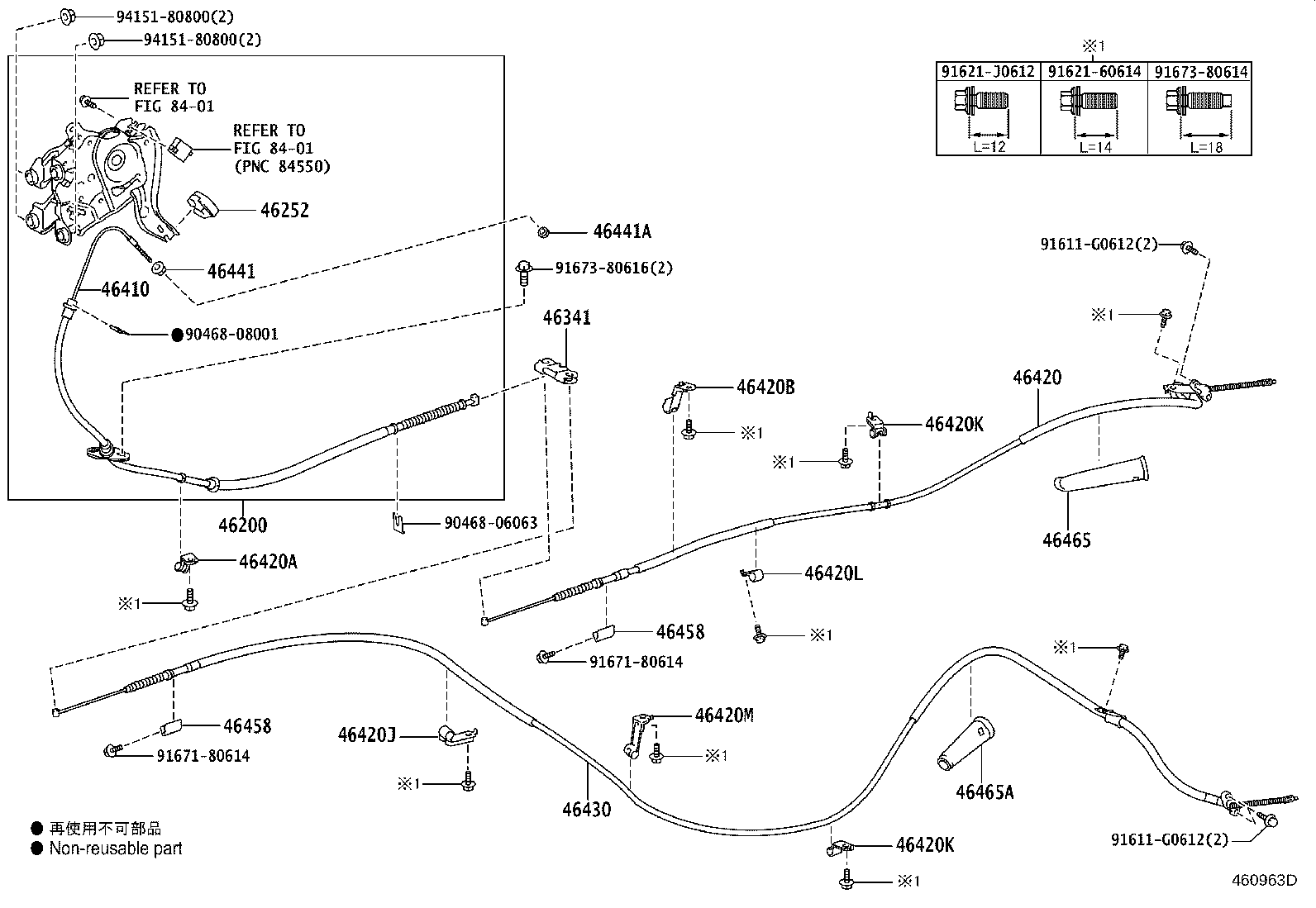

ILLUST NO. 1 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-28080 |
ZRR7#..CBU,IV5 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52020 |
ZRR7#..CBU,IV5 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12020 |
ZRR7#..CBU,IV5 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28290 |
ZRR7#..CBU,IV5 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28480 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 46420-28490 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46420-28490 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46411-28010 |
ZRR7#..CBU,IV5 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46411-28030 |
ZRR7#..CBU,IV5 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46411-28020 |
ZRR7#..CBU,IV5 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C69 |
ZRR7#..CBU,IV5 |
2 | ||
| 46467-28070 |
ZRR7#..CBU,IV5 |
2 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C69 |
ZRR7#..CBU,IV5 |
2 | ||
| 46467-28070 |
ZRR7#..CBU,IV5 |
2 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C71 |
ZRR7#..CBU,IV5 |
1 | ||
| 46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C87 |
ZRR7#..CBU,IV5 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28480 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 46430-28490 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46430-28490 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ZRR7#..CBU,IV5 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 94151-80600 |
ZRR7#..CBU,IV5 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
ZRR7#..CBU,IV5 |
2 | ||
| 46465 - GUIDE, PARKING BRAKE CABLE, RH | ||||
| 46465-44010 |
ZRR7#..CBU,IV5 |
1 | ||
| 46465A - GUIDE, PARKING BRAKE CABLE, LH | ||||
| 46465-44020 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 91611-G0612 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

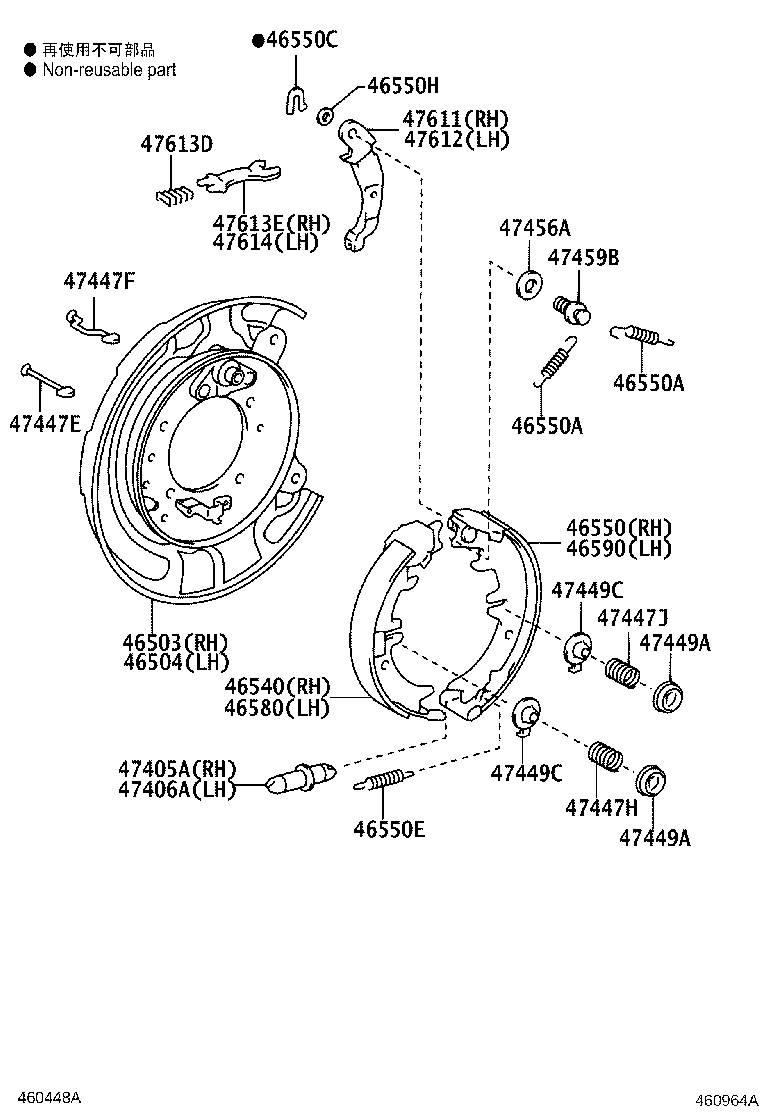

ILLUST NO. 2 OF 2(0706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-28030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46503-28030 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-28030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46504-28030 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-48010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46540-48010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-48010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46550-48010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 90507-20016 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 90507-20016 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 90213-07018 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 90506-12051 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 厚さ=0.6 |
1 | ||
| 90564-09186 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) 厚さ=0.9,VSC−有り |
1 | ||
| 90564-09184 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 厚さ=0.3 |
1 | ||
| 90564-09184 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) 厚さ=0.3,VSC−有り |
1 | ||
| 90564-09186 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) 厚さ=0.9 |
1 | ||
| 90564-09185 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) 厚さ=0.6,VSC−有り |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-48010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46540-48010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-48010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46590-48010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47405-30040 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47406-30040 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 47447-30020 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 47447-50010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 90501-16053 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 90501-16118 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 47449-30030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 47449-30030 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 47449-40010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
4 | ||
| 47449-40010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 47456-33010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47459-30010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46611-28180 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 46611-28180 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46621-28140 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 46621-28140 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
2 | ||
| 90504-14002 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 47613-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) VSC−有り |
1 | ||
| 47614-28010 |
ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
