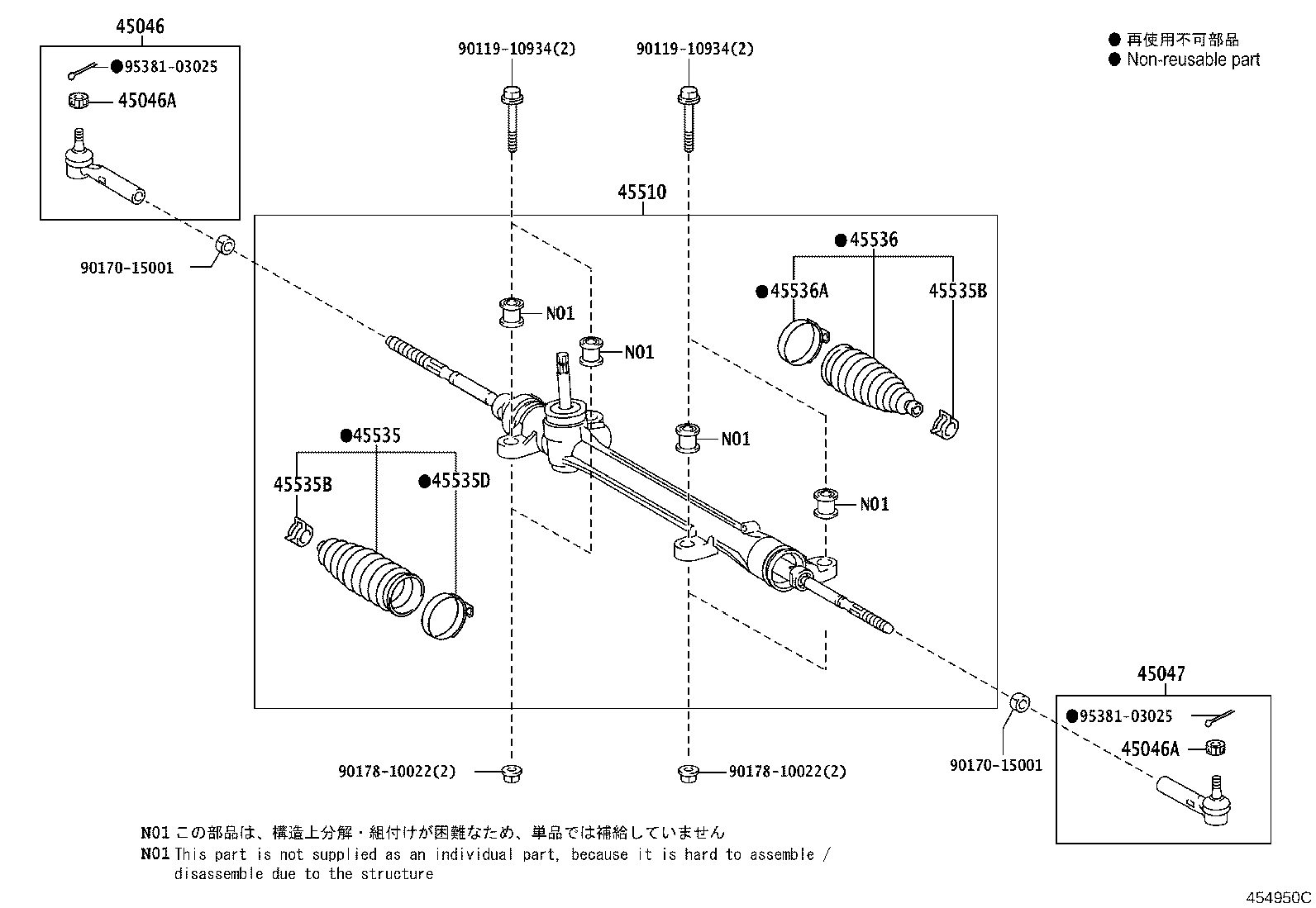

ZRR70W-ARXSP5 (2007)
Toyota Noah/Voxy
(0706- )ZRR70..G,TRASX,V,X,YY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-49025 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45046-29255 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZRR7#..CBU,IV5 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZRR7#..CBU,IV5 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-49095 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45046-29255 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-28121 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45510-28120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45510-28130 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45510-28131 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-29015 |
ZRR7#..CBU,IV5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZRR7#..CBU,IV5 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZRR7#..CBU,IV5 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-52010 |
ZRR7#..CBU,IV5 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-29015 |
ZRR7#..CBU,IV5 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-52010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-10934 | ||||
| 90170-15001 | ||||
| 90178-10022 | ||||
| 95381-03025 | ||||

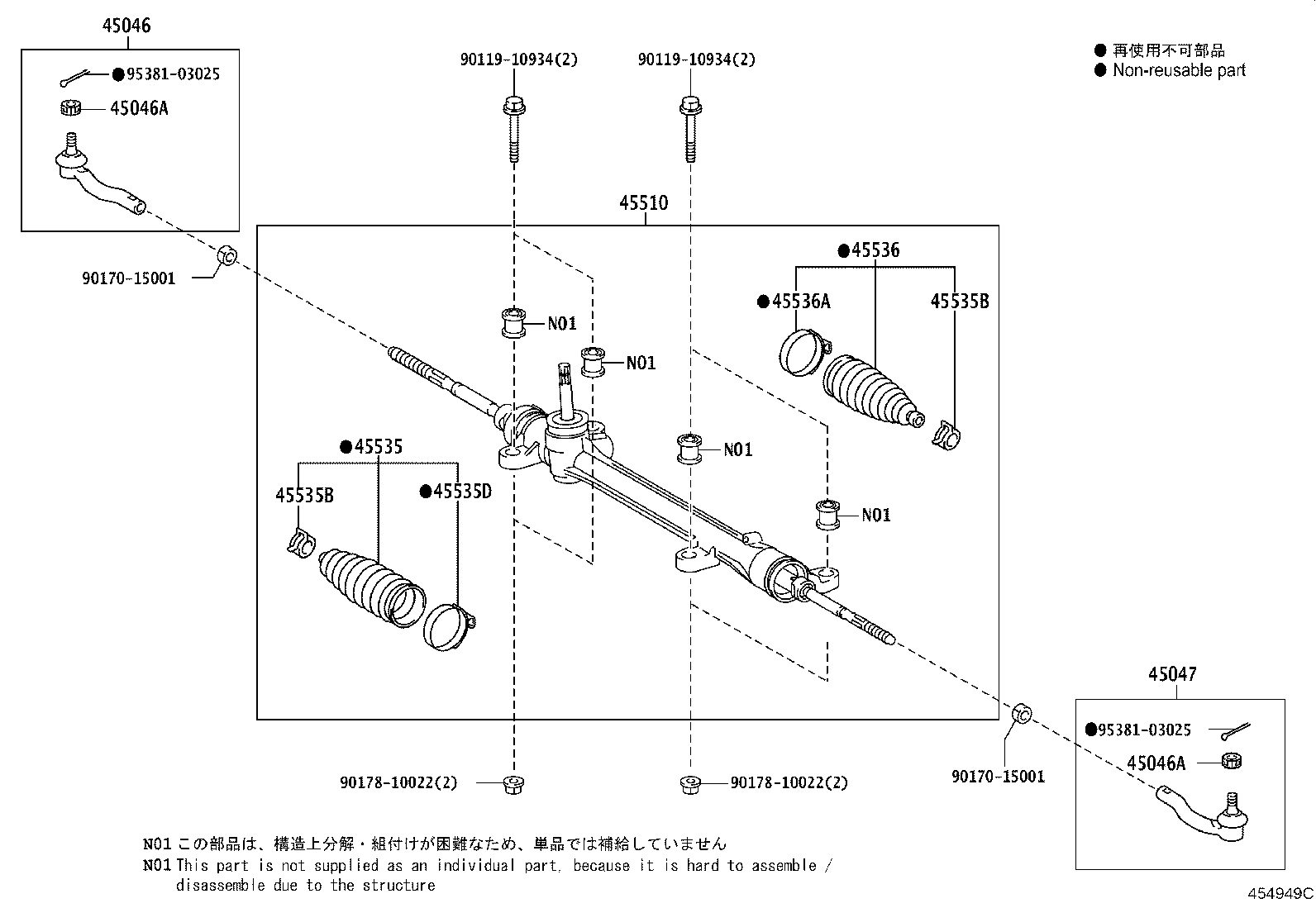

(0706- )ZRR70..S,SI,Z,ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-49025 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45046-29255 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZRR7#..CBU,IV5 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ZRR7#..CBU,IV5 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-49095 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45046-29255 |
ZRR7#..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-28121 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45510-28120 |
ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5) |
1 | ||
| 45510-28130 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45510-28131 |
ZRR70..(S,SI,Z,ZS)..(CBU,IV5) |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-29015 |
ZRR7#..CBU,IV5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZRR7#..CBU,IV5 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ZRR7#..CBU,IV5 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-52010 |
ZRR7#..CBU,IV5 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-29015 |
ZRR7#..CBU,IV5 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-52010 |
ZRR7#..CBU,IV5 |
1 | ||
| Common parts | ||||
| 90119-10934 | ||||
| 90170-15001 | ||||
| 90178-10022 | ||||
| 95381-03025 | ||||
