Toyota Noah/voxy ZRR70 STEERING WHEEL

ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010

Engine 3ZRFAE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

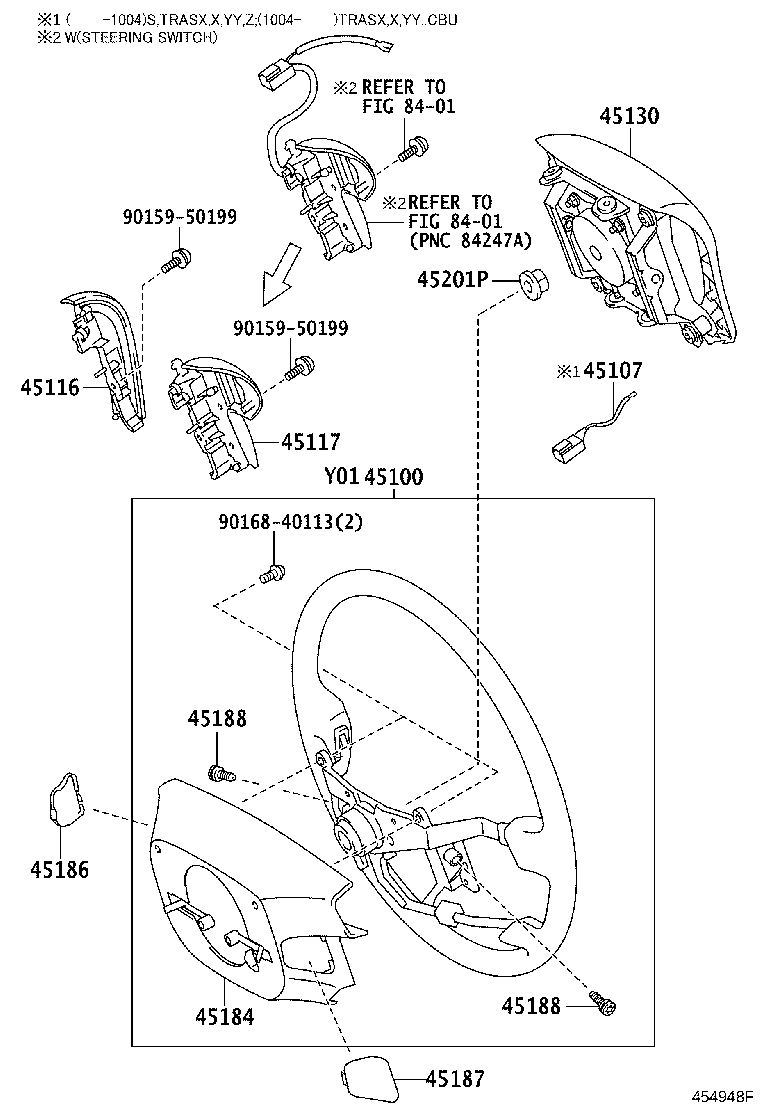

(0706-1004)HTWVM

Click highlighted areas on diagram

3-ｽﾎﾟｰｸ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-28470B0	ZRR7#..HTWVM..(CBU,IV5) 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28450E0	ZRR7#..NOAH..X..(CBU,IV5) 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GREGE,TRIM4#	06/2007 - 04/2010	1
45100-28480B0	ZRR7#..V 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28450B0	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28480E0	ZRR7#..S 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-28050	ZRR7#..HTWVM..(CBU,IV5)	06/2007 - 04/2010	1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-28050	ZRR7#..HTWVM..(CBU,IV5)	06/2007 - 04/2010	1
45130 - BUTTON ASSY, HORN
45130-28590B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45130-28580E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45130-28580B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45130-28580E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-12350B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45184-28150B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45184-28150E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45184-28150E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28080E0	ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45186-12020B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28080E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45186-28090B0	ZRR7#..V DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28080B0	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-12010B0	ZRR7#..HTWVM..(CBU,IV5) 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ),DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28090B0	ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ),DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-28040B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187-12020B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187-28040E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45187-28040E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	ZRR7#..CBU,IV5 長さ=18	06/2007 - 04/2010	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	ZRR7#..CBU,IV5 長さ=18	06/2007 - 04/2010	2
45201P - NUT, STEERING WHEEL SET
90179-12071	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
Common parts
90159-50199
90168-40113
Linked diagrams
8401

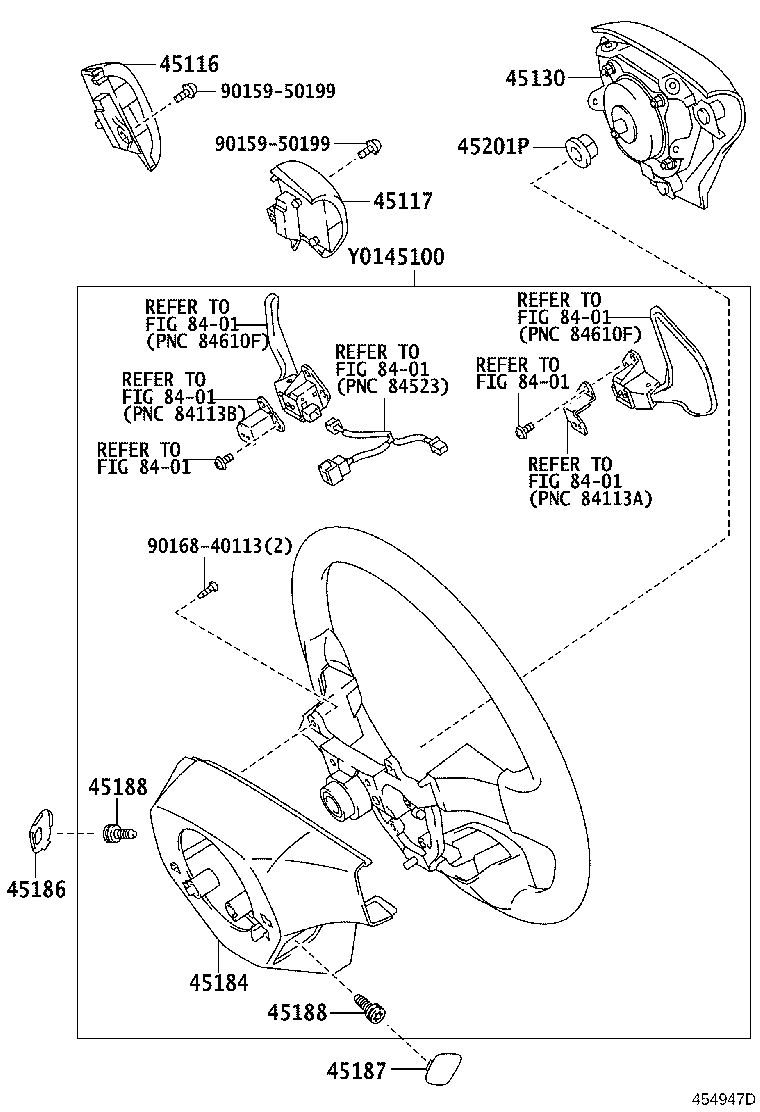

(0706- )G,S,TRASX,V,X,YY,Z

Click highlighted areas on diagram

4-ｽﾎﾟｰｸ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-28470B0	ZRR7#..HTWVM..(CBU,IV5) 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28450E0	ZRR7#..NOAH..X..(CBU,IV5) 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,GREGE,TRIM4#	06/2007 - 04/2010	1
45100-28480B0	ZRR7#..V 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28450B0	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45100-28480E0	ZRR7#..S 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-28030	ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)&HDD DVD 9ｽﾋﾟｰｶｰﾅﾋﾞｹﾞｰｼｮﾝ	06/2007 - 04/2010	1
45107-28030	ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ)	06/2007 - 04/2010	1
45107-28030	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)	06/2007 - 04/2010	1
45107-28030	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) HDD DVD 9ｽﾋﾟｰｶｰﾅﾋﾞｹﾞｰｼｮﾝ	06/2007 - 04/2010	1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-28050	ZRR7#..HTWVM..(CBU,IV5)	06/2007 - 04/2010	1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-28050	ZRR7#..HTWVM..(CBU,IV5)	06/2007 - 04/2010	1
45130 - BUTTON ASSY, HORN
45130-28590B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45130-28580E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45130-28580B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45130-28580E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-12350B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45184-28150B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45184-28150E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45184-28150E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-28080E0	ZRR7#..NOAH..X..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45186-12020B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28080E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45186-28090B0	ZRR7#..V DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28080B0	ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-12010B0	ZRR7#..HTWVM..(CBU,IV5) 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ),DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45186-28090B0	ZRR7#..S,Z 有り(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ),DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-28040B0	ZRR7#..(S,TRASX,V,X,YY,Z)..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187-12020B0	ZRR7#..HTWVM..(CBU,IV5) DK.GRAY,TRIM1#	06/2007 - 04/2010	1
45187-28040E0	ZRR7#..S S“G Edition” *(A),GREGE,TRIM4#	06/2008 - 04/2010	1
45187-28040E0	ZRR7#..NOAH..(G,X)..(CBU,IV5) GREGE,TRIM4#	06/2007 - 04/2010	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	ZRR7#..CBU,IV5 長さ=18	06/2007 - 04/2010	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	ZRR7#..CBU,IV5 長さ=18	06/2007 - 04/2010	2
45201P - NUT, STEERING WHEEL SET
90179-12071	ZRR7#..CBU,IV5	06/2007 - 04/2010	1
Common parts
90159-50199
90168-40113
Linked diagrams
8401

ZRR70W-ARXSP5 (2007)

(0706-1004)HTWVM

(0706- )G,S,TRASX,V,X,YY,Z
