ZRR70W-ARXSP5 (2007)

Toyota Noah/Voxy

Production Jun 2007 - Apr 2010
Engine 3ZRFAE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0706- )ZRR70

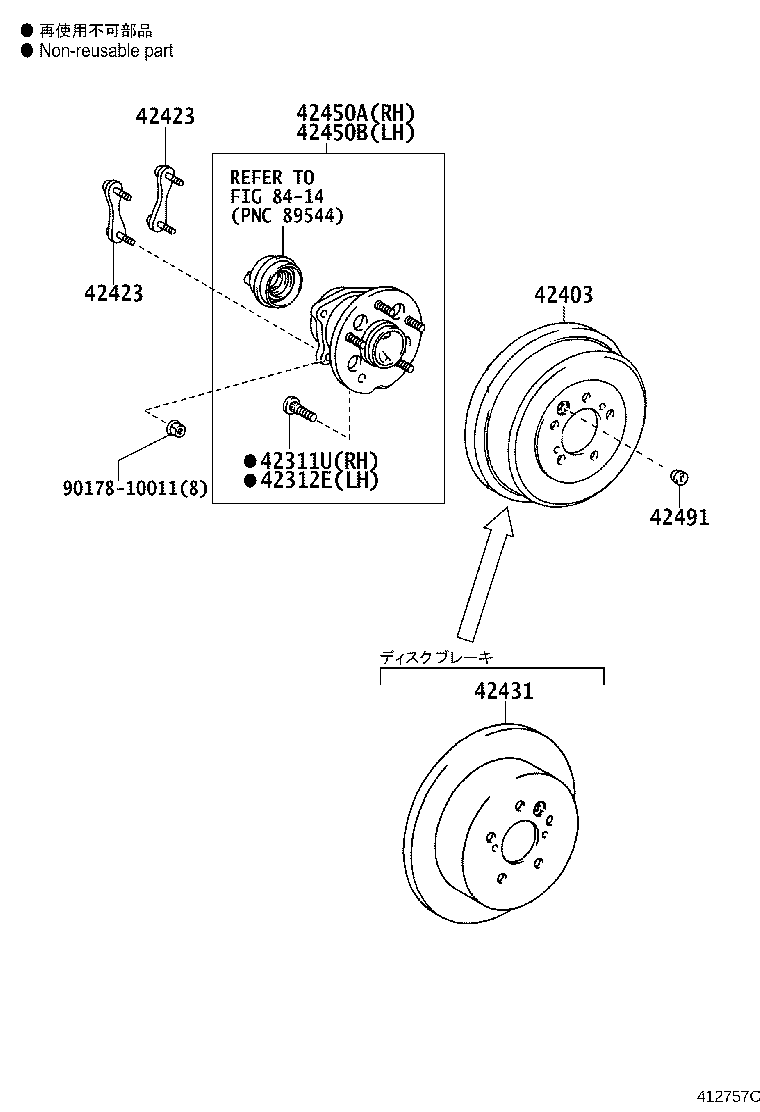

Click highlighted areas on diagram

diagram 42311U 42312E 42403 42423 42423 42431 42450A 42450B 42491 8414 9017810011
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

ZRR7#..CBU,IV5

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

ZRR7#..CBU,IV5

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28100

ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-28020

ZRR70..CBU,IV5

 4
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-28020

ZRR70..CBU,IV5

 4
42431 - DISC, REAR
42431-28140

ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)

 2
42431-28140

ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

VSC−有り

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-28040

ZRR70..CBU,IV5

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-28040

ZRR70..CBU,IV5

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)

 2
47491-14010

ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

 2
47491-22020

ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)

VSC−有り

 2
Common parts
90178-10011
Linked diagrams
8414
